Automatic rotary 5L pure water filling machine production line big bottle filling capping machine details

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

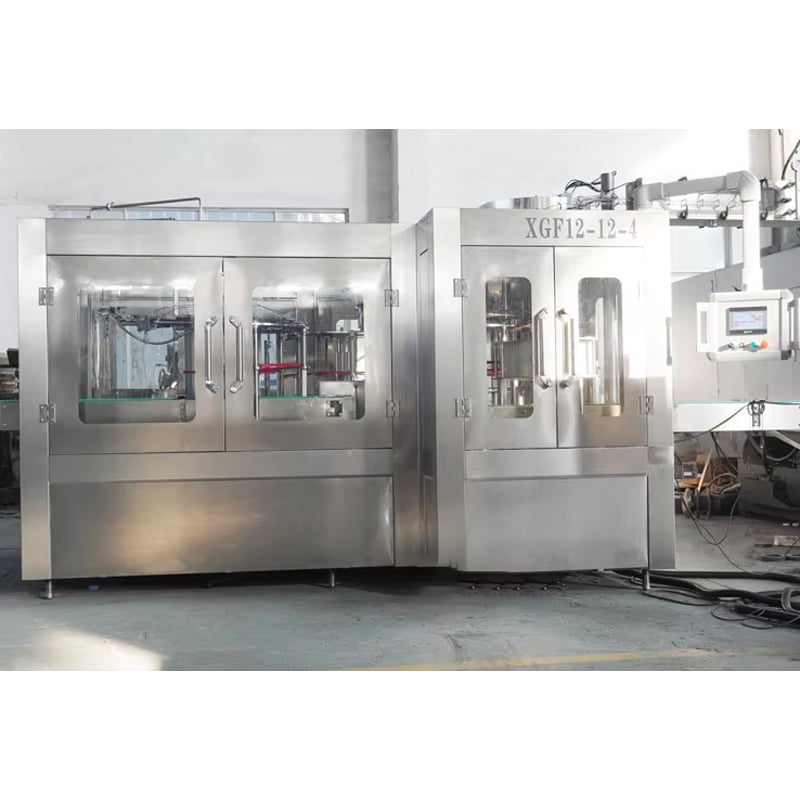

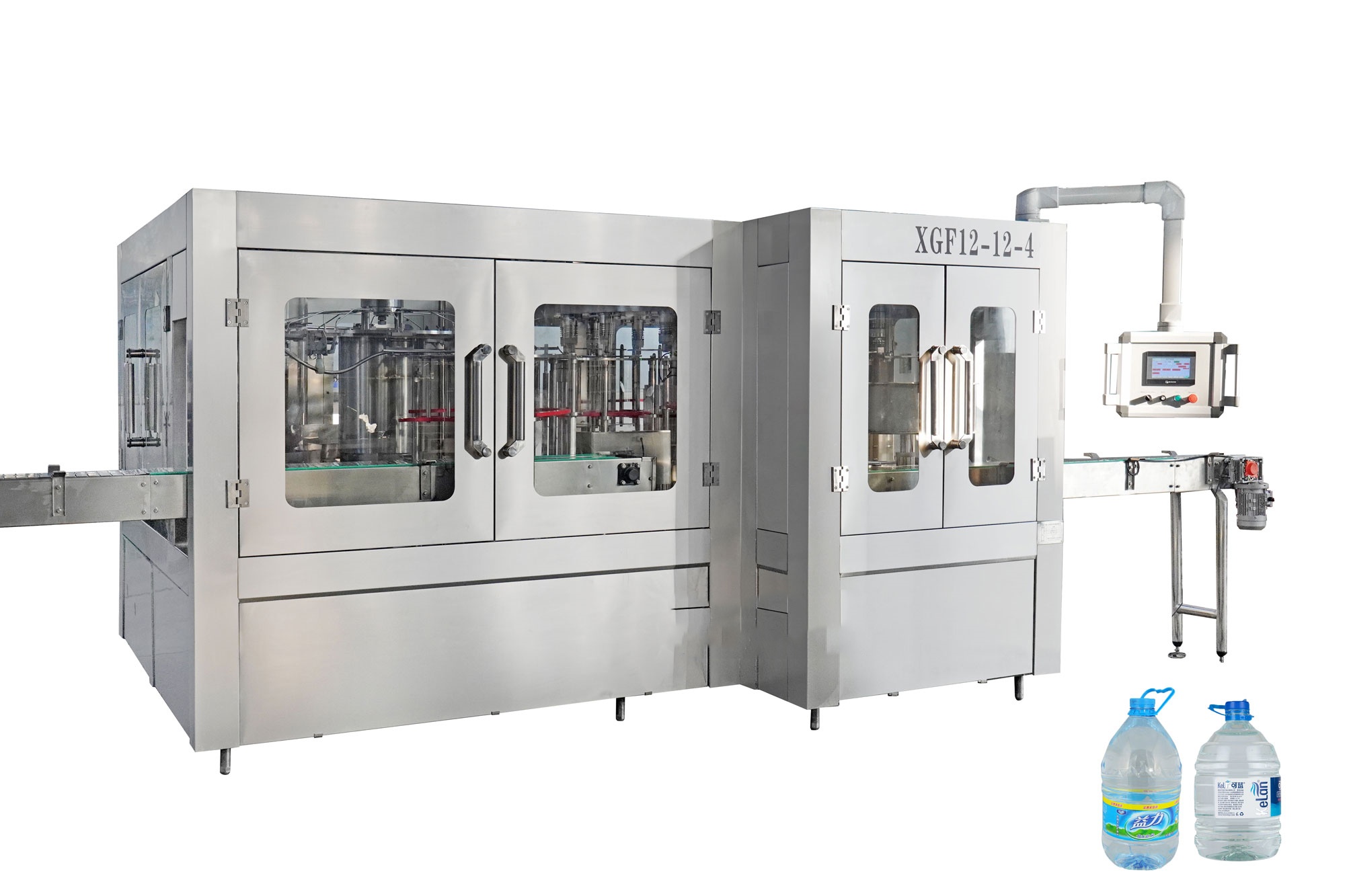

XGF12-12-4 5l 10l 15l Water Washing Filling Capping Machine Production Line

5-15L one time usage bottle water is very popular all over the world, so we manufacture this automatic 3 in 1 water washing filling capping machine.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable when you want to produce from 5L to 12L or 15L bottle.

It adopts new micro-negative pressure filling, stable and reliable. Compared with other same model same specification machines, the benefit of our machine is stable and strong machine structure, the materials is very real.

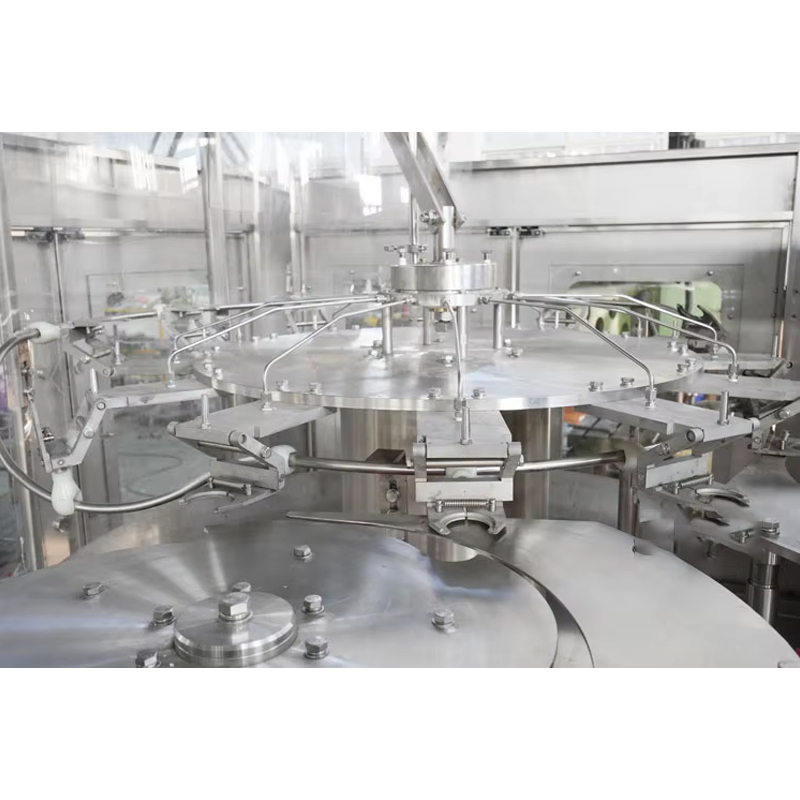

Washing part

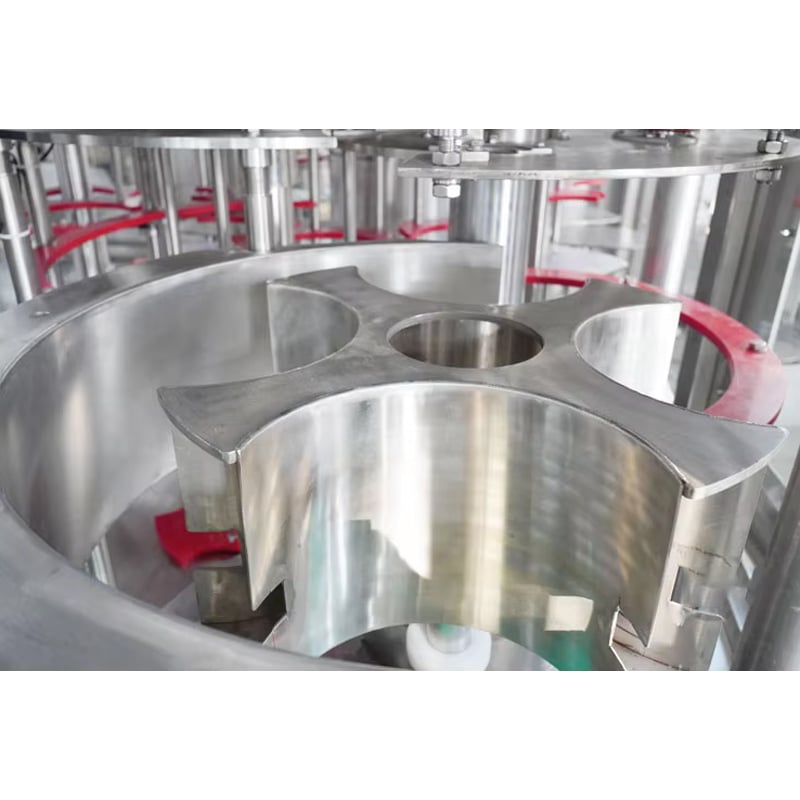

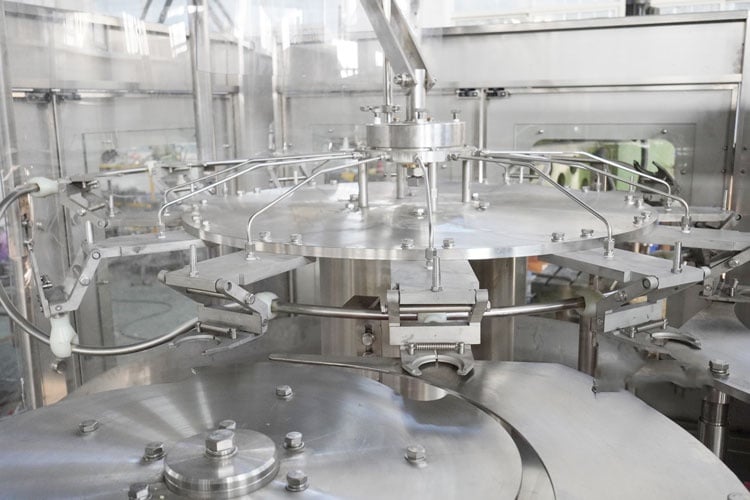

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

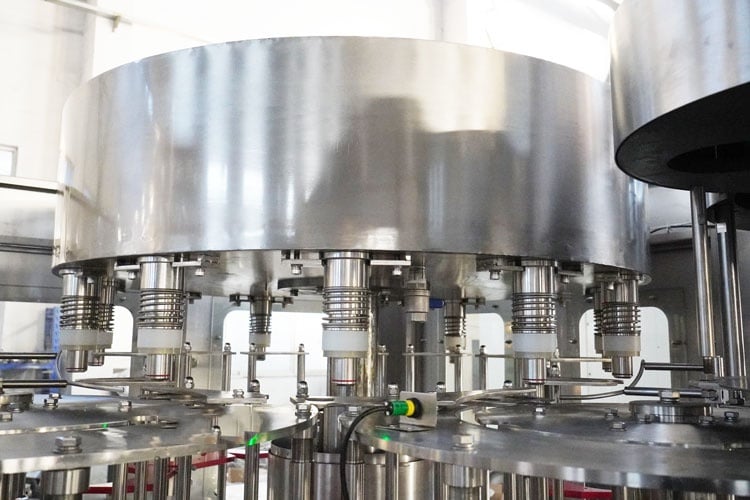

Filling part

Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

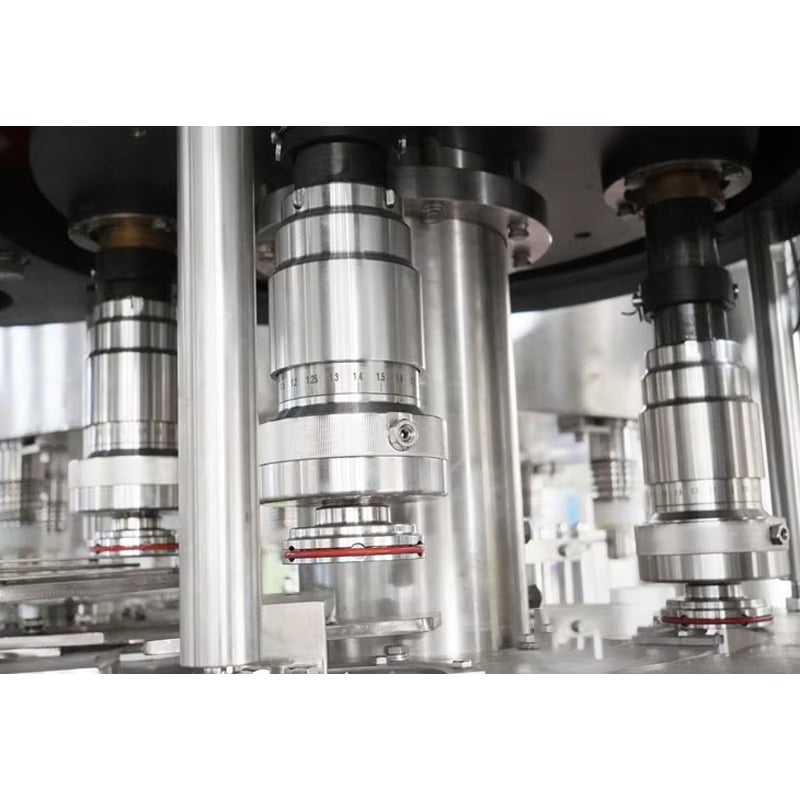

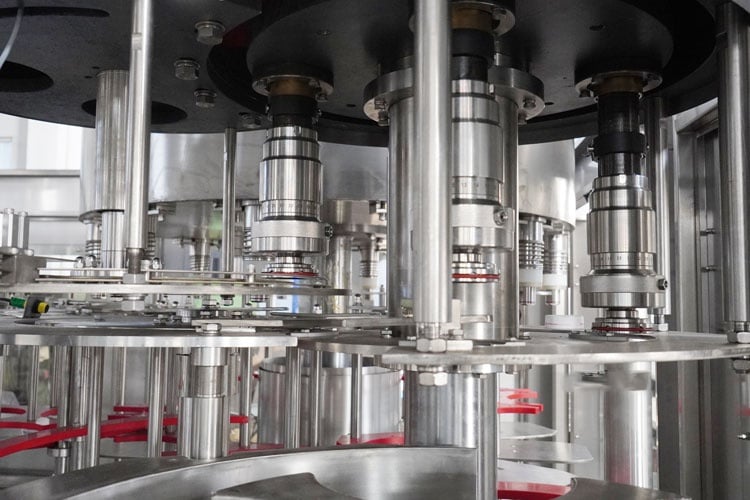

Capping part Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads

The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Main technical parameter

Model	XGF 8-8-3	XGF 12-12-4	XGF 16-16-6	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12
Capacity(5000ml/BPH)	800	1200	2000	2500	12000	14000	16000
Suitable bottle shape and size	Both round of square bottle, 300ml-15000ml
Compressed air pressure	0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	6.0	8.0	11.0	4.5	5.5	7.5
Dimension(mm)	300023002300	420029002300	540029002300	650029002300	270021002300	297022602700	378028002700
30Weight(KG)	2000	5000	7000	8000	4500	6500	8500

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

Turnkey Solution


Company Profile

Automatic rotary 5L pure water filling machine production line big bottle filling capping machine supplier

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."

GRANDEE MACHINE

Introducing the all-new Automatic rotary 5L pure water filling machine production line big bottle filling capping machine. This state-of-the-art machine is designed to bring effective and efficient production to your business. The high-quality machine is carefully engineered to provide seamless filling and capping functions for the production of pure water.

Made to offer precision is high and it can fill the bottles quickly without the spillage. The GRANDEE MACHINE product’s capacity is formidable as it could fill up to 800 containers each hour. This production is reliable is better for organizations that need a top amount of bottled water without investing too much time within the stuffing process. with this, companies are now able to automate the entire stuffing and capping process for optimum efficiency and effectiveness.

GRANDEE MACHINE is just a brand name is reputable for creating top-quality machines and this item is not an exclusion. The standard of this device speaks for the reputation is brand’s durability, and longevity. It comes with a robust Stainless-steel that ensures it persists for a long time with no signs of wear and tear. Designed for maximum hygiene as the top-quality materials ensure that it does not corrode, rust, or harm effortlessly.

Control is computerized, rendering it easy to operate. Its user-friendly program means you don't need any training is technical run the device. Features a touch screen that displays its operating status and parameters being running. It includes a high-definition digital camera is digital provides real-time tabs on the filling process, ensuring maximum accuracy and persistence during manufacturing.

Get your Automatic rotary 5L pure water filling machine production line big bottle filling capping machine from GRANDEE MACHINE today and take your water production to the next level.
