GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-3

Automatic Rotary Full Servo Electronic CAM Three Labels Station Sticky Labeling Machine

Key Features:
✅ Precision Labeling – Rotary encoder connection with learning function for automatic dimension measurement, achieving ±0.2mm accuracy.
✅ Automatic Tracking – Speed & labeling position auto-track, no manual adjustment needed.
✅ Anti-Slip Base – Concave-convex stripes prevent bottle slippage, ideal for glass bottles.
✅ GMP Compliant – 304 stainless steel + aluminum alloy, never rusts, meets food hygiene standards.

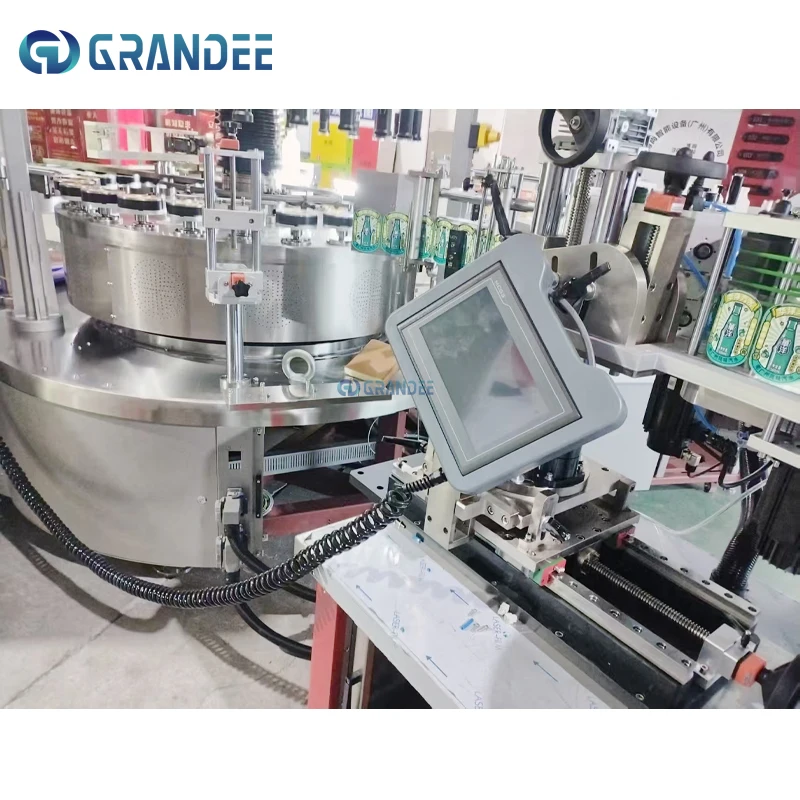

✅ 270° Adjustable Touchscreen – User-friendly design for easy operation.
✅ Heavy-Duty Bottom Cups – 304 stainless steel with 4 bearings, two-stage waterproof & oil-proof.
✅ Anti-Explosion Protection – Stops machine on bottle jam, prevents debris entry.

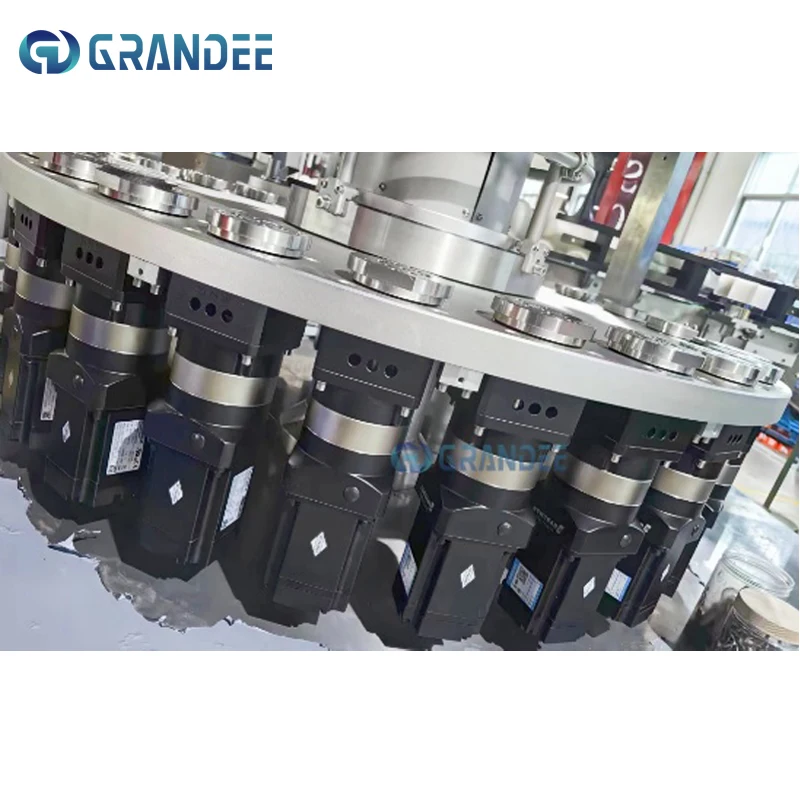

✅ Servo-Controlled Bottle Holder – Powered by servo motor & electronic CAM for pre
Why Choose Our Machine?
🔹 Container-Adaptive Technology - Uses bottle contours for 100% reliable positioning
🔹 Cost-Saving Performance - Cuts production costs while doubling labeling speed
🔹 Future-Ready Design - Handles emerging bottle designs with quick reconfiguration
Need customization for specific bottle materials? Contact us for a tailored solution!

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-4

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-5

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-6

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-7

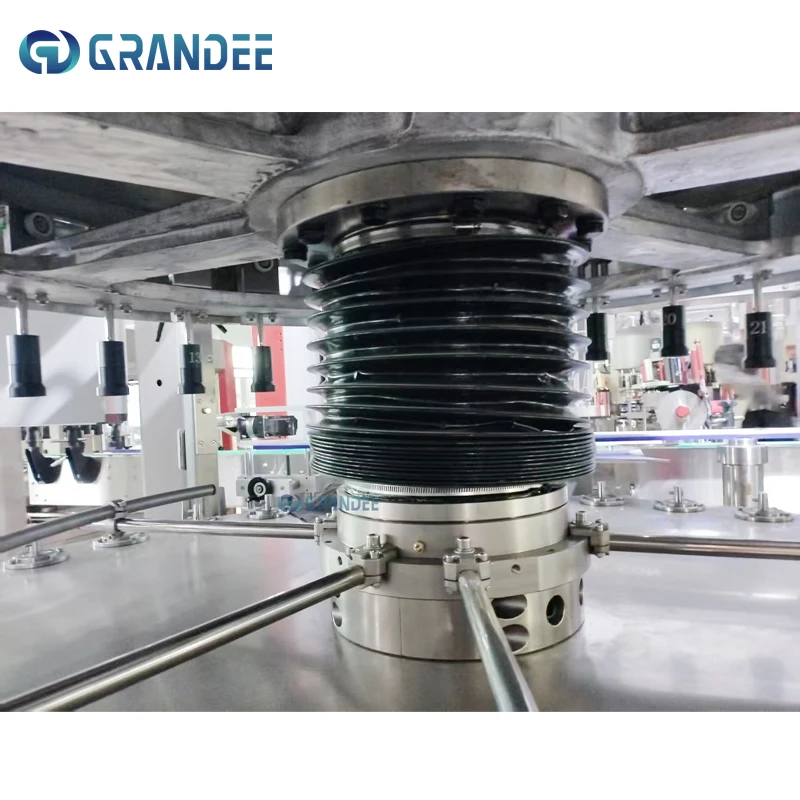

Rotary Cam-Driven Labeling Turret

The 3mm 304 stainless steel side frame accepts custom conveyor supports per client drawings. The top support forms a triangle with two guide pillars and a central shaft. The rotary drive uses a SEW AC motor (Germany) with Danfoss VFD. Other features include press head drive, base drive, and height adjustment.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-8

Base & Infeed Mechanism

The base features a textured anti-slip design with raised grooves to boost friction, preventing bottle slippage (ideal for glass bottles) and ensuring labeling accuracy without scratching containers. The infeed bottle stop mechanism protects the screw mechanism from damage.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-9

Single bottle can use screw free bottle feeding mechanism: it is our company's patented technology.Design, suitable for PET round bottles, to avoid scratching the bottle body.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-10

Infeed Mechanism and Starwheel

Dual-screw design solves difficult separation of conical products for smooth square/tapered bottle infeed. Servo-controlled screw system ensures precise positioning. Polished nylon screws minimize bottle scratching.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-11

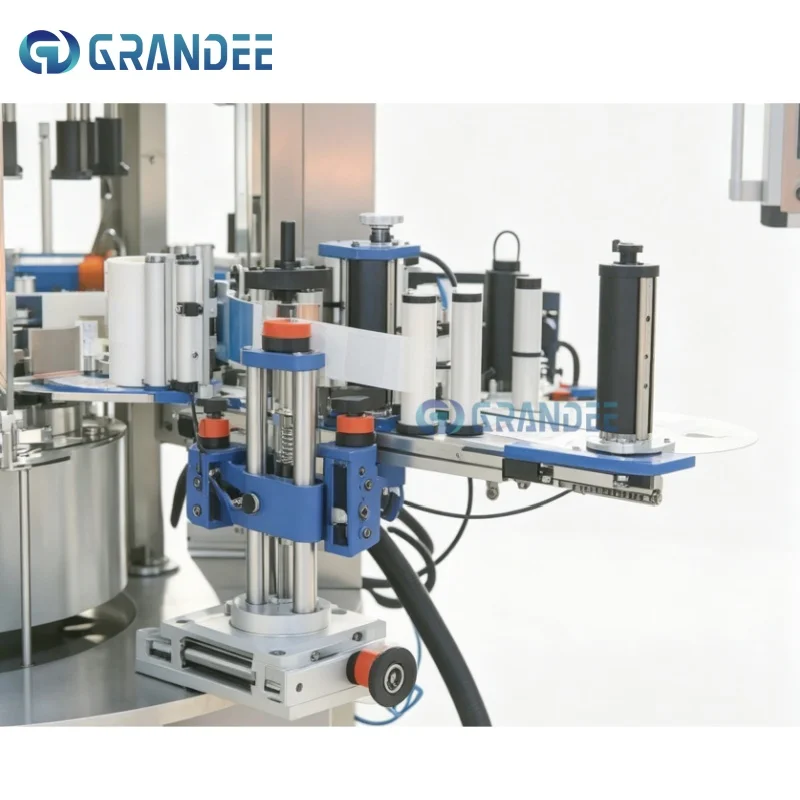

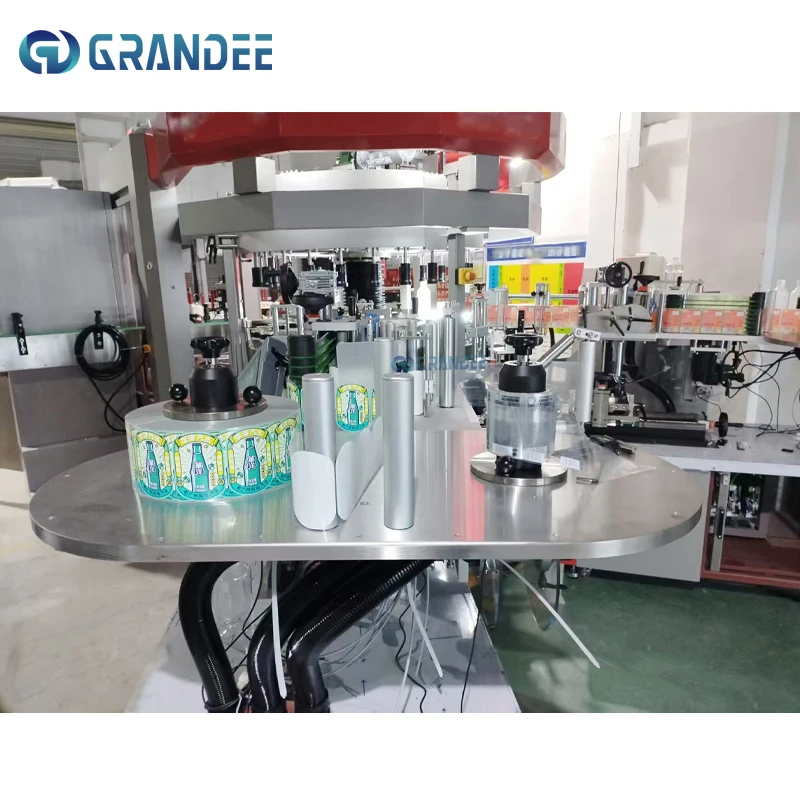

High-Speed Dispensing Station and Liner Buffer Mechanism

• High-Speed Dispensing Station: Bosun patented design, reinforced rigidity, multi-dimensional adjustment. Two high-power servo motors – one dedicated to independent liner rewind for fast, stable dispensing.
• Servo-controlled with VFD speed regulation, prevents liner winding on long labels.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-12

Machinery specification	GD-AL/8S/3L
Machinery Power	8KW
Operating Voltage	380V 50HZ 3P or can be customized
Number of Labeling Stations	Three High-Performance Labeling Stations
Compatible Bottle Types	Customer designated Bottle
Compatible Bottle Dimension	Produce diameter 30-150mm
Label Roll Dimensions	Insider diameter:76mm Outsider diameter :360mm
Label Orientation and Label Pitch	Inner wound roll, label dispensing from left side, constant pitch is 3mm
Compatible Label Length	Wrap-Around Labeling 220mm，Partial Wrap Labeling less than 100mm
Compatible Label Height	100-350mm
Bottle Clamping Head	8pcs
Stability output	5000bottle/per hour for 750ml
External Dimensions	220016002365mm
Net Weight	2000kg
Label Gap	Constant Pitch 3mm
Device orient	Standard left infeed, right outfeed. Reverse layout requires custom order.

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-13

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-14

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-15

Juice filling machine

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-16

Carbonated drink filling machine

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-17

Automatic soft drink production line

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-18

Mixed fruit juice mixing system

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-19

Mineral water filling machine

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-20

Bottle filling packaging machine

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-21

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-22

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-23

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

Exhibition

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-24

Customer Acceptance Report

product full servo automatic cam three labels station label sticker sticky labeling machine for beverage bottles-25

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."
