Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line
Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line

Automatic Glass Bottle Washing Filling Capping Machine Beer Wine Spirits Liquor Beverage Bottling Line

Spu:
1601831281477
Get a Quote
  • Parameter
  • Related products
Parameter
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-3
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-4

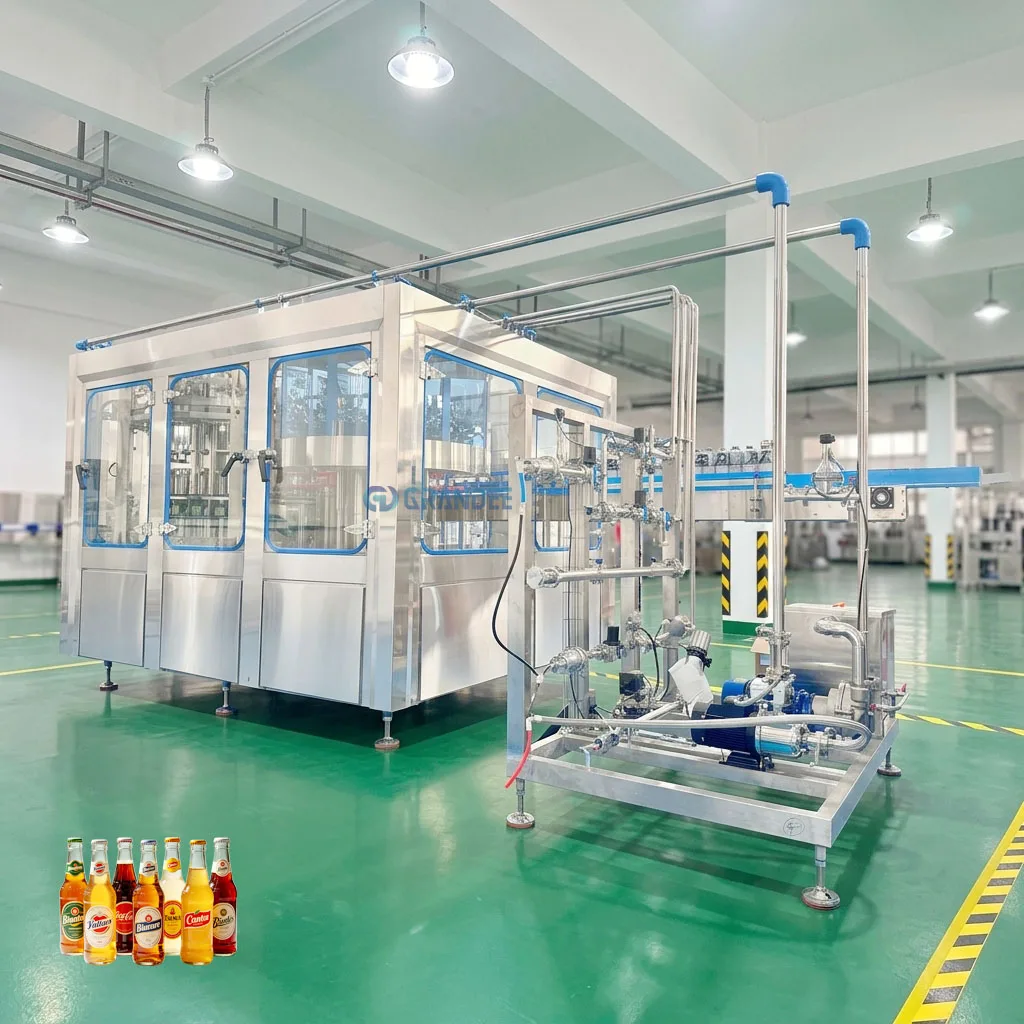

Automatic 24 head Beer Bottle Filling Machine
✅ 24 filling heads – 5000-6000 BPH (500ml)
✅ Less oxygen, fresher beer – Double pre-evacuation removes air, CO₂ back-flushing protects flavor.
✅ Longer shelf life – Prevents oxidation, keeps original taste.
✅ Hygienic operation – Foam separator stops liquid carryover, protects vacuum system.
✅ Stable production – Sanitary pump set ensures clean, reliable filling.
👉 Send inquiry for beer filler price & technical support
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-5
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-6

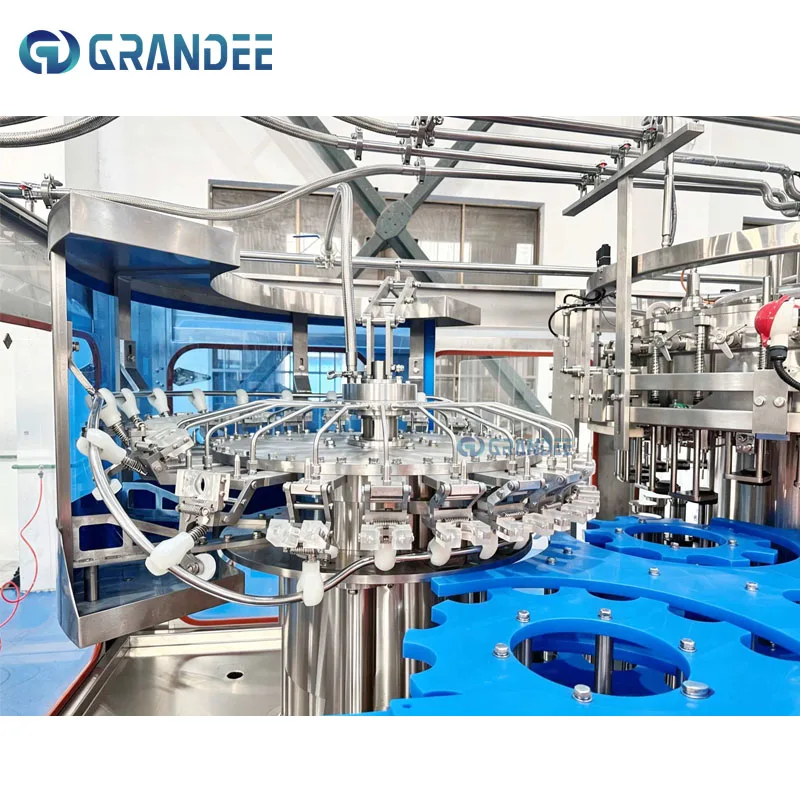

Washing part
1. Rotary bottle rinsing station for beer glass bottles, with grippers for automatic inversion and rinsing.
2. Stainless steel housing of the monoblock filler, with hygienic enclosure for the filling/capping units.
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-7

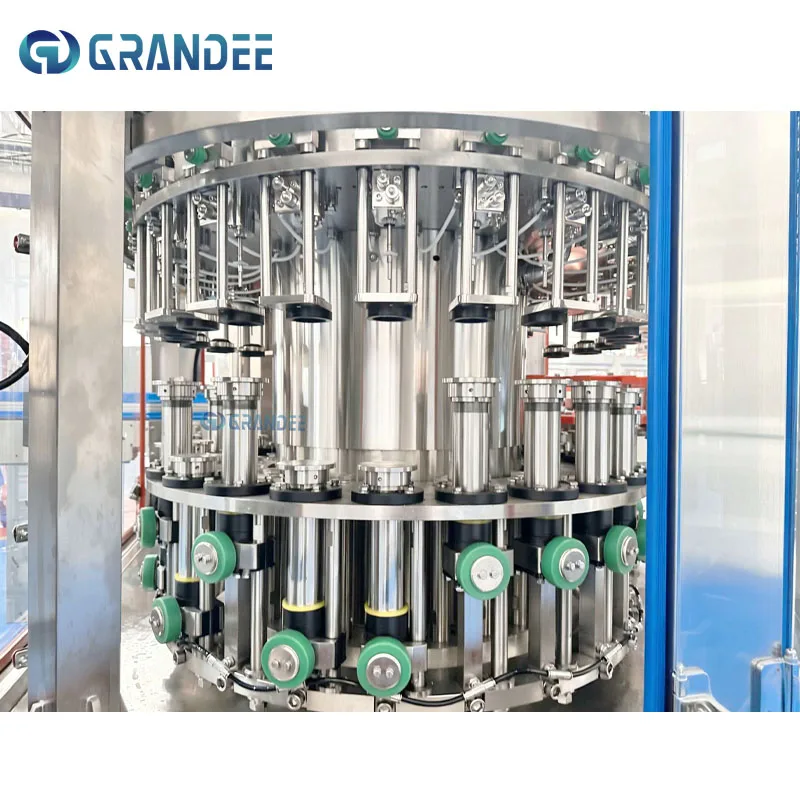

Filling part
Pre-pressurized filling prevents foaming and CO₂ loss, ensuring accurate dosing and flavor preservation. SUS304 food-grade construction for hygienic high-speed production.
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-8

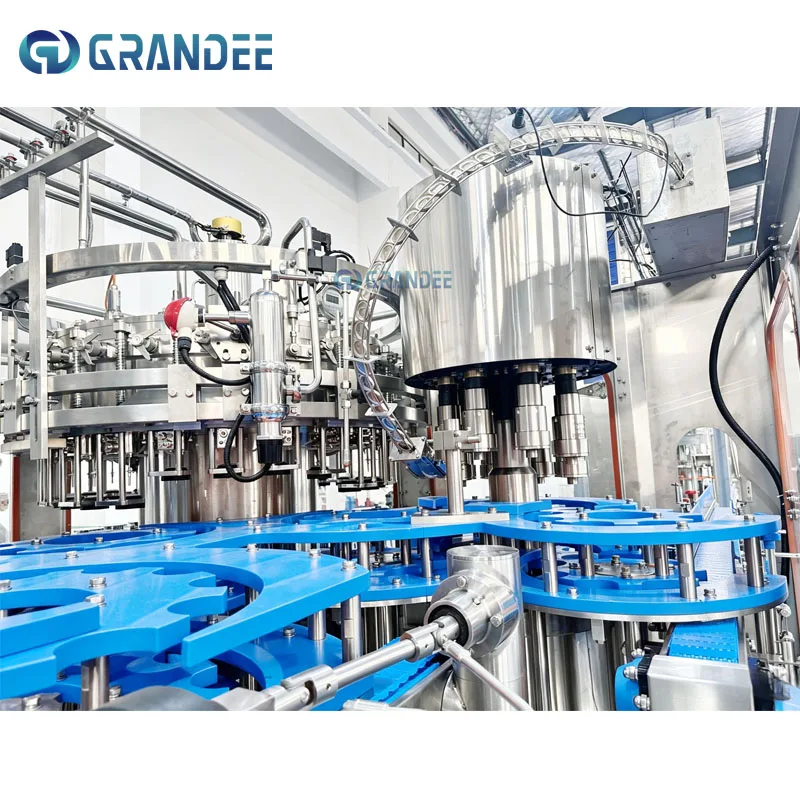

Capping part
Rotary filling & capping station + automatic crown cap elevator, complete solution for high-efficiency glass bottle
beer/carbonated beverage production.
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-9
Beer Filling Valve – Pre-Vacuum + CO₂ Back-Flushing
• Prevents beer oxidation – Pre-vacuum removes bottle air, CO₂ back-flushing minimizes dissolved oxygen. Keeps fresh flavor longer.
• Protects your production line – Integrated foam separator & sanitary pump prevent liquid carryover and contamination.
• Extends shelf life – Maintains original beer taste and quality for longer storage.
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-10
Model
DXGF
12-12-5
DXGF
18-18-6
DXGF
24-24-8
DXGF
32-32-10
DXGF
40-40-10
DXGF
50-50-12
DXGF
60-60-15
DXGF
72-72-18
Production Capacity(500ml b/h)
2000
3000-4000
5000-6000
7000-8000
9000-10000
11000-12000
20000
25000
Filling Material
All kinds of carbonated drinks like beer,carbonated soda etc. contained in glass bottle
Filling Precision
≤ ±1mm(Liquid Level)
Suitable Bottle Standard
Bottle Diameter: Φ50-100mm
Bottle Height: 150-320mm
 Suitable CapStandard
Aluminum cap, Crown cap etc.
Compressed
AirPressure
0.3-0.7Mpa
Washing water pressure
0.25Mpa
Motor Power
4.5kw
5.5kw
5.5kw
7.5kw
9kw
9kw
11kw
13kw
Dimension (mm)
1700*1700*2200
2000*1900*2200
2200*2100*2200
2500*2300*2400
3000*2800*2400
3600*2800*2400
5500*3000*2400
6000*4500*2400
Weight (kg)
1,000
1,600
2,300
3,000
5,000
8,500
9,500
12,000
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-11
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-12
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-13
Juice filling machine
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-14
Carbonated drink filling machine
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-15
Automatic soft drink production line
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-16
Mixed fruit juice mixing system
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-17
Mineral water filling machine
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-18
Bottle filling packaging machine
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-19
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-20
Automatic OPP BOPP hot melt Glue labeling machine
This automatic BOPP labeling machine offers exceptional versatility for various container and label materials. Its modular design ensures quick changeovers, while the PLC-controlled system guarantees efficient, high-volume production at a low per-label cost.
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-21
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
Exhibition
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-22
Customer Acceptance Report
product automatic glass bottle washing filling capping machine beer wine spirits liquor beverage bottling line-23
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements.
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
For more information, please feel free to contact us tosend an inquiry!
