Automatic mineral liquid water filling machine production line for 500ml small plastic bottle

Automatic mineral liquid water filling machine production line for 500ml small plastic bottle

Parameter
Related products

Parameter

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions

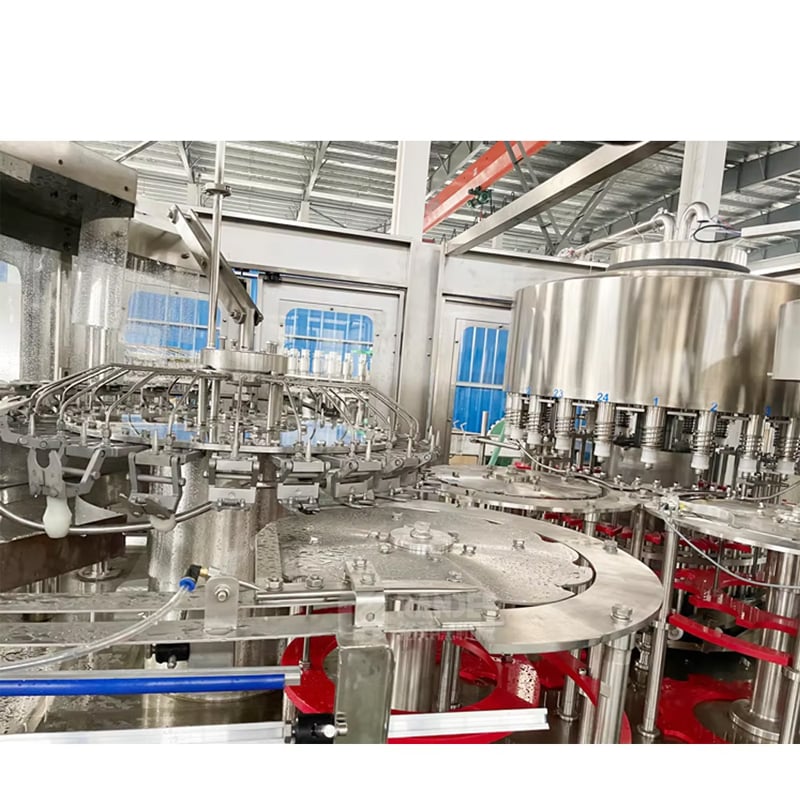

Products Description 3155d59cb761f3fe9d1cdd1c01f01f9f8f0bb05b799d88e7f5dd25428e90c89f.jpg Mineral Pure Water Filling Production Machine(1) water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line
(2) The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3) The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4) The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5) The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

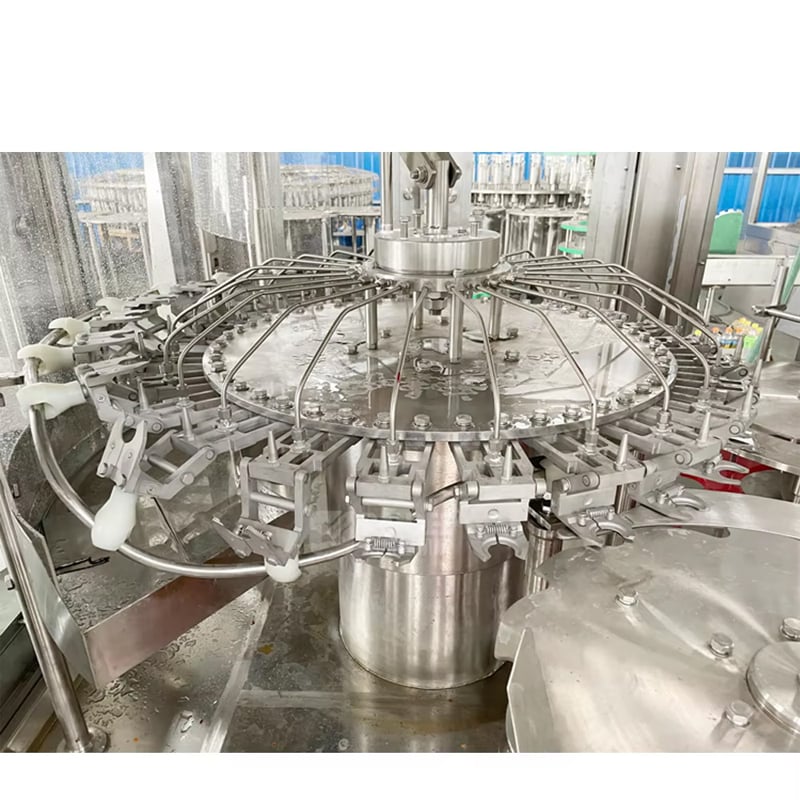

(6) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum Washing partThe grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling partLong tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic Automatic mineral liquid water filling machine production line for 500ml small plastic bottle details
Capping partRotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Main technical parameter

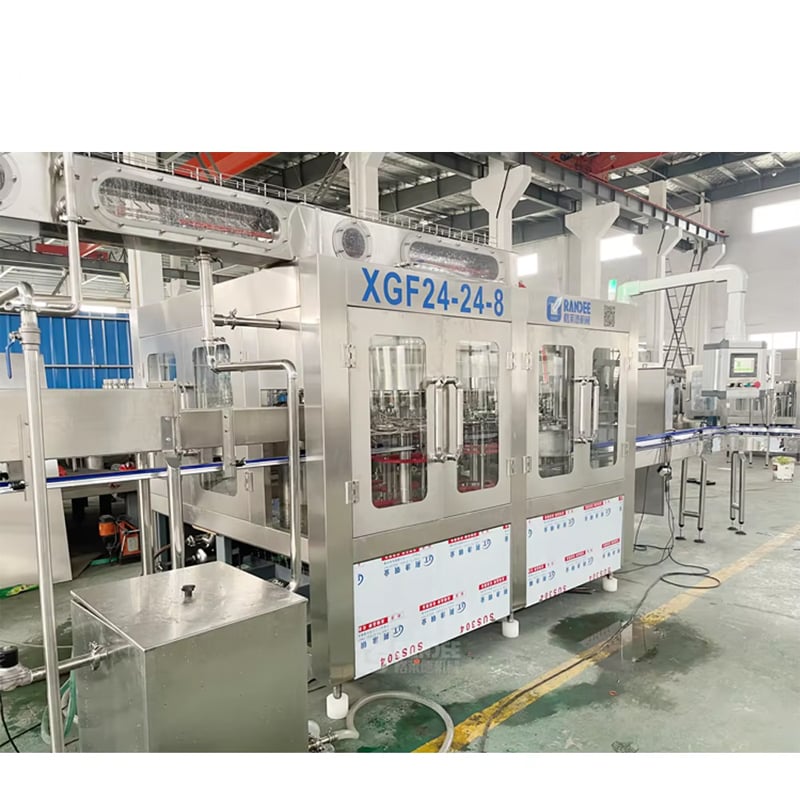

Model	XGF 8-8-3	XGF14-12-5	XGF16-16-6	XGF18-18-6	XGF24-24-8	XGF32-32-10	XGF40-40-12
Capacity(500ml/BPH)	2000	3000	4000	8000	12000	14000	16000
Suitable bottle shape and size	Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	4.5	5.5	7.5
Dimension(mm)	200016002300	220018002300	240019002300	250020002300	270021002300	297022602700	378028002700
Weight(KG)	2000	2500	3000	3500	4500	6500	8500

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry
Turnkey Solution c1a451e581129fa4d15c966e6aef00e9110a3f7defee05aae4e9b1976295cbe6.jpg Automatic mineral liquid water filling machine production line for 500ml small plastic bottle manufacture Company ProfileGRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."

For more information, please feel free to contact us to send inquiries!

Introducing, the Automatic Mineral Liquid Water Filling Machine Production Line from Grande Machine, designed to meet the increasing demand for small plastic bottled water products. This machine is a reliable and efficient option for businesses looking to improve their production process and increase profitability.

Built with high-quality materials, this stuffing machine was designed to withstand the rigors of daily usage, using its ergonomic design and controls making it ideal for businesses of all sizes.

It features advanced technology that ensures the filling process is accurate, with every 500ml little plastic bottle being filled towards the exact level specified by the operator. The stuffing nozzles are constructed from stainless steel to ensure that they remain hygienic and are easy to clean between production runs.

One of the standout features of this machine is its versatility. It can handle numerous fluids, including mineral water, juice, and other beverages. This means businesses can switch between item easily with no need for expensive updates or improvements.

Setup is just a breeze aided by the automated capping, which ensures that every bottle is tightly sealed before it leave the production line. This helps to prevent spills and leaks, reducing waste and enhancing the efficiency for the bottling procedure.

Other top features of the Automatic Mineral Liquid Water Filling Machine Production Line from Grande Machine include an automatic labeling that can be personalized to suit specific branding requirements, and an integrated quality control system that assures every bottle leaving the manufacturing line meets strict quality requirements.

Also, it was made to be energy-efficient, with low power consumption and simple upkeep, making running costs remain low while efficiency remains high.

If you're looking for a reliable, efficient, and versatile solution for your small plastic bottled water production needs, look no further than the Automatic Mineral Liquid Water Filling Machine Production Line from Grande Machine. With its top-quality construction, precision filling and capping, and flexible design, this machine is the perfect choice for busy businesses looking to improve their bottom line.
