The GRANDEE MACHINE ingesting 5-gallon completing bottling line could be the perfect solution for just about any mineral liquid plant this is really trying to boost their manufacturing ability and enhance the quality of their services and products, completing is its user-friendly design. This liquid 20L range is perfect for the efficient filling, closing, and delivering of 5-gallon liquid bottles.
Employing this bottling line will assist you to make sure your water production process can be as hygienic as you possibly can, once the device consists of high-quality metallic stainless is certainly not hard to wash and continue maintaining. The range features a therapy liquid that eliminates impurities through the liquid, making certain your water bottled is for consumption.
The filling machine is loaded with a stuffing digital that guarantees the entire stuffing of every container, guaranteeing constant liquid levels and decreasing the threat of spills or wastage. The sealing system can be automatic, also making sure the limits are tightly sealed onto each container to prevent leaks and contamination. The production speed with this particular bottling range can additionally be impressive, with the ability to fill and seal just as much as 300 bottles each hour.
Which means that your plant can create large volumes of water in bottles rapidly and efficiently, helping you to fulfill using the demands of one's consumers. The gear is easy to make use of, insurance firms an impression program obvious can be simply navigated by operators. This makes it feasible for staff to monitor and obtain a grip on manufacturing process, making everything certain effortlessly and effectively.


GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10, 000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

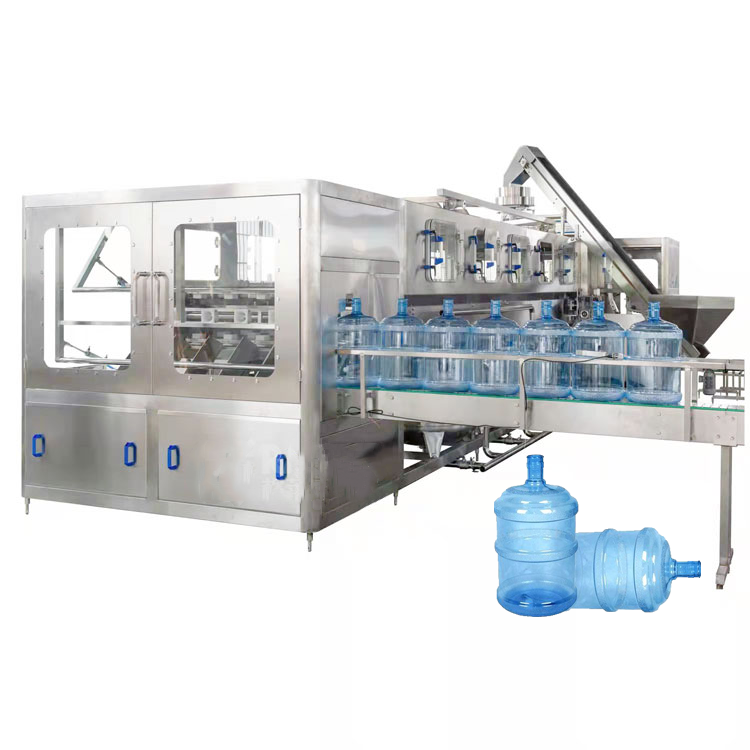

5 Gallon Mineral Pure Water Filling Production Machine

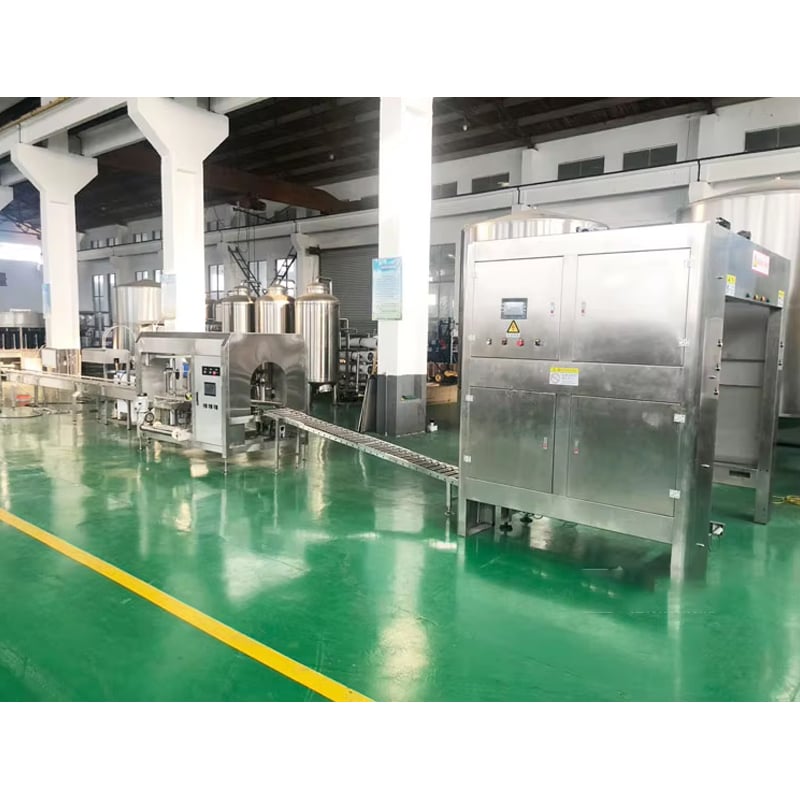

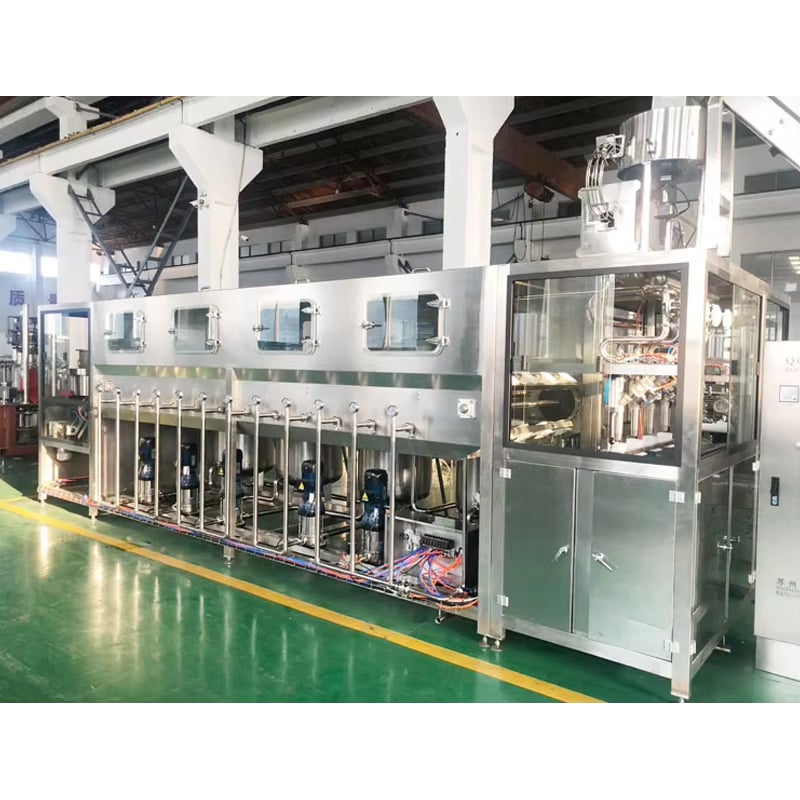

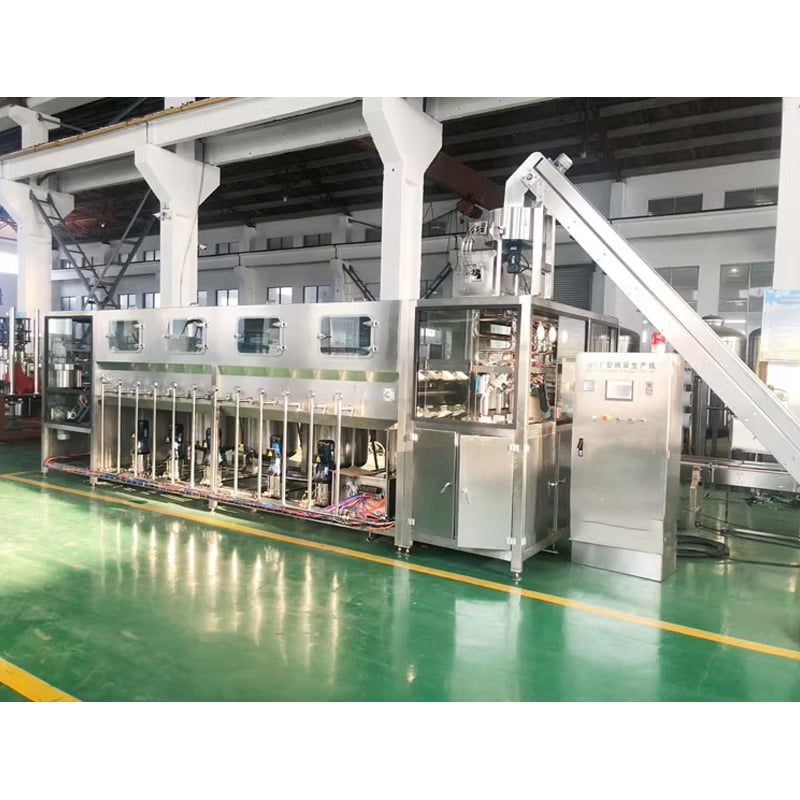

The 5 gallon water filling line specially for 3-5 gallons barreled drinking water, with type QGF-150, QGF-200, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200. It integrated bottle washing, filling and capping into one unit, in order to achieve the purpose of washing and sterilizing, The washing machine uses multi-washing liquid spray and disinfectant spray, the disinfectant can be used circularly, The capping machine can be cap barrel automatically, The line equips with water spraying device in order to ensure those caps sterile and clean, it also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, It is a new kind of barreled water auto producing line, which integrates mechanism, electricity and pneumatics technologies together

5 gallon drinking water filling bottling line mineral water plant 20l water production line details

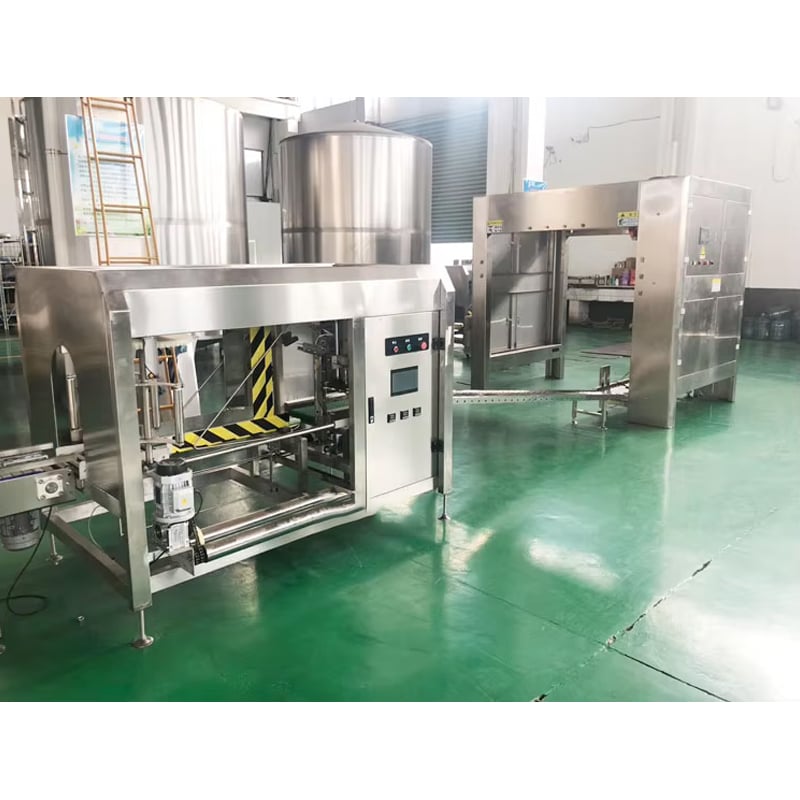

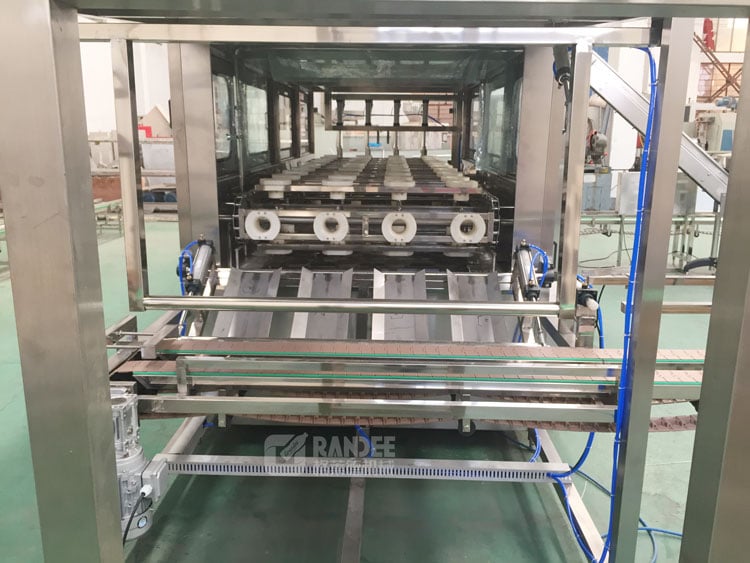

Washing part

1. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly.
2. There are five or seven flushing process: First, second steps are disinfectant, the third step: drip dry, four step: recycling water inside and outside rinsing, five step: pure water and drip dry.

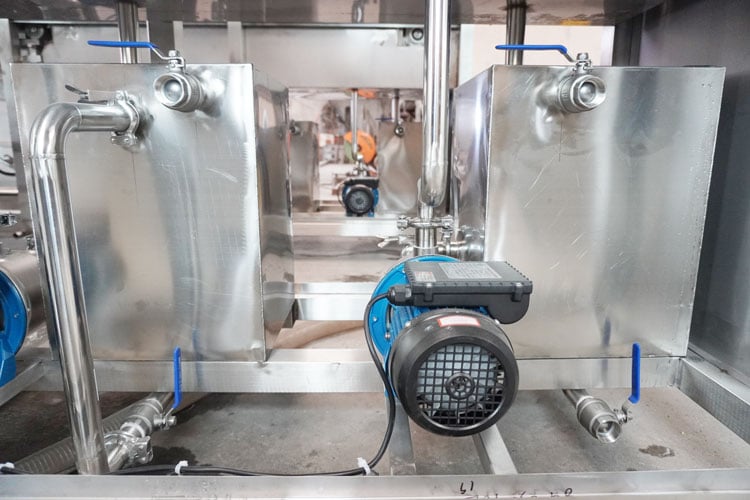

Water tanks and water pumps part 1

This filling machine has water tanks with thick strong and good quality SUS304, one is disinfectant tank, two is pure water tank, and has three good quality and good brand water pumps.

5 gallon drinking water filling bottling line mineral water plant 20l water production line manufacture

5 gallon drinking water filling bottling line mineral water plant 20l water production line details

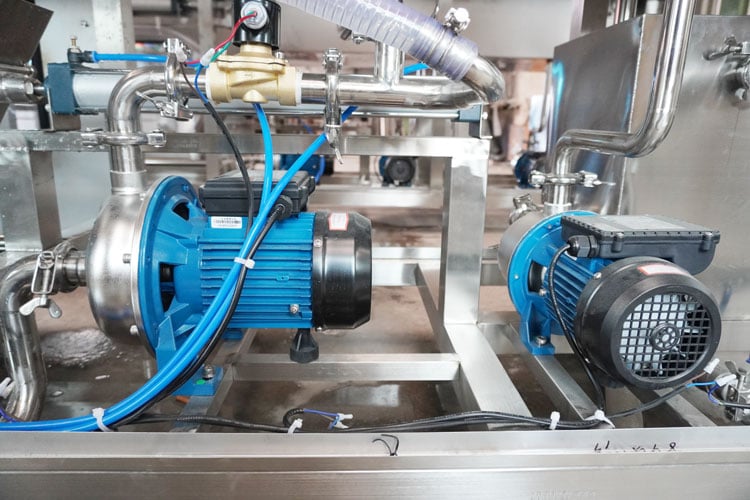

Water tanks and water pumps part 2

This filling machine has two water tanks with thick strong and good quality SUS304, and has three good quality and good brand water pumps.

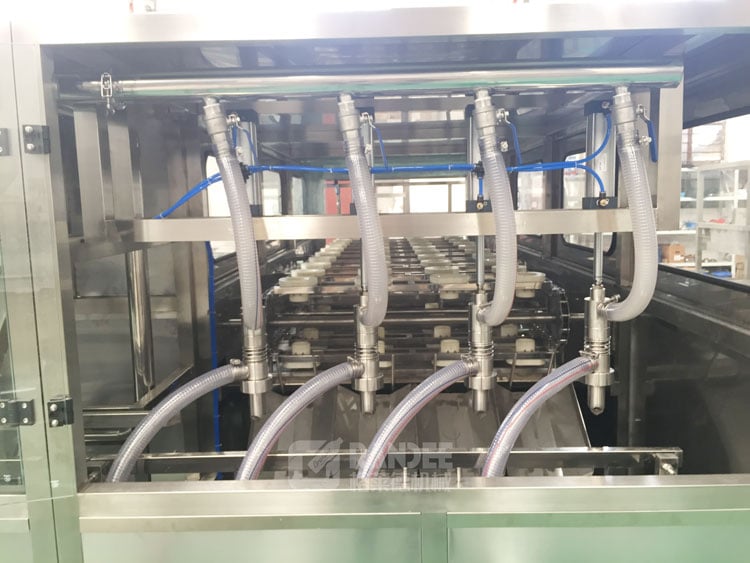

Filling sealing part

This filling machine and sealing machine working with automatic cylinder controlled, cap holding and cap hopper, use gravity filling type, full bottle filling process.

5 gallon drinking water filling bottling line mineral water plant 20l water production line supplier

5 gallon drinking water filling bottling line mineral water plant 20l water production line factory

Automatic cap unscrambler

Automatic cap unscrambler works very smooth, with function of alarm for lack of caps.

Main technical parameter

Model	QGF-120	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Capacity(500ml/BPH)	150	200	300	450	600	900	1200
Suitable bottle shape and size	18.9L bottle
Compressed air pressure	0.3-0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	2.2	2.2	2.2	4.5	5.5	7.5
Dimension(mm)	290010001800	320012002300	390012002300	500015002300	6200182300	797018002700	1078020002700
Weight(KG)	500	1500	3000	3500	4500	5500	7500

5 gallon drinking water filling bottling line mineral water plant 20l water production line manufacture

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

5 gallon drinking water filling bottling line mineral water plant 20l water production line manufacture

5 gallon drinking water filling bottling line mineral water plant 20l water production line details

1. Decapping machine 2. bottle interior and exterior washing machine 3.5 gallon washing filling capping machine 4. Sleeve shrink labeling machine 5. Bag packing machine 6. Palletizer

5 gallon drinking water filling bottling line mineral water plant 20l water production line factory

Recommend Products

5 gallon drinking water filling bottling line mineral water plant 20l water production line details

Company Profile

5 gallon drinking water filling bottling line mineral water plant 20l water production line manufacture

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

5 gallon drinking water filling bottling line mineral water plant 20l water production line details

We have a professional pre-sales support and good after-sales service team. They are good at communicating, expressing, and understanding customer’s needs. The average working experience is more than 10 years. They have rich experience for installation and debugging, and provide thoughtful services and solutions

We have laser cutting, CNC machining centers, and other various processing equipment to provide customers with precise and reliable products. The ERP system provides an important resource integration path for production management and ensures production and delivery cycles

5 gallon drinking water filling bottling line mineral water plant 20l water production line supplier

5 gallon drinking water filling bottling line mineral water plant 20l water production line manufacture

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."
