Products Description

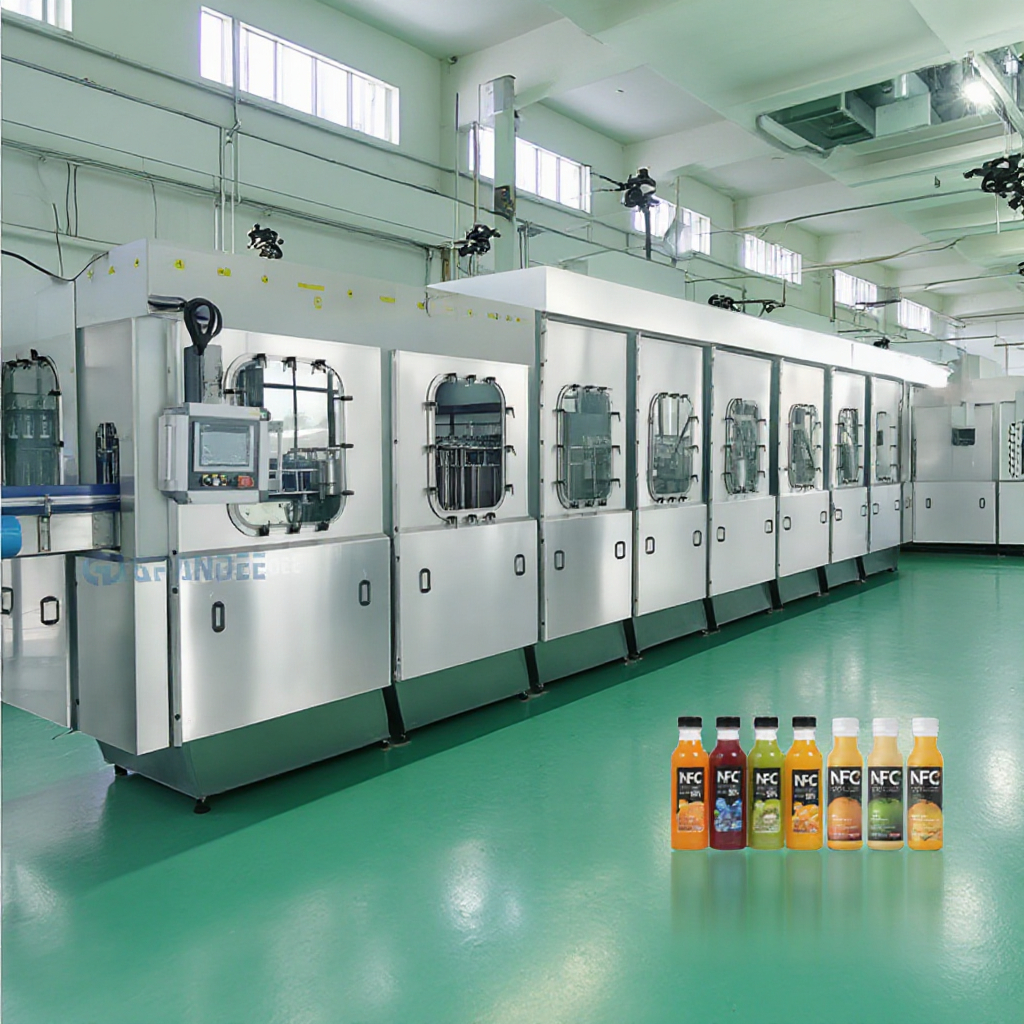

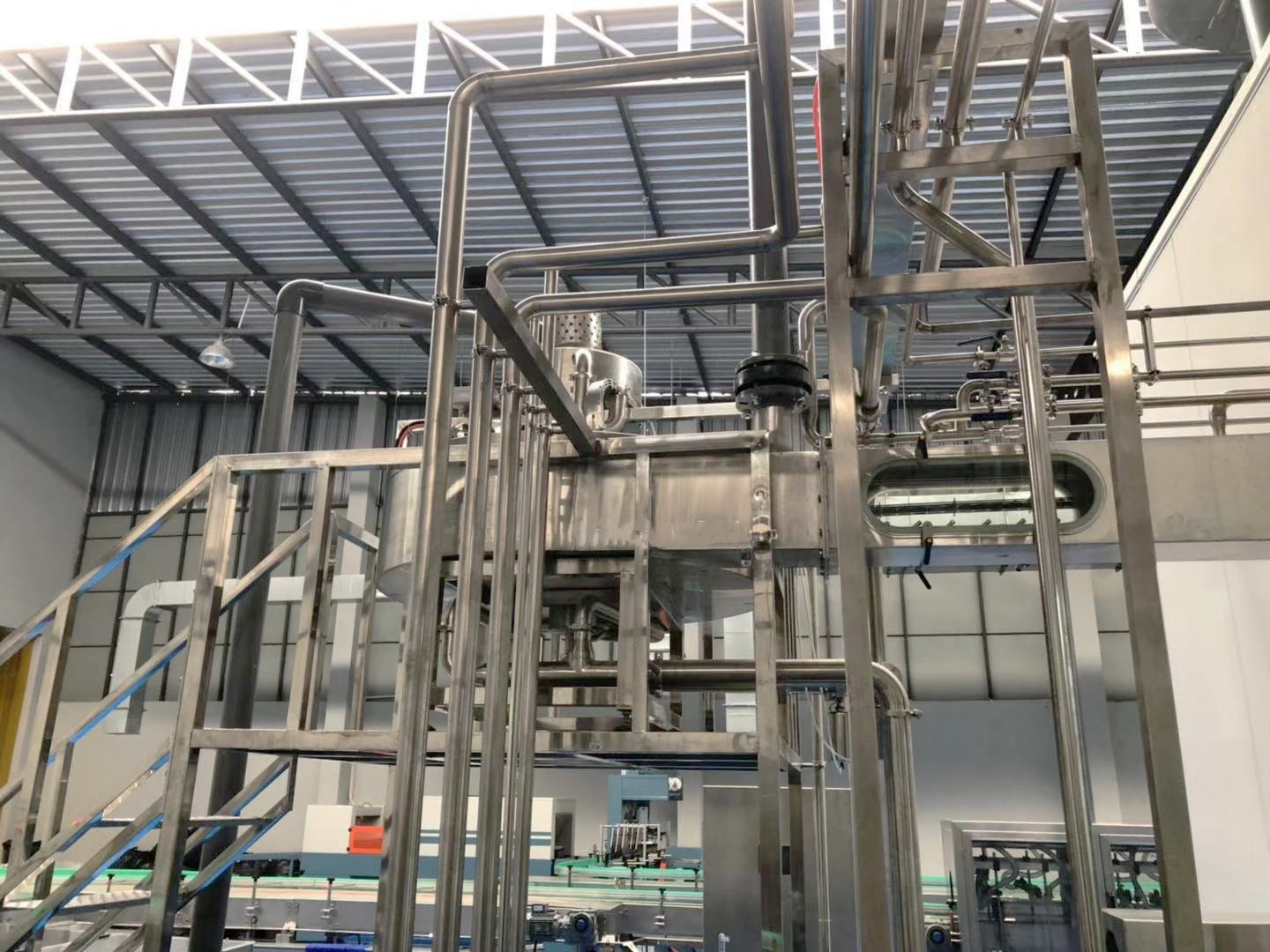

Automatic 5 in 1 Aseptic cold coconut water milk NFC juice washing washing washing filling capping machine production line

ZXXGF24-24-16-16-5 PET bottle disinfection, disinfection, aseptic water washing, filling, capping machine, adopt the advanced technology, stable performance, safe and reliable. (It can produce like NFC juice, milk, vitamin drinks and other plant-based drinks). The filling machine adopts non-contact filling method, which can effectively prevent secondary pollution; The filling valve adopts the pneumatic diaphragm filling valve imported from Germany, and the filling capacity is measured with the imported high-precision electromagnetic flowmeter to realize the opening and closing of the valve. The working environment of the host should be selected as aseptic isolation system, aseptic maintenance gloves, aseptic item transfer device, automatic foam cleaning system, disinfectant spray fumigation system

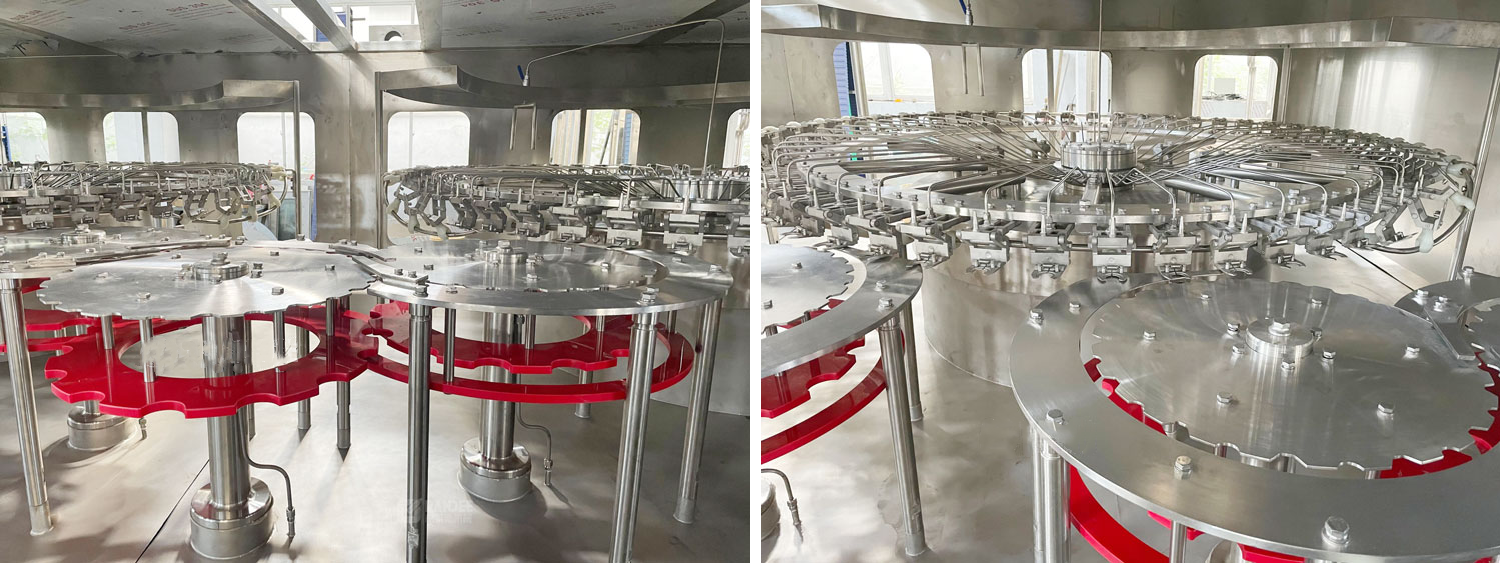

824ffd963d0c2a8ace0f1d7ac8bef6a5cce74dcdac8c75bdaf4362dcfea69868 (1).png

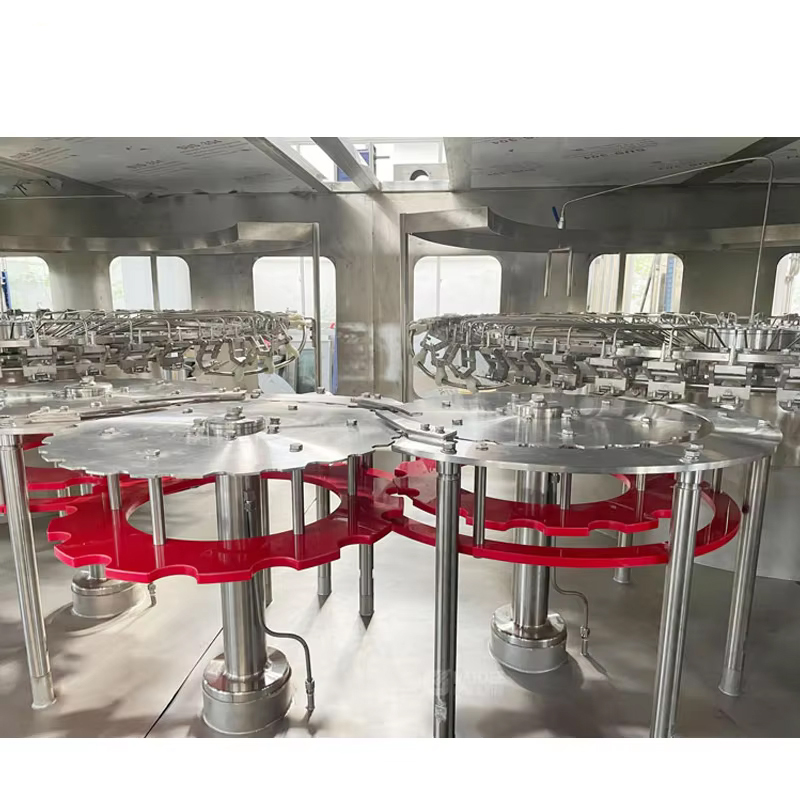

Three washing part:

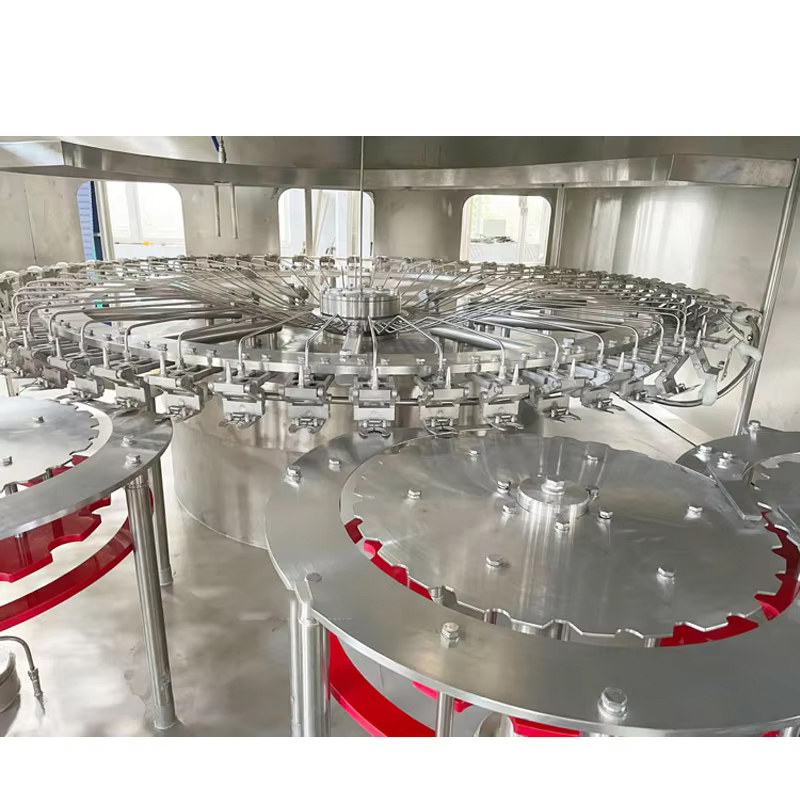

The bottle clamp on the rotary table of the bottle punching machine holds the bottle opening and turns it 180° along a guide rail to make the bottle opening downward. In the specific area of the bottle washing part, the special nozzle on the bottle clamp emits disinfectant, disinfect the inner wall of the bottle, and then enter the second washing part for disinfection. After the bottle is disinfected, enter the sterile water washing part for washing

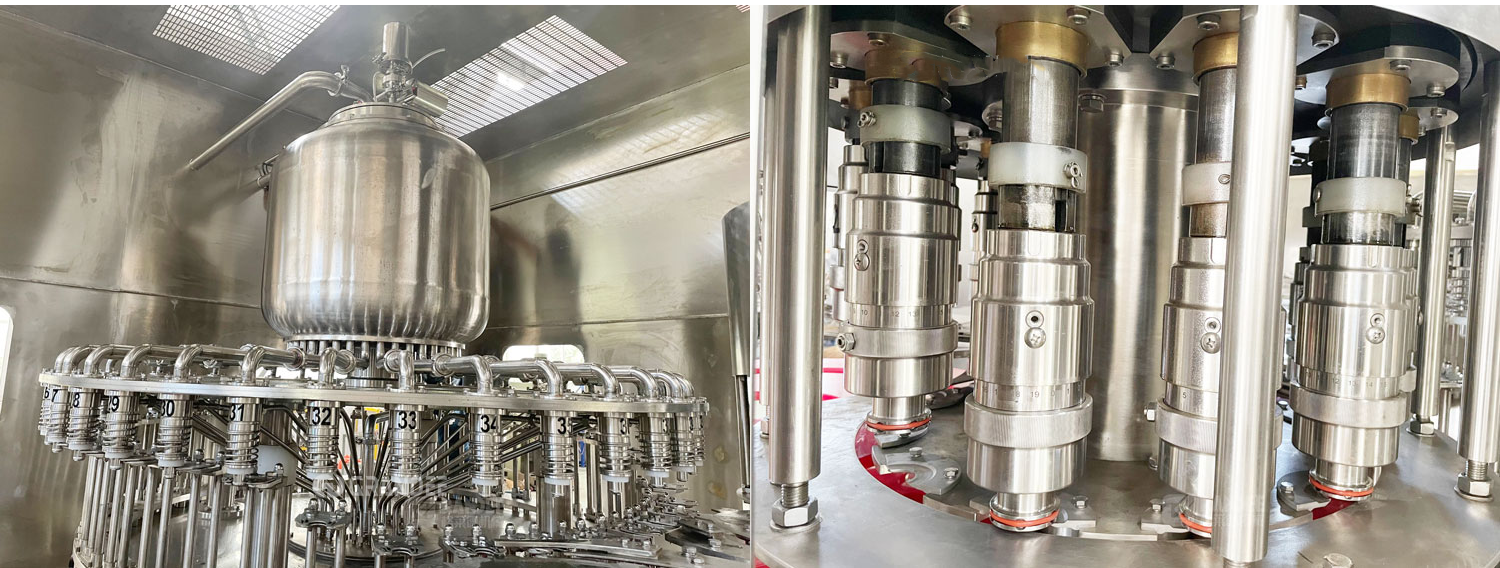

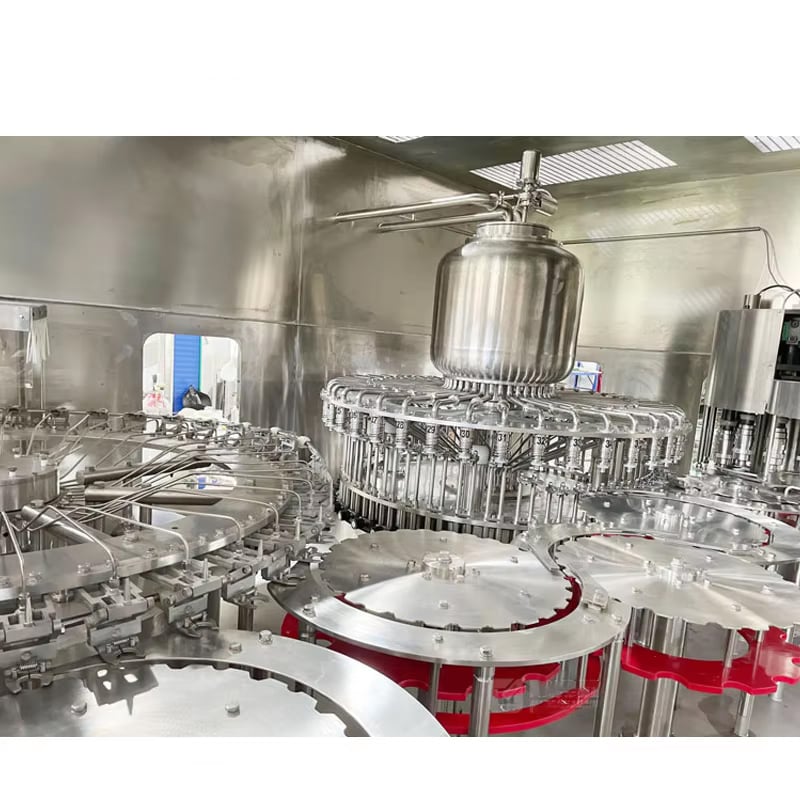

Filling and capping part:

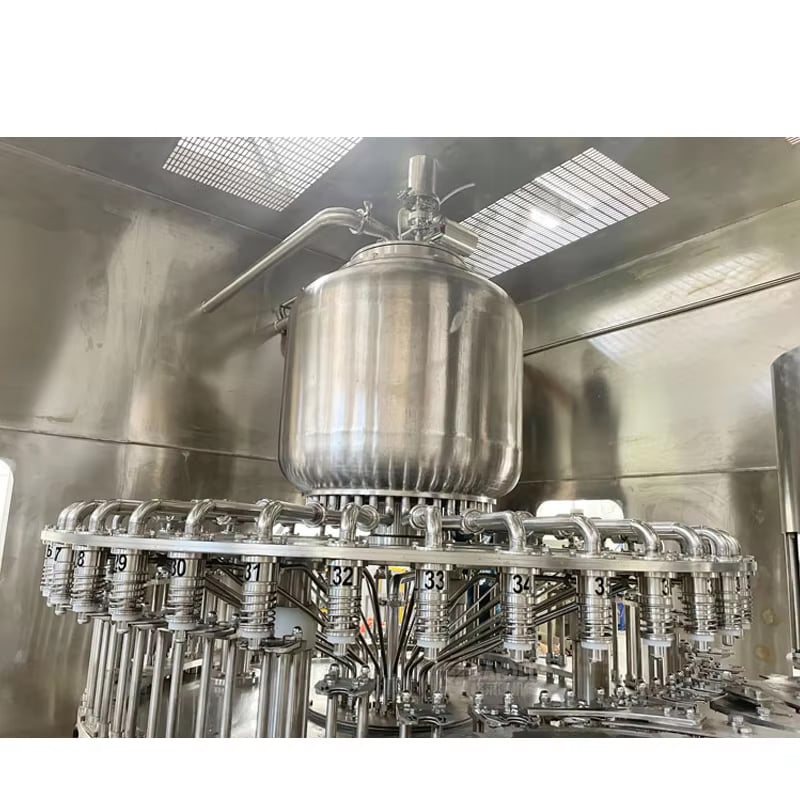

The cleaned bottle is exported from the punching machine and transferred to the filling machine through the picking star wheel. The bottle entering the filling part is held by the bottle neck plate stuck to the bottle mouth. The bottle is raised and lowered by the lifting mechanism under the action of the CAM. The filling process is completed after the bottle rises to the top and opens the filling valve. The filling part adopts the pressure filling method directly connected with the UHT. After filling, the bottle enters the capping part through the transition wheel of the bottleneck. The stopcock on the capping part traps the bottleneck, keeping the bottle upright and preventing rotation. The capping head keeps revolution and rotation on the capping machine, and realizes catching, sleeving, screwing and removing actions under the action of the CAM to complete the whole capping process

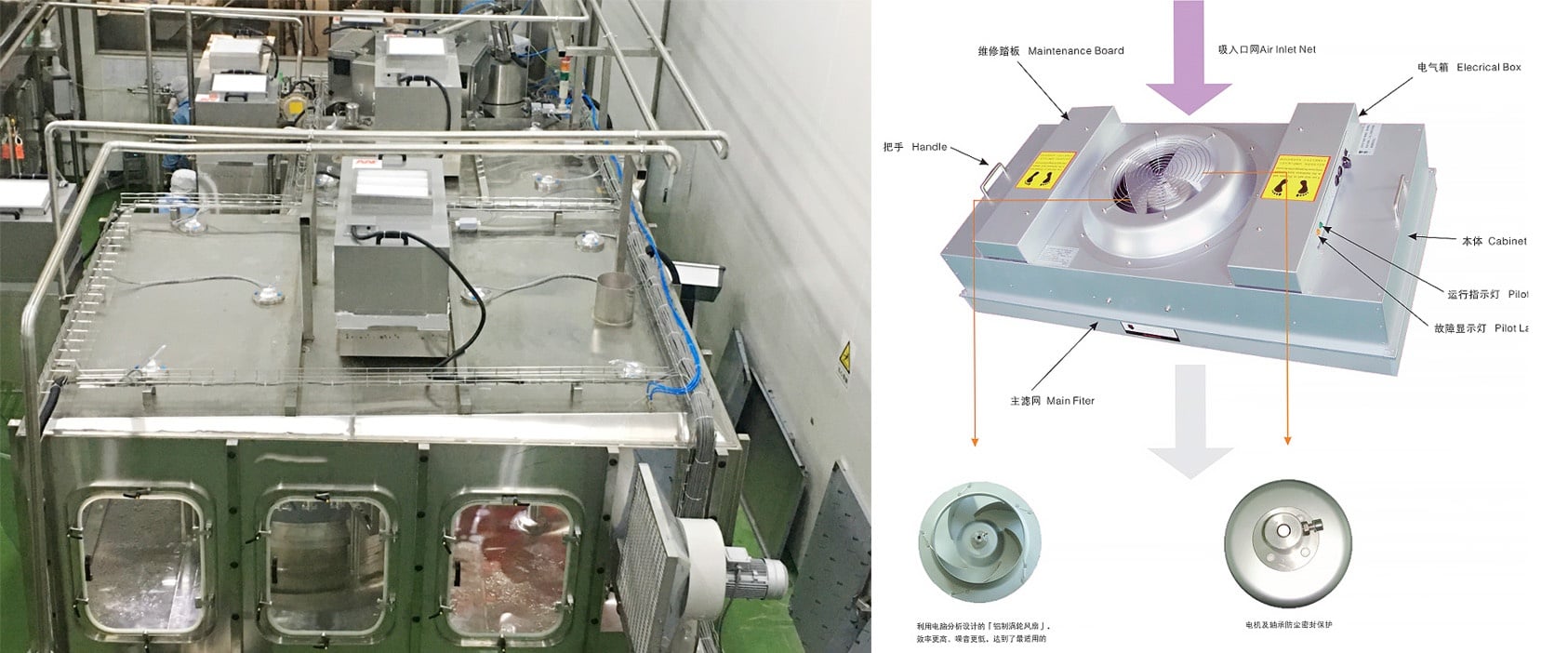

FFU (Fan filter Unit) air filter

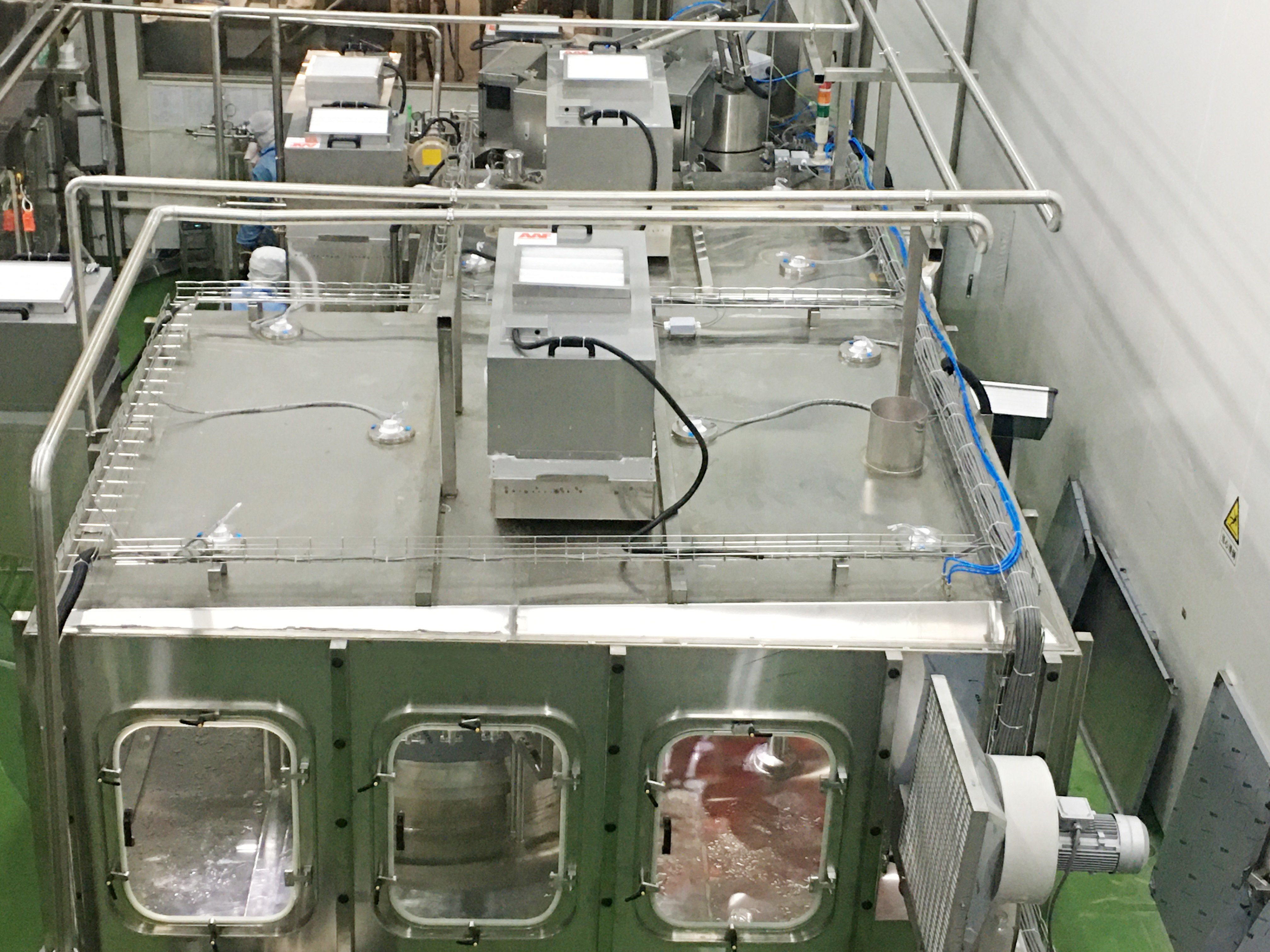

Air purification in the filling area (room): The air is filtered by the primary effect, medium effect and high efficiency filter into the filling area (room), so that the filling area reaches the 100 level (static) purification standard

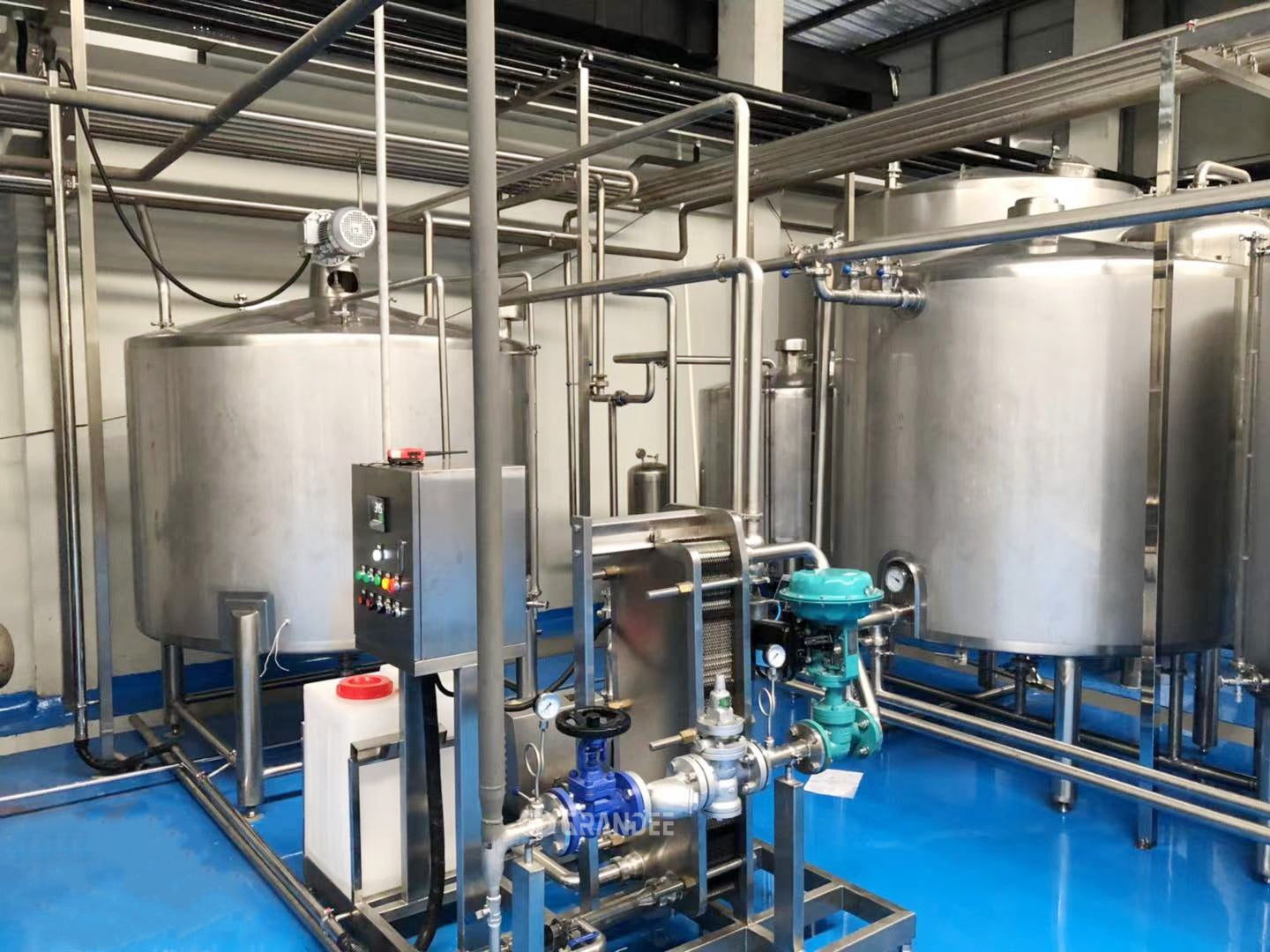

Automatic 5 in 1 Fruit Juice Beverage washing Aseptic Cold Filling Capping machine details

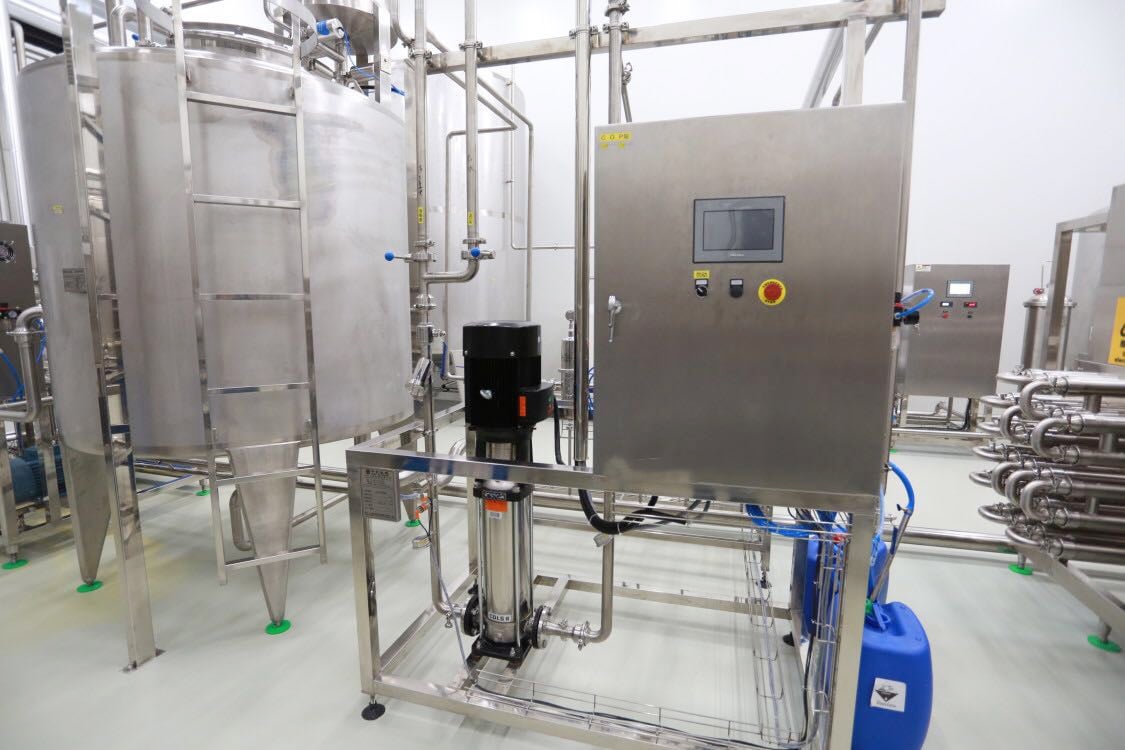

Disinfectant mixing system for SOP and spray fumigation

This unit can adjust the high concentration of the disinfectant stock solution to the concentration used by the filling equipment according to the demand. The prepared disinfectant is used by equipment inner environment sterilizer, the empty bottle sterilizer, cap sterilizer, and the SIP of the aseptic pipeline


COP foam cleaning system

This unit also has the function of COP workstation, mixing acid (alkali) foam mother liquor and process water in proportion to foam cleaning liquid, foam cleaning liquid is fully mixed with compressed air in the mixer to make it foaming, and then the foaming cleaning liquid is sprayed on the surface of the washed material through the special COP spray control valve group and spray ball


Disinfectant soaking unit for empty cap

The cap unscrambler and sterilizer is composed of cap unscrambler and cap washing machine. The cap sterilizing machine is installed in the filling room. The cap is sent to the capping device by the capping machine and arranged, then it enters cap washing machine, rinses with ozone water, and fed into the capping machine through the closed falling guide rail


Aseptic compression filter gas preparation device

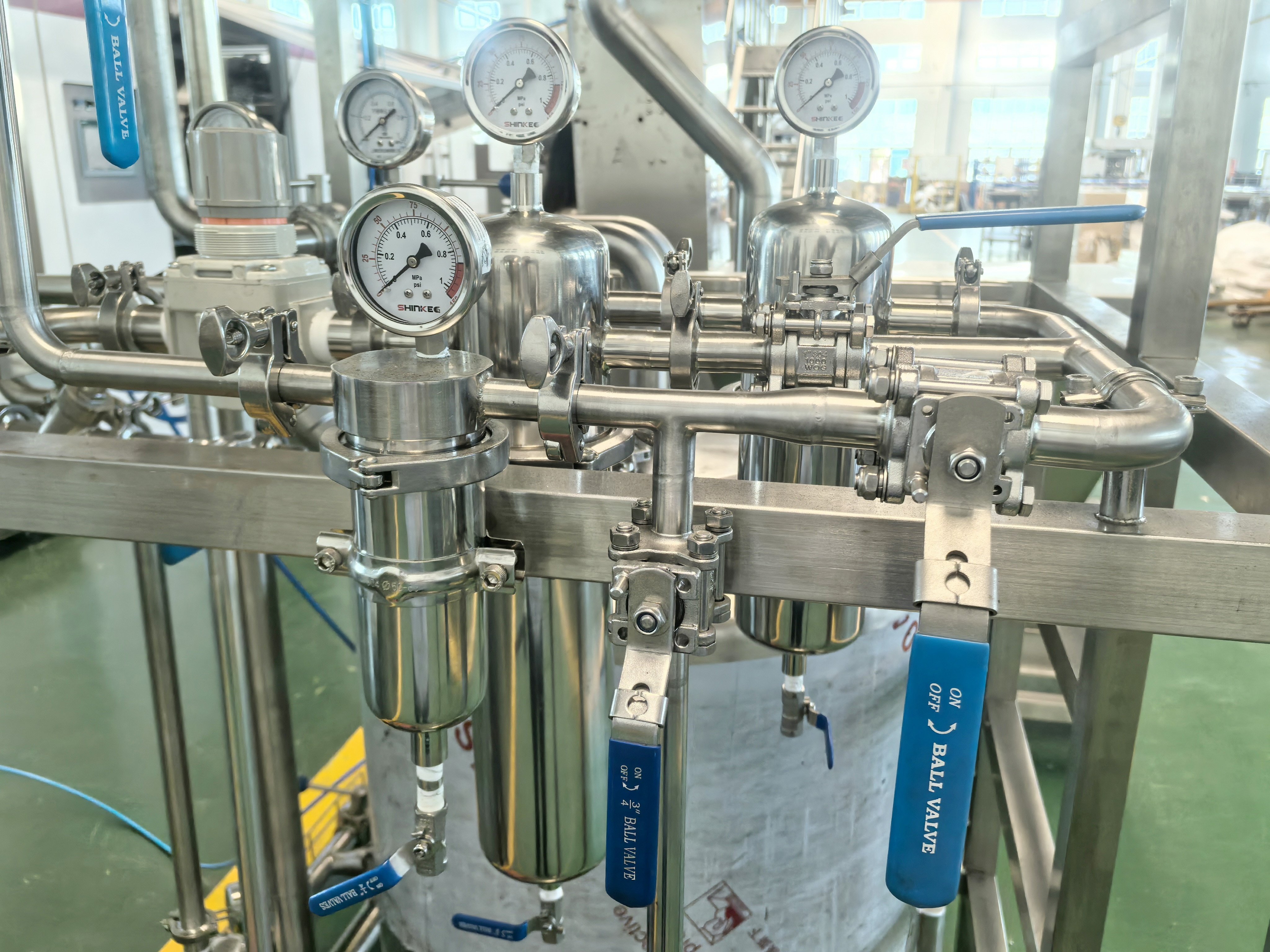

The system uses PALL aseptic filters to filter the oil-free, water-free compressed air (according to ISO 8573-1:2001 (2,2,1)) or nitrogen (according to ISO 8573-1:2001 (2,6,1) supplied by the buyer to achieve aseptic requirements. Aseptic compressed air for filling machine, bottle cap sterilization machine. The system uses the steam generated by the stainless steel pure steam generator to steam sterilize the filter and its piping system

Main technical parameter

Model	ZXXGF24-24-16-16-5	DXGF 18-18-6	DXGF 24-24-8	DXGF 32-32-8	DXGF 40-40-12	DXGF 50-50-12
Disinfectant washing heads	24pcs*2times	3000-5000	5000-7000	8000-9000	10000-12000	12000-14000
Sterile water washing heads	16pcs
Filling heads	16pcs
Capping heads	5pcs
Capacity	6000-8000BPH 500ml
Filling temperature	15-20℃ or 60-65℃
Disinfectant washing pressure and water consumption	0.2MPa, 2*1.5m3/hr (recycle use)
Sterile water washing pressure and water consumption	0.2MPa, 2.6m3/hr	5.2kw	6.2kw	7.5kw	8.2kw	11kw
Disinfectant washing time (2 times)	51s	2.8*1.9m	3.2*2.2m	3.4*2.5m	4.8*2.3m	5.5*3.3m
Sterile water washing time	3.5s	2.5m	2.5m	2.5m	2.5m	2.5m
Wash bottle drain time	3.5s	4500kg	6000kg	8500kg	10000kg	11000kg
Compressed air pressure	0.7Mpa
Gas consumption	0.3m3/min
Suitable bottle type	Diameter: 50-96mm Height: 150-310mm
Power	10kw
Weight	9500kg
Dimension	670024001900mm

Main configuration:

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
AIR CYLINDER	SMC	Japan
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE
