High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line
High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line

High Quality Automatic Milk Juice 3 in 1 Filling Machine PET Bottle Liquid Filling Production Line

Spu:
1601869017153
Get a Quote
  • Parameter
  • Related products
Parameter
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-3
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-4

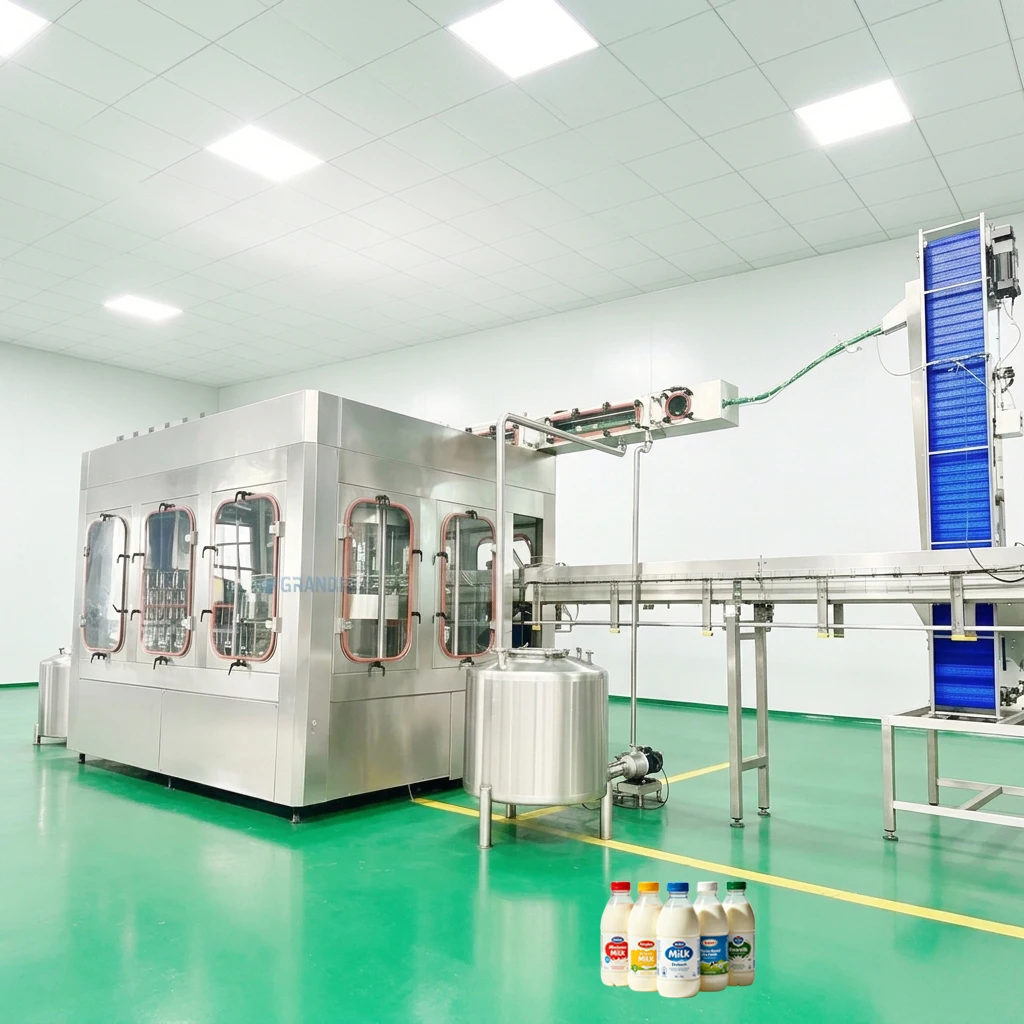

Automatic NGF28-28-8 Milk Bottle Washing Filling Capping Machine
Freshness Preserved, Quality Guaranteed
Our NGF28-28-8 handles milk, yogurt, juice, and water at 6,000 BPH for 1L bottles.
Hygiene is a promise to your customers. Our Milk Filling & Capping Machine features a fully enclosed system to prevent contamination — from farm to table.
Key Advantages:
• No Bottle No Fill — zero waste
• CIP compatible — easy sterilization
• Stable performance — low maintenanceBuilt for safety. Built for consistency.

Click "Send Inquiry" for your quote today!
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-5
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-6
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-7

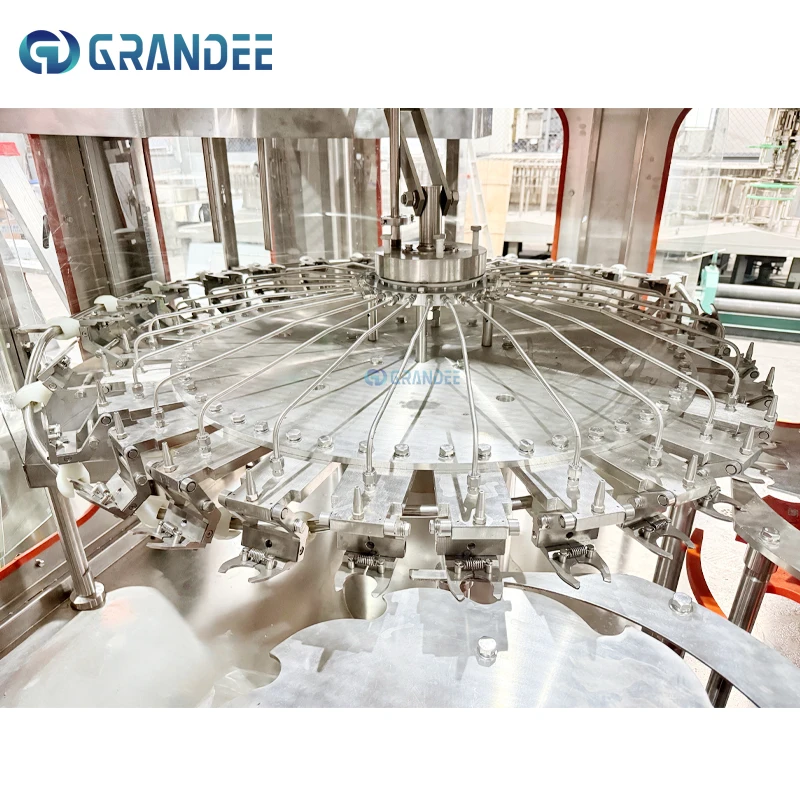

Washing part
Our rinsing system removes dust and particles before filling, ensuring product safety. Fully automated with low water
consumption.Clean. Efficient. Ready for dairy.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-8

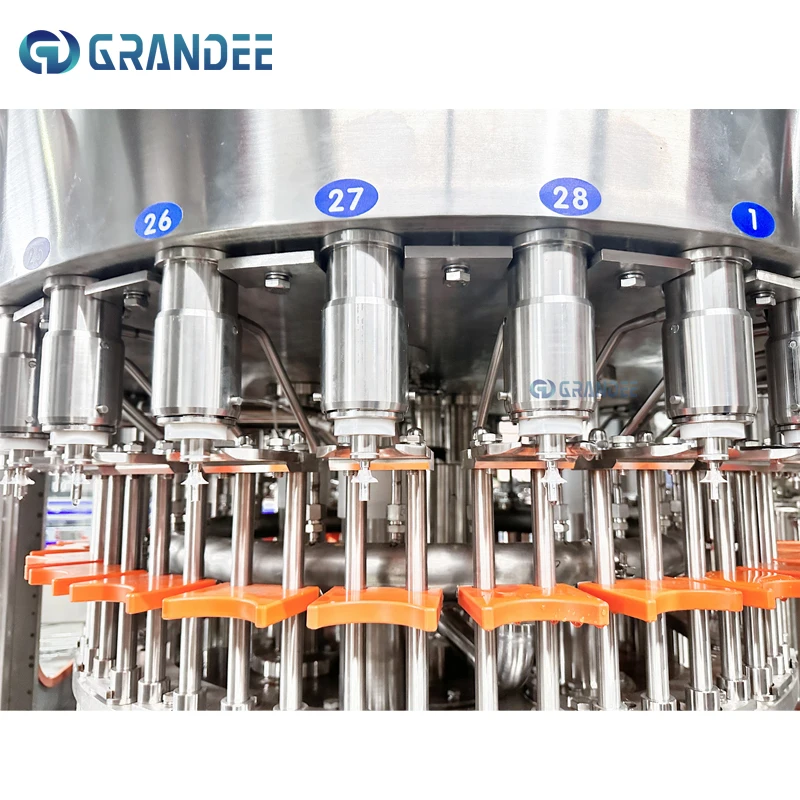

Filling System — Negative Pressure Technology
Our negative pressure filling system ensures stable and hygienic filling for milk and dairy products. It minimizes oxygen pick-up to preserve freshness, prevents foaming, maintains consistent fill levels, and operates in a fully enclosed environment to eliminate contamination. Reliable and built for dairy.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-9

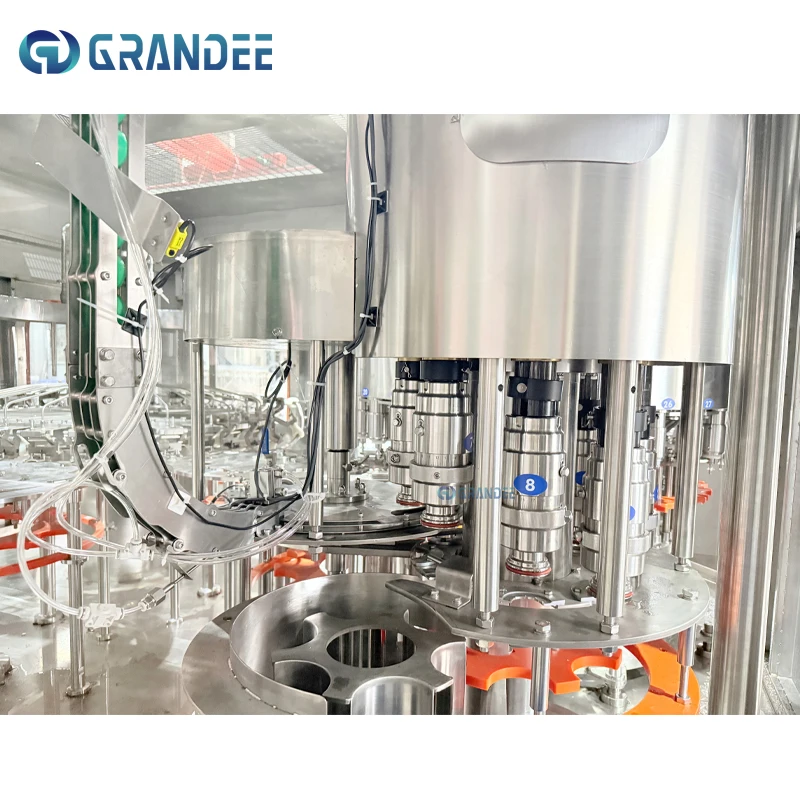

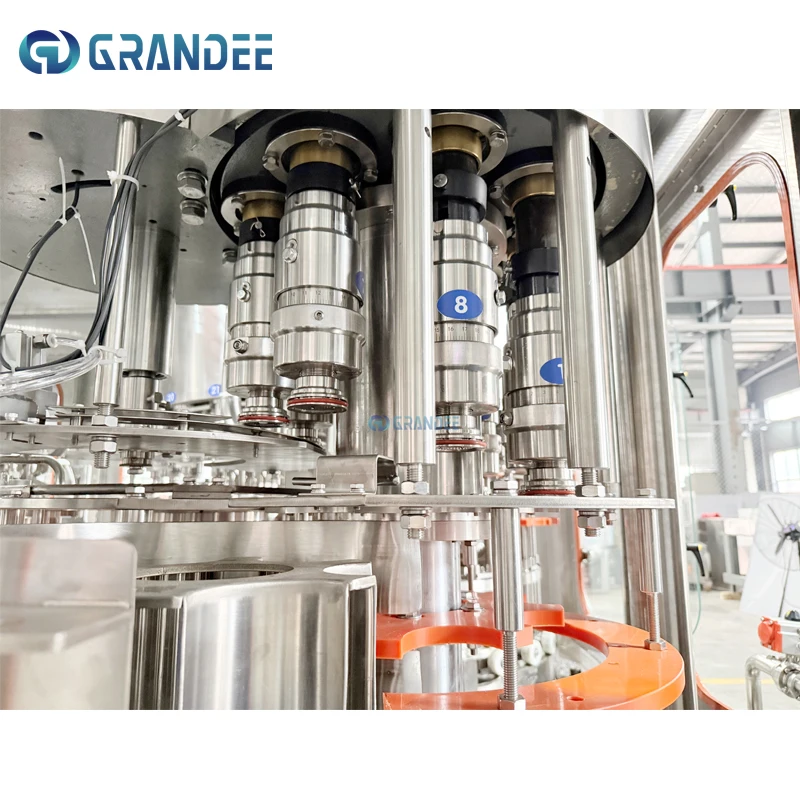

Capping part
Ensures secure sealing to prevent leaks and contamination. Fully automated and adjustable for different cap types, it delivers consistent torque and reliable closure every time. Built for dairy.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-10

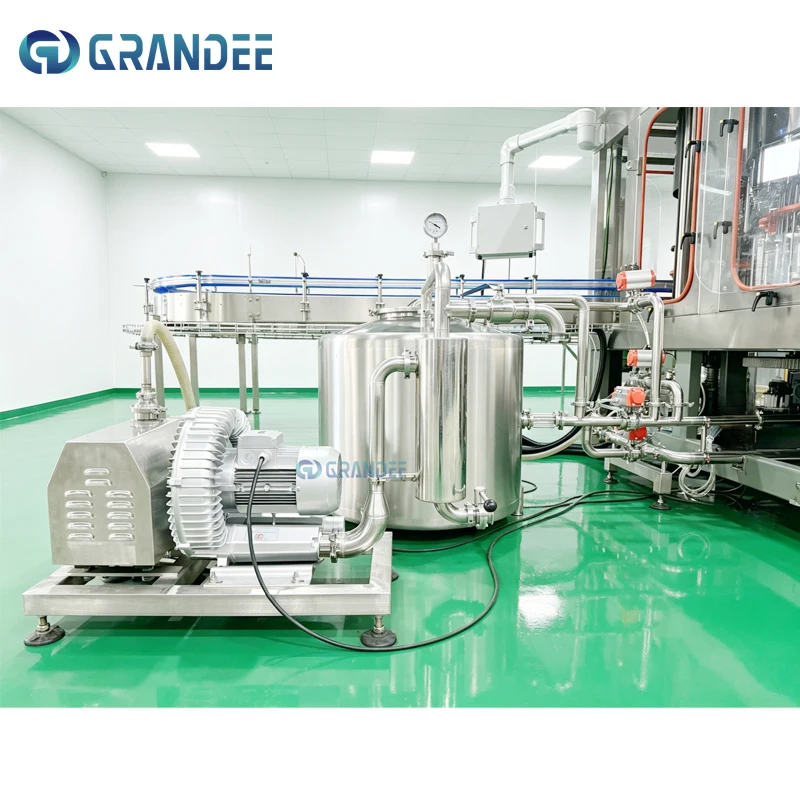

Cap Rinsing Unit & Negative Pressure Feed Tank
1.Cap rinser, cleans and sterilizes caps before filling to ensure hygiene.
2.The tank stabilizes milk pressure for even filling and supports CIP cleaning. The blower supplies steady negative pressure for milk filling.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-11
Two-stage Cap Rinser
1st stage: Disinfectant from disinfection tank sterilizes caps.
2nd stage: Pure water rinses off residual disinfectant. All SUS304 structure, ensures dairy sealing hygiene with cleaning available.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-12
FFU (Fan Filter Unit) Air Filter
FFU is installed inside the aseptic filling machine to provide continuous air purification. It filters and recirculates the internal air, maintaining a clean and sterile environment. With fully sealed doors, it prevents external contamination from entering, ensuring safe and hygienic filling operations.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-13
Model
NGF14-12-5
NGF18-18-6
NGF24-24-8
NGF28-28-8
NGF32-32-10
NGF40-40-12
NGF50-50-12
NGF60-60-15
Capacity
(500ml/BPH)
3000
4000
5000
6000
7000-9000
12000
18000
22000
Suitable bottle shape and size
Both round of square bottle, 330ml-2000ml, Dia: 50-100mm, Height: 170-320mm
Filling type
Negative pressure filling and Cold Chain Transportation
Compressed air pressure
0.25-0.3MPa
Total power
2.2kw
3.5kw
3.8kw
4.5kw
5.5kw
7.5kw
11kw
13kw
Overall dimensions
2100*1 800*27 00
2600*2100*2700
3200*2300*2700
3500*2500*2800
4200*2600*2700
4800*2800*2700
5700*3600*2700
6000*4200*2700
Weight
2500
3500
4500
5000
6500
8500
12800
15000
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-14
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-15
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-16
Juice filling machine
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-17
Carbonated drink filling machine
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-18
Automatic soft drink production line
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-19
Mixed fruit juice mixing system
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-20
Mineral water filling machine
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-21
Bottle filling packaging machine
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-22
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-23
Automatic OPP BOPP hot melt Glue labeling machine
This automatic BOPP labeling machine offers exceptional versatility for various container and label materials. Its modular design ensures quick changeovers, while the PLC-controlled system guarantees efficient, high-volume production at a low per-label cost.
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-24
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
Exhibition
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-25
Customer Acceptance Report
product high quality automatic milk juice 3 in 1 filling machine pet bottle liquid filling production line-26
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements.
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
For more information, please feel free to contact us tosend an inquiry!
