GRANDEE MACHINEis located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-3

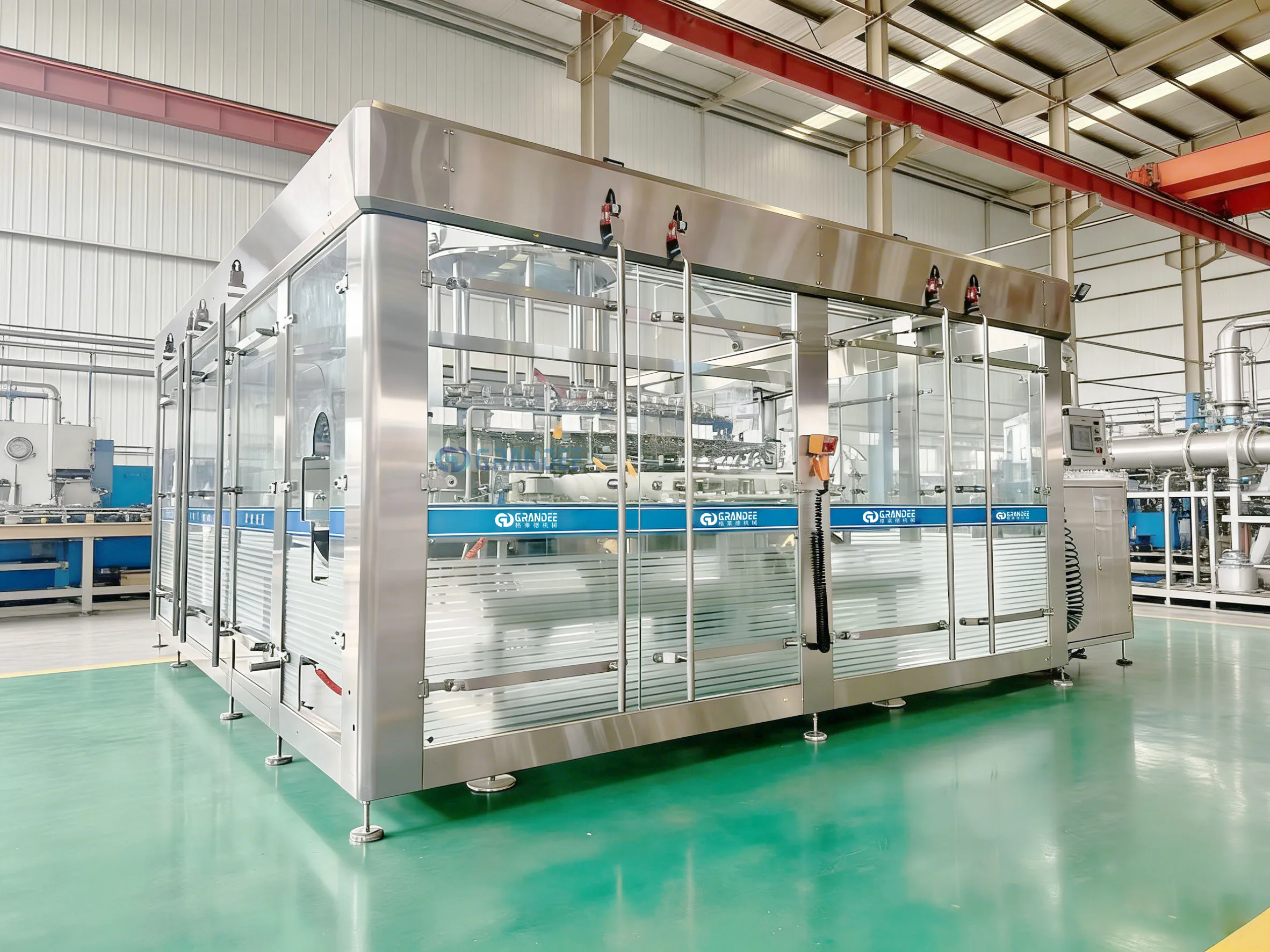

Automatic glass bottle washing machine

The GD-36, GD-48, GD-60, GD-72, GD-84, and GD-96 models of automatic bottle inverting rinsers perform a series of automated operations, including robotic gripping and inverting of bottles, synchronized valve opening, spray rinsing, draining, inverting back to the upright position, and bottle discharge. In addition to the rinsing function, these machines can be integrated with drip dryers to achieve fully automated production, significantly improving production efficiency.
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-4
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-5
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-6

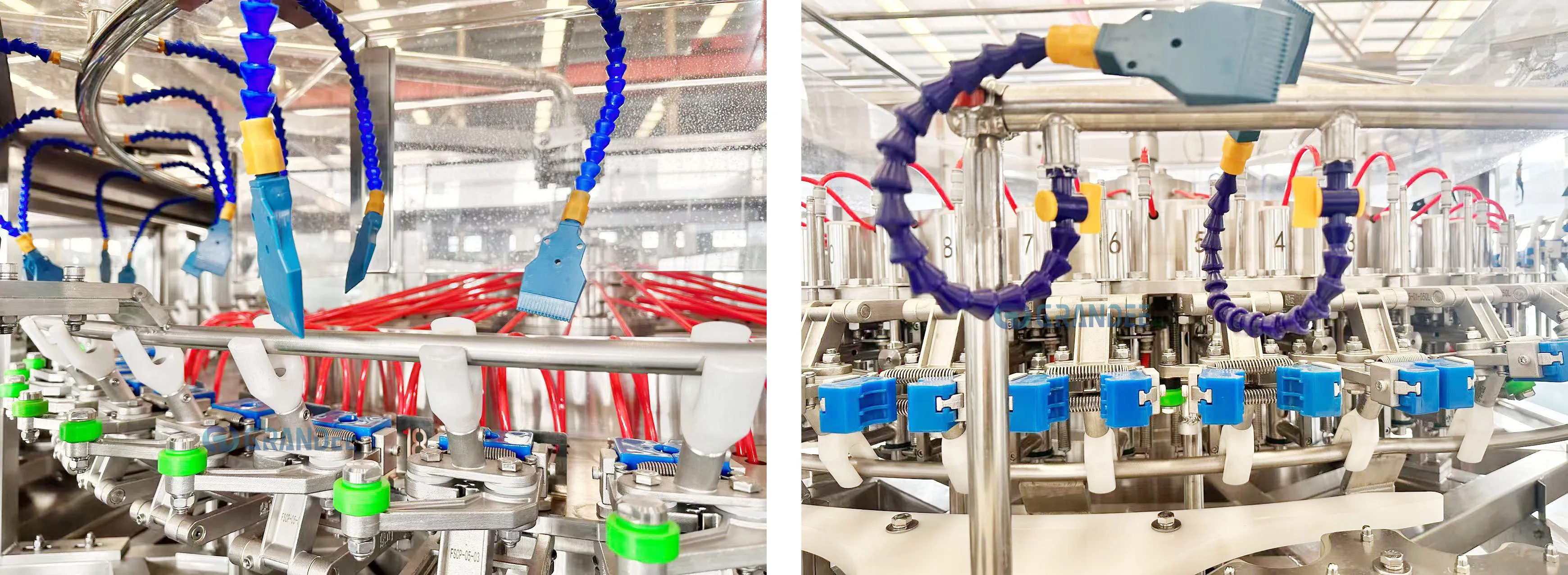

Washing Type 1: Mechanical Valve
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-7

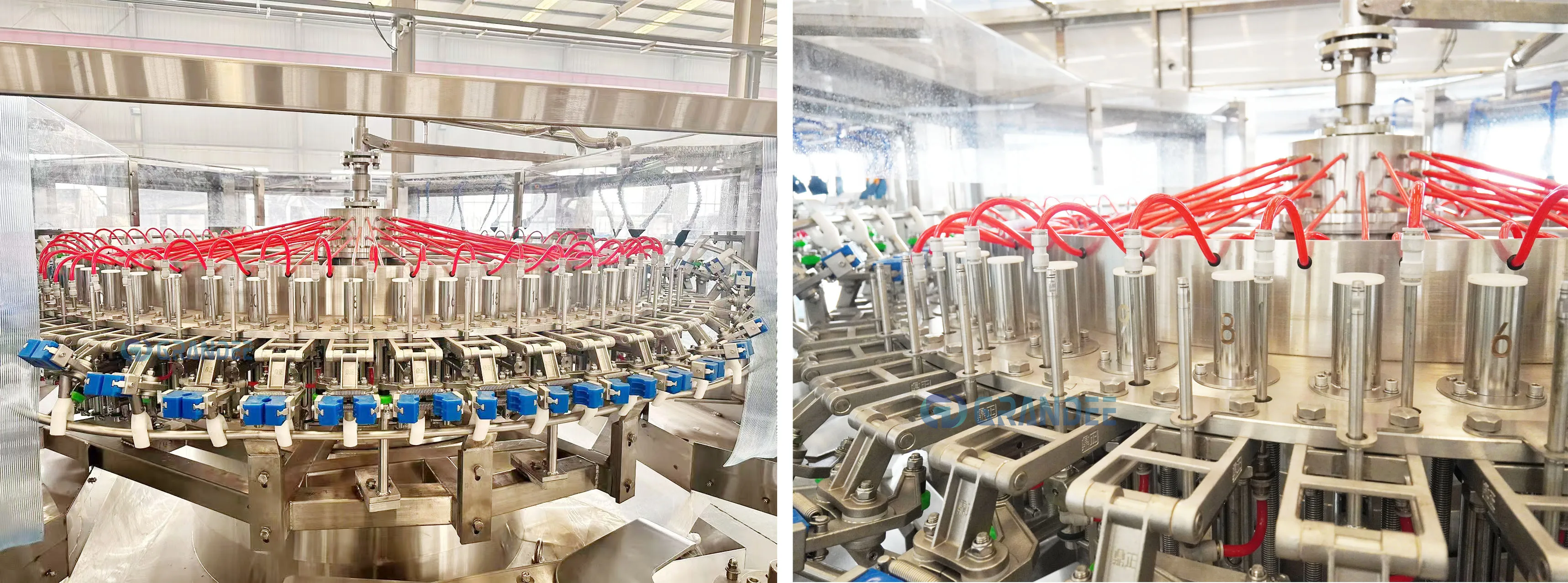

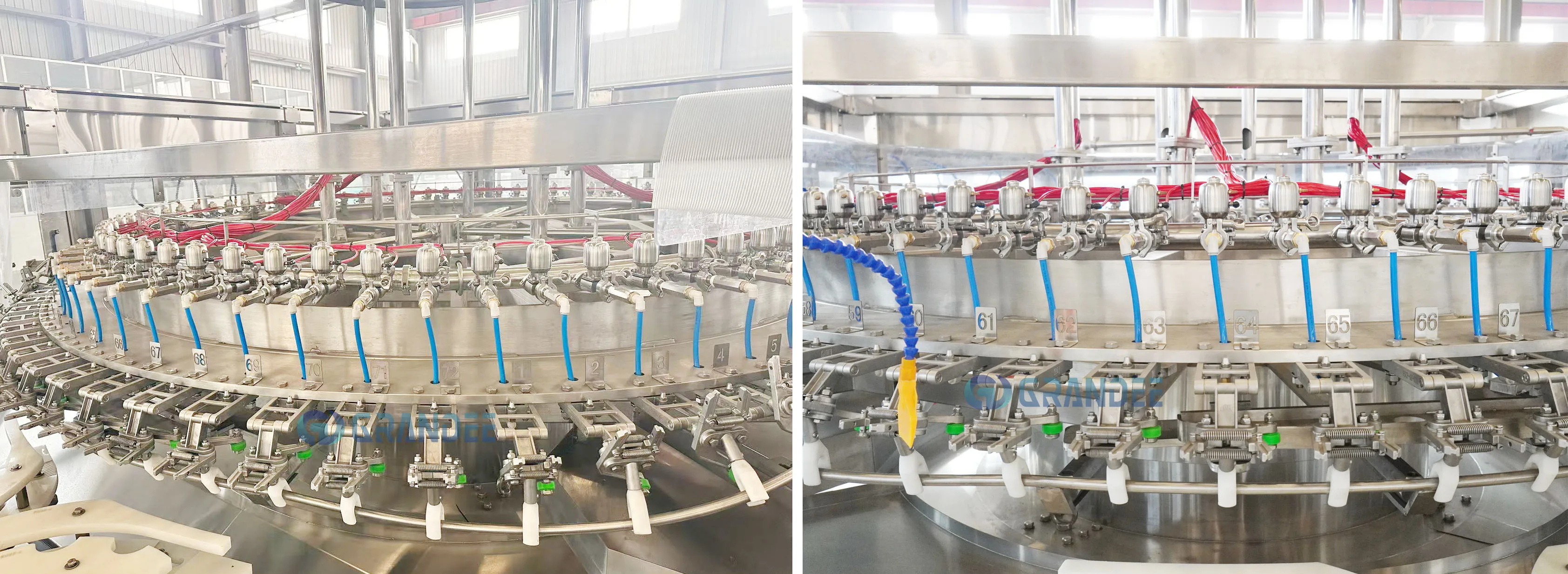

Washing Type 2: Solenoid Valve, Pulse Process
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-8
Washing Type 3: Insertion Washing: Umbrella-type
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-9

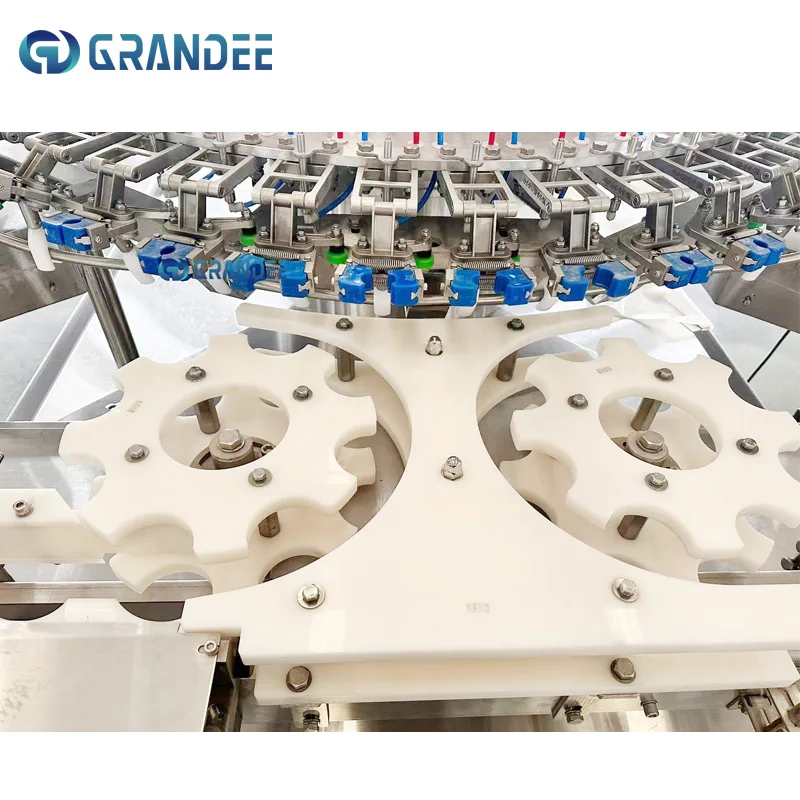

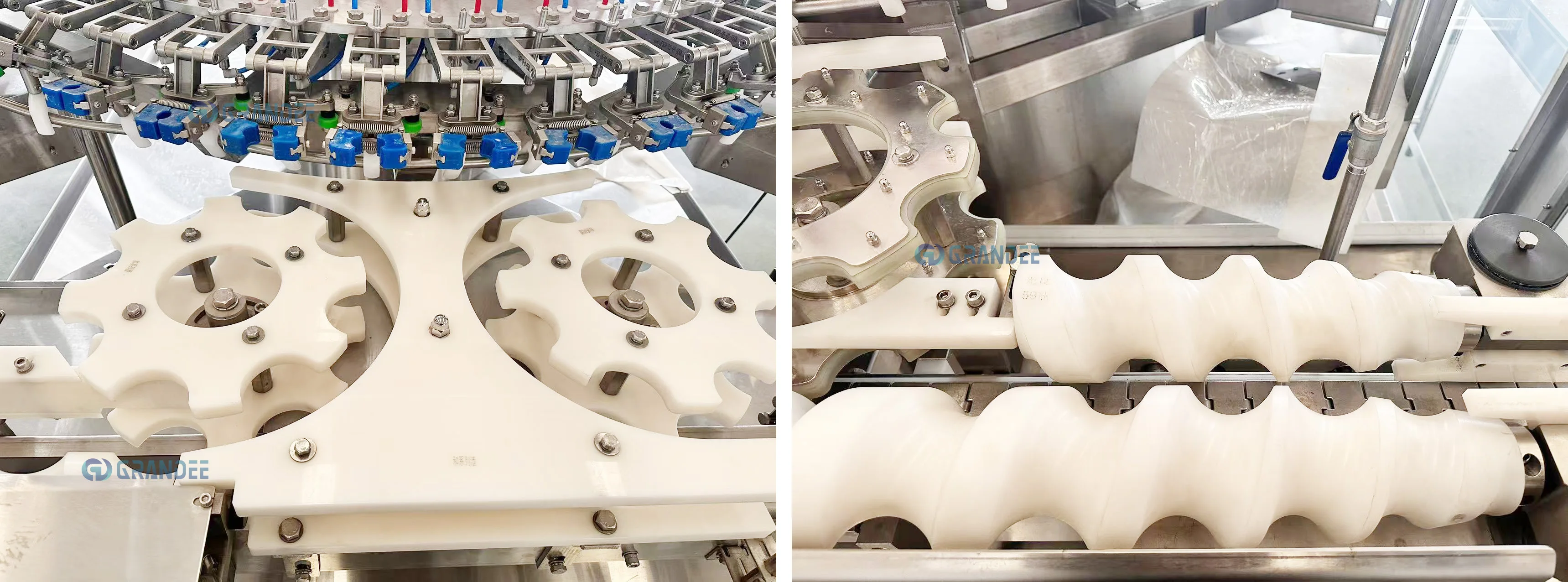

Bottle in-feed and out-feed system and bottle feeding screw
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-10

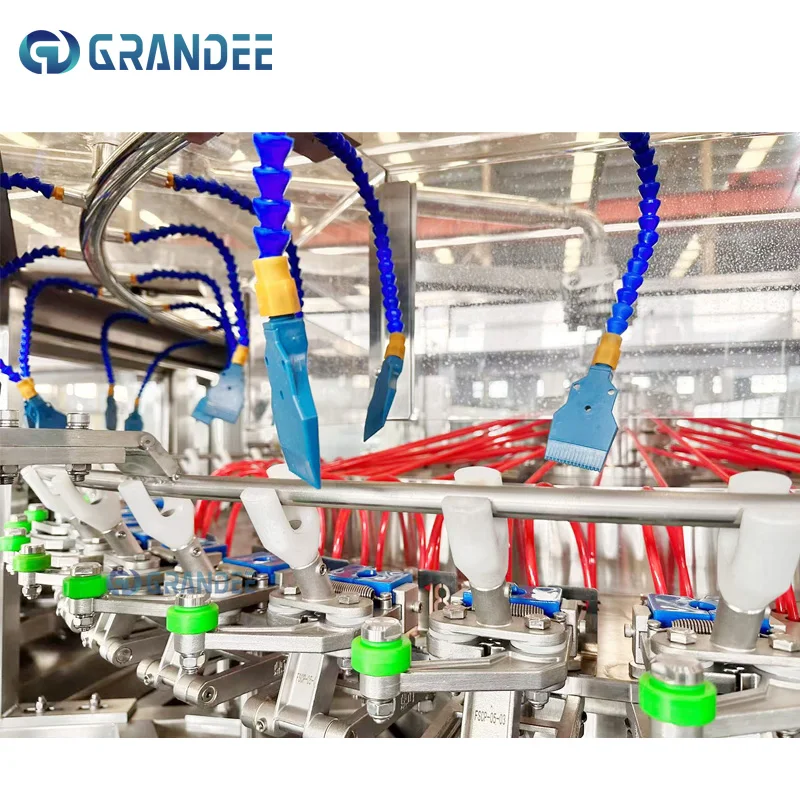

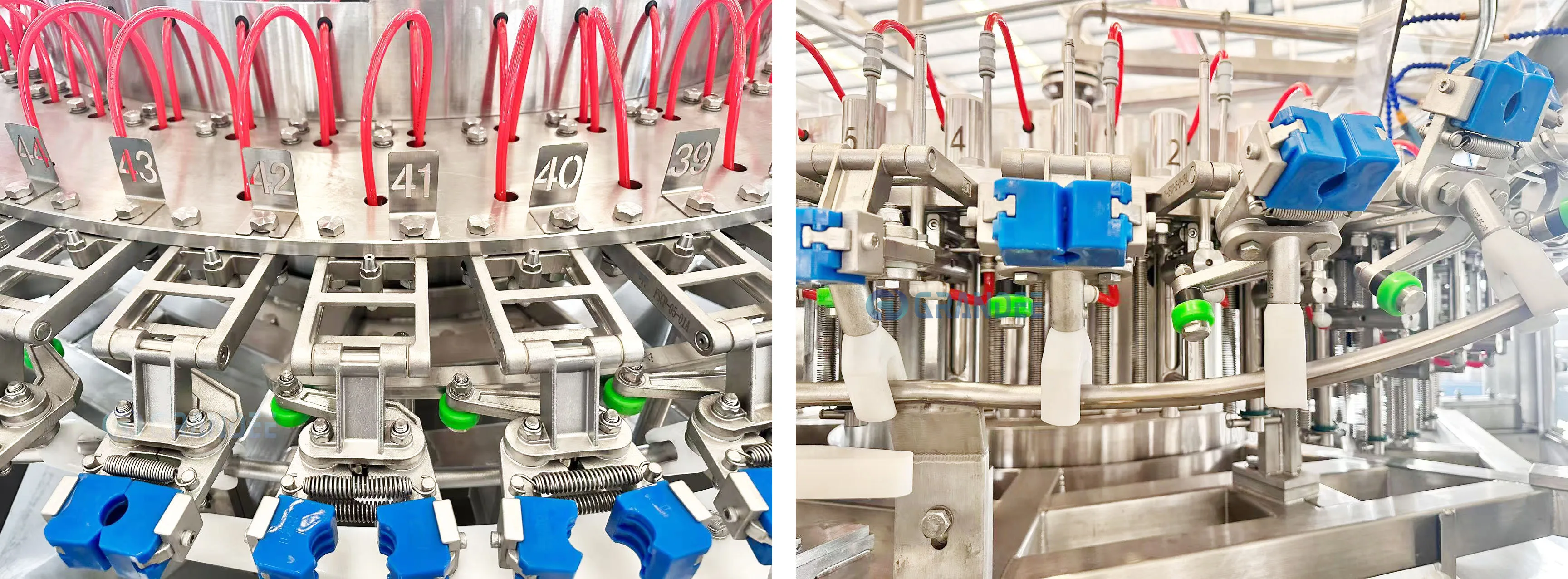

Manipulator
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-11

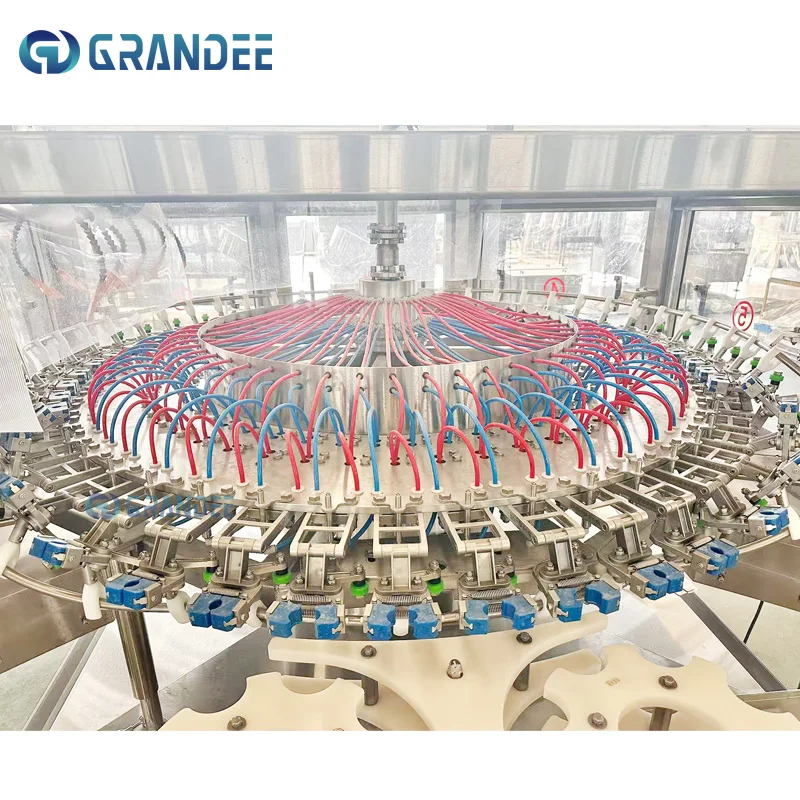

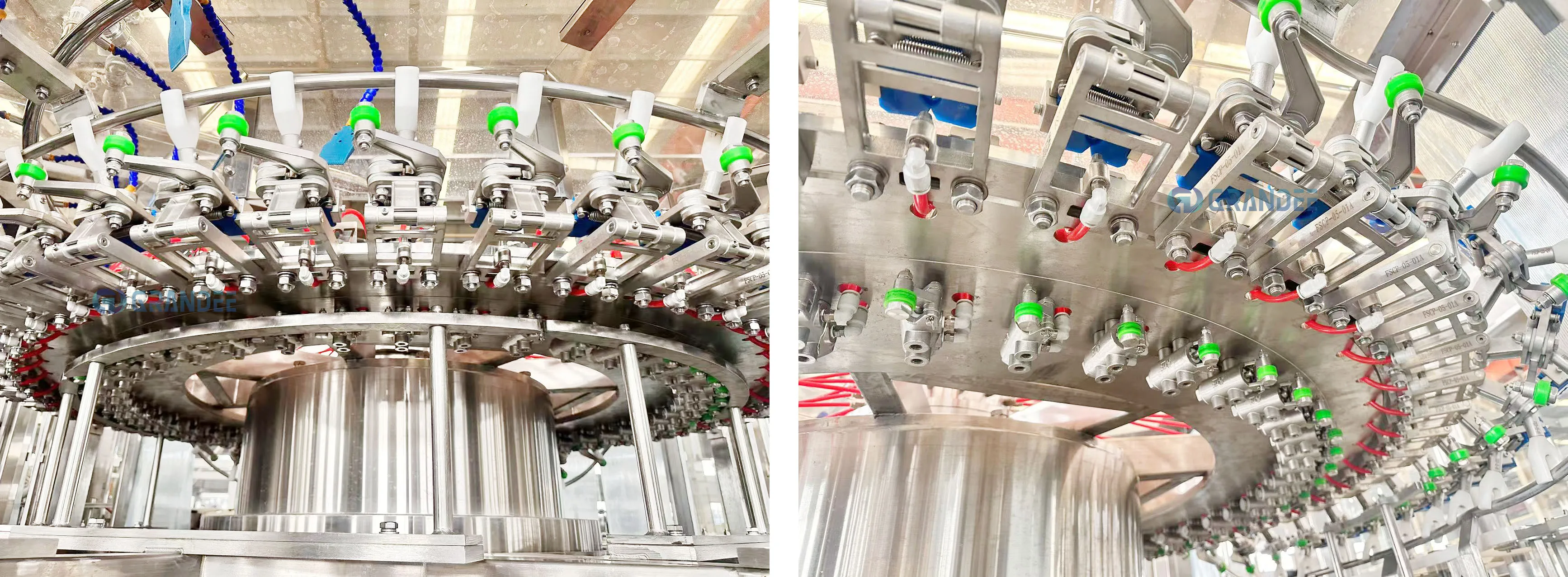

Rotary Platform
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-12
Model
GD-36
GD-48
GD-60
GD-72
 GD-84
GD-96
Suitable bottle size
Bottle type
Ordinary round bottles or variable diameter cylindrical bottles





Bottle size
140mm≤H≤300 mm




Bottle diameter
50< diameter＜100mm or maximum diagonal size 50-100mm




Suitable bottle mouth
Outer diameter of bottle mouth: φ20–30; inner diameter: >φ12; length of bottle neck: ≥25 mm
Capacity(BPH)
≤5000
≤8000
≤10000
≤12000
≤15000
≤21000
Main motor power(kw)
1.5
2.2
3
3
3
4
Lifting motor power(kw)
0.55



Water pump power(kw)
0.75
Washing pressure
Circulating water: 1.5–2.5 kg/cm², Purified water: 1–2.5 kg/cm²
Dimensions of the clear water inlet
Ф32
Overflow mouth size
Ф60
Sewage outlet size
Ф60
Weight(T)
3
3.5
4
5
5.5
8
Dimension(mm)
2700×2350×2150
2750×2950×2150
3300×3450×2150
4000×3800×2150
4150×4500×2150
4950×5050×2700
Conveyor height to ground
1000±50mm
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-13
product high speed automatic spray glass bottle rotary mechanical valve cleaner washing rinsing dripping machine-14

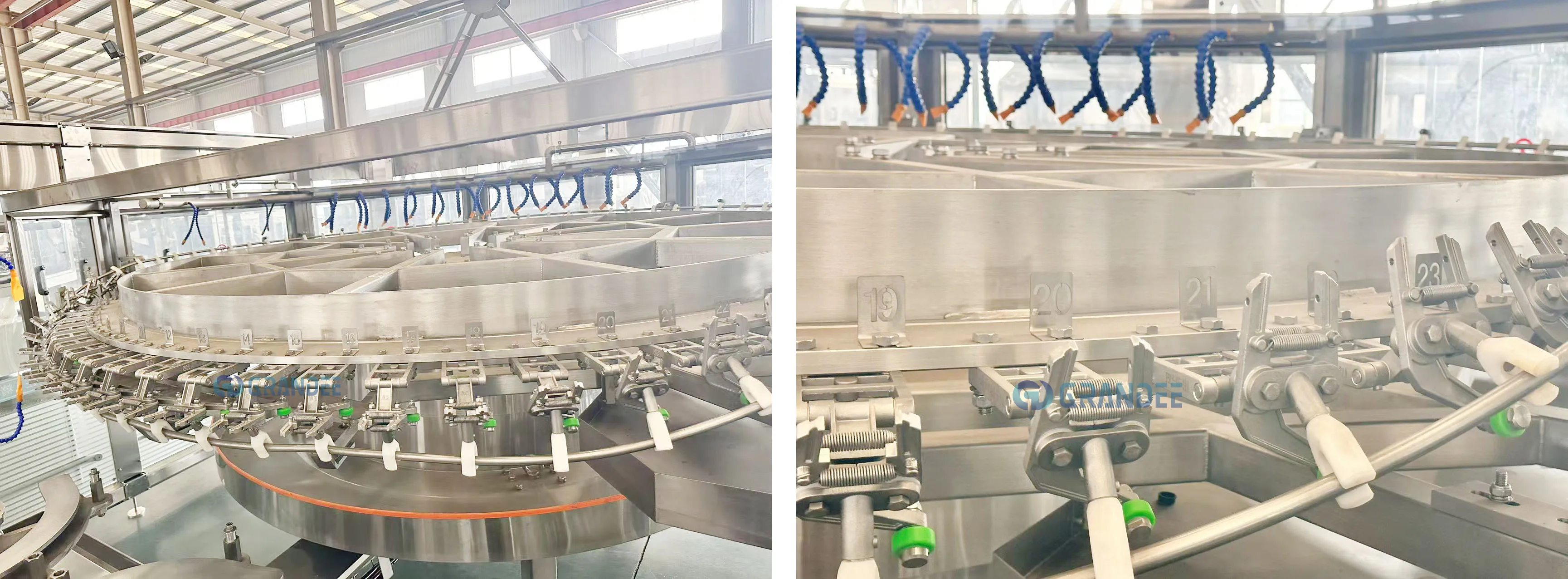

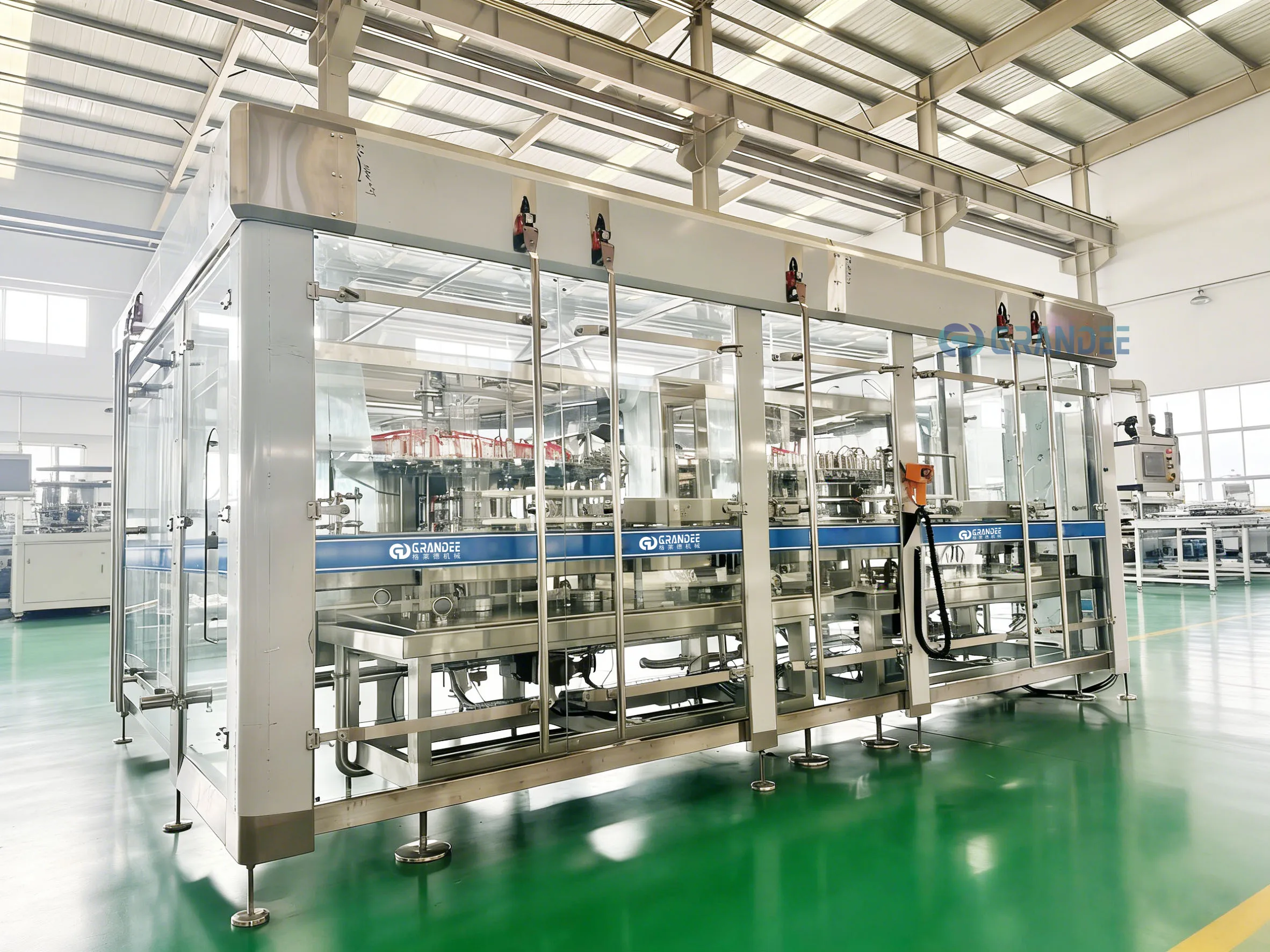

Automatic bottle draining machine
After the washing station is completed, the bottles enter the drainage area. Bottle draining is achieved through either tilting or swinging, depending on the bottle design. Once draining is finished, the robotic arm rotates 180°, returning the bottles to an upright position, and the grippers release them. The bottle pushing system then guides the bottles back onto the conveyor chain, transferring them to the next process.
