High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line
High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line

High Speed 6 Cavity Variable Pitch Blow Molding Machine for Water Beverage Bottle Blowing Production Line

Spu:
1601739547267
Get a Quote
  • Parameter
  • Related products
Parameter
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-2
GRANDEE MACHINEis located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-3

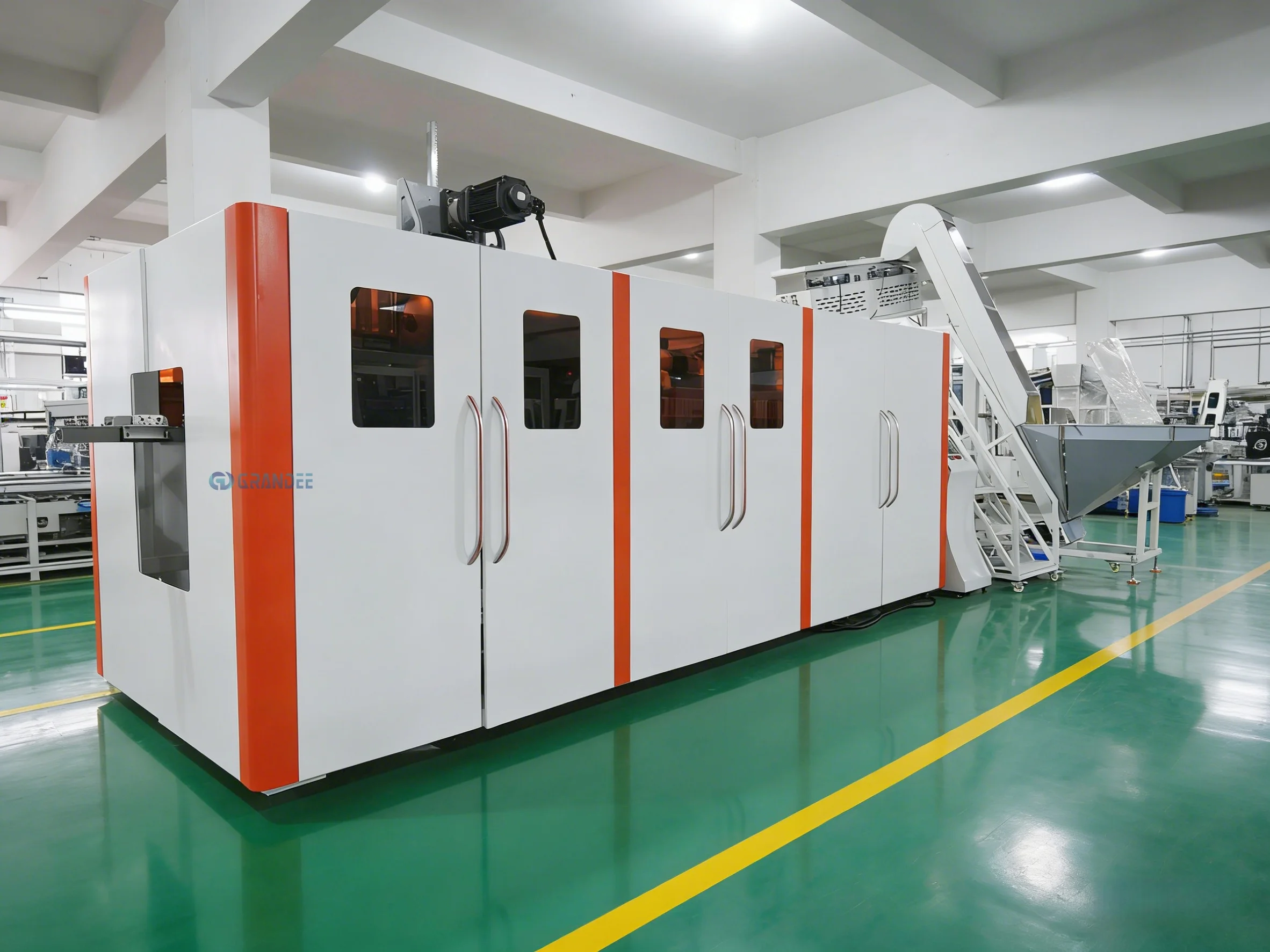

Automatic 6 cavity bottle blowing machine
Smart HMI Control – User-friendly interface for simple operation
Auto Feeding System – Preform sorting with large hopper storage
Precision Heating – Even preform heating with adjustable zones
Hygienic Design – Closed-loop system prevents contamination
Non Stop Production – Reliable 24/7 operation with low maintenance

Widely Used For : PET bottles for water, beverages, oils.

Why GD-6000B?
⚡ Higher output / Lower energy
⚡ Full servo control / High precision
⚡ Stable / High capacity

🎯Boost your production efficiency – request a quote today!
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-4
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-5
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-6
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-7
Core Forming Station
The integrated precision transmission mechanism ensures stable output of high-quality, consistent containers.
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-8

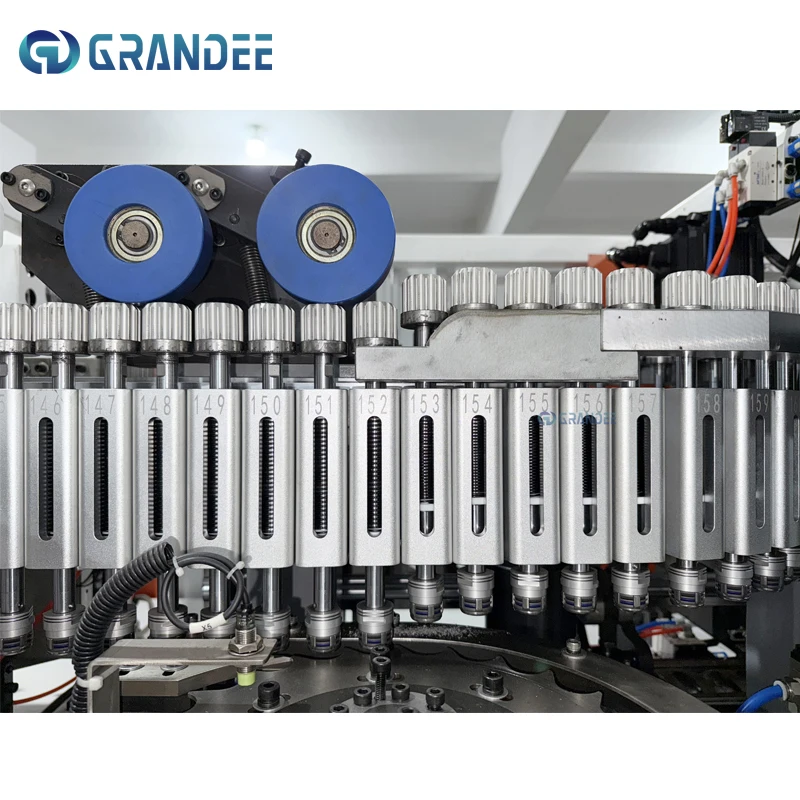

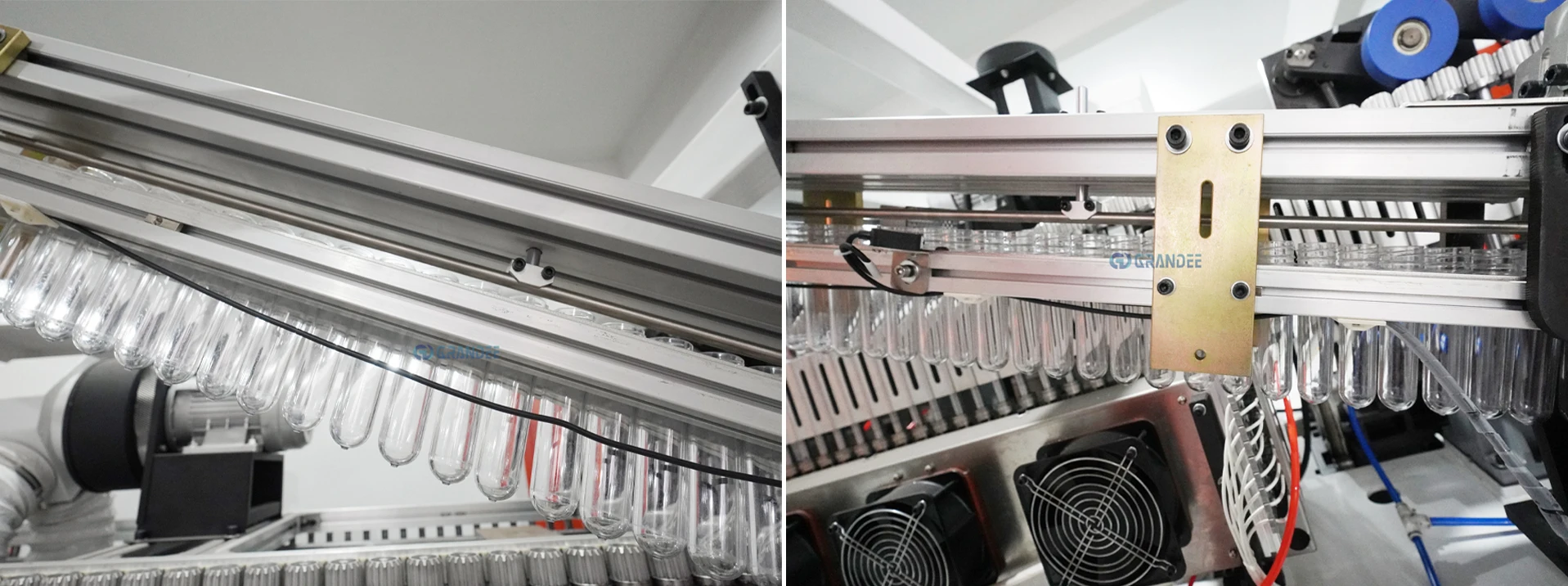

Servo Variable Pitch Preform Conveying Turret
Servo variable pitch turret: Adjusts preform spacing from heating oven to blow molding station for smooth, high-speed indexing.
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-9

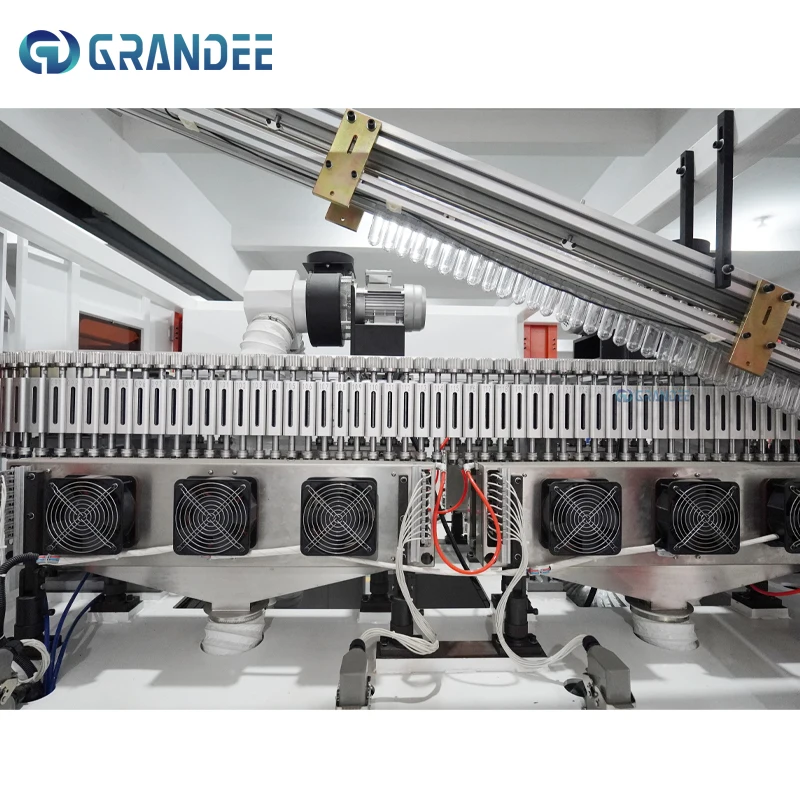

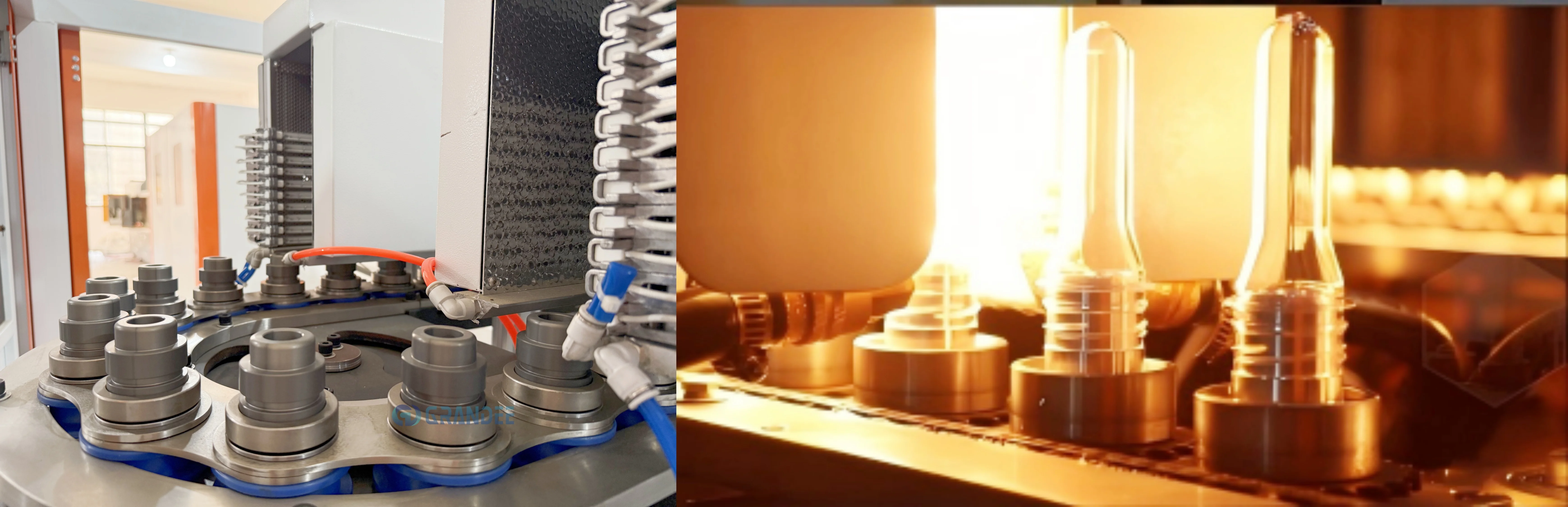

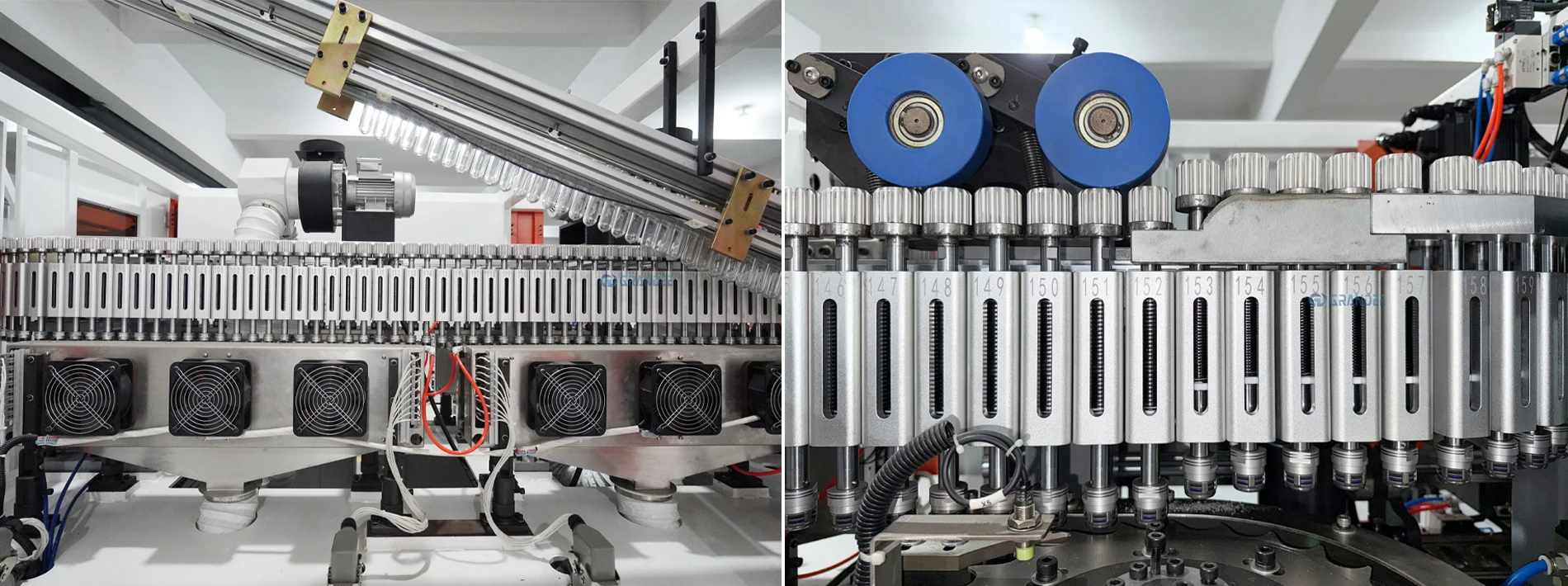

Intelligent Heating System
Infrared heating with reflective aluminum plates for even stretching, higher transparency, lower power consumption, and faster heating. Individual lamp temperature adjustment per layer. Intelligent ventilation keeps oven temperature constant.
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-10

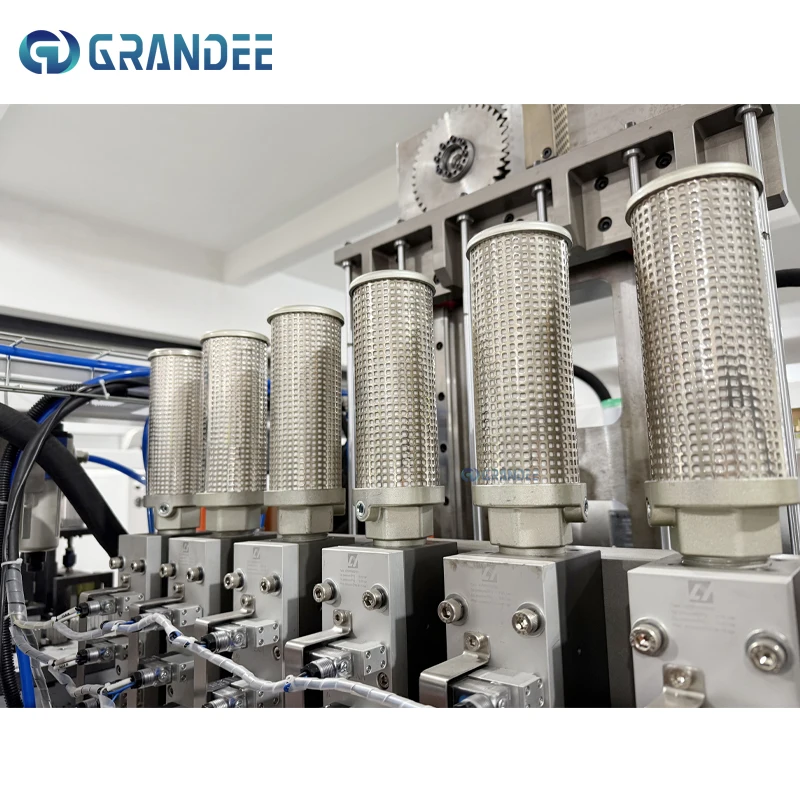

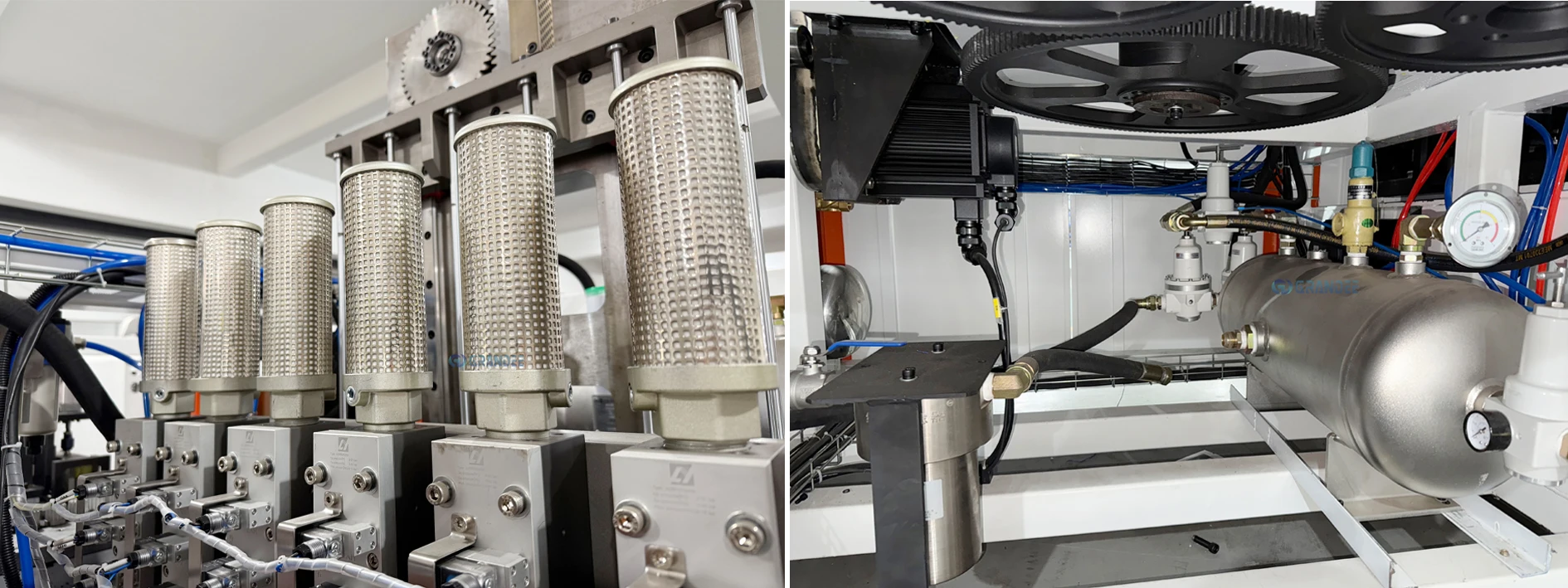

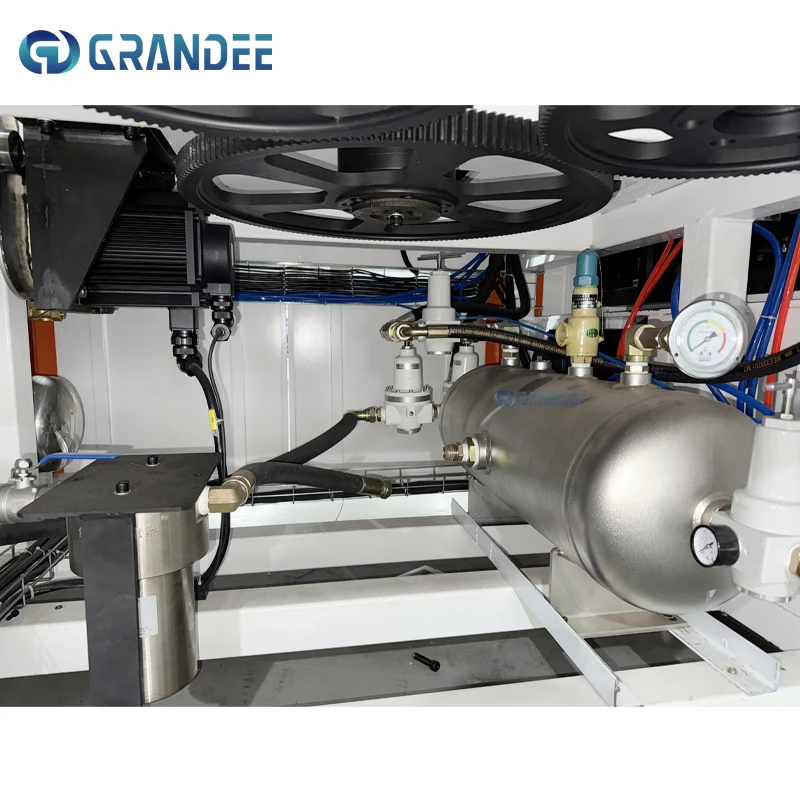

Blow Molding Actuation & Air Supply System
1.This is the high-pressure blow molding actuation and air supply system for high-speed PET bottle blow molding machines.
2.High-pressure air supply system for blow molding lines. Stores and regulates compressed air, ensuring stable, consistent pressure for reliable bottle forming.
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-11
product high speed 6 cavity variable pitch blow molding machine for water beverage bottle blowing production line-12
Item
GD-6E








Main machine
Maximum Bottle capacity
700ml(6 cavities); 1500ml(3 cavities)
Maximum bottle diameter
Φ68mm(6); Φ110mm(3)
Neck diameter
Φ18~30mm
Maximum bottle height
<245mm
Maximum preform height
<150mm
Clamping stroke
130mm
Bottom die stroke
50mm
Bottle pitch
76.2mm(6); 152.4mm(3)
Maximum output rate (bph)
9,000(0.5L); 3600(1.5L)
Number of molds
6, 3


Heating part
Number of heating modules
4
Number of heating lamp layers
8
Number of preform bases
108




Electric part
Voltage
220/380V
Frequency
50/60Hz
Installation power
75kw
Service power
40-70%
Air source
Low pressure
1Mpa
Low pressure air consumption
2m³/min
High pressure
3.5Mpa
High pressure air consumption
6m³/min(9000bph, 0.5L bottle)
Chilled water
(Water temperature ≤18℃)
Pressure
2~4bar
Flux
3.6m³/h
Cool water
(Water temperature ≤30℃)
Pressure
2~4bar
Flux
6m³/h
Weight
G.W.
Around 7,000kg

Dimension
Main machine (L×W×H)
4500×2400×2500mm
Preform unscrambler(L×W×H)
2800×2800×3000mm

For more information, please feel free to contact us to send an inquiry!
