Full Automatic 3025 28mm 30mm 38mm Cap Visual Inspection Machine Caps Camera Inspection Machine Equipment System

Full Automatic 3025 28mm 30mm 38mm Cap Visual Inspection Machine Caps Camera Inspection Machine Equipment System

Spu:

1601834701004

Parameter
Related products

Parameter

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

2925 28mm Bottle Cap Detector/ High Speed Cap ClosuresVisual Inspection Equipment with 7 CCD Industry Cameras

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-3

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-4

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-5

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-6

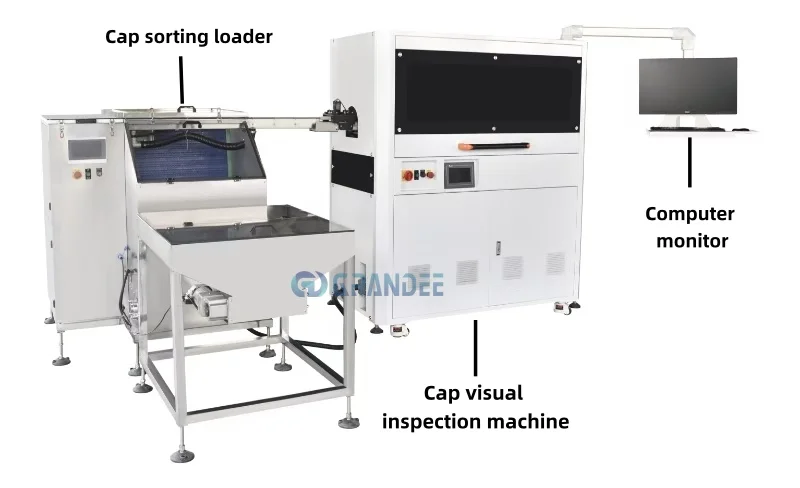

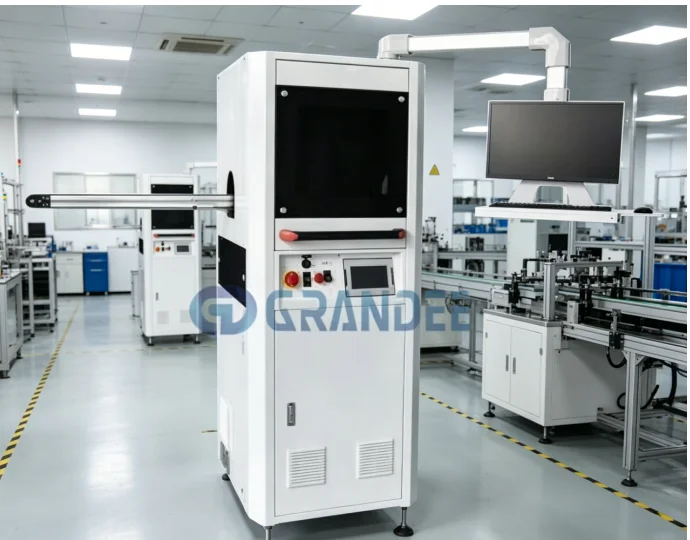

1. Automatic GD-C3P-AI-ZD 3-camera AI version visual inspection machine

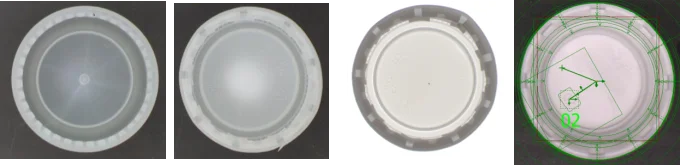

This automatic cap inspection system adopts three high-definition industrial cameras to capture multi-angle images of caps without
blind areas. Powered by advanced AI deep learning algorithms, it accurately detects common cap defects including deformation,
cracks, missing rubber gaskets, offset printing, dirt and burrs with ultra-low false rejection and missing inspection rates. All
parts in contact with caps are manufactured from SS316L stainless steel, meeting food-grade hygiene requirements. It can be
integrated perfectly with isobaric filling lines, equipped with a touchscreen control panel, automatic defective cap rejection,
real-time inspection data storage and remote debugging functions to realize continuous online quality monitoring of beverage caps.

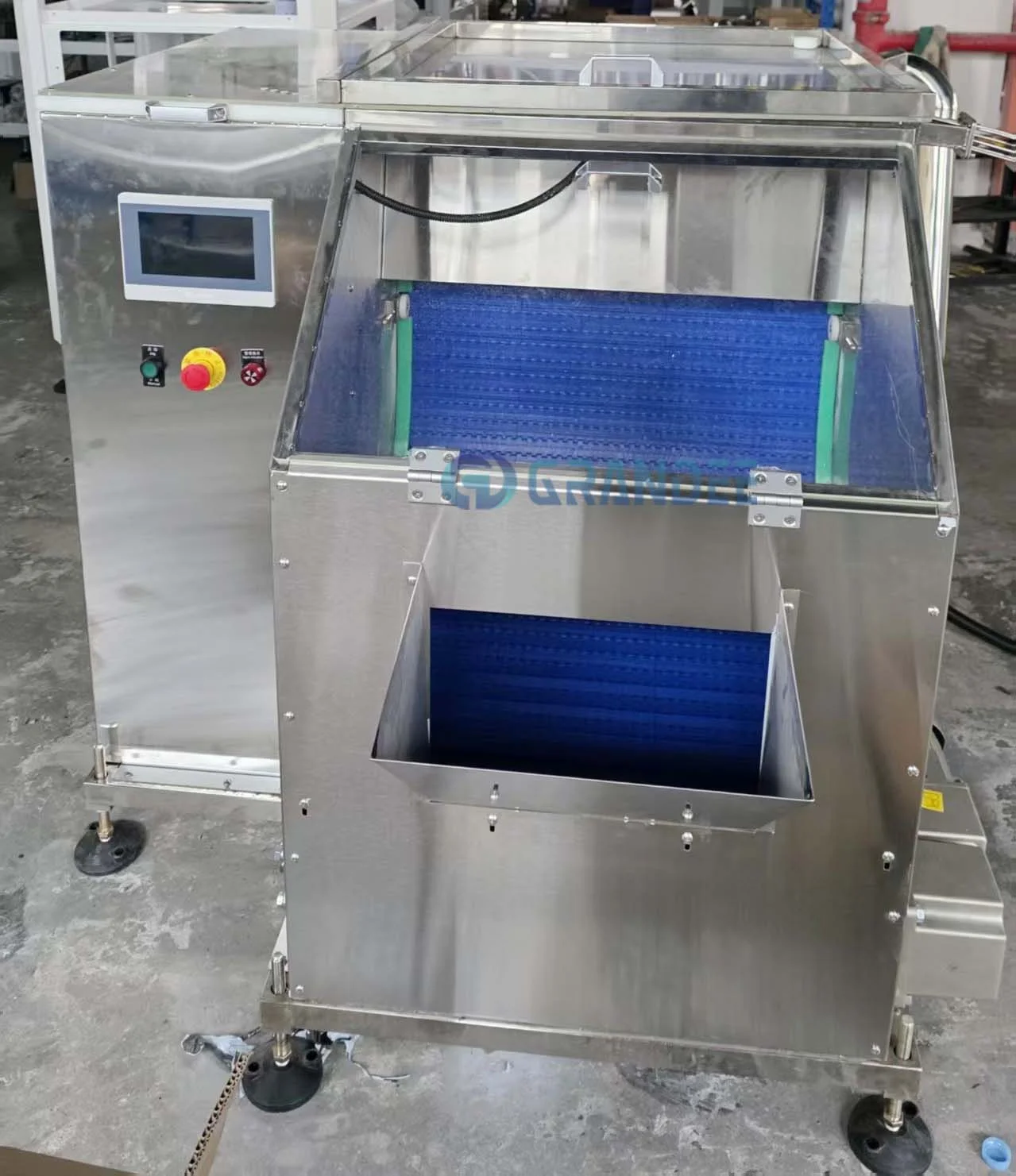

2. GD-FG-400W Cap Sorting Machine

Model GD-FG-400W cap sorting machine is specially designed for automatic cap feeding and sorting, matching perfectly with the AI
3-camera cap visual inspection system and isobaric filling equipment. It adopts SS316L stainless steel for all cap contact parts
to meet food sanitary standards. With stable high-speed operation, it arranges caps in uniform orientation, removes deformed and
damaged caps in advance, and delivers qualified caps to the filling station continuously. Equipped with touch screen control and
fault self-alarm function, it features low noise, easy maintenance and wide compatibility with plastic and metal beverage caps.

Product Details

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-7

Main technical parameter

Type	Item	Specification	Remark
Detection Performance	Detection Accuracy & Speed	≥0.3mm detectable; 800 pcs/min for all capsSpots/flash/missing material etc.; misjudgment ≤0.1%	Identifiable at grayscale diff＞30, fits all caps, inspection items expandable on demand
Equipment Dimensions	OD, CB L, EW	OD:3200×1500×2500mm, CB L:1300mm, EW:≈650kg	With feeding unit, effective conveyor width 90mm, P≤5kW
Operating Conditions	Abbreviations: PSV, CA, AT, RH, EMI	PSV:3P+N+PE 380V±5%,50/60Hz; CA:0.6-0.7MPa,flow≥0.2m³/min; AT:-10℃~60℃(derate above 40℃); RH:5%-95%; EMI:no interference sources	P≤5kW, matched rejector, no condensation

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-8

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-9

Machine Model	GD-C3P-AI-ZD
Production Capacity	48000BPH
Machine materials	SUS304
Mains frequency	50/60HZ
Power	5KW
External power source	AC220V/ single-phase
External gas source	0.7Mpa
Gas loss	0.01L per time
Machine size	3200×1500×2500mm

For more information, please feel free to contact us tosend an inquiry!

Turnkey Solution

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-10

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-11

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-12

Juice filling machine

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-13

Carbonated drink filling machine

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-14

Automatic soft drink production line

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-15

Mixed fruit juice mixing system

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-16

Mineral water filling machine

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-17

Bottle filling packaging machine

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-18

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-19

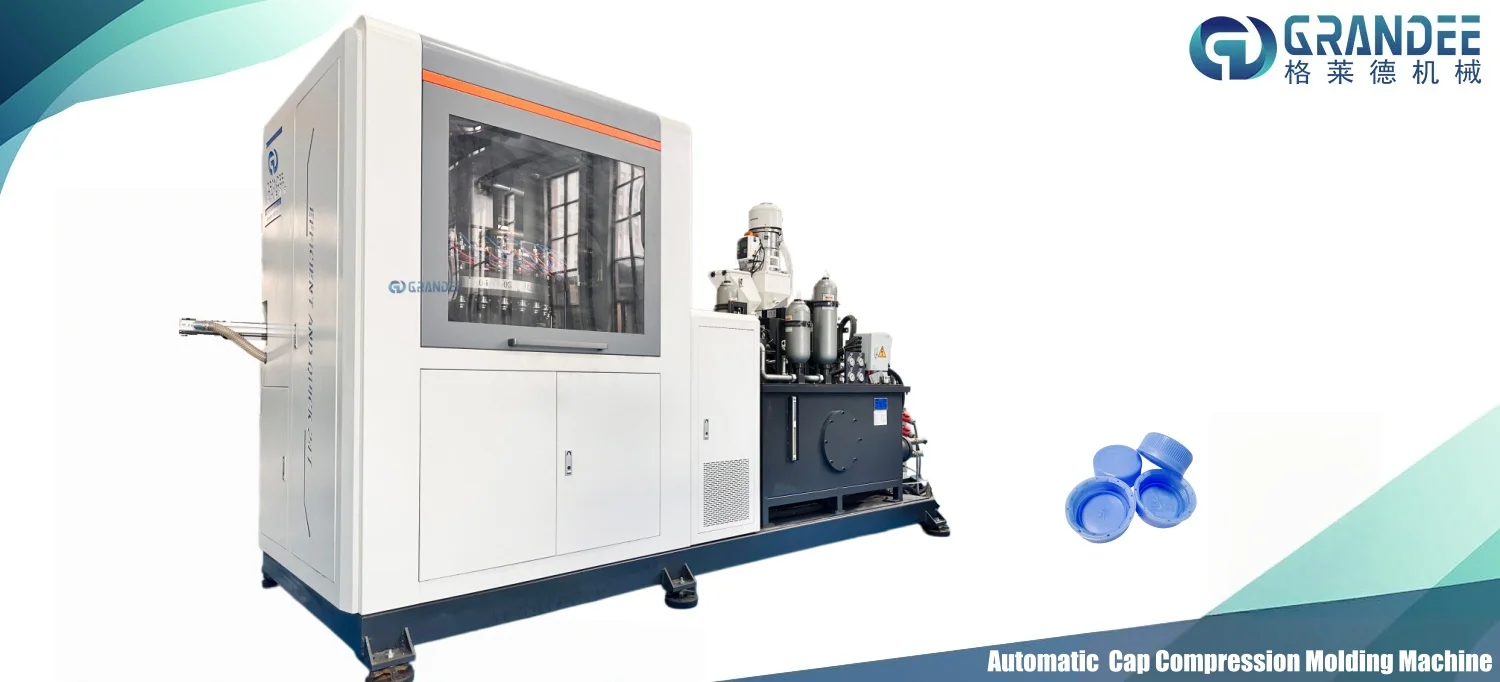

Automatic Cap Compression Molding Machine

This advanced machine produces soda and mineral water bottle caps from granular plastic. Capacity is 16000-48000pcs/h.Raw material is automatically fed, plasticized at high temperature, then extruded and cut into precise portions. These portions are distributed into mold cavities and formed under high pressure, ensuring consistent shape, strength, and sealing performance.

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-20

Operating Principle of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.

Exhibition

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-21

Customer Acceptance Report

full automatic 3025 28mm 30mm 38mm cap visual inspection machine caps camera inspection machine equipment system-22

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements.
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us to send an inquiry!
