Fully Automatic Remote Control Pallet Strapping Wrapping Machine Stretch Wrapper

Fully Automatic Remote Control Pallet Strapping Wrapping Machine Stretch Wrapper

Spu:

1601926779428

Parameter
Related products

Parameter

fully automatic remote control pallet strapping wrapping machine stretch wrapper-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

fully automatic remote control pallet strapping wrapping machine stretch wrapper-3

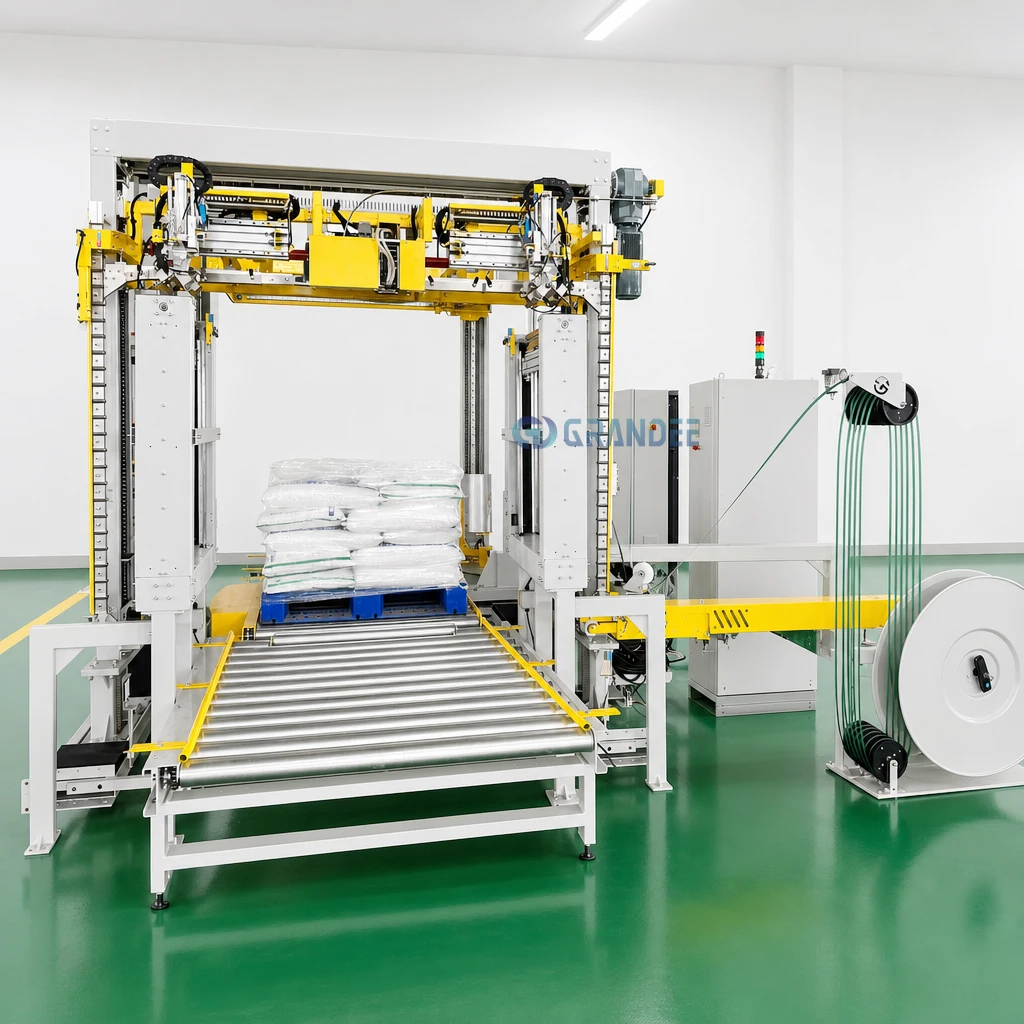

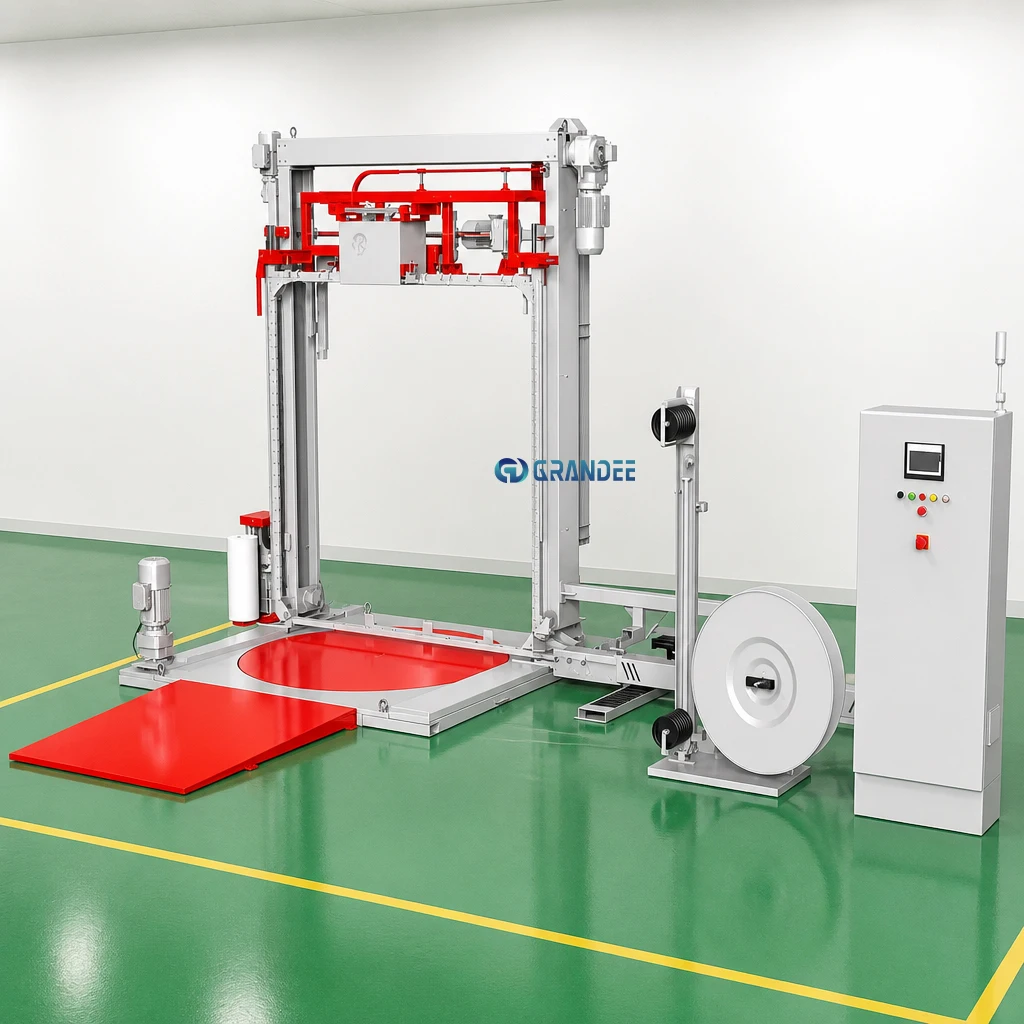

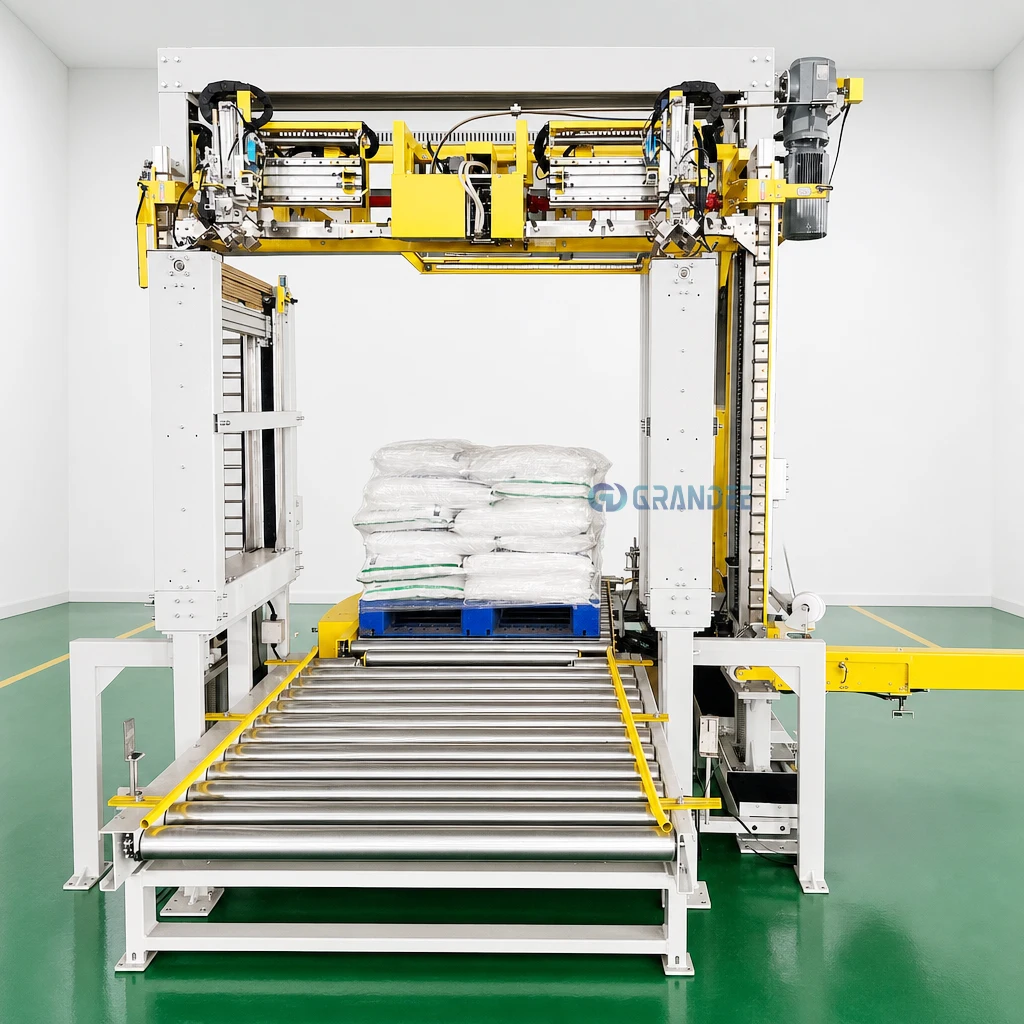

Automatic Strapping and Wrapping Machine

Adds secure horizontal strapping to your palletizing line, easily paired with the stretch wrapping machine for a complete
packaging solution.
* Straps through pallet openings — horizontal compression keeps loads stable during transport
* Auto height sensing — detects load height, adjusts strapping position automatically
* Auto cycle — strap feed → tension → friction weld → cut, all hands-free
* Jam auto-pause — clears and resumes without re-threading the strap
* Siemens PLC + touchscreen — built-in diagnostics, fast troubleshooting
* Adjustable tension & position — adapts to different loads and strapping patterns

Can be integrated with our stretch wrapping machine as a strapping-wrapping combo station.

fully automatic remote control pallet strapping wrapping machine stretch wrapper-4

fully automatic remote control pallet strapping wrapping machine stretch wrapper-5

Model	GD-03DMC-CR
Strapping Speed	4+Wrapping/about 280s
Strapping Method	perpendicular to the ground
Strapping tape material	PET/PP
Turntable Speed	0-15rpm 3/N PE
Voltage	AC380V
Power	5kw

fully automatic remote control pallet strapping wrapping machine stretch wrapper-6

fully automatic remote control pallet strapping wrapping machine stretch wrapper-7

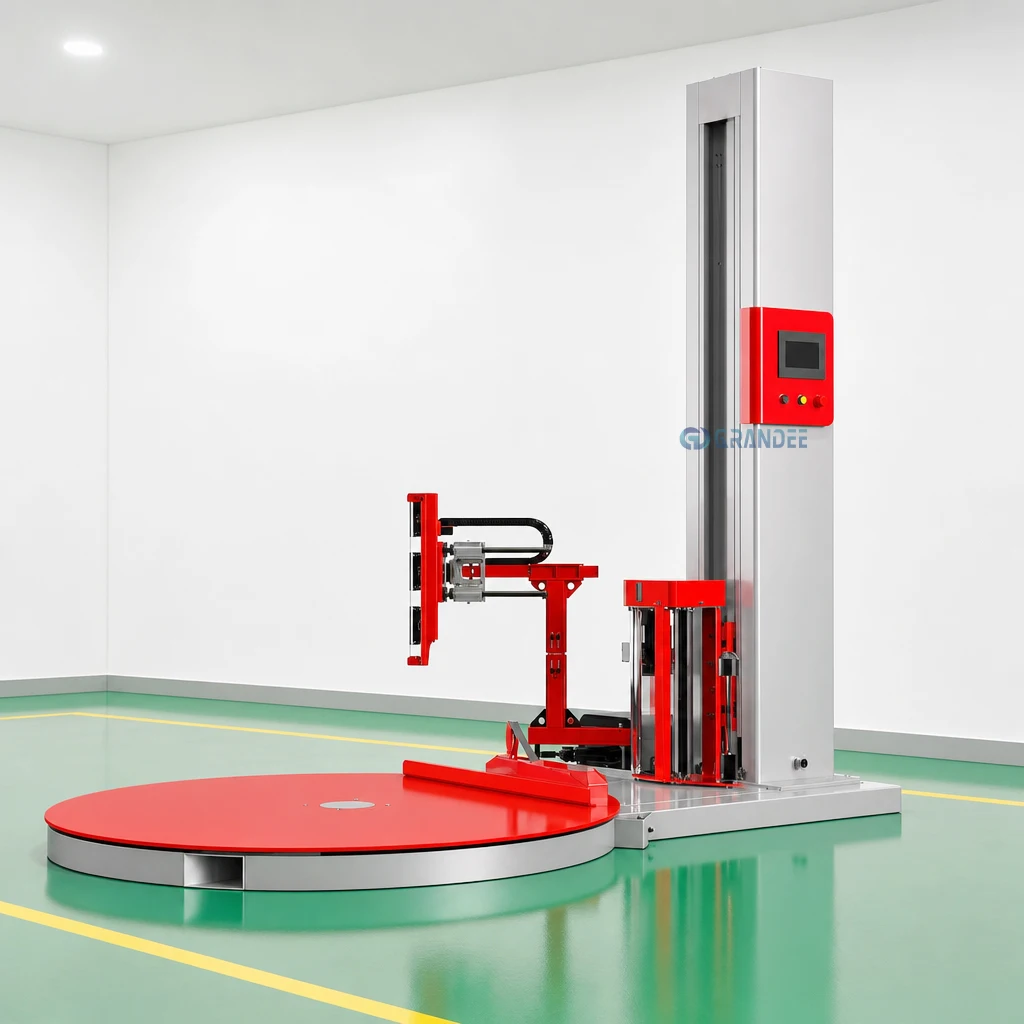

Intelligent Remote Control Wrapping Machine

* Pre-Stretch Film Carriage— mechanical resistance + pre-stretch mechanism maintains constant film tension while saving more stretch film per pallet
* Photoelectric Sensing— automatically detects the wrapped area of the load, no wasted film, no manual positioning
* New Control Panel — mechanical button design, simple program setup, operator-friendly

fully automatic remote control pallet strapping wrapping machine stretch wrapper-8

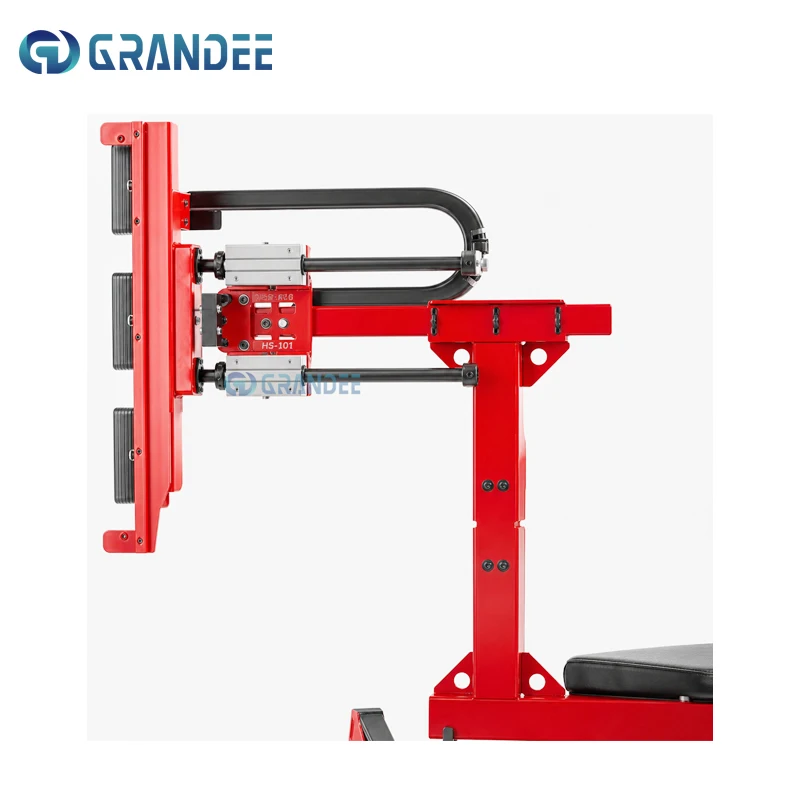

Pre Stretch Film Carriage and Control Panel

Mechanical brake fits all roll sizes with automatic film threading for even payout and tight wrapping. Control panel stores 3 presets with independent speed adjustments for lift, film feed and turntable, plus top/bottom wrap, counter and keypad lock.

fully automatic remote control pallet strapping wrapping machine stretch wrapper-9

Anti Slip Turntable for Forklift operated Wrappers and High strength Wear resistant Low noise Rollers

German laser-cut anti-slip turntable 1800mm for standard pallets with 16 aviation-grade rollers for quiet stable support. With reinforced steel column and adjustable height for various packaging needs.

fully automatic remote control pallet strapping wrapping machine stretch wrapper-10

Automatic Film Unit, Remote Control & Optional Ramp

Pneumatic gripper for precise film cutting. Handheld remote saves labor with 25% higher efficiency. Optional ramp enables manual loading without forklift or pit.

After-Sales Promise

fully automatic remote control pallet strapping wrapping machine stretch wrapper-11

fully automatic remote control pallet strapping wrapping machine stretch wrapper-12

Model	GD1650FZ
Material	PET/PP
Width (mm)	16±0.5mm
Thickness (mm)	0.8±0.5mm
Tensile Strength (N)	≥4400N (PET)
Elongation (%)	12-16%
Sickleshaped Bow	≤120mm/2m
Roll Weight (kg)	20kg
Surface Type	Embossed
Inner Roll Diameter (mm)	406mm
Outer Roll Diameter (mm)	760mm
Roll Width (mm)	160-190mm
Quality Requirement	Complies with GB/T22344-2018 Polyester Strapping Band for Packaging

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

fully automatic remote control pallet strapping wrapping machine stretch wrapper-13

fully automatic remote control pallet strapping wrapping machine stretch wrapper-14

fully automatic remote control pallet strapping wrapping machine stretch wrapper-15

Juice filling machine

fully automatic remote control pallet strapping wrapping machine stretch wrapper-16

Carbonated drink filling machine

fully automatic remote control pallet strapping wrapping machine stretch wrapper-17

Automatic soft drink production line

fully automatic remote control pallet strapping wrapping machine stretch wrapper-18

Mixed fruit juice mixing system

fully automatic remote control pallet strapping wrapping machine stretch wrapper-19

Mineral water filling machine

fully automatic remote control pallet strapping wrapping machine stretch wrapper-20

Bottle filling packaging machine

fully automatic remote control pallet strapping wrapping machine stretch wrapper-21

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

fully automatic remote control pallet strapping wrapping machine stretch wrapper-22

Automatic Double Sides Self Adhesive Labeling Machine

Vertical Self-Adhesive Labeling Machine is mostly applicable for the automatic labeling of column package containers for medicine, commodity, foodstuff, cultural supplies, electronics etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chromatapes. The touch screen is easy and visual to operate. In addition, it has rich help functions and failure display functions.

fully automatic remote control pallet strapping wrapping machine stretch wrapper-23

Carton Box Packing Machine

This equipment features imported motor drives with chain-sprocket transmission, ensuring intelligent operation and precise adjustment. Constructed with stainless steel and aluminum, it integrates premium components like Yade cylinders, Schneider servos, Autonics sensors, and RE contactors for high reliability. Ideal for secondary packaging in beverage, food, pharmaceutical, and chemical industries, it supports seamless integration with automated filling lines.

Exhibition

fully automatic remote control pallet strapping wrapping machine stretch wrapper-24

Customer Acceptance Report

fully automatic remote control pallet strapping wrapping machine stretch wrapper-25

FAQ

Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements.
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us tosend an inquiry!
