GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development,engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-3

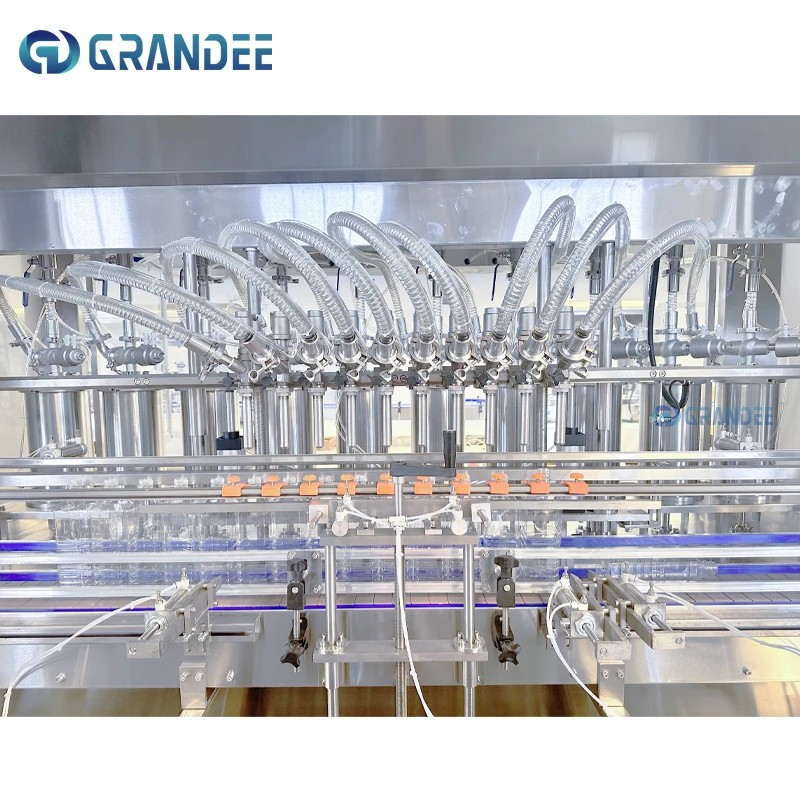

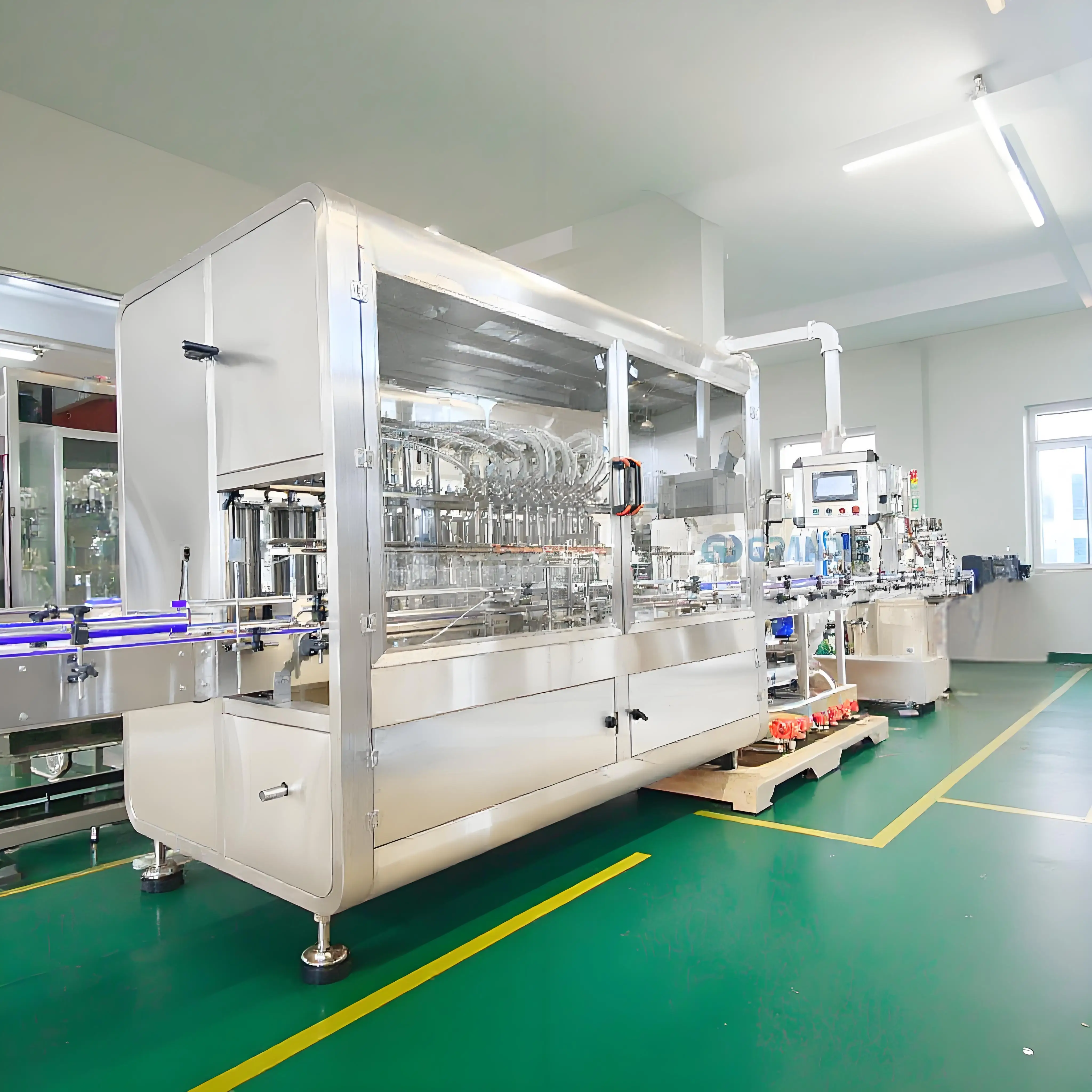

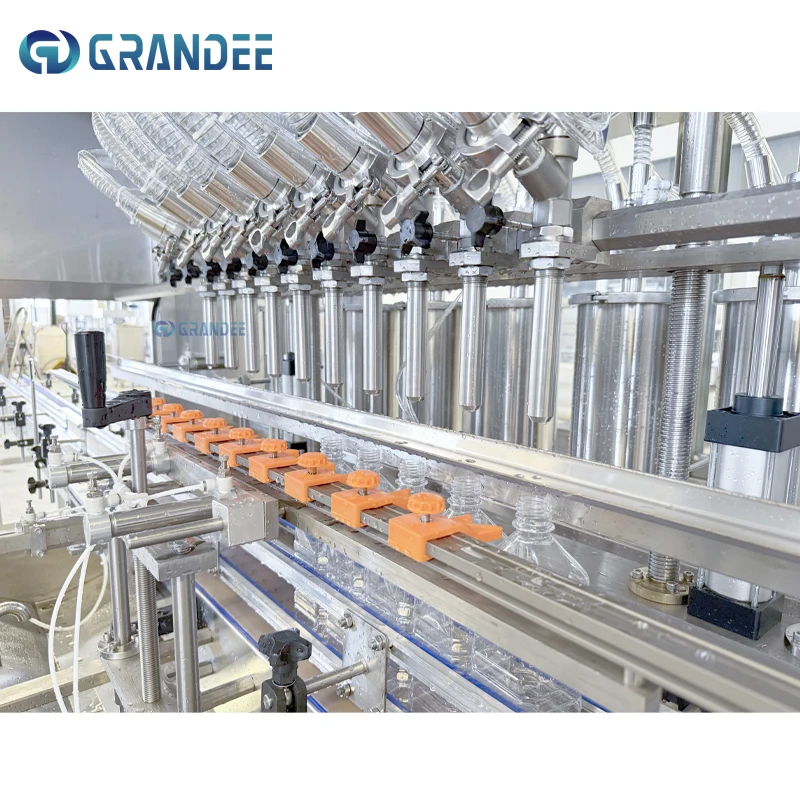

Automatic servo piston filling machine for Edible oil, olive oil, peanut oil and daily chemicals

This machine adopts servo control piston filling technology,high precision,high speed,stable performance,fast dose adjustment features.

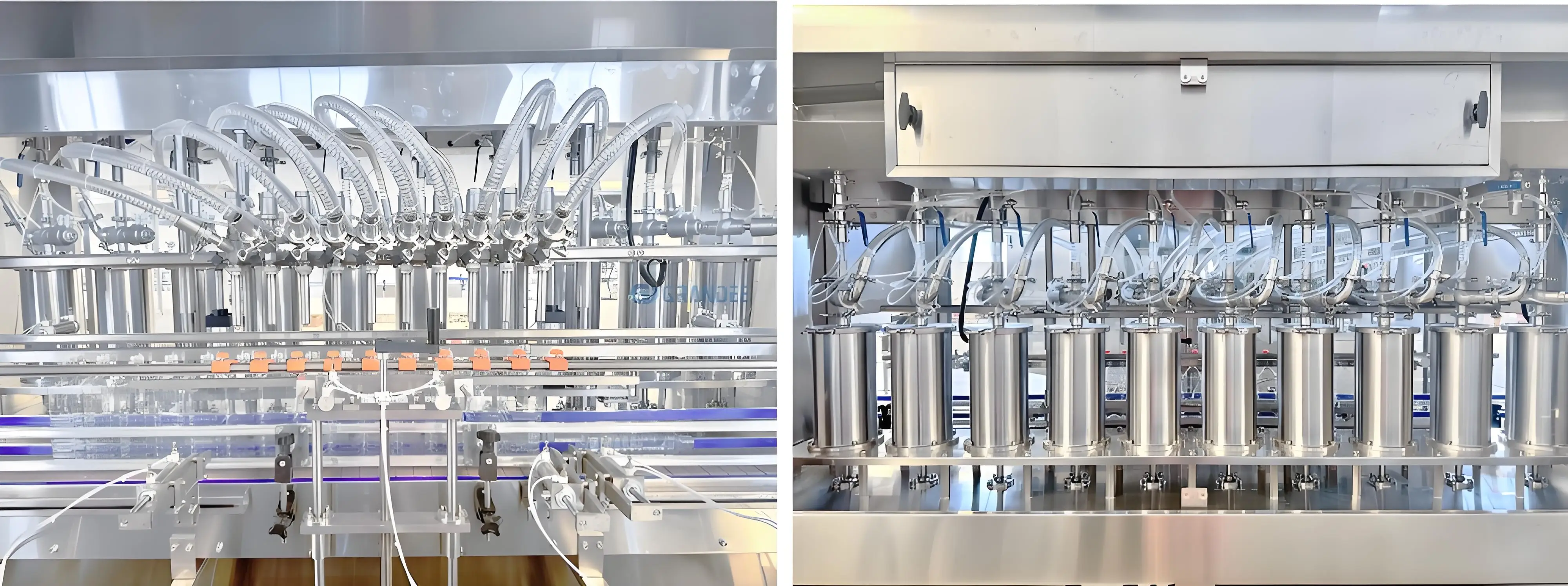

Piston filling

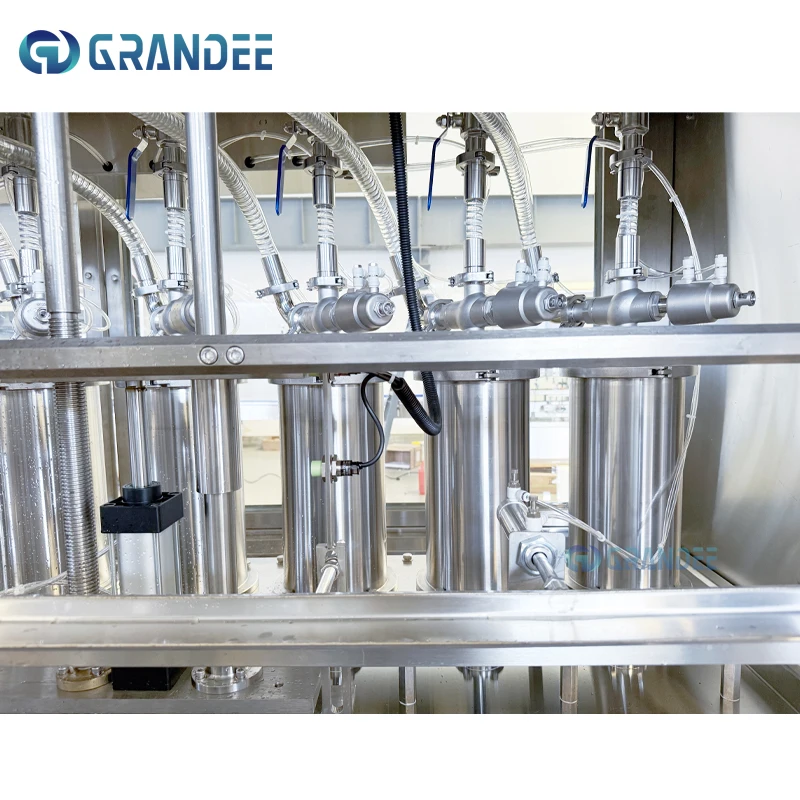

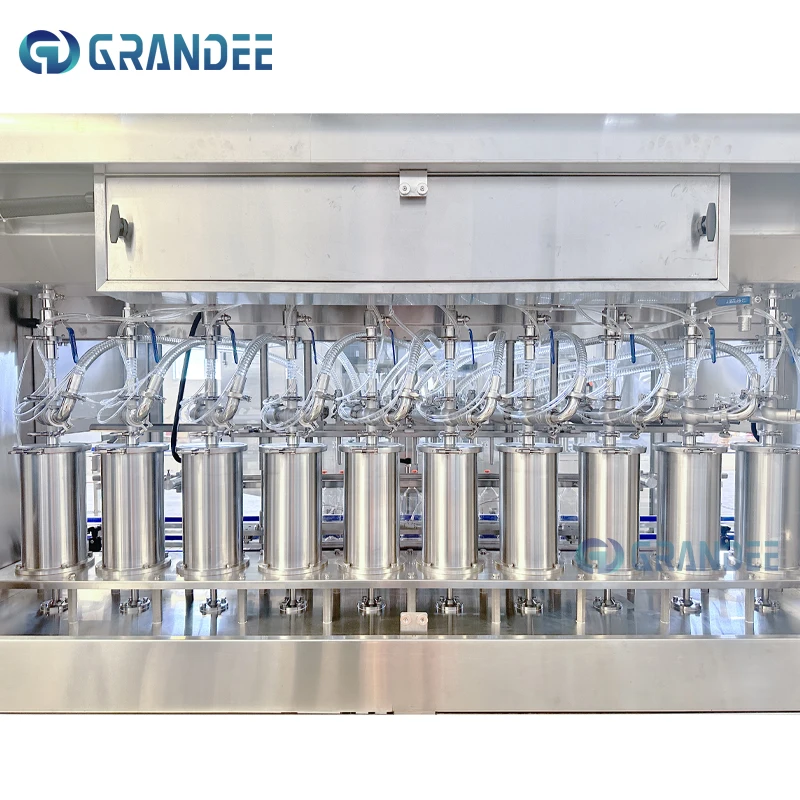

Piston filling, each piston is equipped with a servo motor control underneath to ensure precise irrigation.

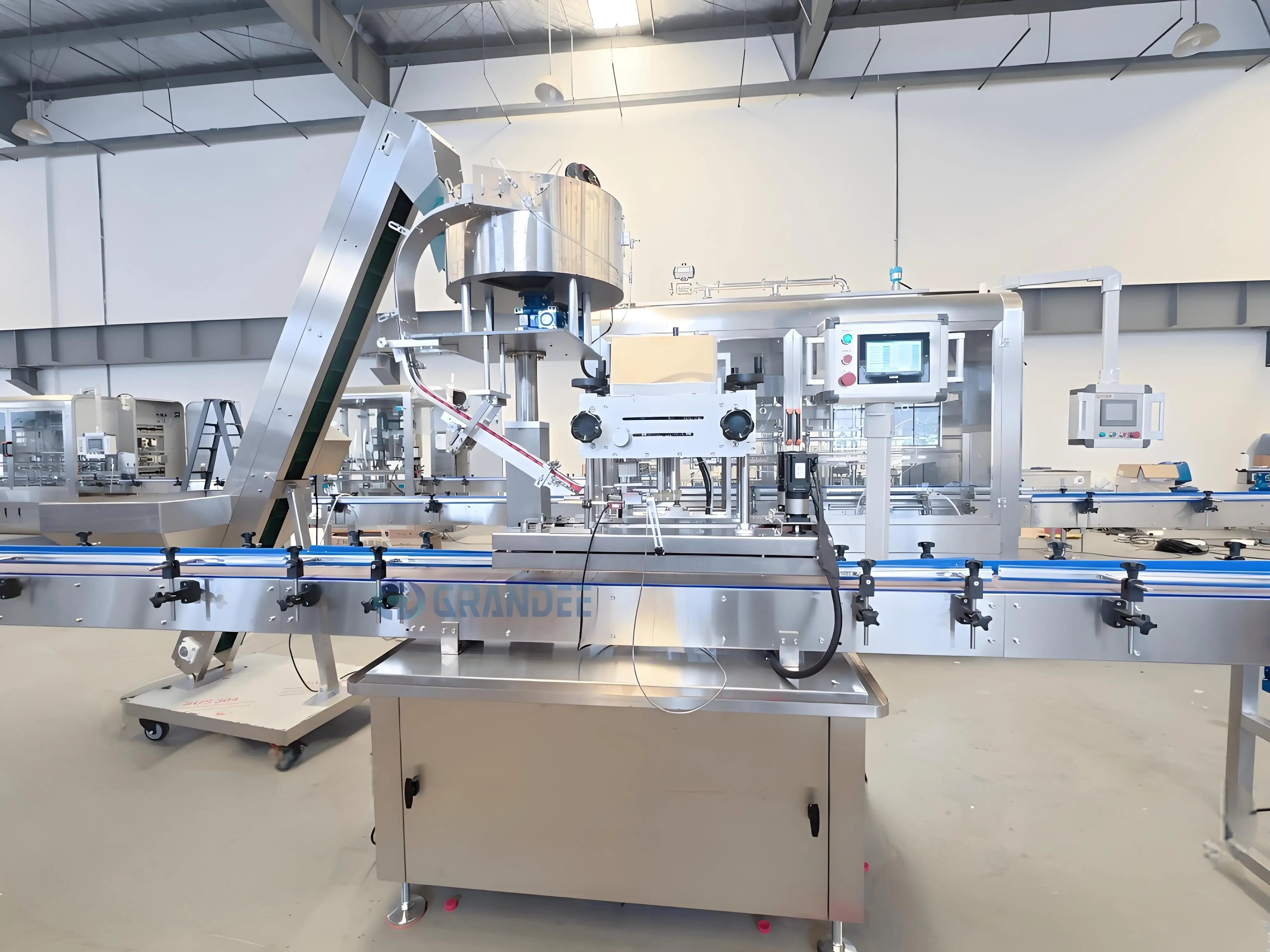

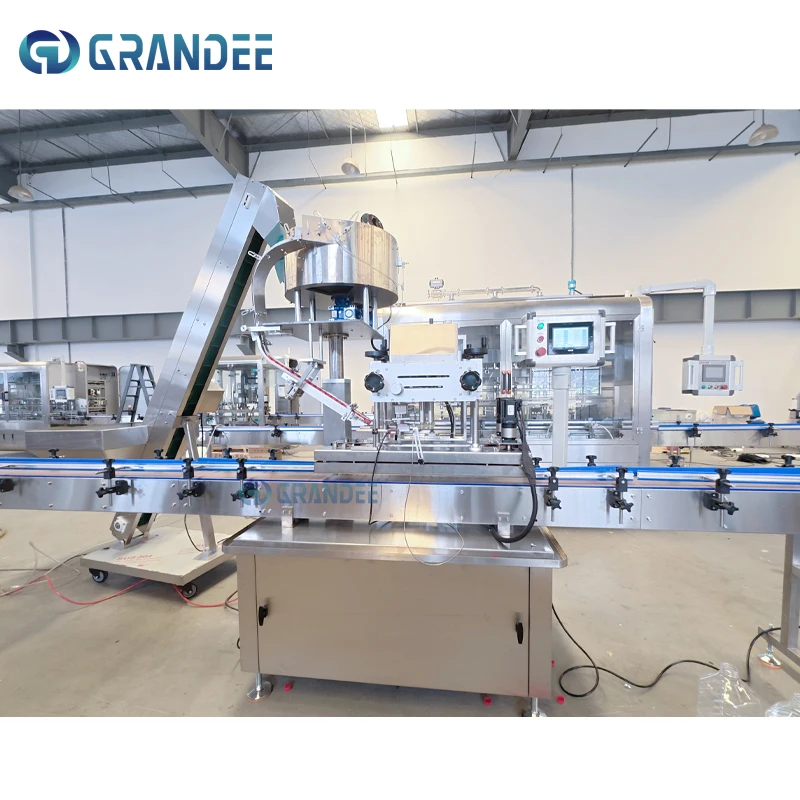

Automatic High Speed 4 Wheels Linear Gripping & Screw Capping Machine

Suitable for containers of various materials and shapes.No parts need replacement when changing bottle shapes—only positional adjustments are required.

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-6

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-7

The dual optical sensors of the cap sorting machine inspect caps to ensure capping accuracy.And the capping process will not damage the bottles or caps.

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-8

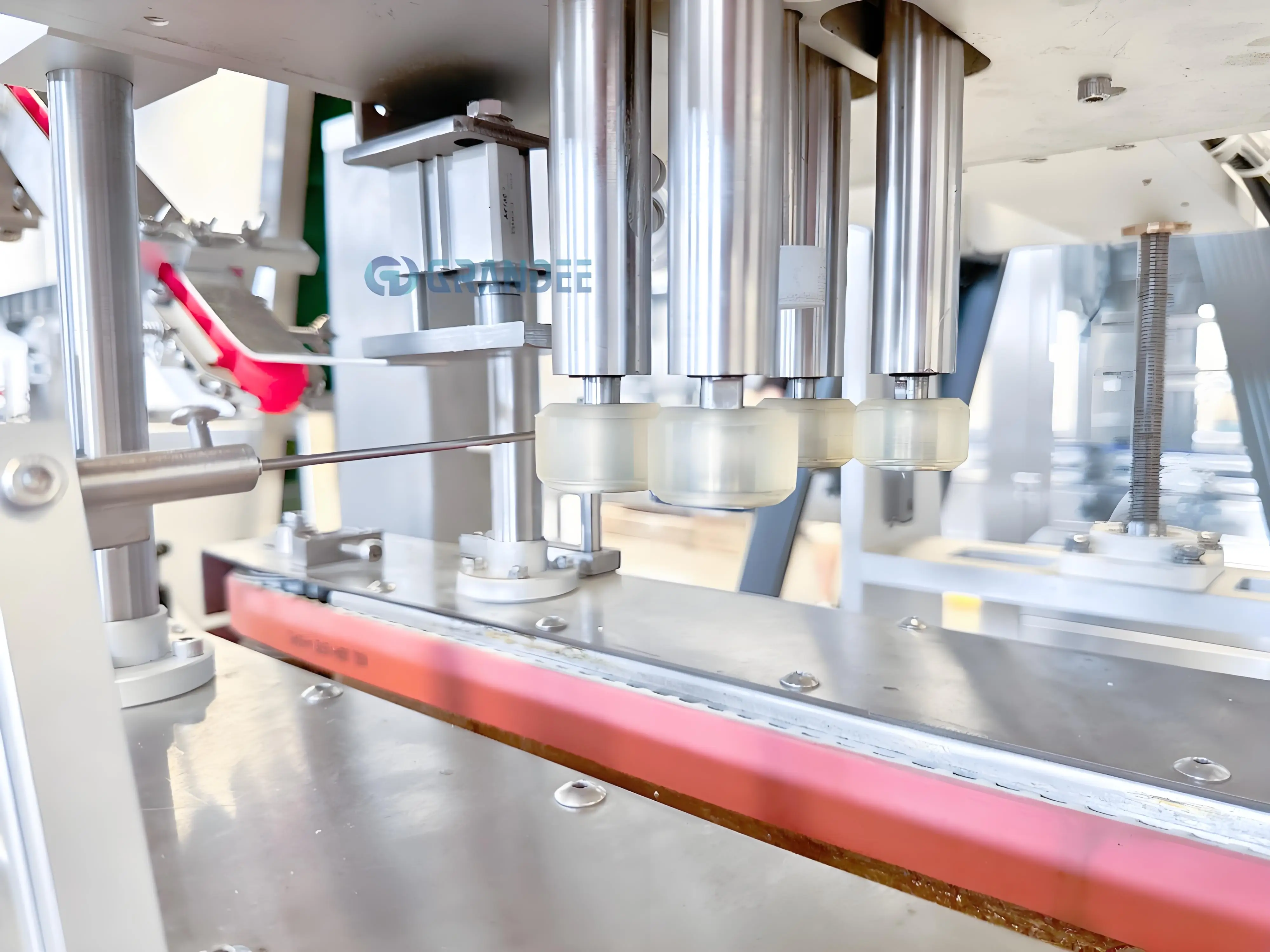

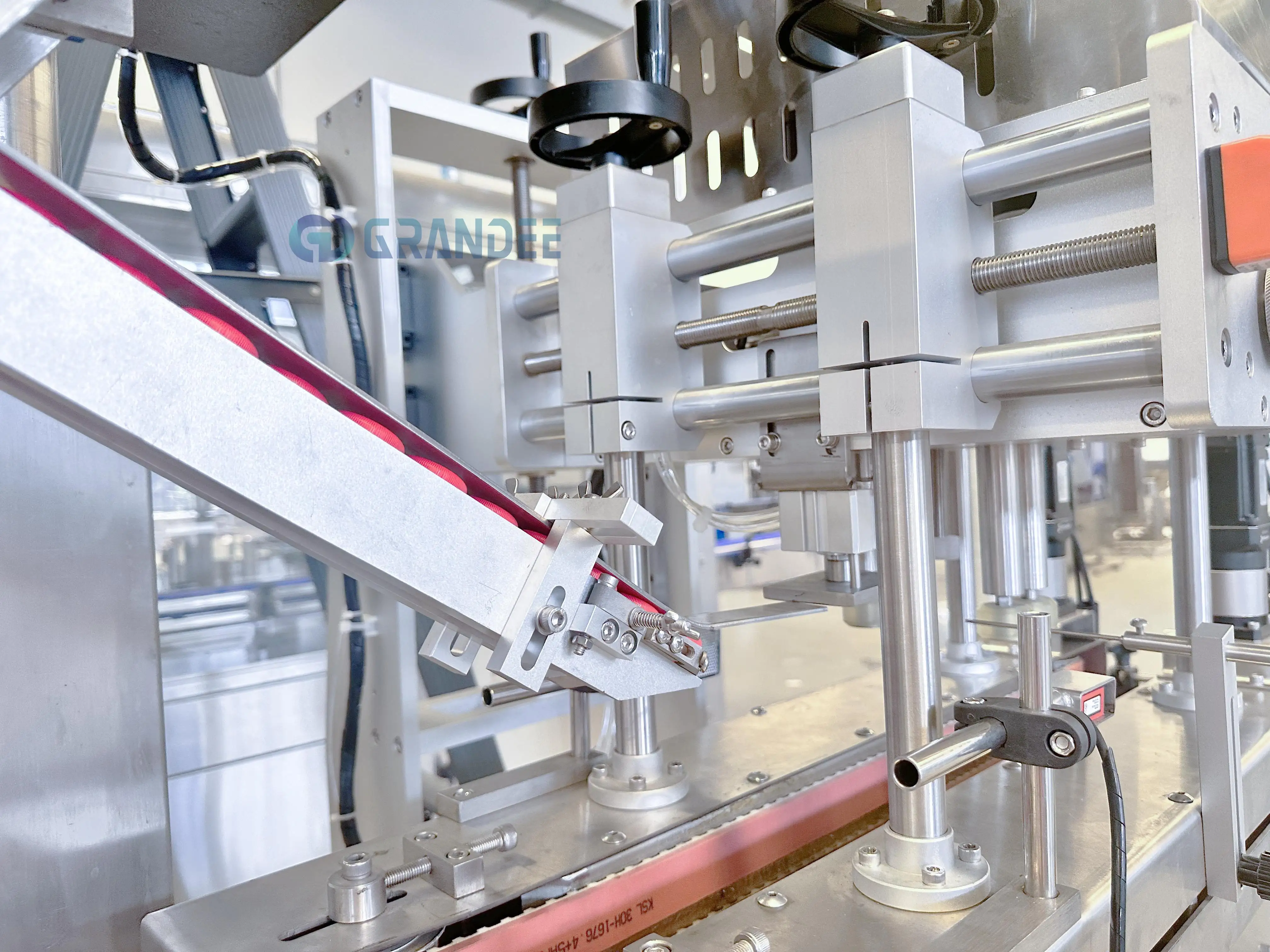

The Gripping Capping Head is the core component of a gripping capping machine. It simultaneously clamps the bottle neck and rotates the cap to achieve hermetic sealing.

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-9

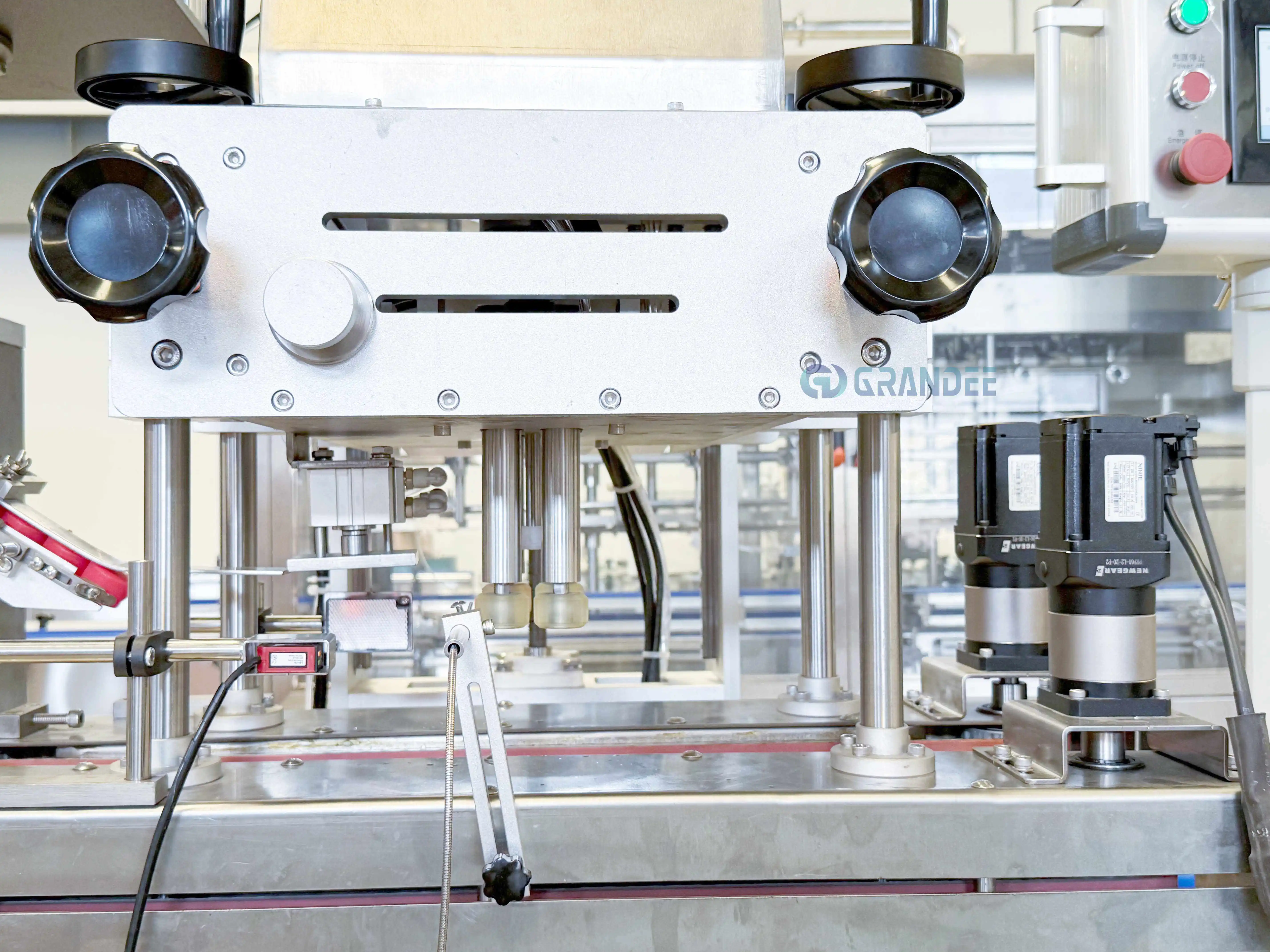

The speed of the conveyor,bottle clamp belt can be adjusted by variable frequency to adapt to various specifications of screw caps within the specified range.

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-10

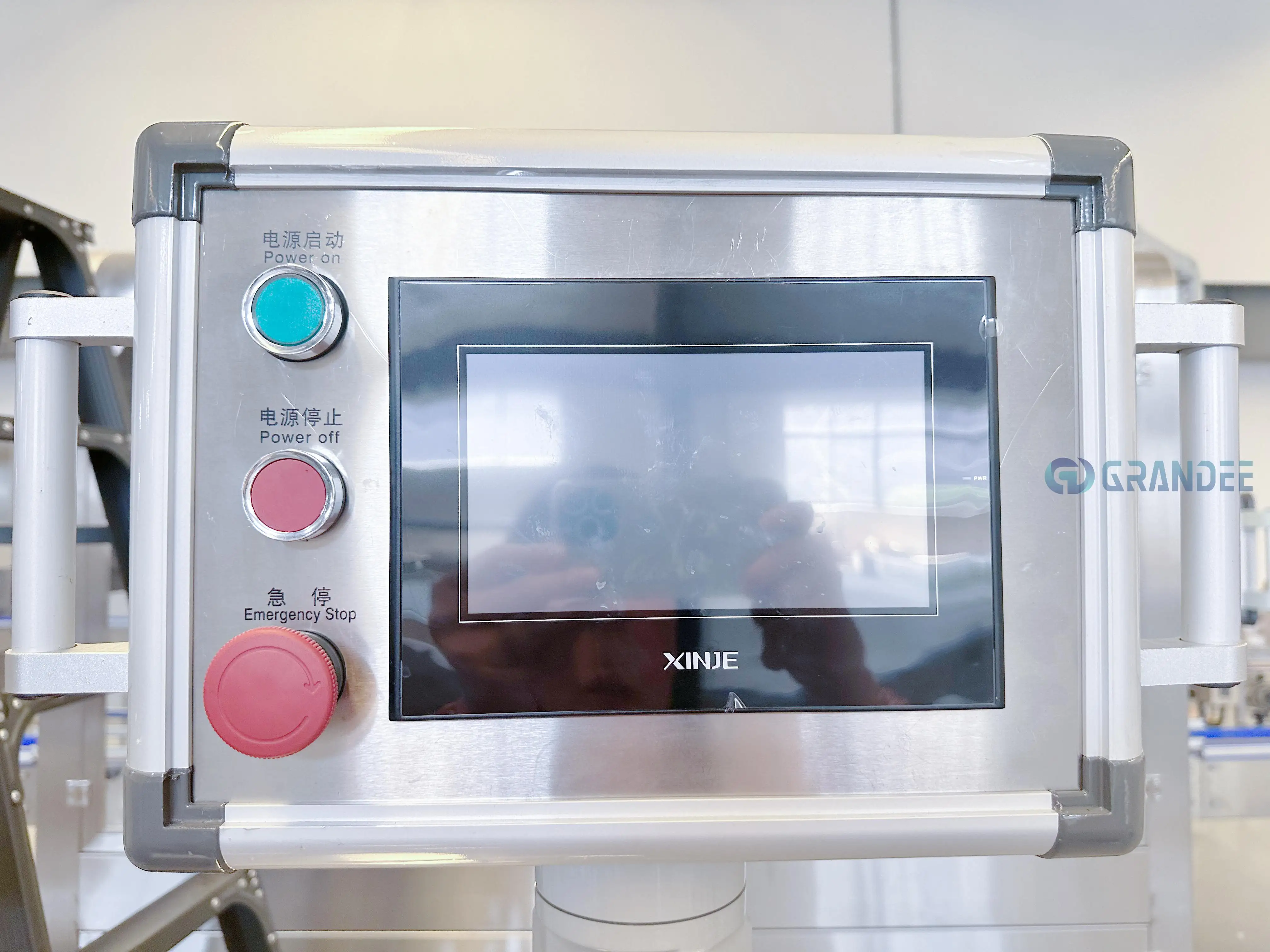

PLC and touch screen control panel for Parameter Settings, Operation monitoring... Equipped with four sets of dose adjustment memory data, easy to replace.

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-11

Model	GD-6S	GD-8S	GD-12S	GD-16S	GD-20S
Filling Heads	6	8	12	16	20
Suitable bottles	Cans, Bottles, Barrel(Customized)
Precision	≤0.1%
Speed (500ml/BPH）	≤1600BPH	≤2500BPH	≤3000BPH	≤4000BPH	≤5000BPH
Machine Size（mm）	200013002350	200013002350	240013002350	2800x1300*2350	240013002350
Power (kw)	3	3	3	3.5	3.5
Power Supply	AC 220/380V 50/ 60HZ( Customized)
Air source	0.6-0.8Mpa

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-12

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-13

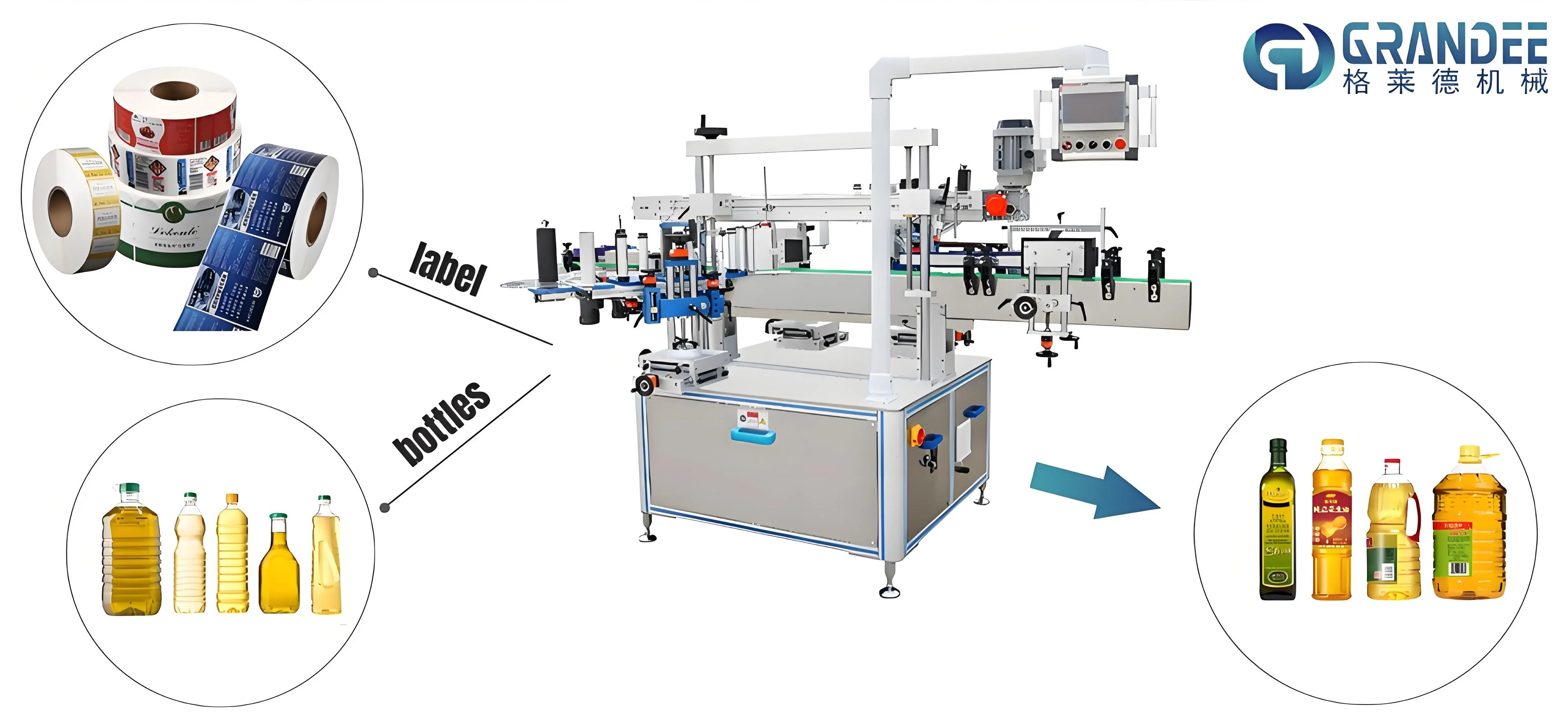

Automatic Double Sides Self Adhesive Labeling Machine

Vertical Self-Adhesive Labeling Machine is mostly applicable for the automatic labeling of column package containers for medicine,commodity, foodstuff, cultural supplies, electronics etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chroma-tapes. The touch screen is easy and visual to operate.

Exhibition

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-14

product fully automatic 50ml 5000ml pet bottle edible olive oil piston filling machine price-15

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."
