Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line
Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line

Fully Automatic Bottle Blowing Machine Pet Blow Molding Machine for Bottle Production Line

Spu:
1601716915239
Get a Quote
  • Parameter
  • Related products
Parameter
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-2
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-3
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-4
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-5

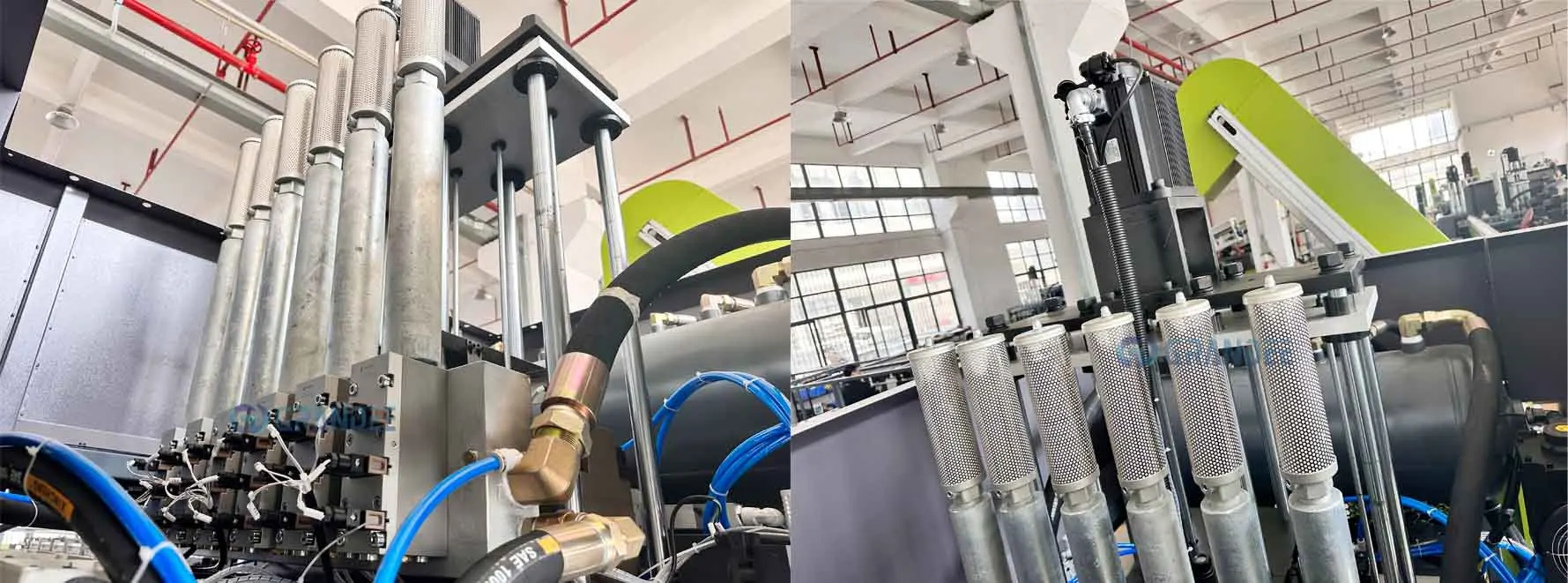

[1] Stretch unit:

servo motor driven, gear and rack system to achieve high speed.servo motor drives the reducer for clamping and opening, bottom cam system works together for mold open and close.
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-6

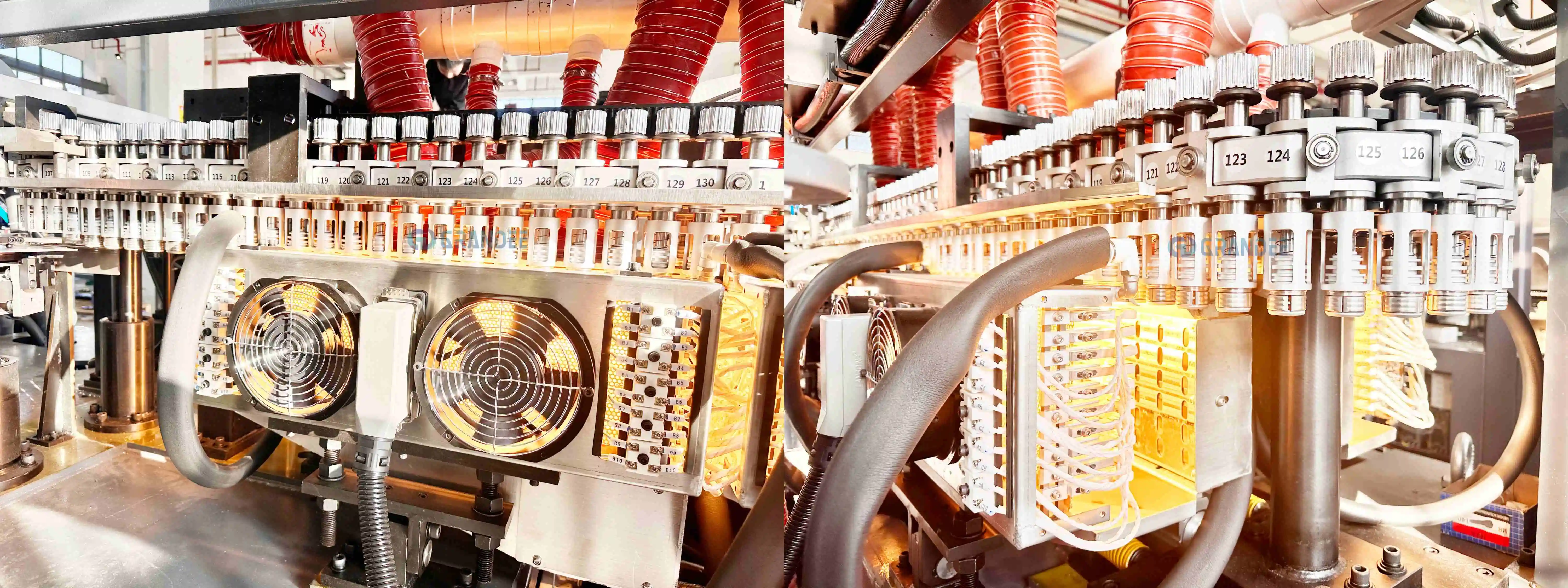

[2] Continuous splitting mechanism:

Adjust the pitch of the heated bottle blank (38.1mm) to the center distance required for blowing (114.3mm), achieving the goal of energy conservation. The clamping component includes at least 4 pneumatic fixtures with an opening angle of 180 degrees; The pneumatic fixture is driven by a cylinder to open the clamp block 180 degrees, so that when the pneumatic fixture is opened, the clamp block is parallel to the conveyor belt for transporting the bottle preform, ensuring that the pneumatic fixture does not need to move vertically when returning to pick up the bottle preform, but only needs to move horizontally. It not only saves time,simplifies the structure, but also reduces unnecessary shaking.
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-7

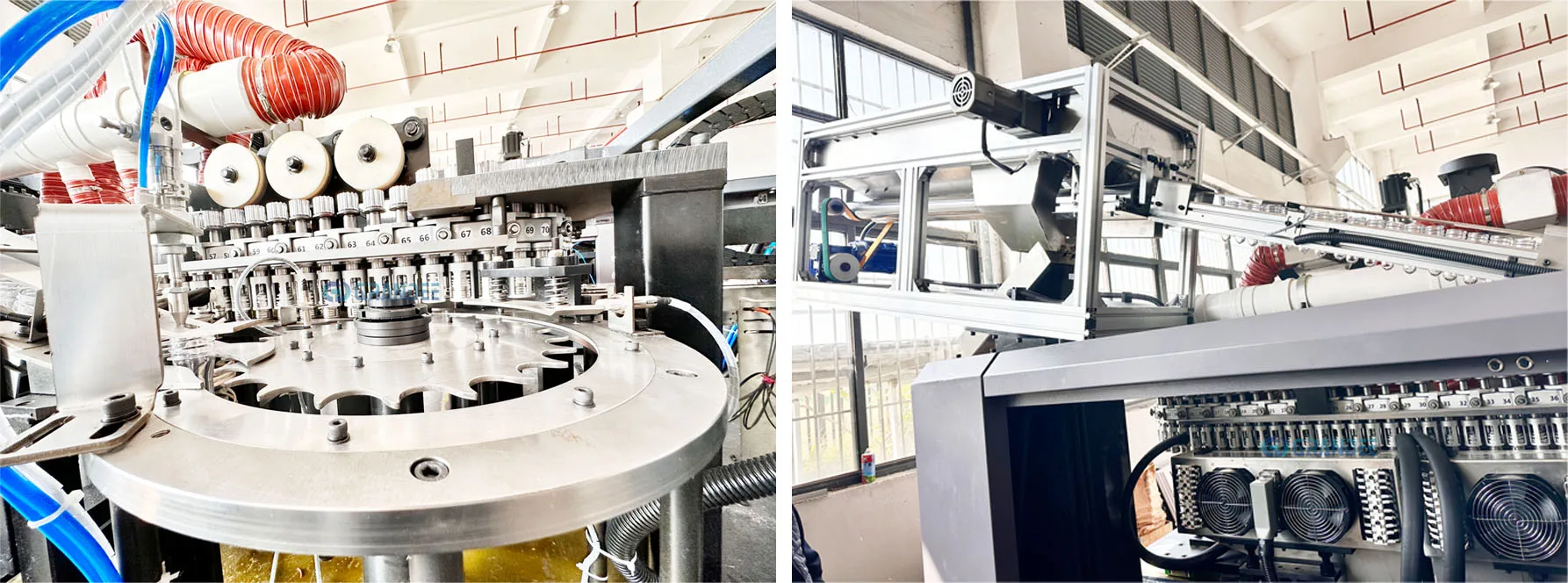

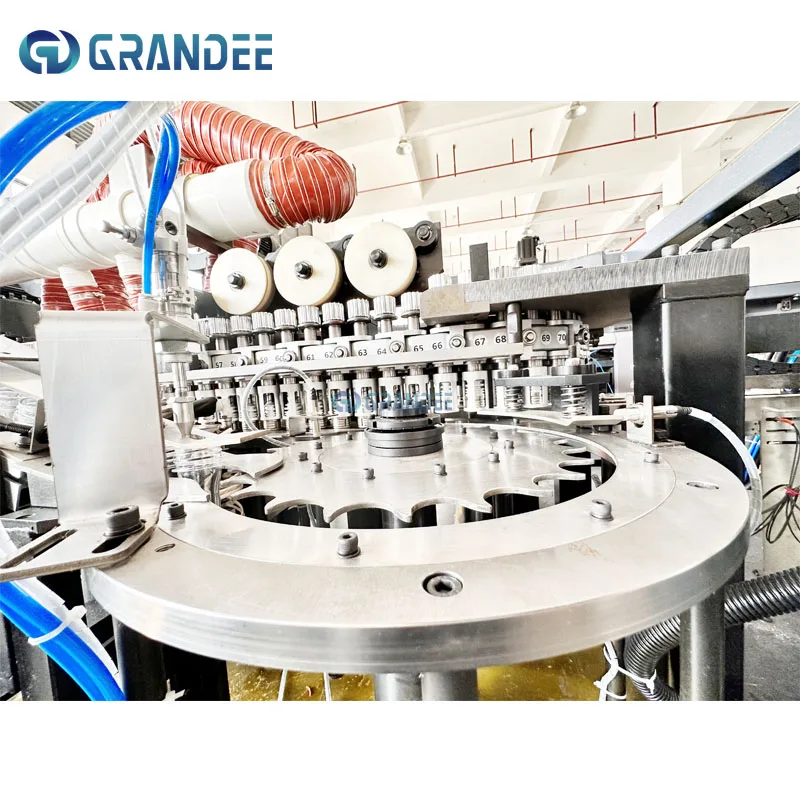

[3]Star wheel preform feeding system:

A linked type preform feeding star wheel disc, with the oven and star wheel disc linked, reliable and stable one-on-one preform feeding, ensuring that there is no omission of preforms.
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-8
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-9
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-10
Model
Unit
GD-6II
Clamping System
Number of cavity
cavities
6
mold stroke
mm
0-130
（stretch stroke
mm
340
Bottom stroke
mm
50
Cavity pitch
mm
114.3
heating pitch
mm
50.8
Number of holder
PCS
96
Container
Max.container volume
ltr
1.5
Max. neck diameter
mm
30/48
Max.prefrom height
mm
120
Max.container diameter
mm
95
Max.container height
mm
340
Theoretical Output
B.P.H
9000
Electrical System
heating oven
UNITS
5
box*channel
layer
10
Number of lamp
pcs
50
heating power
KW
60
AVERAGE POWER
KW
24
installed power
KW
72
voltage
Voltage
220v/380V/3phase
Air System
operating pressure
kg/cm2
7
blowing pressure
mpa
3.0-3.8
high pressure air consuming
L/min
6400
Chiller System
temperature
°C
10-15
pressure
Mpa
0.4
flow rate
L/min
80
heating power
HP
8
Machine

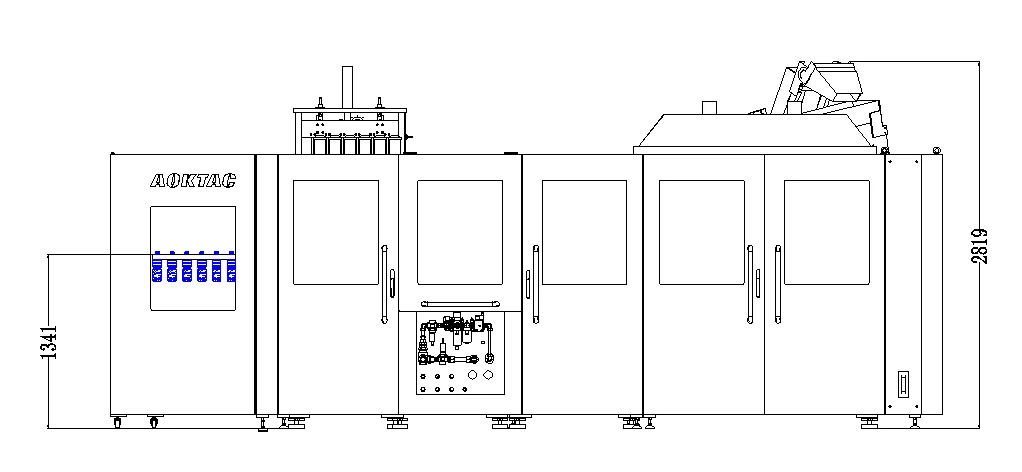

machine dimension
M
1.0*3.5*2.5（heating）
2.5*2.0*2.5（machine）
machine weight
KG
8000
For more information, please feel free to contact us to send inquiries!

product fully automatic bottle blowing machine pet blow molding machine for bottle production line-11
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-12
Turnkey Solution
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-13
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-14
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-15
Juice filling machine
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-16
Carbonated drink filling machine
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-17
Small bottle water filling machine
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-18
Fruit juice filling machine


product fully automatic bottle blowing machine pet blow molding machine for bottle production line-19
Mineral water filling machine
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-20
Bottle filling packaging machine
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-21
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product fully automatic bottle blowing machine pet blow molding machine for bottle production line-22
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

product fully automatic bottle blowing machine pet blow molding machine for bottle production line-23
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-24
Automatic Linear High Speed Shrink Packing Machine
The linear PE film packing machine offers smart, reliable operation through PLC and touch screen control, delivering consistent high-quality wraps with a pneumatic sealing and cutting system, while the rapid cooling system instantly locks the shape and the buffer rack ensures continuous flow with zero downtime.

product fully automatic bottle blowing machine pet blow molding machine for bottle production line-25
Robot Palletizer
Which contribute to the robotization of the palletizing system has a compact body and a high throughput. It is suitable for packing bottled drinking water, juice, carbonated soft drinks etc. with production capacity up to 520layer/h. Suitable robot models can be selected according to the work pieces. Payload 110kg,140kg, 185kg,315kg, 500kg, 700kg.
Exhibition
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-26
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-27
Customer Acceptance Report
product fully automatic bottle blowing machine pet blow molding machine for bottle production line-28
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us to send inquiries!
