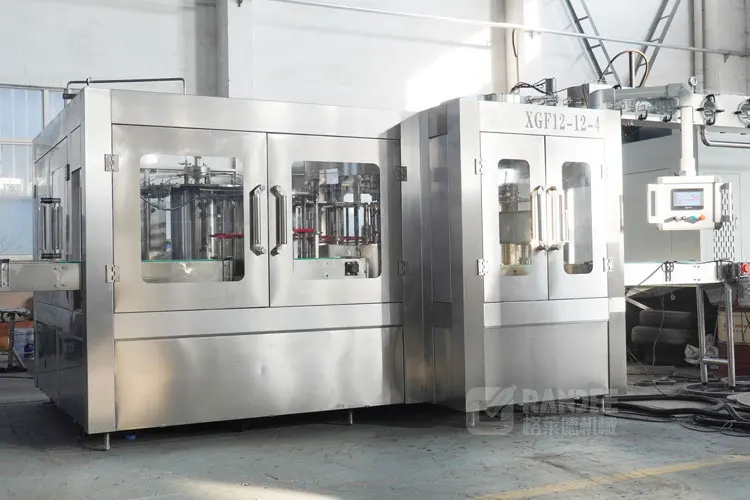

XGF12-12-4 5l 10l 15l Water Washing Filling Capping Machine Production Line

5-15L one time usage bottle water is very popular all over the world, so we manufacture this automatic 3 in 1 water washing filling capping machine.
The bottle types applicable for various parts are easily, conveniently and rapidly adjustable when you want to produce from 5L to 12L or 15L bottle.

It adopts new micro-negative pressure filling, stable and reliable. Compared with other same model same specification machines, the benefit of our machine is stable and strong machine structure, the materials is very real.

product fully automatic 5l bottle barrel mineral water filling machine production line plant-4

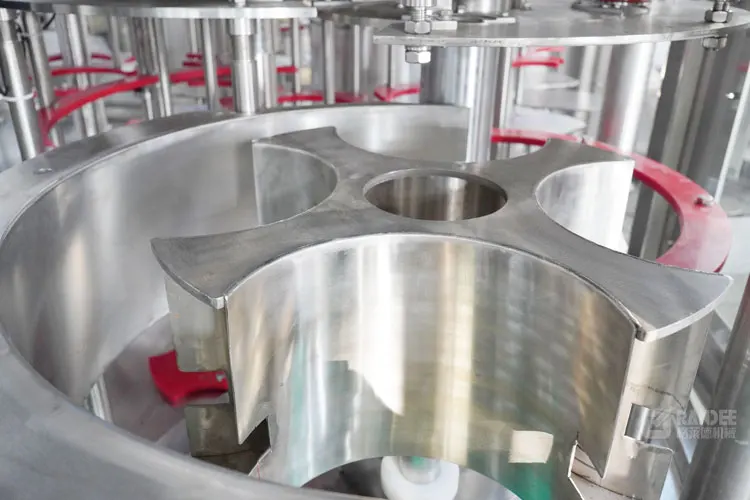

Washing part

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe
grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

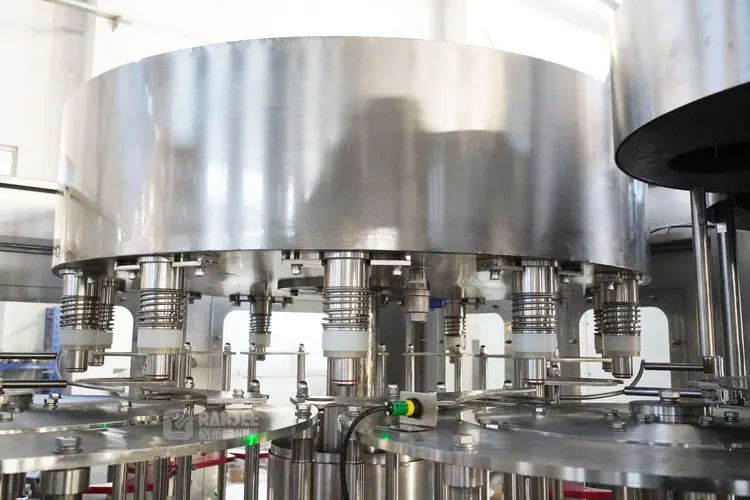

Filling part

Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made

of excellent stainless steel or food grade engineering plastic.

product fully automatic 5l bottle barrel mineral water filling machine production line plant-5

product fully automatic 5l bottle barrel mineral water filling machine production line plant-6

Capping part

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.

Main technical parameter

Model	XGF 8-8-3	XGF 12-12-4	XGF 16-16-6	XGF 18-18-6	XGF 24-24-8	XGF 32-32-10	XGF 40-40-12
Capacity(5000ml/BPH)	800	1200	2000	2500	12000	14000	16000
Suitable bottle shape and size	Both round of square bottle, 300ml-15000ml
Compressed air pressure	0.7MPa
Bottle washing medium	Sterile water
Washing pressure	0.25MPa
Main motor	1.5	6.0	8.0	11.0	4.5	5.5	7.5
Dimension(mm)	300023002300	420029002300	540029002300	650029002300	270021002300	297022602700	378028002700
30Weight(KG)	2000	5000	7000	8000	4500	6500	8500

product fully automatic 5l bottle barrel mineral water filling machine production line plant-7

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

product fully automatic 5l bottle barrel mineral water filling machine production line plant-8

product fully automatic 5l bottle barrel mineral water filling machine production line plant-9

product fully automatic 5l bottle barrel mineral water filling machine production line plant-10

product fully automatic 5l bottle barrel mineral water filling machine production line plant-11

Aseptic juice filling machine

product fully automatic 5l bottle barrel mineral water filling machine production line plant-12

Carbonated drink filling machine

product fully automatic 5l bottle barrel mineral water filling machine production line plant-13

Automatic soft drink production line

product fully automatic 5l bottle barrel mineral water filling machine production line plant-14

Mixed fruit juice mixing system

Mineral water filling machine

Bottle filling packaging machine

product fully automatic 5l bottle barrel mineral water filling machine production line plant-17

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product fully automatic 5l bottle barrel mineral water filling machine production line plant-18

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

product fully automatic 5l bottle barrel mineral water filling machine production line plant-19

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

product fully automatic 5l bottle barrel mineral water filling machine production line plant-20

product fully automatic 5l bottle barrel mineral water filling machine production line plant-21

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
