Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans
Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans

Low Speed Automatic Linear Type Heat Shrink Packing Machines for Glass Bottles Cans

Get a Quote
  • Parameter
  • Related products
Parameter
low speed automatic linear type heat shrink packing machines for glass bottles cans-2
GRANDEE MACHINEis located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
low speed automatic linear type heat shrink packing machines for glass bottles cans-3
Automatic linear packing machine

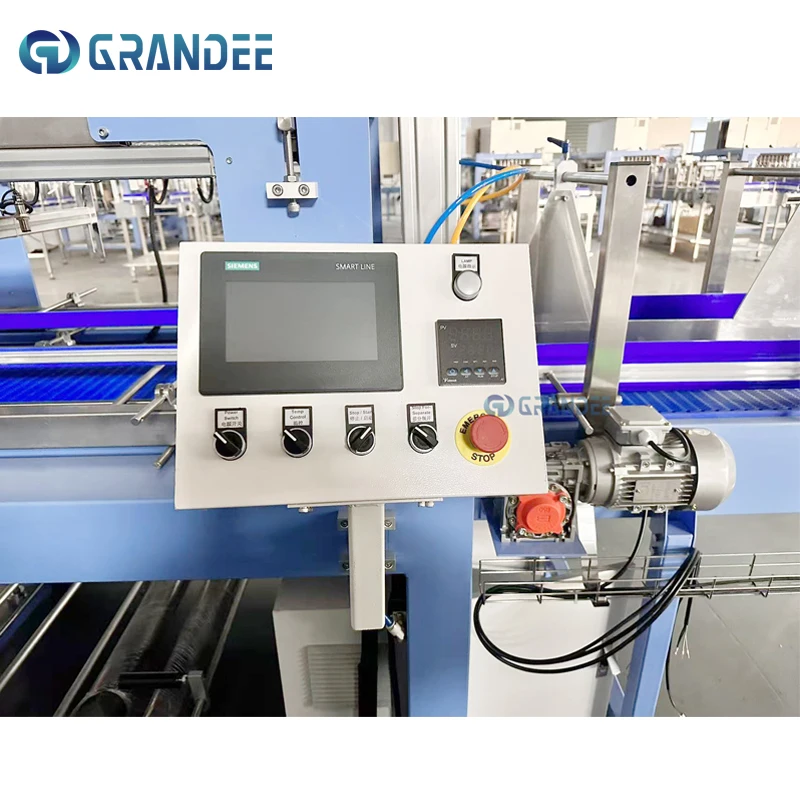

✅ PLC + Touch screen – Smart, reliable operation
✅ Pneumatic Sealing/Cutting – Consistent, high-quality wraps
✅ Rapid Cooling System – Locks shape instantly
✅ Buffer Rack – Continuous flow, zero downtime
✅ Heavy-Duty Build – For 24/7 production

Perfect for bottles, cans. Boost efficiency now!
Machine layout:
low speed automatic linear type heat shrink packing machines for glass bottles cans-4
low speed automatic linear type heat shrink packing machines for glass bottles cans-5
low speed automatic linear type heat shrink packing machines for glass bottles cans-6
Servo-Driven Lane Divider
Achieves precise queue separation and spacing control for multi-row containers before entering the shrink wrapping
machine,suitable for irregular bottles, square bottles, and flat bottles.
low speed automatic linear type heat shrink packing machines for glass bottles cans-7

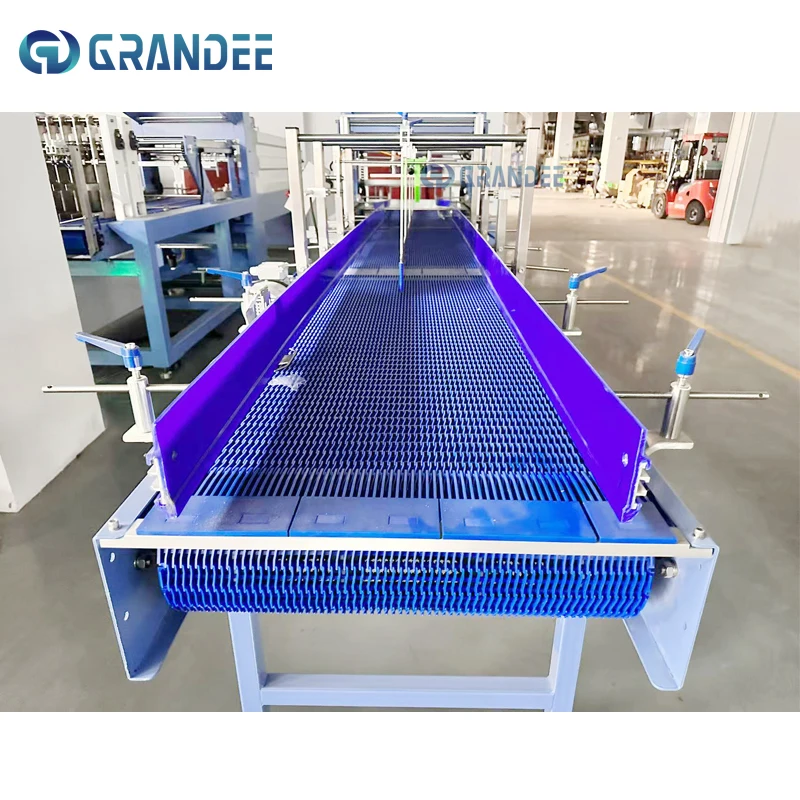

Infeed Guide & Conveyor Connection Mechanism
The section connects directly to the machine’s infeed using adjustable rails to stabilize product paths, supporting the compact, high-efficiency packaging rhythm of small linear models..
low speed automatic linear type heat shrink packing machines for glass bottles cans-8

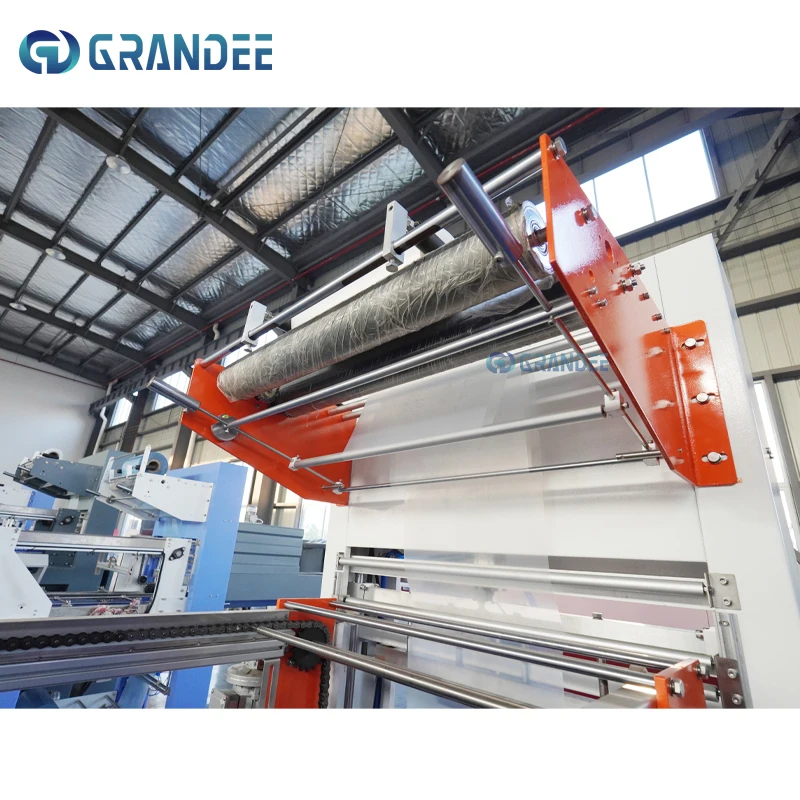

Film Roll Holder and Vertical Film Feeding Mechanism
The upper part is the film roll carrier (holding large stretch film rolls), while the lower part uses rollers and chain drives to enable vertical film feeding and tensioning for large linear machines
low speed automatic linear type heat shrink packing machines for glass bottles cans-9

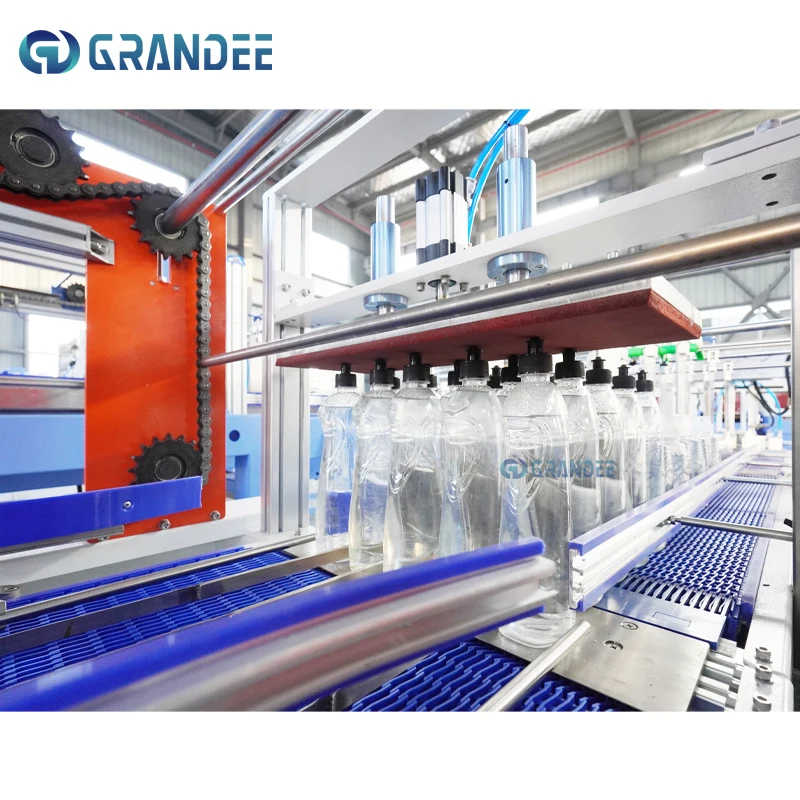

Press Positioning Mechanism and Heat Shrink Tunnel
1.Its adjustable press plate guides,flattens, and secures large-width film during feeding/wrapping-enabling high-speed operation.
2.It heats products wrapped in shrink film as they pass through, causing the film to shrink tightly around the items—securing half-pallet/case packages for transport.
low speed automatic linear type heat shrink packing machines for glass bottles cans-10
low speed automatic linear type heat shrink packing machines for glass bottles cans-11
Machine model
GD-250A
Machine size
L9300×W1250×H2200mm
Max package size
L420 ×W260 ×H350 mm
Bottle size
Diameter 55-150 mm、height 100-350mm
Package size
4×6、4×5 、3×4、2×3
Material of shrink film
PE
Thickness of shrink film
0.08-0.1mm
Machine max working speed
12-13packages/min
Working air pressure
0.6～0.8Mpa
Maximum gas consumption
0.1M3/min
Conveyor height
1000～1050（mm）
Temperature of shrink tunnel
（180--230）℃
Rated power
30KW/hr
Actual power
25KW/hr
Working noise
≤65db
Voltage requirements
three-phase five-wire
Machine weight
1800KG

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
low speed automatic linear type heat shrink packing machines for glass bottles cans-12
low speed automatic linear type heat shrink packing machines for glass bottles cans-13
low speed automatic linear type heat shrink packing machines for glass bottles cans-14
Juice filling machine
low speed automatic linear type heat shrink packing machines for glass bottles cans-15
Carbonated drink filling machine
low speed automatic linear type heat shrink packing machines for glass bottles cans-16
Small bottle water filling machine
low speed automatic linear type heat shrink packing machines for glass bottles cans-17
Automatic PVC Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
low speed automatic linear type heat shrink packing machines for glass bottles cans-18
Automatic Linear High Speed Shrink Packing Machine
The linear PE film packing machine offers smart, reliable operation through PLC and touch screen control, delivering consistent high-quality wraps with a pneumatic sealing and cutting system, while the rapid cooling system instantly locks the shape and the buffer rack ensures continuous flow with zero downtime
Exhibition
low speed automatic linear type heat shrink packing machines for glass bottles cans-19
Customer Acceptance Report
low speed automatic linear type heat shrink packing machines for glass bottles cans-20
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us to send inquiries!
