GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-3

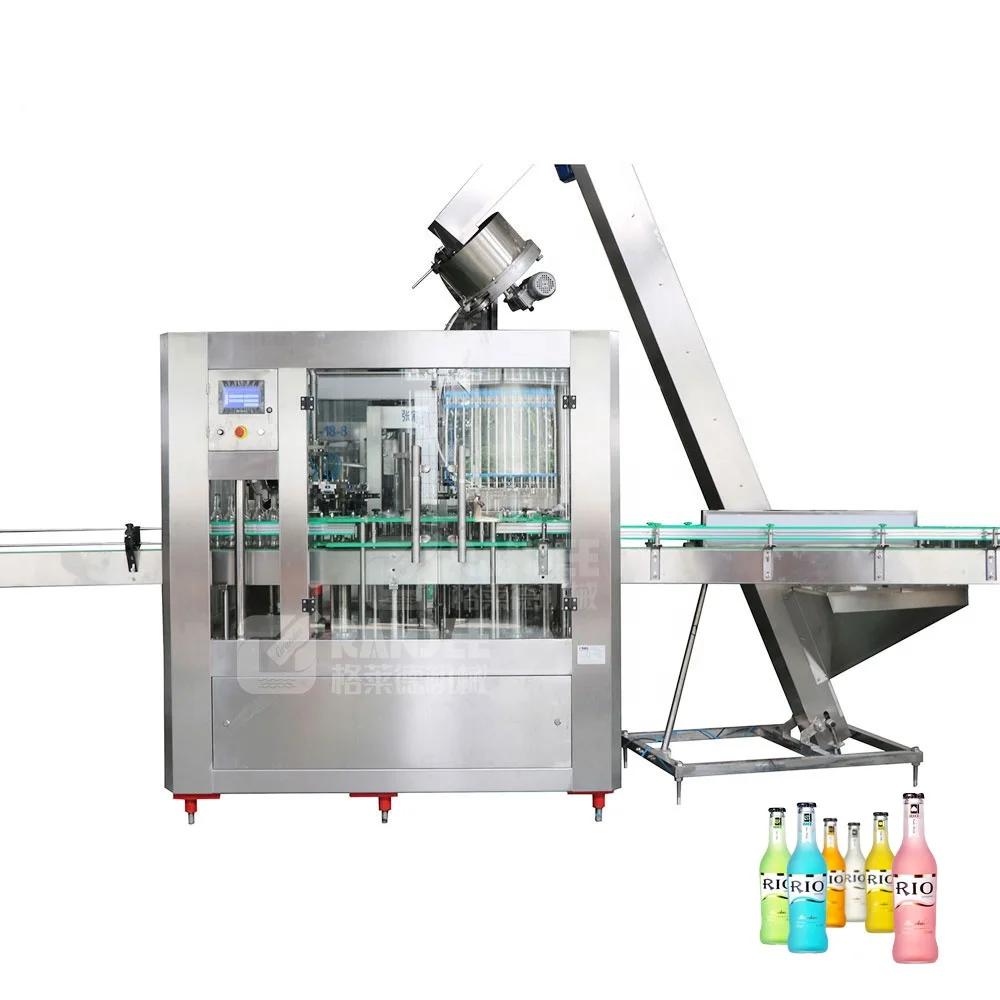

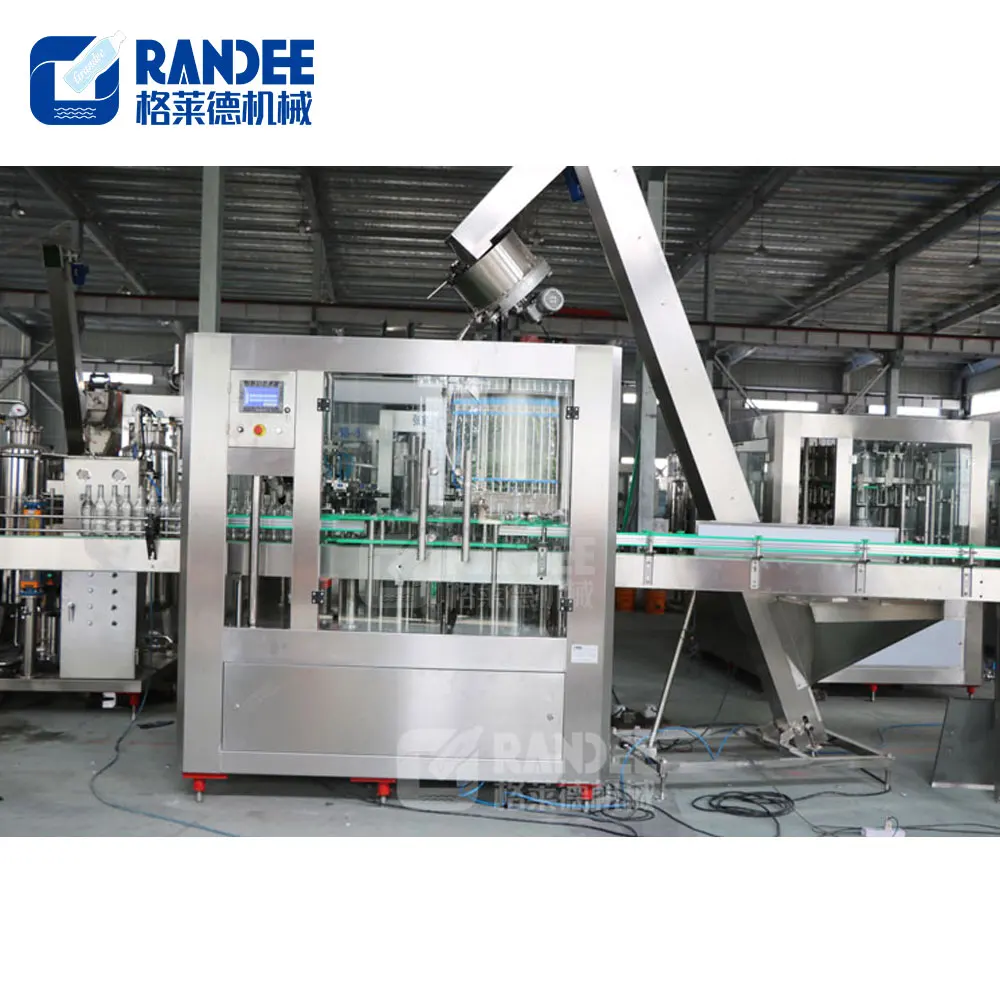

Glass Bottle Carbonated Filling Machine DXGF14-12-5

Carbonated drink filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling, carbonated filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc.

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-4

Washing part

Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components. When the figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously, slewing bearing lubrication in order to concentrate lubrication.

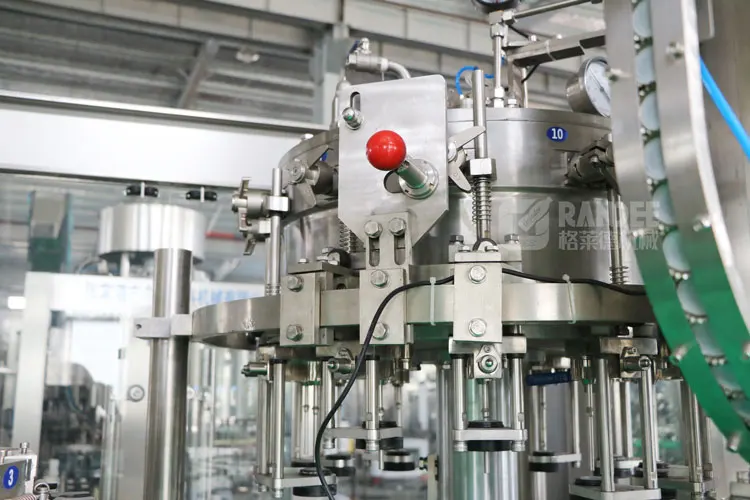

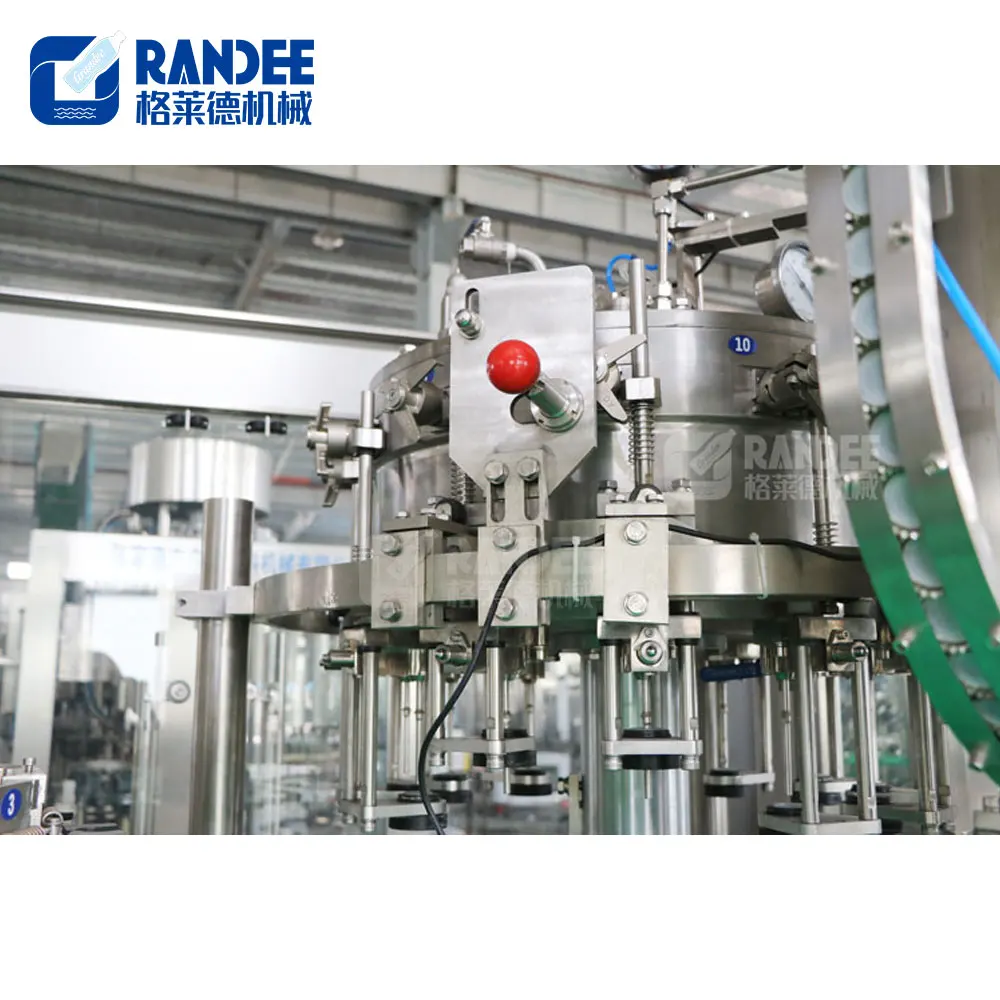

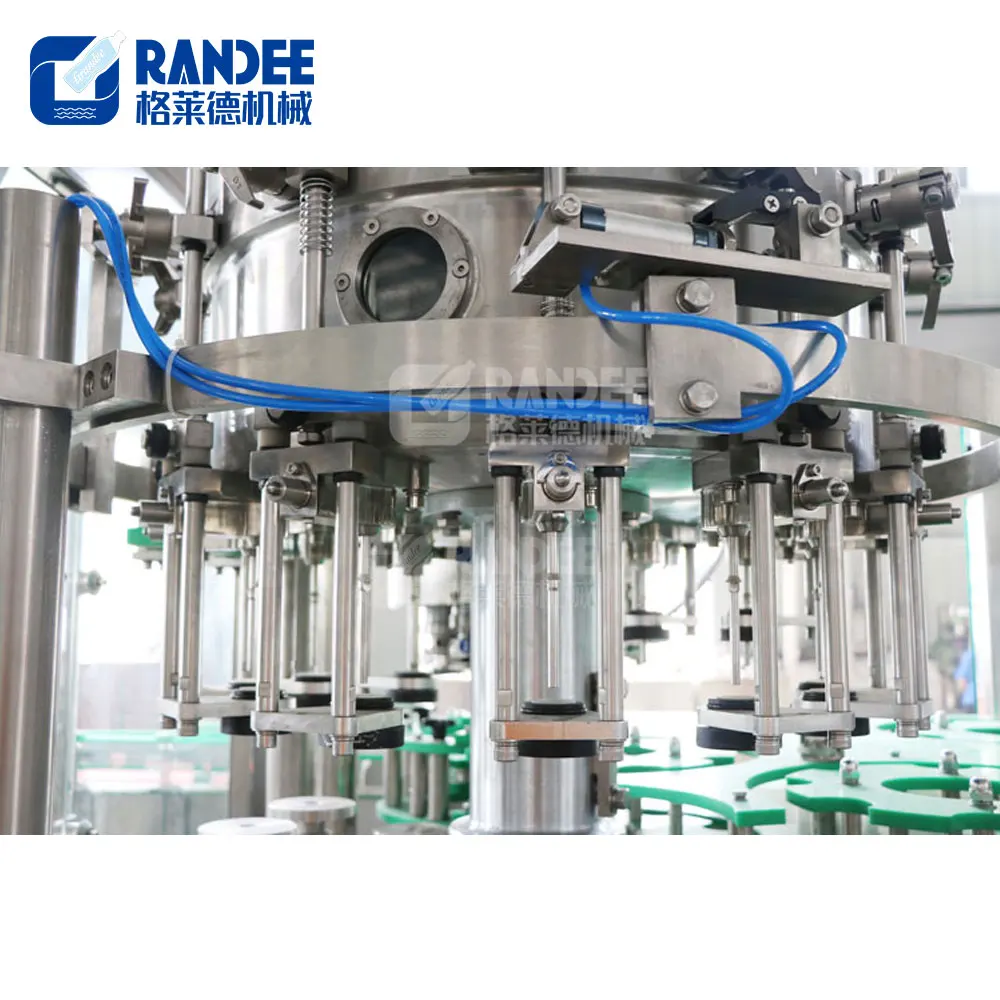

Filling part

Open the charge valve, form a pathway between bottle and alcohol tank’s CO2. The CO2 will filling into the bottle through the pathway. The charge valve will closed when the setting time reached, that means the CO2 pre-charge process end. Vacuum extraction Open the take out-vacuum valve pole, form a pathway between bottle and vacuum. The CO2 and air will be discharged from the bottle by the pathway, and form into vacuum in the bottle.

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-5

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-6

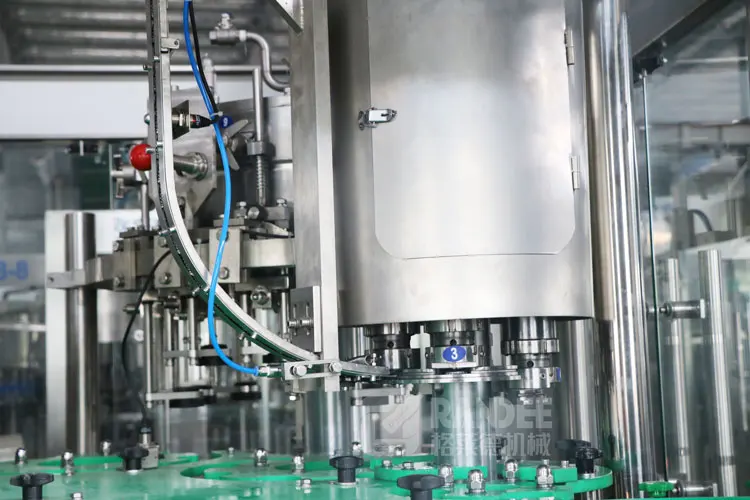

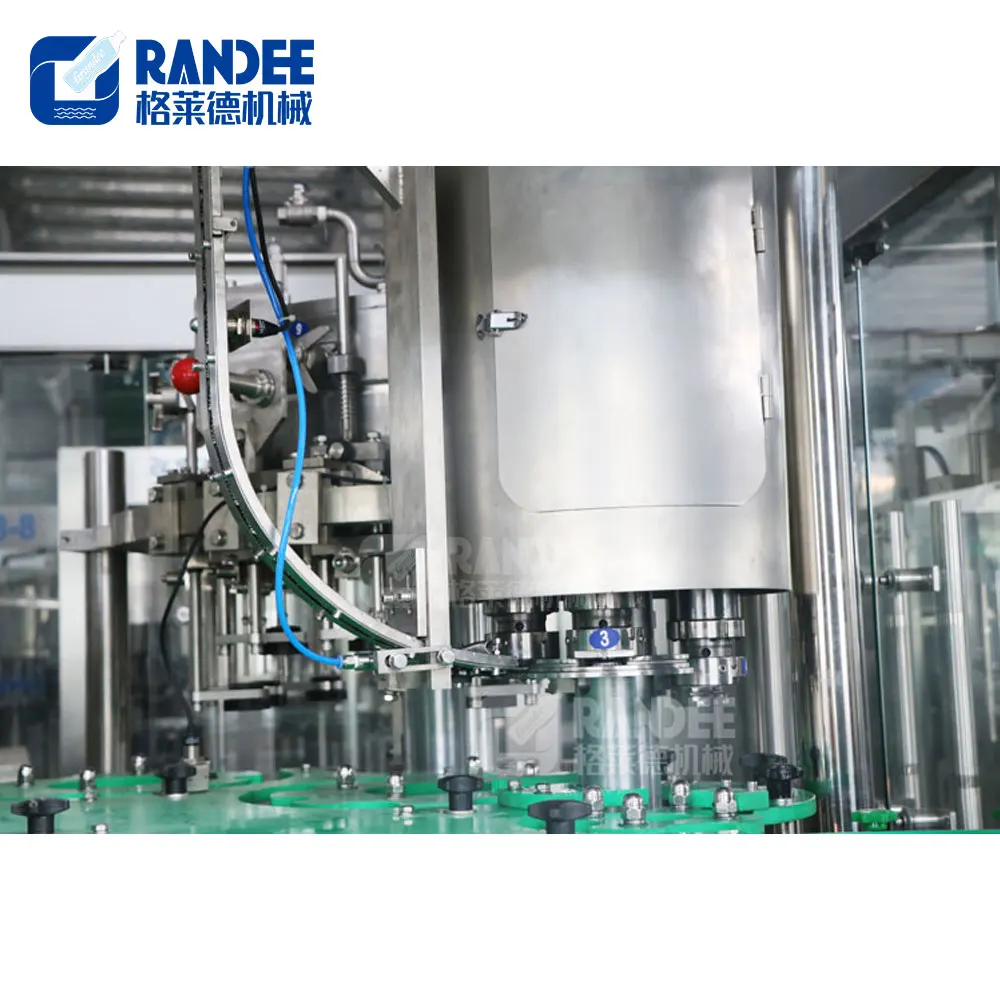

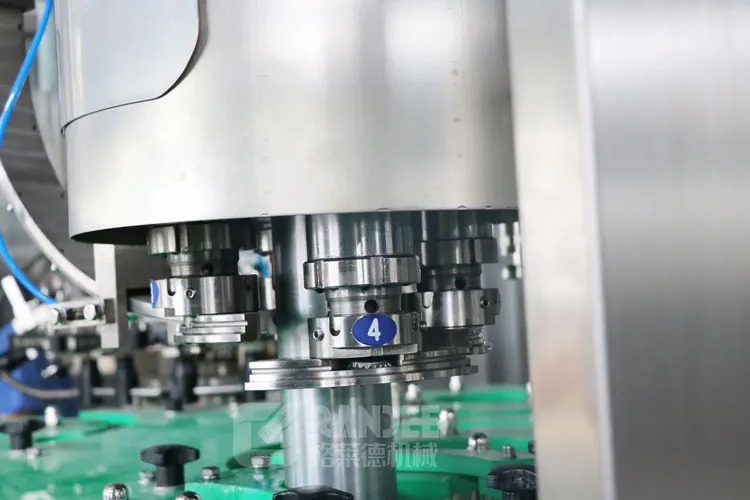

Capping part

The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts, and preventing turning upright stanchion. The requirements of crown cap: Only when the height and diameter all accord with crown cap’s standard, the capper’s normal running can be guaranteed. The crown cap should be stored in the dry room.

Main technical parameter

Model	DXGF 14-12-5	DXGF 18-18-6	DXGF 24-24-8	DXGF 32-32-8	DXGF 40-40-12	DXGF 50-50-12
Capacity (500ml)	2000-3000	3000-5000	5000-7000	8000-9000	10000-12000	12000-14000
Suitable bottle shapes	PET circular
Bottle diameter	50-115mm
Bottle height	160-320mm
Filling type	Isobaric filling
Filling pressure	＜0.4MPa
Rinsing water pressure	＞0.06MPa ＜0.2MPa
Application	Carbonated soft drink bottling line
Total power	4.4kw	5.2kw	6.2kw	7.5kw	8.2kw	11kw
Overall dimensions	2.5*1.9m	2.8*1.9m	3.2*2.2m	3.4*2.5m	4.8*2.3m	5.5*3.3m
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.5m
Weight	3000kg	4500kg	6000kg	8500kg	10000kg	11000kg

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-7

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-8

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-9

1.RO system

This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-10

2.Carbonated drink mixer and water chiller

Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).

product fully automatic 500ml glass bottle carbonated soft drink filling machine soda water filling machine-11
