High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants
High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants

High Speed 5 Gallon Bottle Palletizer Full Automatic Industrial Palletizing Machine for Water Plants

Spu:
1601090811582
Get a Quote
  • Parameter
  • Related products
Parameter
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-3
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-4

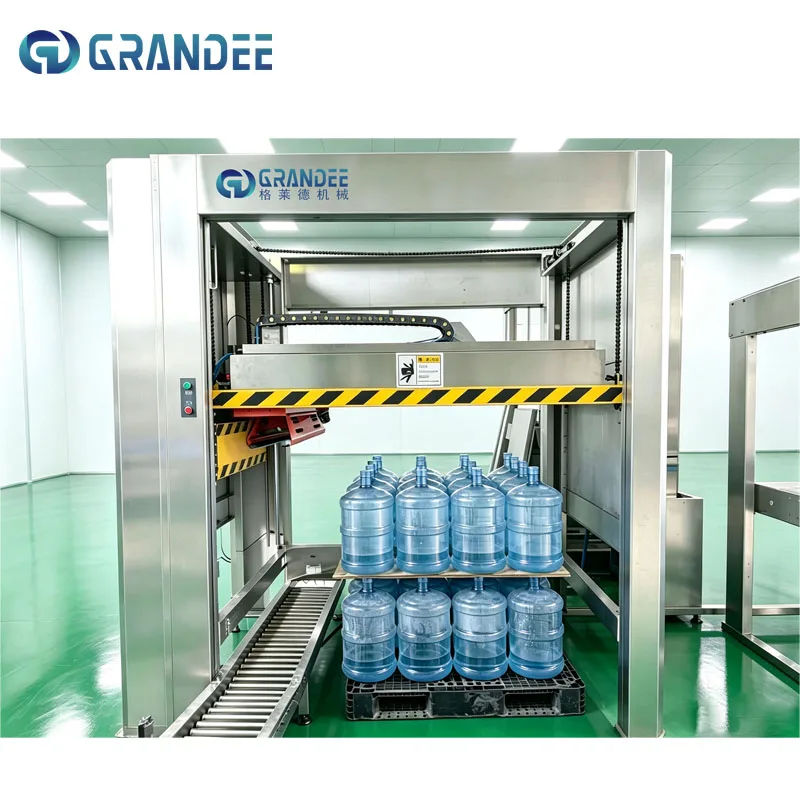

Automatic 5 Gallon Palletizer for 5 gallon water bottling line

This gantry‑type palletizer is specially designed for end‑of‑line palletizing of 5‑gallon PC water bottles for water filling
production lines. It replaces manual stacking, realizing high‑degree automation for barrel‑water production.
It adopts heavy‑duty stainless‑steel gantry frame structure, corrosion‑resistant and easy‑to‑clean for humid drinking‑water
workshop environment. Servo motors drive the gantry for precise lifting and horizontal movement. The gripper grabs one full layer of 5‑gallon bottles and stacks them neatly onto plastic pallets.
Working Process:
Filled barrels conveyed to station → gripper catches full‑layer bottles → gantry lifts & transfers → accurately places bottles on pallet → layer‑by‑layer stacking until full pallet finished.
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-5
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-6

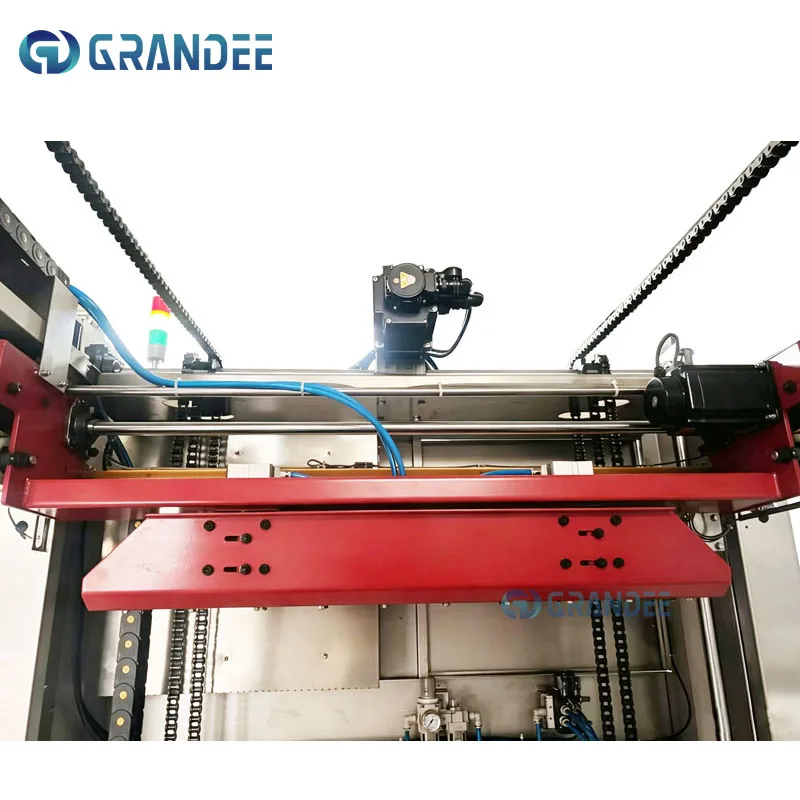

Gantry gripper cross‑beam
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-7

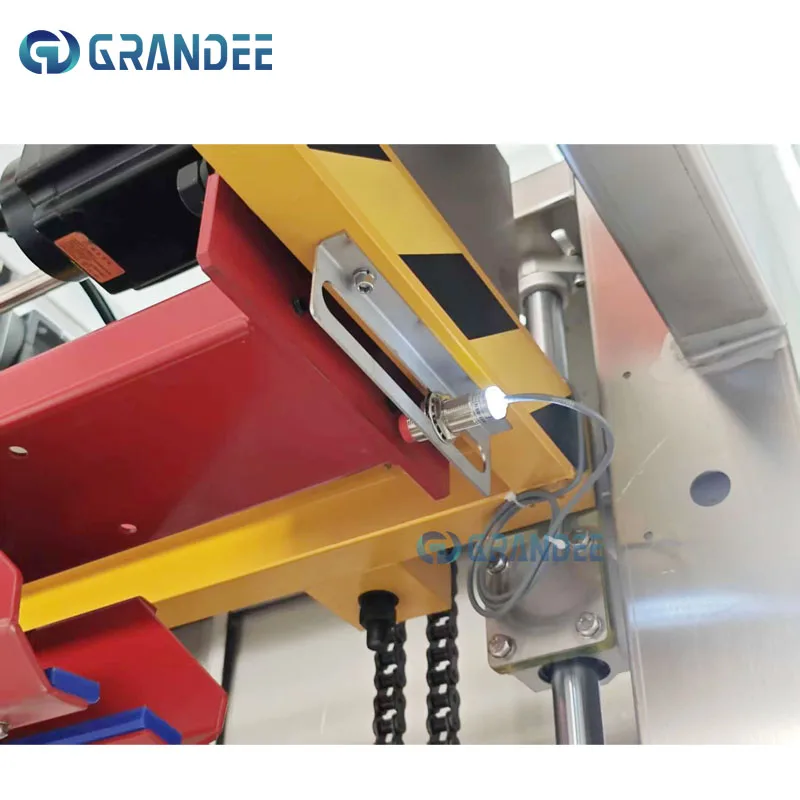

Sensor
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-8

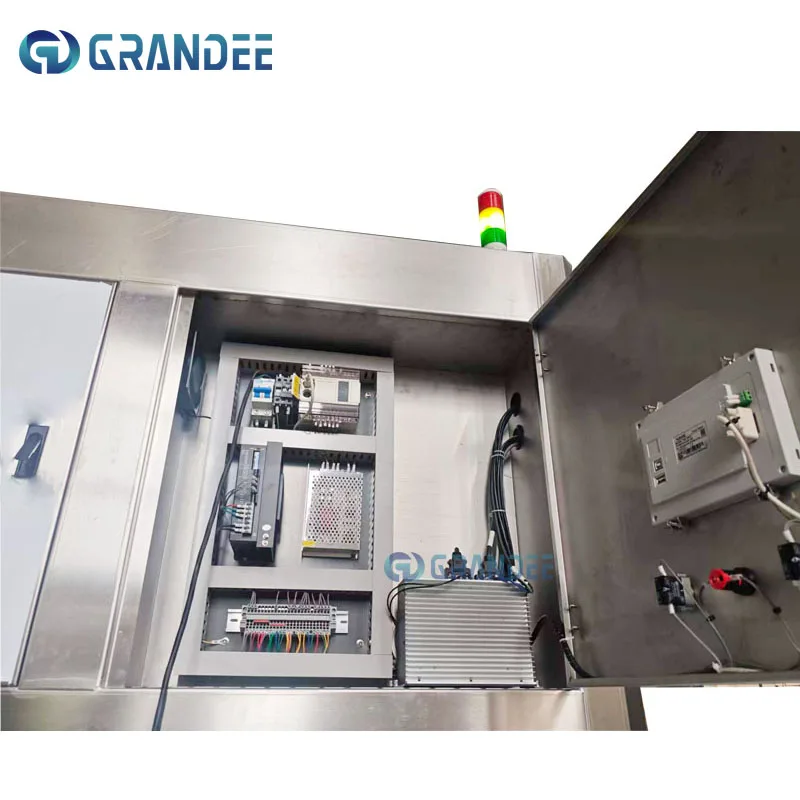

Electrical control box
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-9

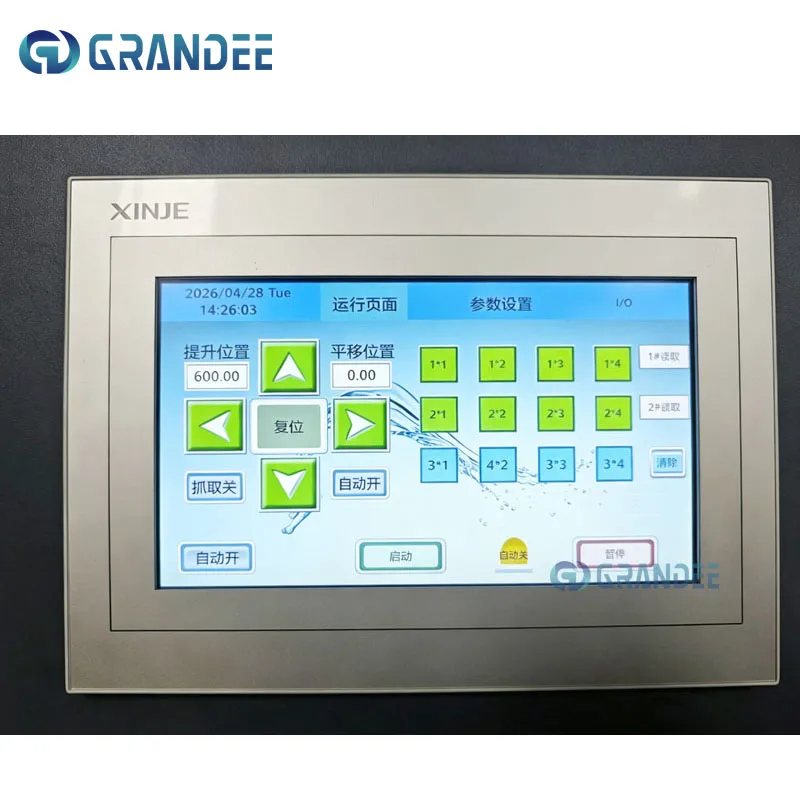

Touch screen
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-10
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-11
1.Decapping machine 2. bottle interior and exterior washing machine 3. 5 gallon washing filling capping machine 4. Sleeve shrink labeling machine 5. Bag packing machine 6. Palletizer

product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-12
Input power supply
220V 50HZ
QGF-200
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Imported Faraco servo motor
2KW
200
300
450
600
900
1200
Stepper motor
2KW
Installed Power
4KW
Capacity
300-900bph
Switching power supply
24V/3.2A
Dimension
1650*235*2350mm
3200*1200*2300
3900*1200*2300
5000*1500*2300
6200*18*2300
7970*1800*2700
10780*2000*2700
Weight
1000kg
1500
3000
3500
4500
5500
7500
Palletizing specification
4*4 single row 4 barrels
Material of machine frame
SUS304 3.0mm thickness
product high speed 5 gallon bottle palletizer full automatic industrial palletizing machine for water plants-13
