GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

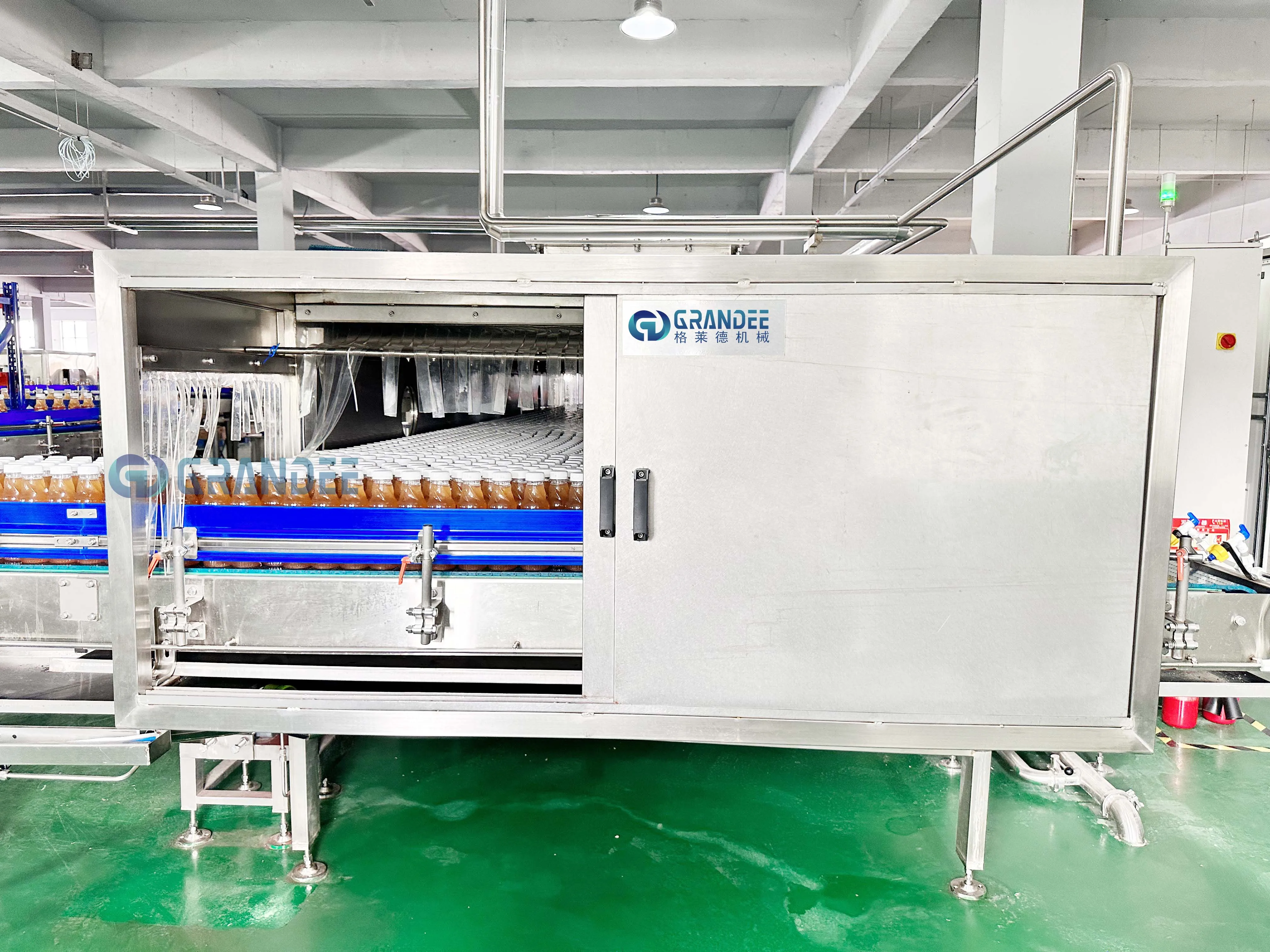

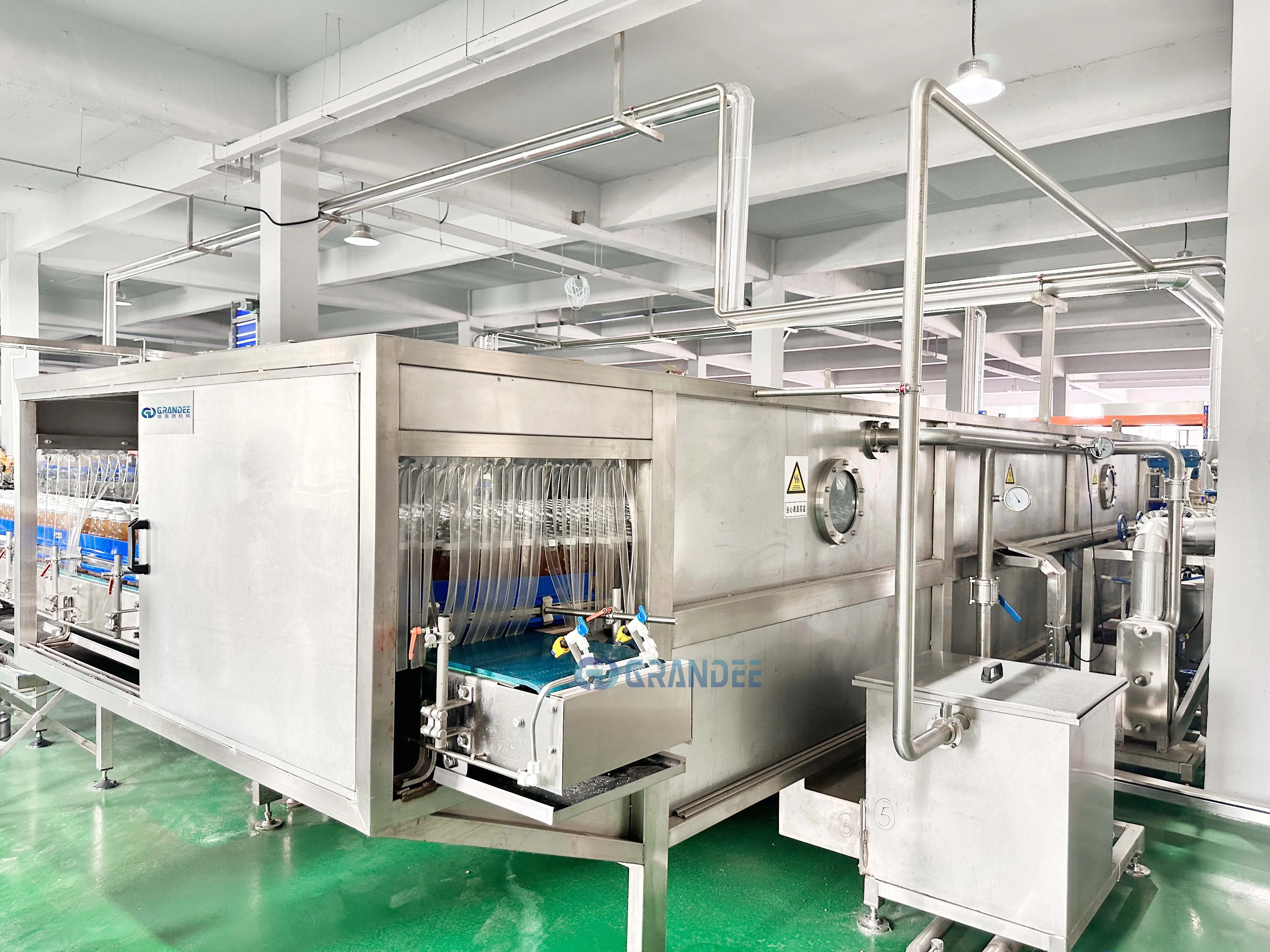

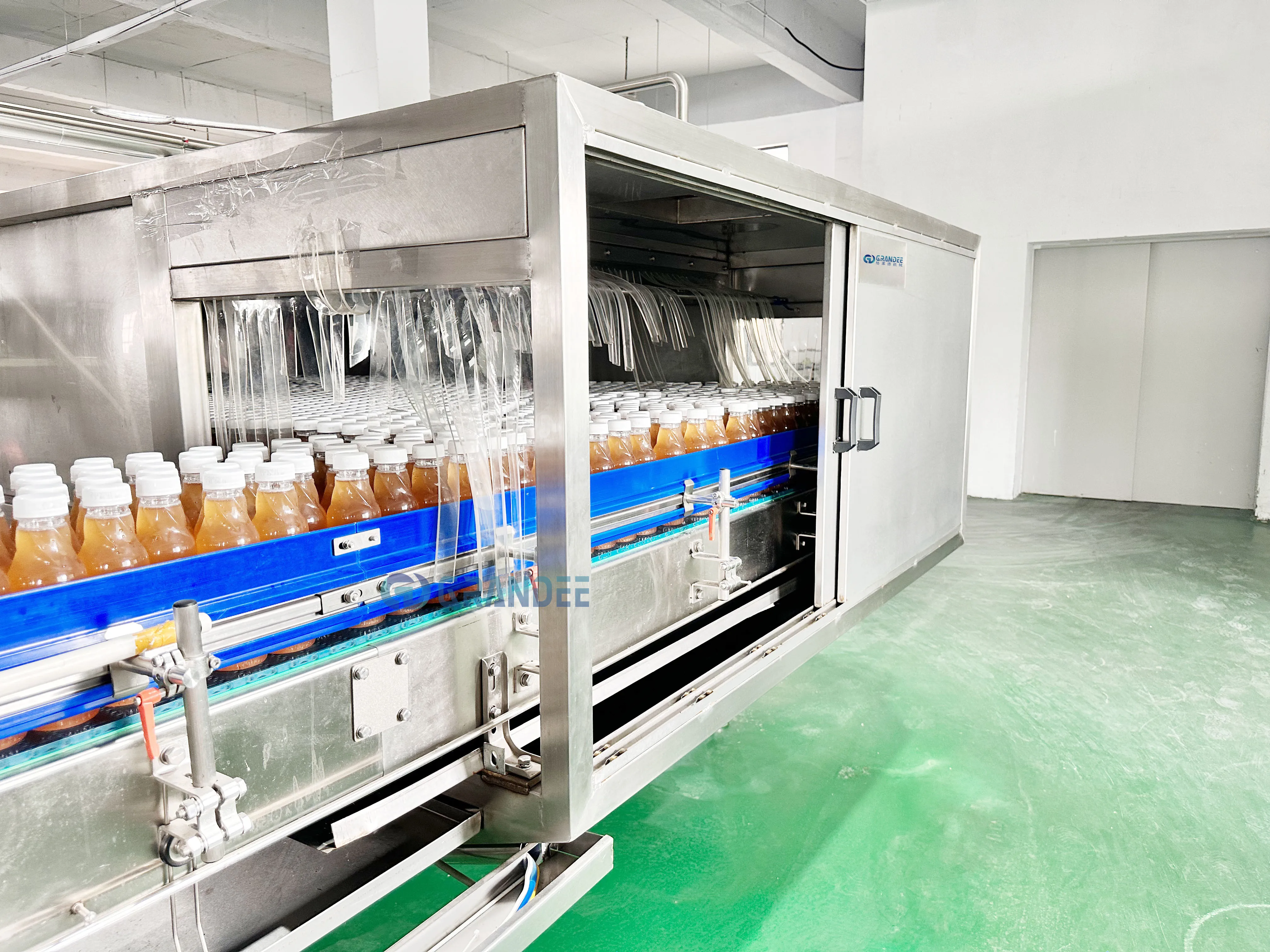

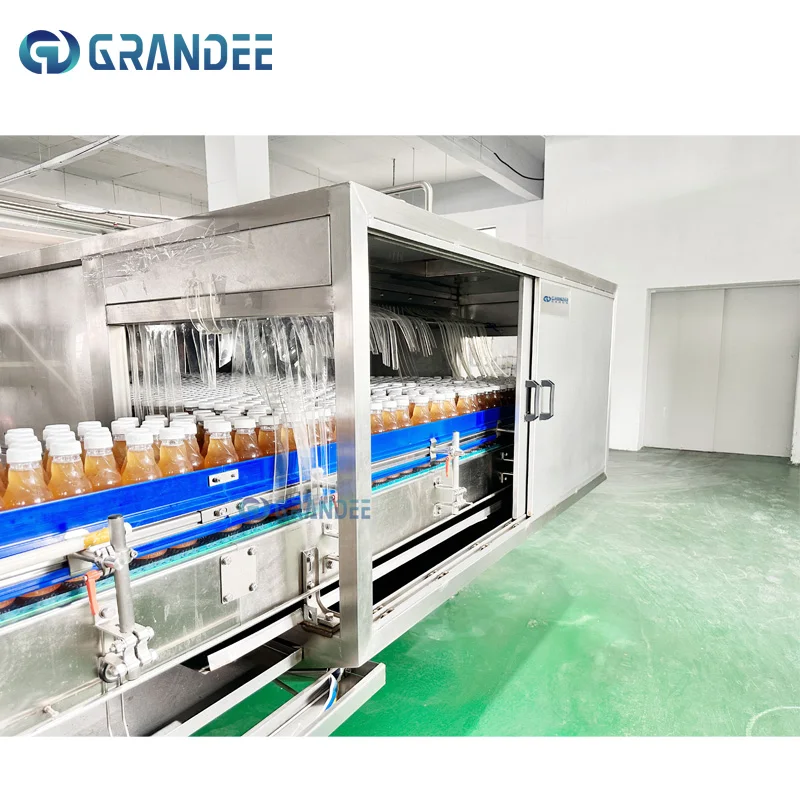

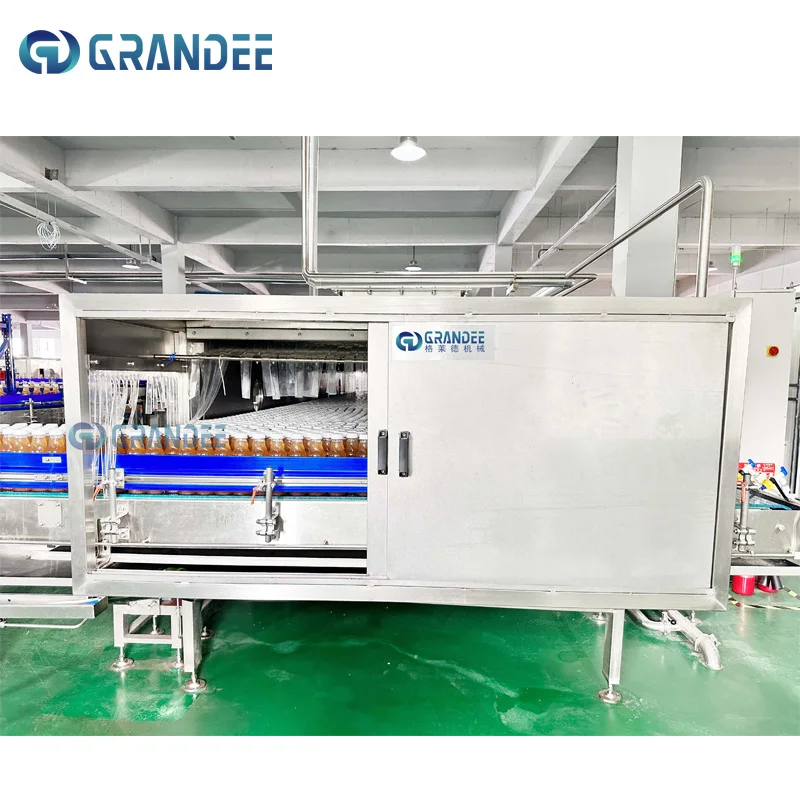

Bottle warming machine

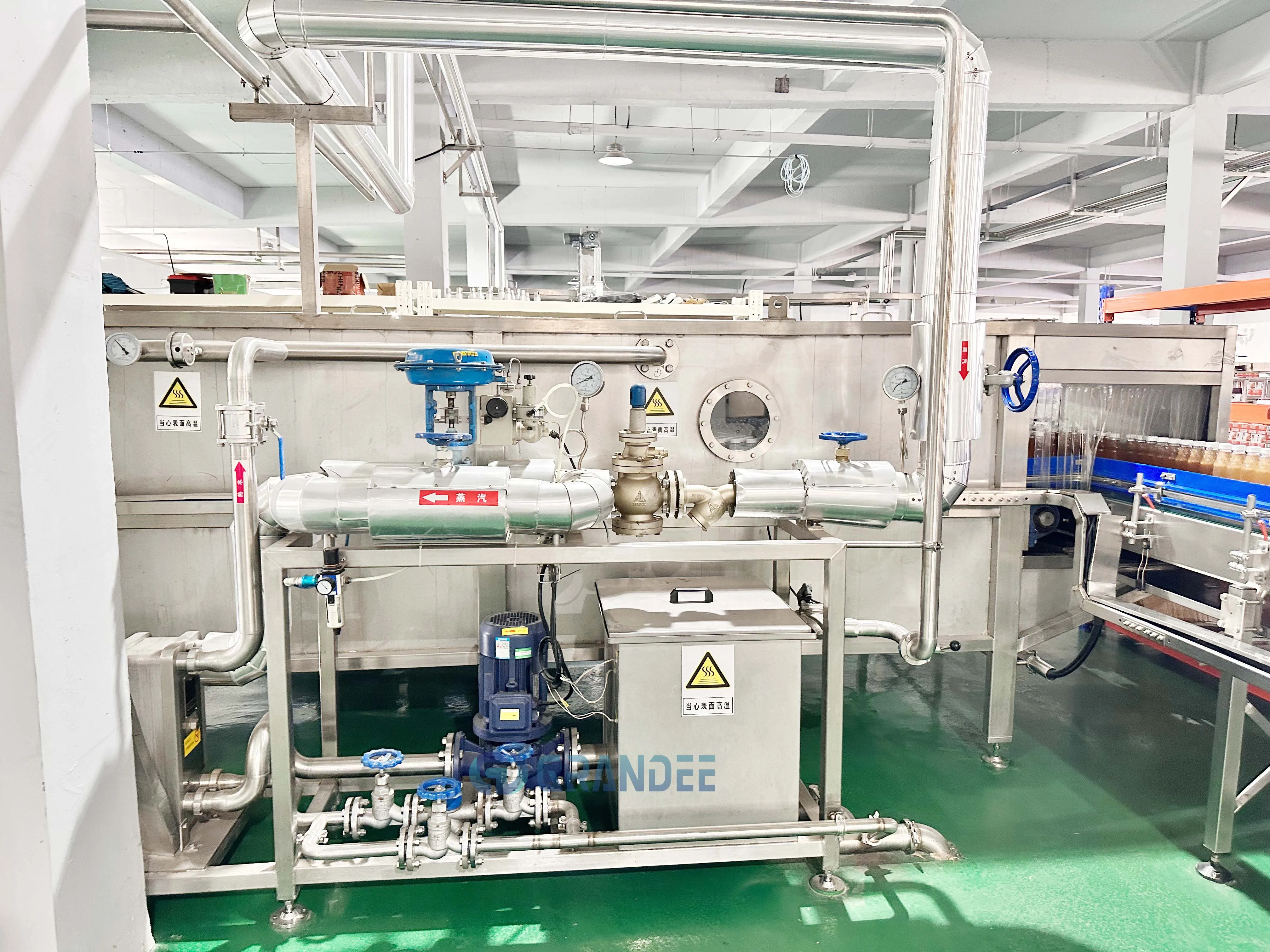

The bottle warming machine adopts a three section steam recycling heating design,the water spraying water temperature shall be controlled around 50 degrees. After the bottle go out, the temperature will be around the 18 degrees. Users can fix the temperature according to need. All the end of the warmer, it is equipped with the drying machine to blow the water outside the bottle. It is equipped with the temperature control system. Users can adjusted the temperature by himself.

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-5

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-6

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-7

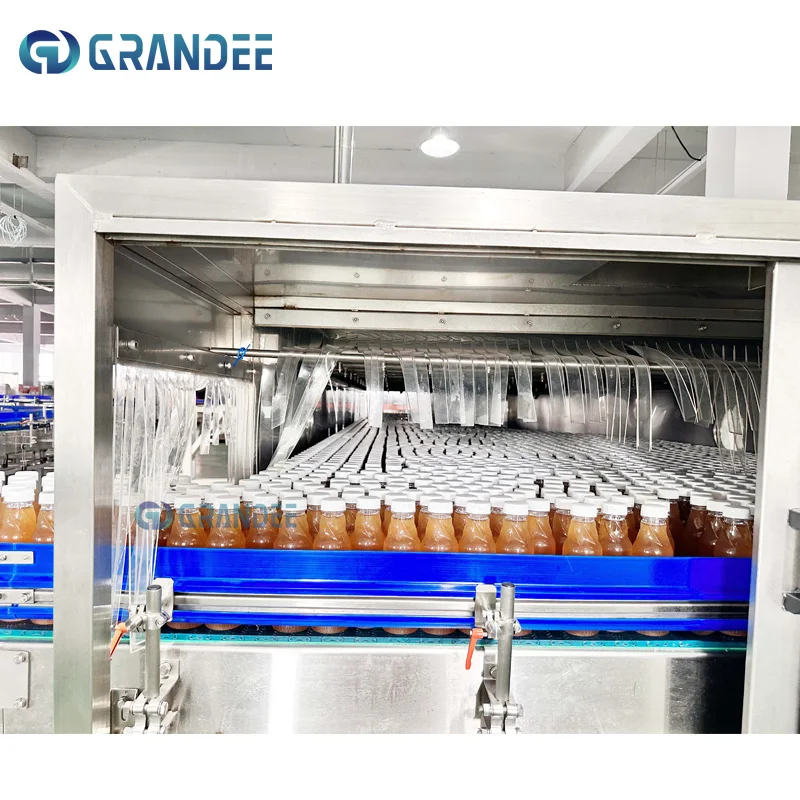

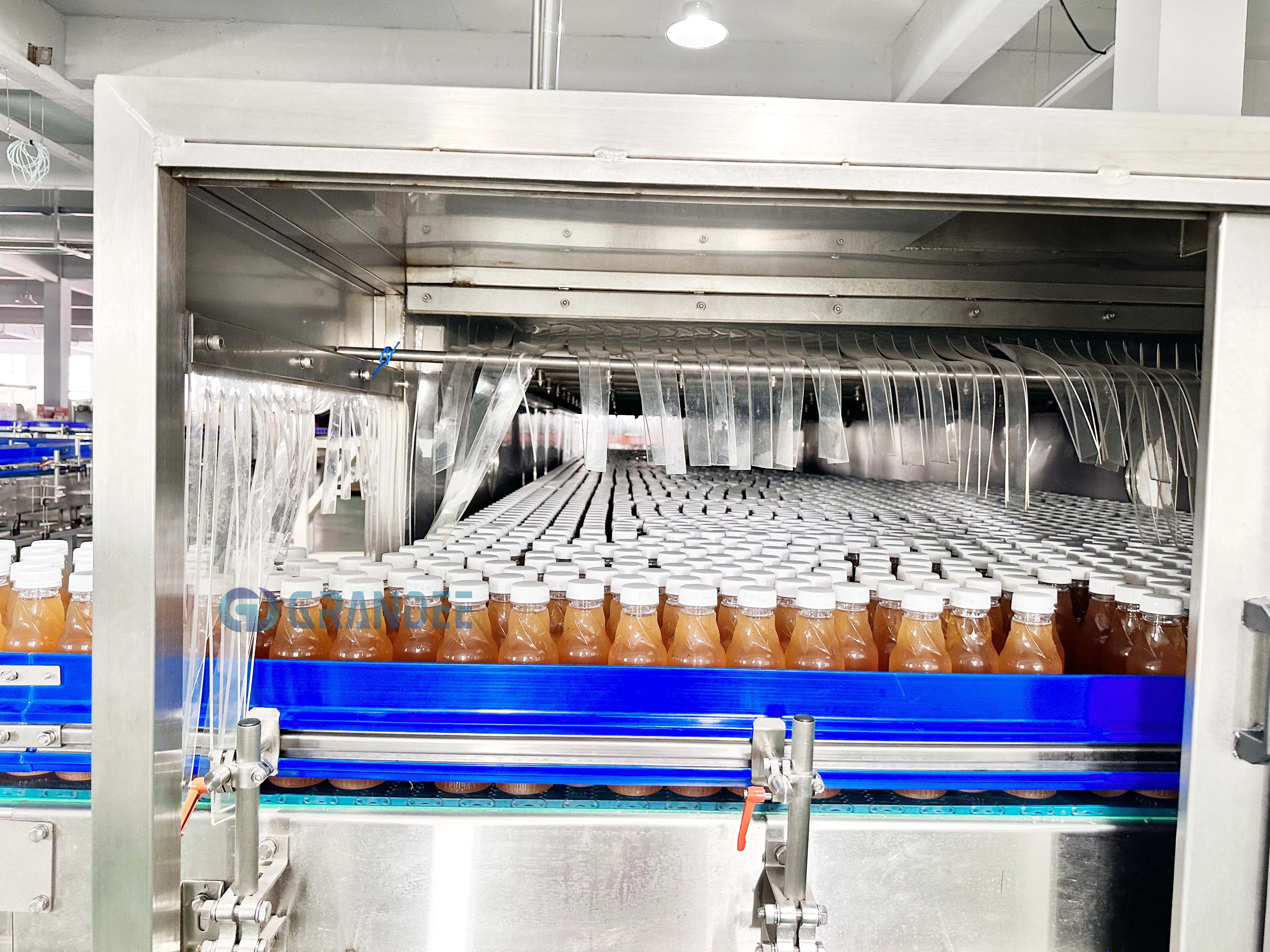

Spray cooling system

By adjusting the spray volume and water pressure, the temperature in the spray tunnel is maintained to achieve the effect of warming the bottle

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-8

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-9

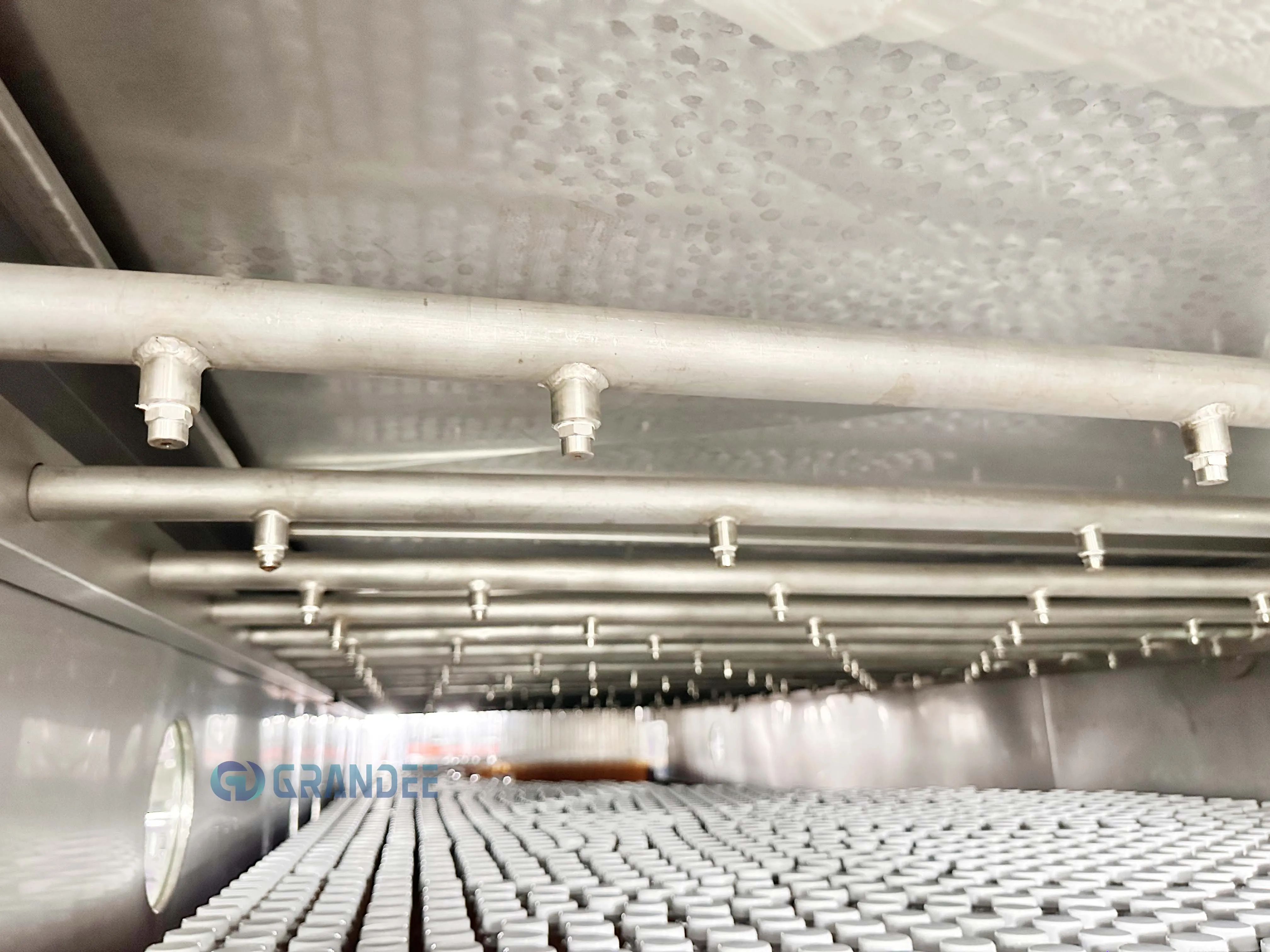

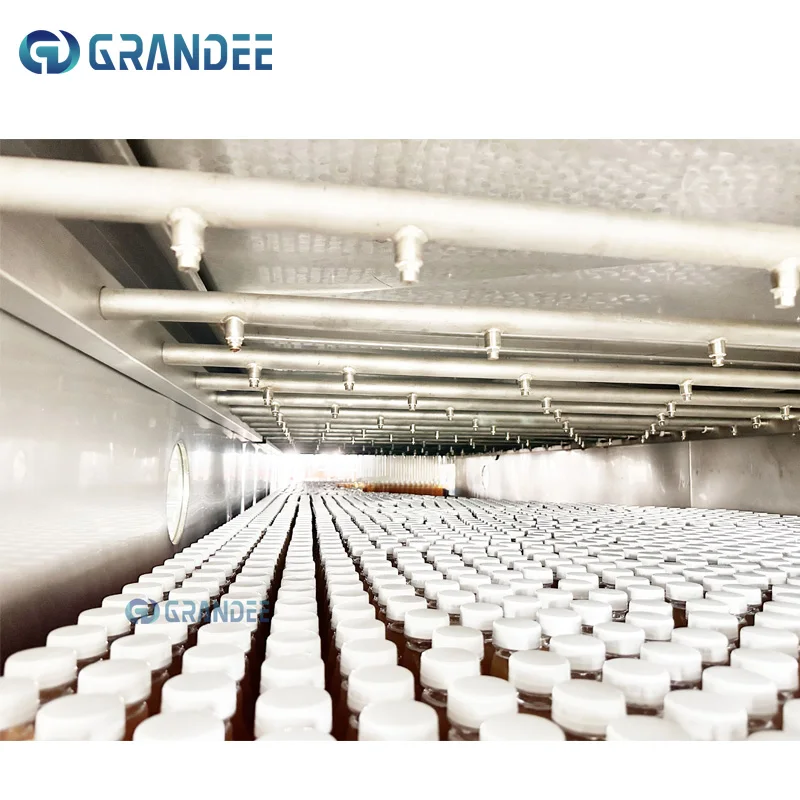

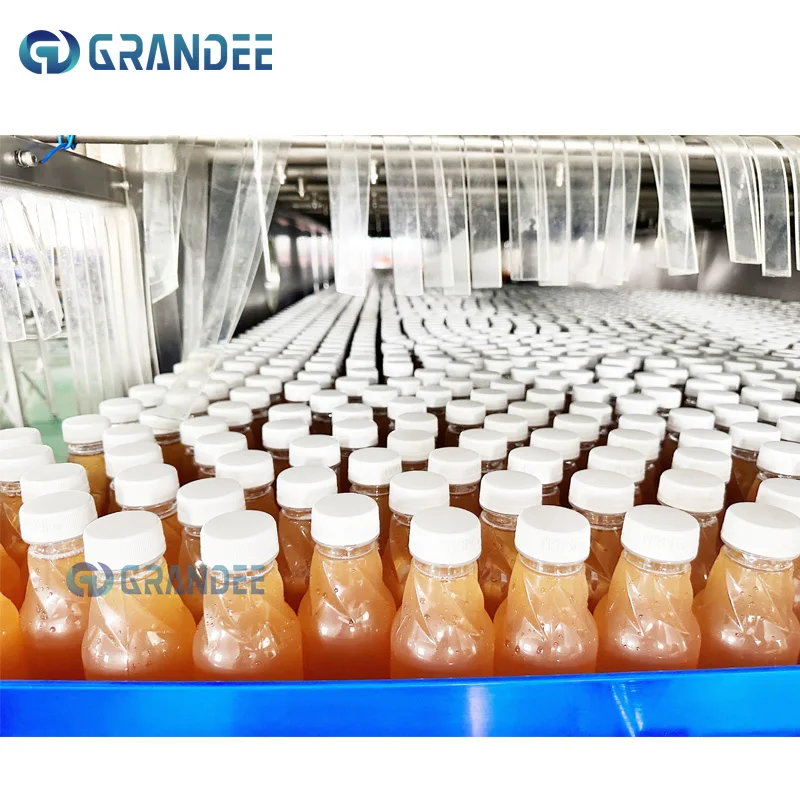

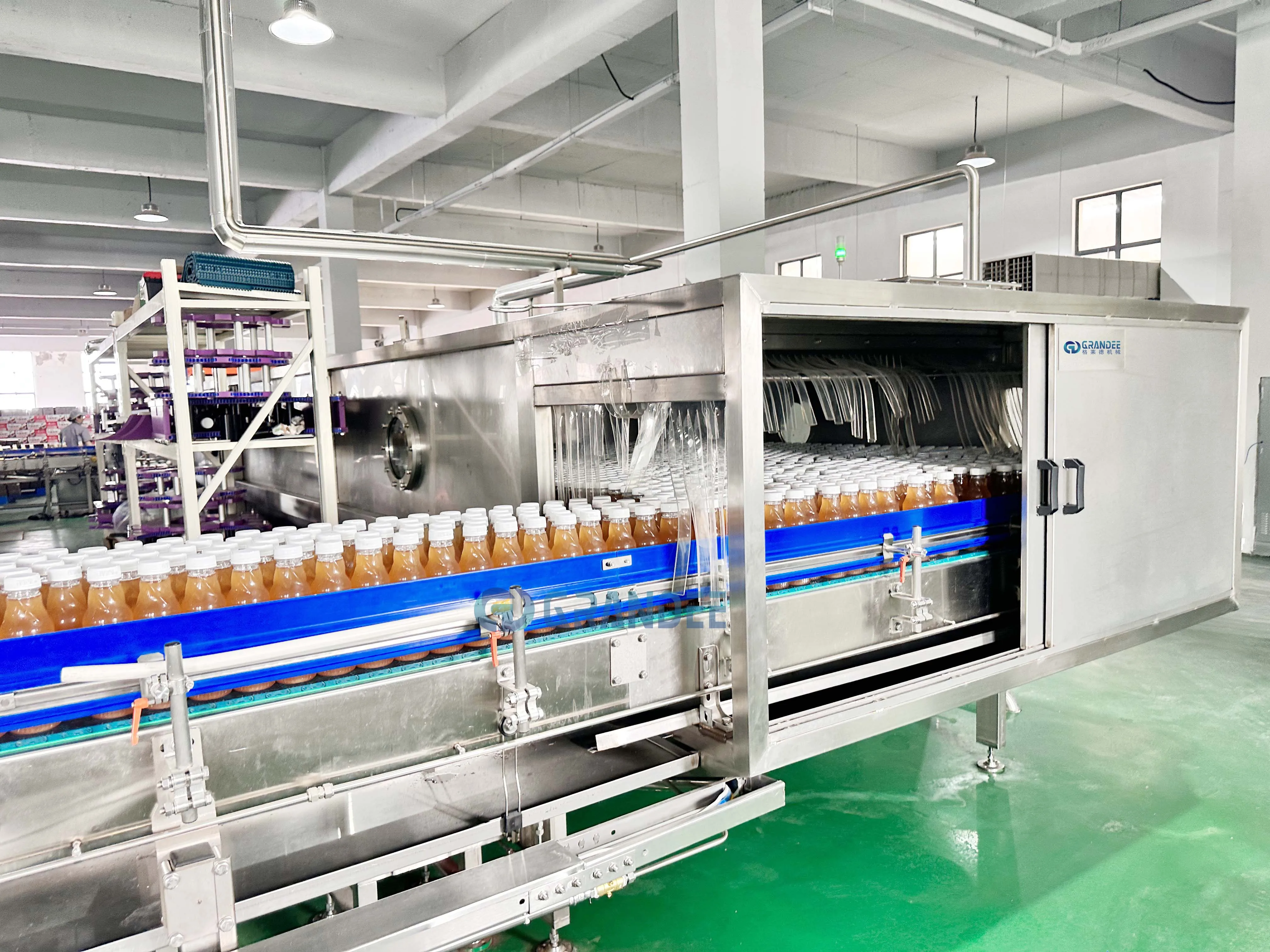

Sparying tunnel

1)The conveyor system is frequency converter controlled.

2)All nozzles and spray tubes are made of stainless steel and spray evenly.

3)The catchment zone is made of stainless steel and equipped with a level alarm device.

Main technical parameter

Model	WP-5000	WP-6000	WP-12000	WP-16000	WP-16000	^DXGF ^50-50-12
Capacity (BPH)	5000-6000	6000-9000	10000-15000	8000-9000	24000-36000	12000-14000
Heating temperature(℃）	37-45
Cooling time(min)	12-15
Conveying belt linear speed(mm/min)	100-550
Width of chain (mm)	1500
Steam pressure(Mpa)	0.3-0.4
Water consumption(m³/h)	6	9	15		28
Steam consumption(kg/h)	80	120	250		280
Motor power	4.4kw	7.55kw	8.6kw	7.5kw	18kw	11kw
Overall dimensions	5.0*1.5m	15.8*1.5m	15.8*1.8m	3.4*2.5m	22*0.8m	5.5*3.3m
Height	1.7m	1.7m	1.7m	2.5m	1.7m	2.5m
Weight	2500kg	3200kg	4300kg	8500kg	5500kg	11000kg

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-10

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!

Turnkey Solution

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-11

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-12

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-13

Juice filling machine

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-14

Carbonated drink filling machine

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-15

Automatic soft drink production line

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-16

Mixed fruit juice mixing system

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-17

Mineral water filling machine

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-18

Bottle filling packaging machine

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-19

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-20

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-21

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-22

Automatic Hot Glue Carton Packing Machine

The unpacked products or small packaging products automatically into the corrugated carton automation equipment, the working principle of the conveyor system will be products according to specifications, carton molding, products into the box, carton folding cover, box mouth sealing; Reduce the number of personnel and reduce the labor intensity of operators, improve the competitiveness of enterprises.

automatic pet bottle warming machine spraying tunnel pasteurizer for aseptic cold filling line-23

Robot Palletizer

Which contribute to the robotization of the palletizing system has a compact body and a high throughput. It is suitable for packing bottled drinking water, juice, carbonated soft drinks etc. with production capacity up to 520layer/h. Suitable robot models can be selected according to the work pieces. Payload 110kg,140kg, 185kg,315kg, 500kg, 700kg.
