GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-3

Automatic PE film shrink wrapping machine

Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-4

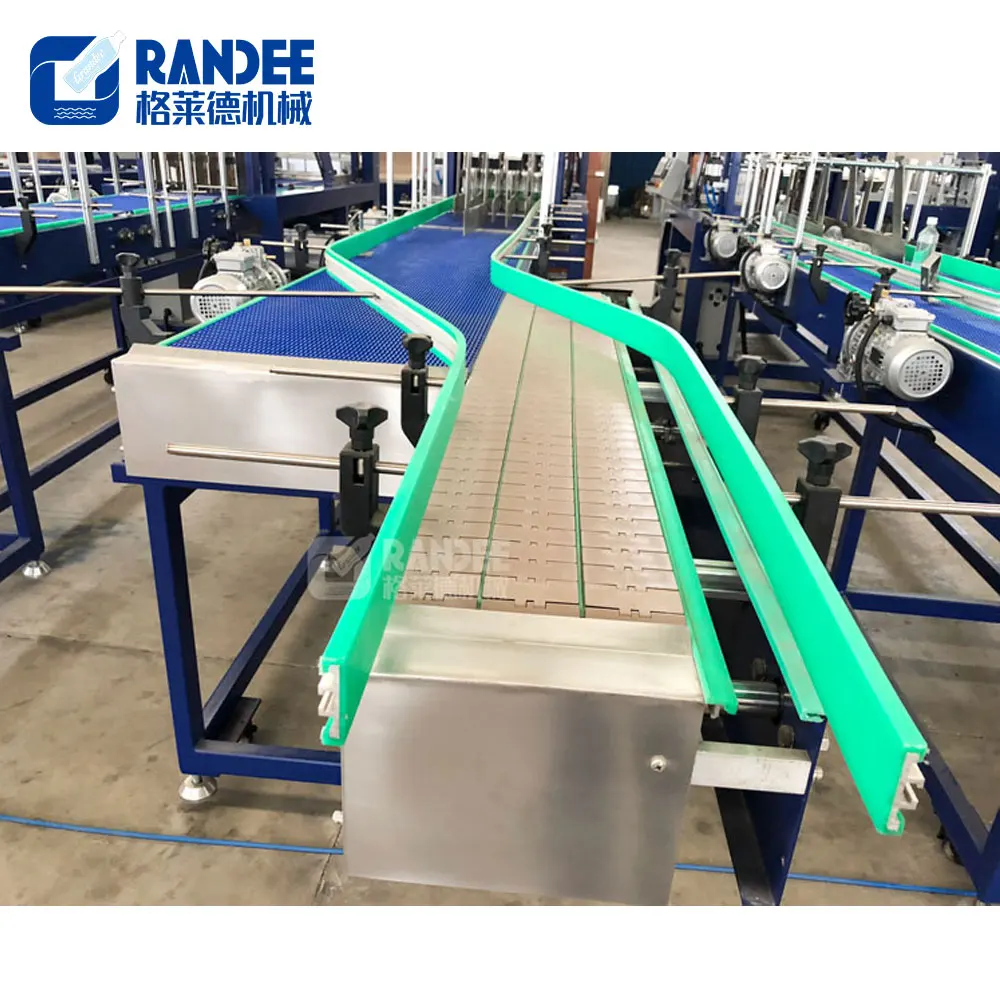

Automatic bottle feeder

Products feeding by automatic transportation system, and bottle height and diameter can be adjusted.

Automatic sensor detector

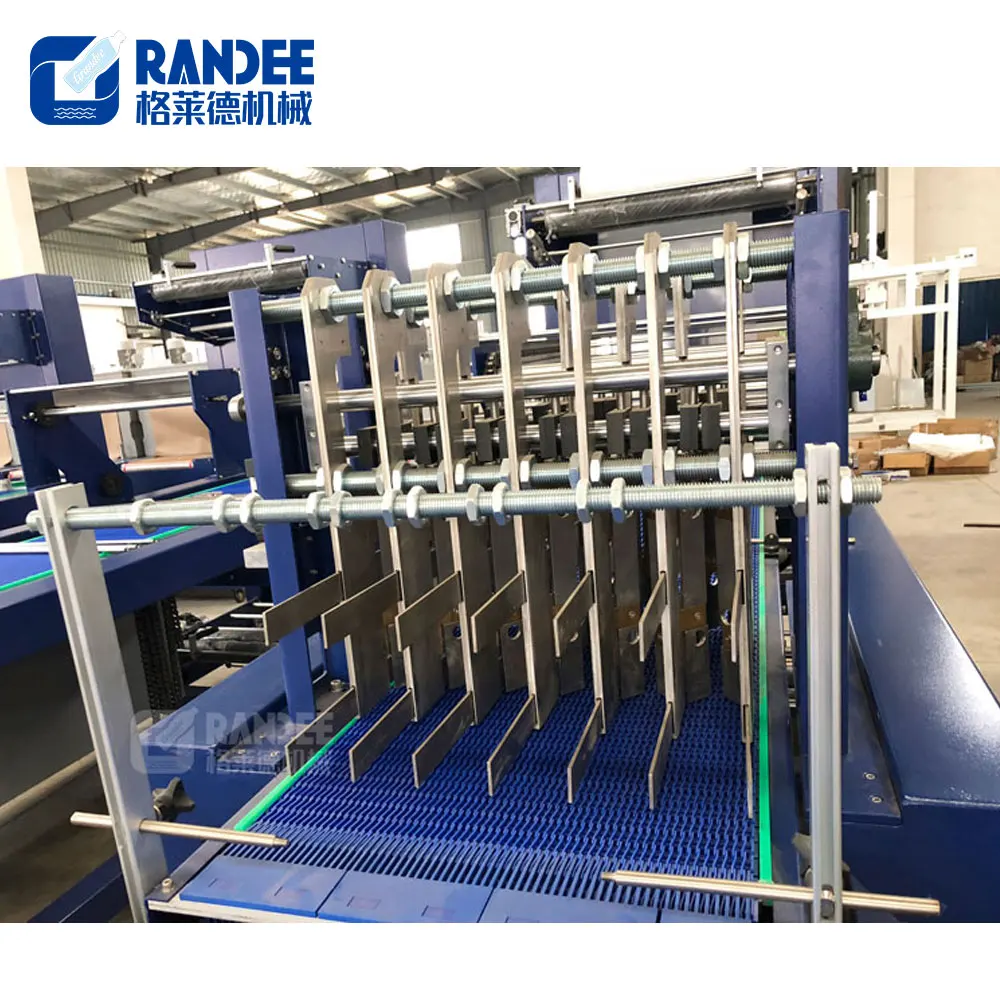

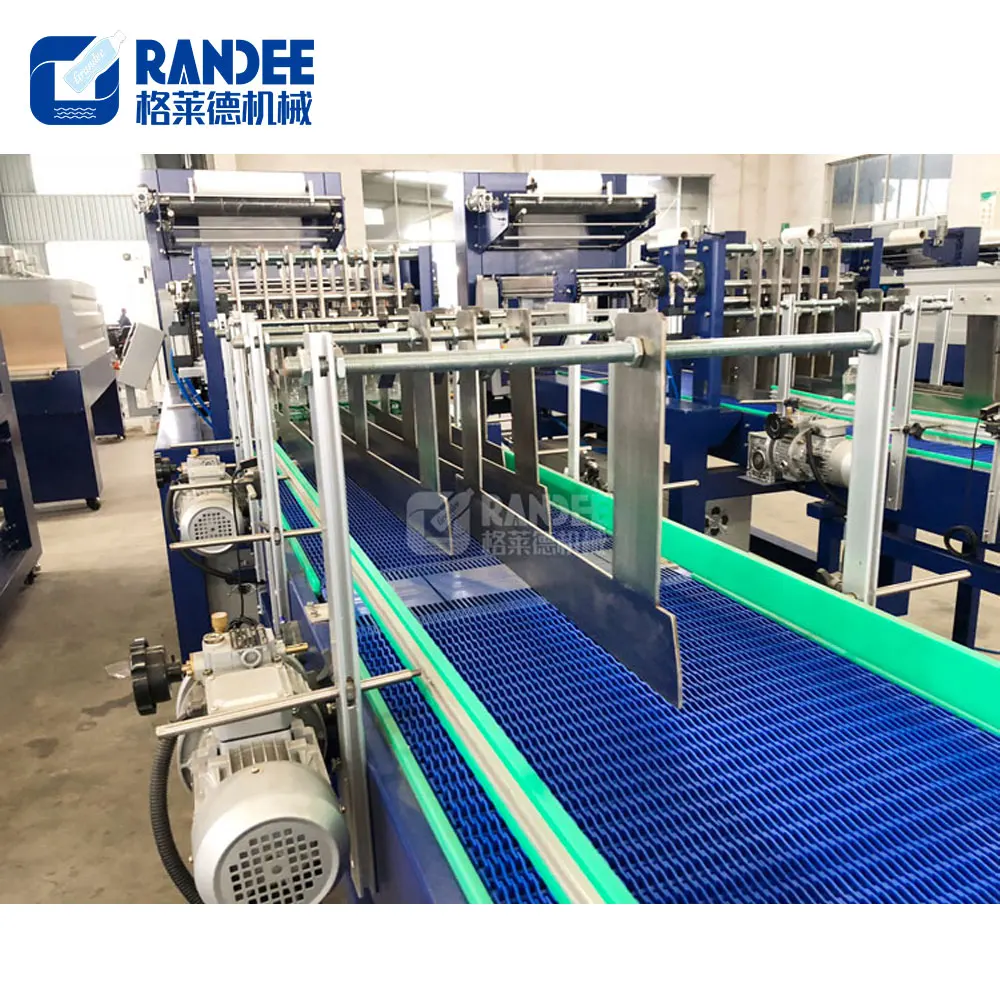

1.Lane separation device: lane separation 2.Bottle-Separating Device: Rules classification of packaging

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-5

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-6

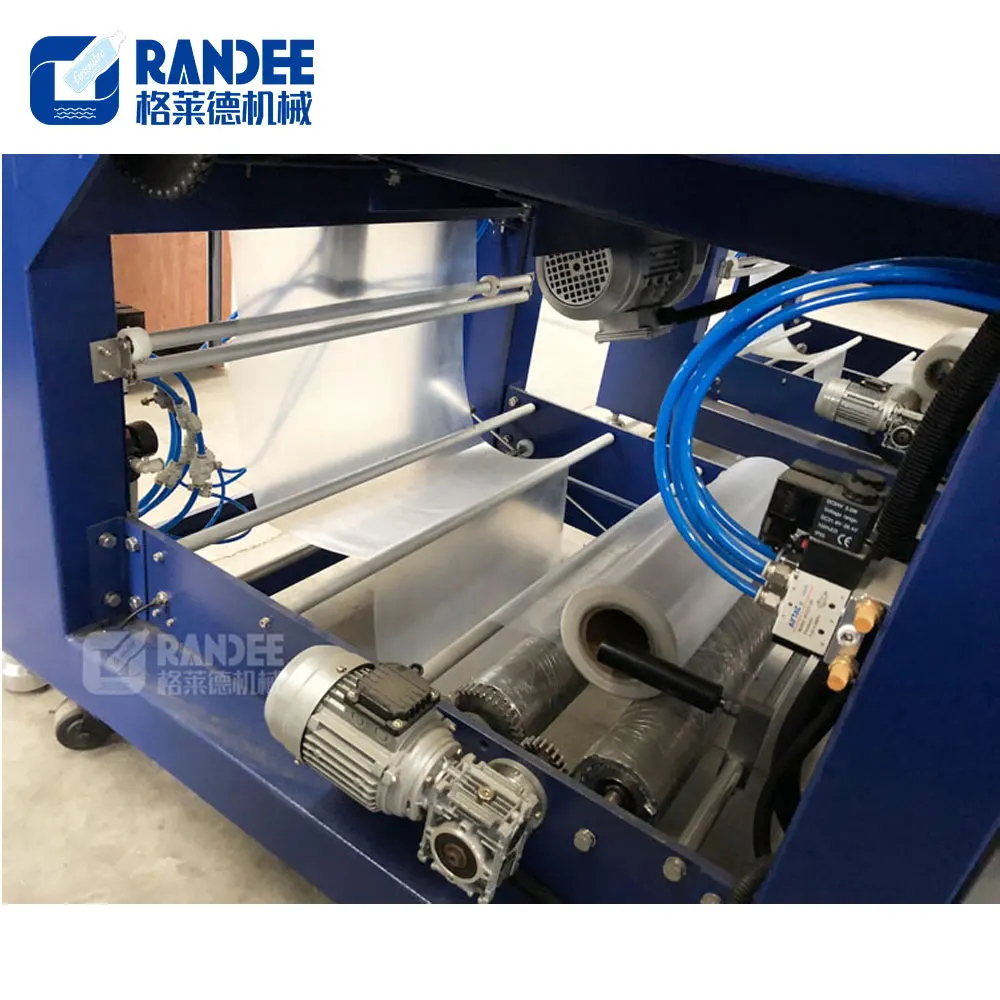

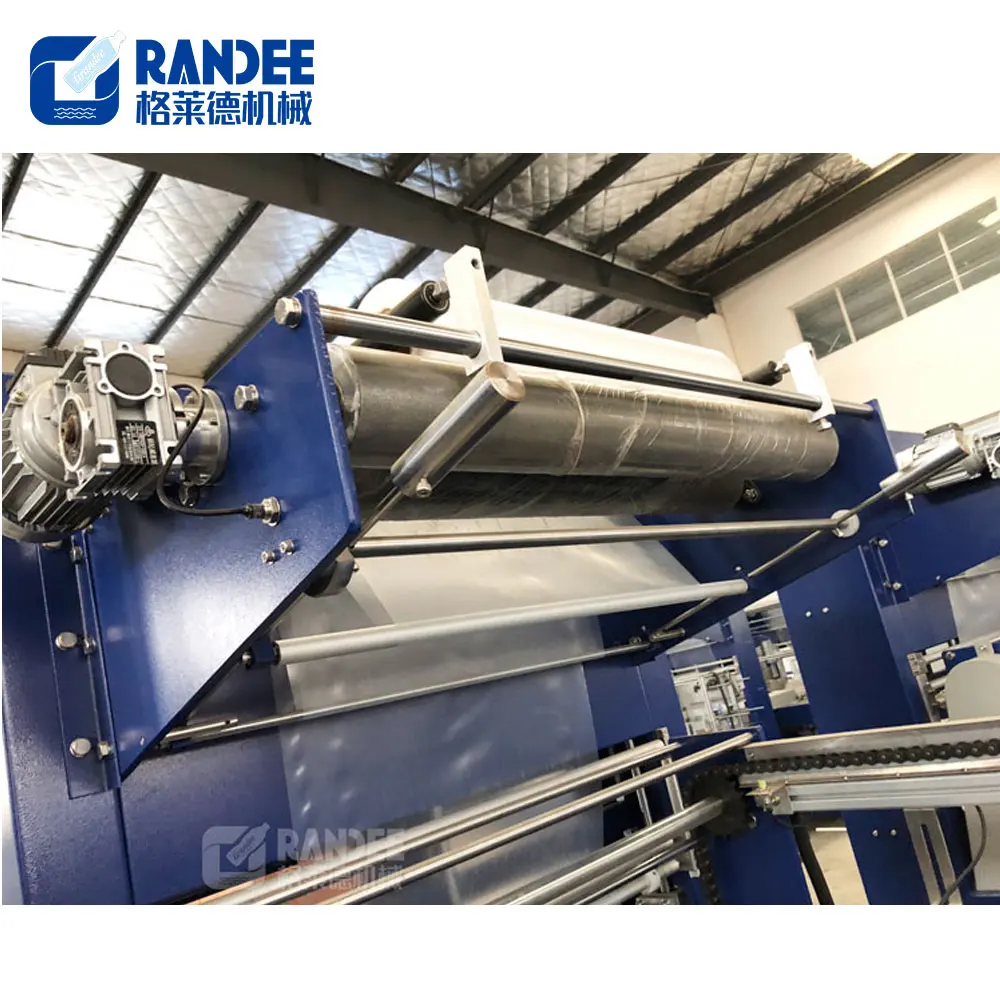

Automatic wrapping system

Package specification:350/500/550/600ML
4×6 or 4×5
1L/1.5L
3×4 or 3×5
2L/2.5L/3L/5L
2×2 or 2×3

PLC touch screen

IUse Siemens brand

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-7

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-8

Shrink tunnel part

1.Belt Conveying: Conveying the film wrapped package to the oven.

2.Hot Air Circulation Device: Complete heat shrinkage function.
3.High Temperature Resistant Conveying Mechanism: Stable conveying of finished products under high temperature and heat shrinkage function.

Main technical parameter

Name	Automatic PE film heat shrink packing machine
Maxi. packing size	420300350mm(LXWXH)
Maxi. sealing size	650mm
Level of the conveyor	950±30mm
Maxi. shrinkable temperature	160-260℃
Package speed	18-20packs/min
Working pressure	0.6-0.8MPa
Power	30kw
Weight	2500kgs
External Dimension	L14000W1100H2100mm

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-9

The Machine Features And Advantages

4.1.Selecting universal brand-name components, uniform specifications, and random interchangeability.
4.2.The PLC programmable control system is adopted to ensure the accuracy and stability of the packaging process control.The shrinking machine adopts the latest thermal cycle treatment technology to reduce energy consumption. Improve the utilization rate of hot air, and the conveying speed can be adjusted by frequency conversion to achieve a good packaging effect.
4.3.Touch screen control makes the device action control enter a high-precision and intelligent state. All actions are monitored, various alarms and PC status are displayed on the touch screen, which makes the equipment operation safer and more reliable. It can be operated in a single step, which is convenient forde bugging and maintenance. The equipment is equipped with an automatic alarm device to further improve the safety and reliability of the equipment.
4.4.The pneumatic components adopt the brand of Taiwan Airtac.

product one piece automatic colorful film thermal shrink packing wrapping machine for plastic bottle-10

NAME	BRAND	AREA
PLC	Siemens	Germany
INVERTER	Siemens	Germany
CONTACTOR	Siemens	Germany
TOUCH SCREEN	Siemens	Germany
INVERTER	Siemens	Germany
MOTOR	ABB	SWISS
PNEUMATIC PARTS	FESTO	GERMANY
ELECTRICAL PARTS	SCHNEIDER	FRANCE

For more information, please feel free to contact us to send an inquiry!
