High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line
High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line

High Quality 6000BPH Plastic Bottle Fruit Juice Liquid Filling Machine and Beverage Bottling Line

Get a Quote
  • Parameter
  • Related products
Parameter
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-3
Complete hot juice filling production line
Grandee supply complete solution for the juice filling production line , including Water treatment machine, Juice blending system, UHT Sterilizer, juice washing filling capping machine, code printer, OPP or sleeve labeling machine , Automatic shrink packing machine or Carton packing machine, Automatic palletizer system.
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-4

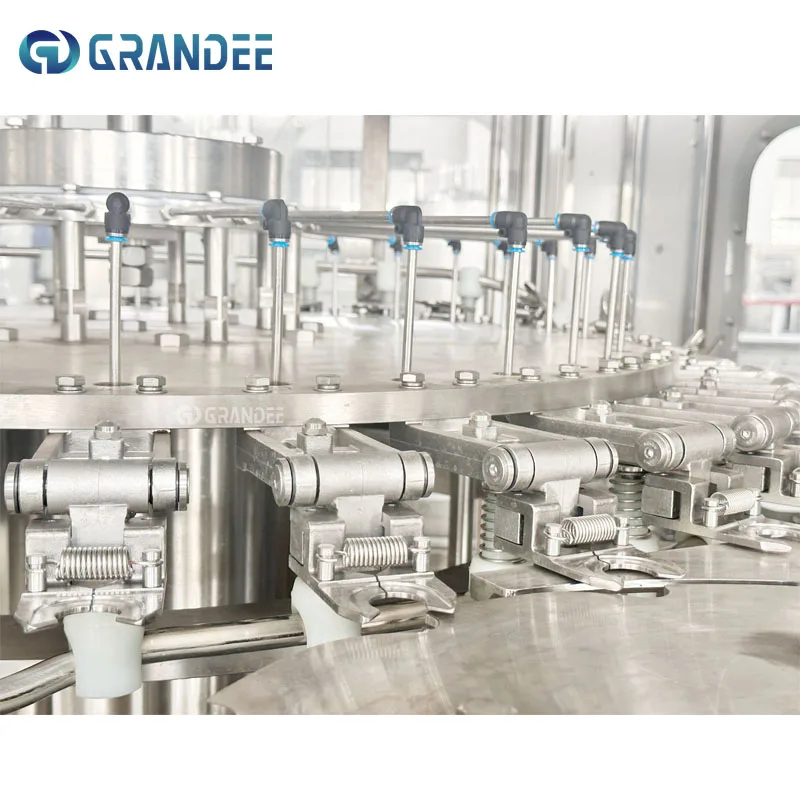

Washing part
Into bottle way is air conveyor direct connection with bottle dial.
All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. 304/316
Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.

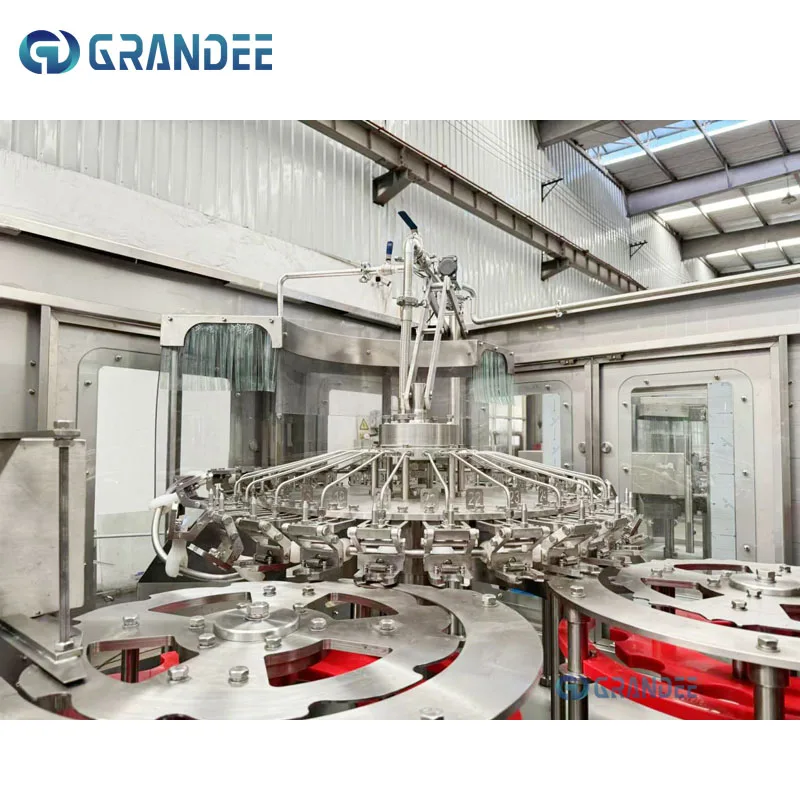

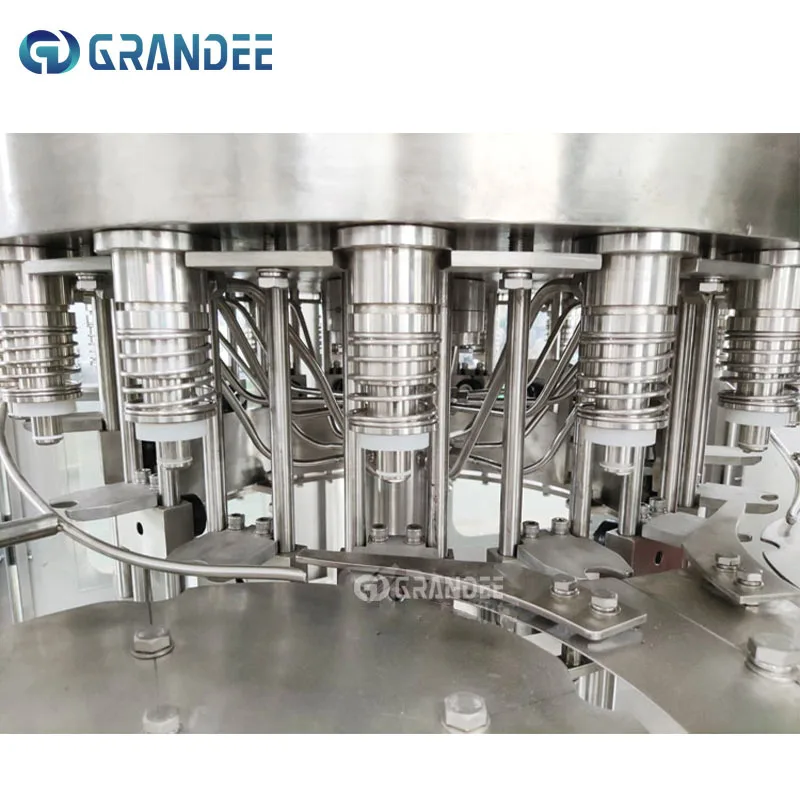

Filling part
304/316 Stainless steel high precision filling nozzle Filling volume adjustable in fine rank, same liquid level after filling All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-5
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-6

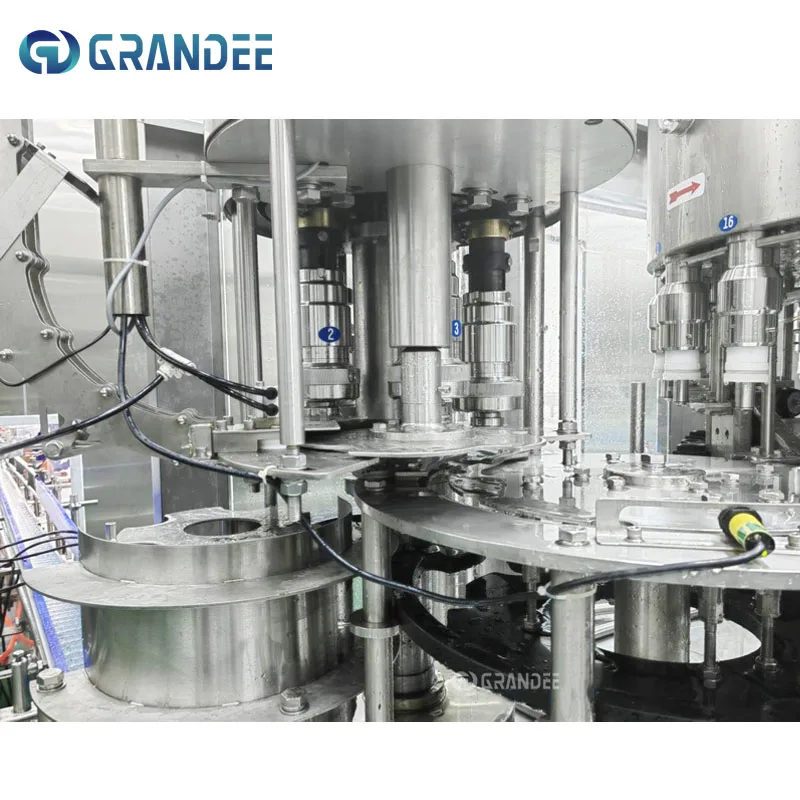

Capping part
Place and capping system with aluminum foil sealing part, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304/316 stainless steel construction No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable, Defective rate ≤0.2%
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-7
High level tank
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-8
Reflux tank for CIP
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-9
Waterfall cap loader
Main technical parameter
Model
RXGF
14-12-5
RXGF
16-16-5
RXGF
24-24-8
RXGF
32-32-8
RXGF
40-40-12
RXGF
50-50-12
Capacity (500ml)
3000-4000
6000-8000
10000-12000
15000-16000
16000-18000
20000-22000
Suitable bottle shapes
PET circular, square, or long neck bottle
Bottle diameter
50-115mm
Bottle height
160-320mm
Filling type
Hot filling tyoe
Filling pressure
＜0.4MPa
Rinsing water pressure
＞0.06MPa ＜0.2MPa
Application
Hot juice filling bottling line
Total power
4.4kw
5.2kw
6.2kw
7.5kw
8.2kw
11kw
Overall dimensions
2.5*1.9m
2.8*1.9m
3.2*2.2m
3.4*2.5m
4.8*2.3m
5.5*3.3m
Height
2.3m
2.5m
2.5m
2.5m
2.5m
2.5m
Weight
3000kg
4500kg
6000kg
8500kg
10000kg
11000kg
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-10
NAME
BRAND
AREA
PLC
Siemens
Germany
INVERTER
Siemens
Germany
CONTACTOR
Siemens
Germany
TOUCH SCREEN
Siemens
Germany
INVERTER
Siemens
Germany
MOTOR
ABB
SWISS
PNEUMATIC PARTS
FESTO
GERMANY
ELECTRICAL PARTS
SCHNEIDER
FRANCE
For more information, please feel free to contact us to send an inquiry!


Turnkey Solution
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-11
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-12
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-13
Juice filling machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-14
Carbonated drink filling machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-15
Small bottle water filling machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-16
Fruit juice filling machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-17
Mineral water filling machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-18
Bottle filling packaging machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-19
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-20
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-21
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-22
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
Company Profile
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-23
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-24
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-25
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-26
product high quality 6000bph plastic bottle fruit juice liquid filling machine and beverage bottling line-27
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us to send inquiries!
