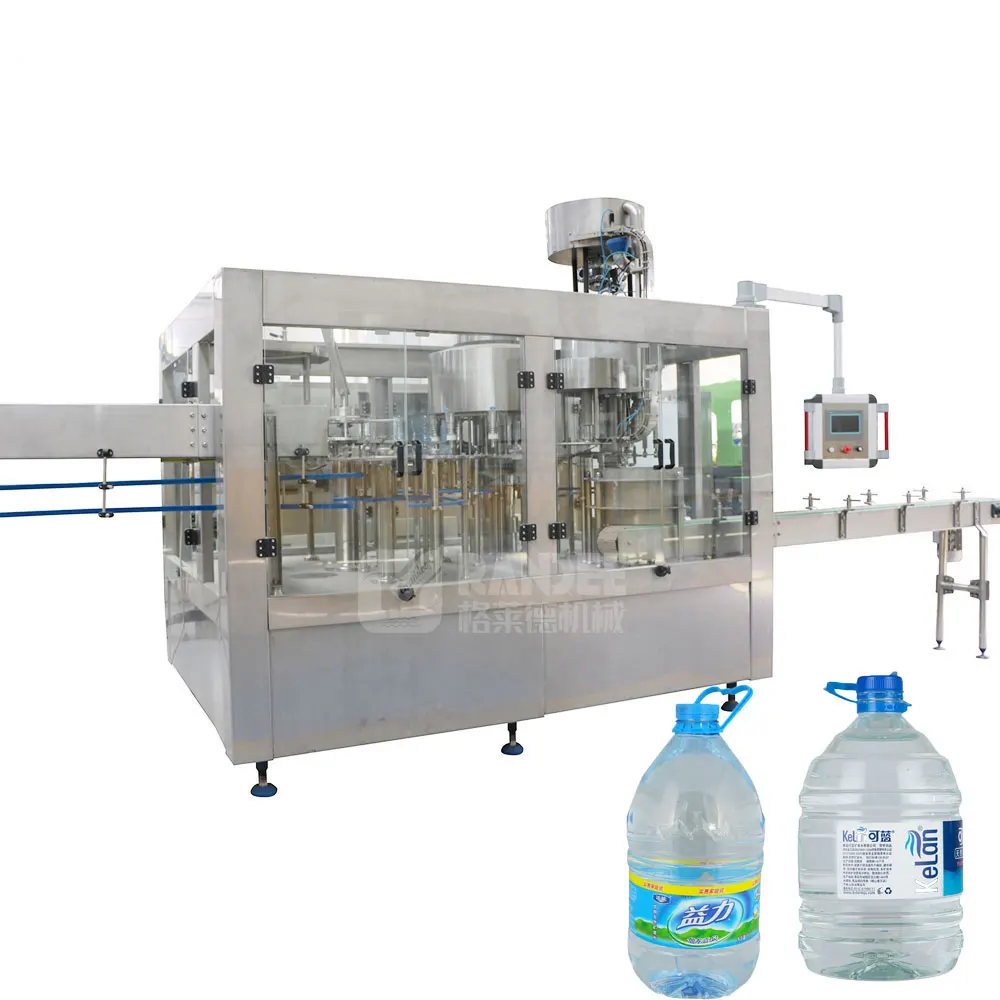

Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price
Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price

Automatic 5L 6L 10L Big Bottle Mineral Water Washing Filling and Capping Machine Price

Get a Quote
  • Parameter
  • Related products
Parameter
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-3
5L 10L 12L Plastic Bottle Mineral Pure Water Filling Production Machine
(1)water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking
machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-4

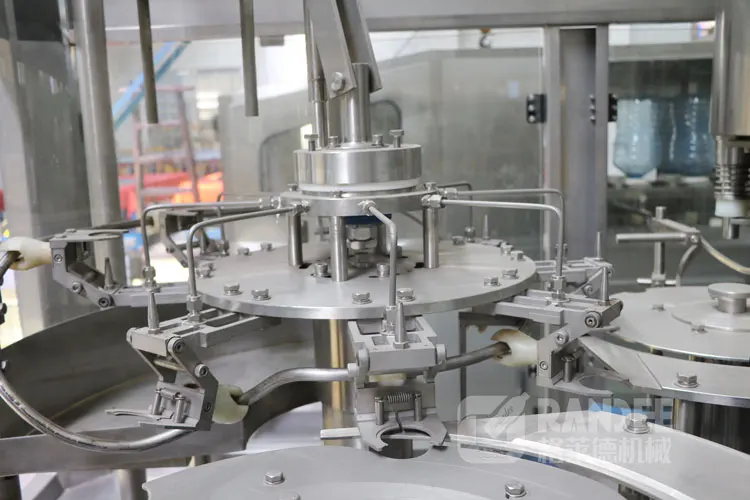

Washing part
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe
grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again

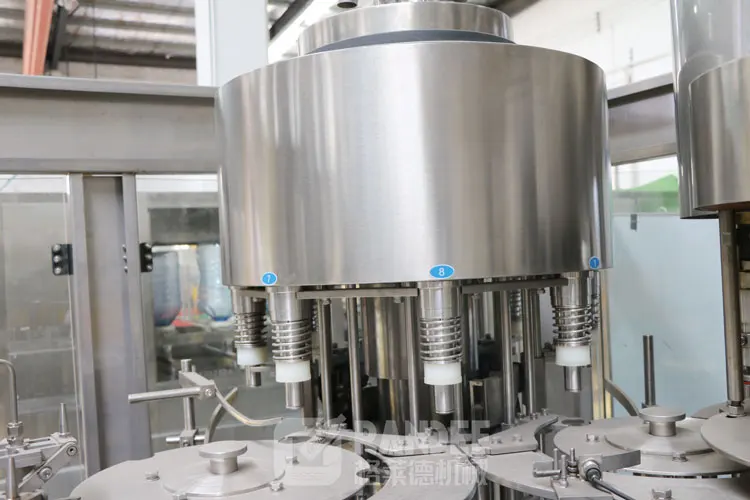

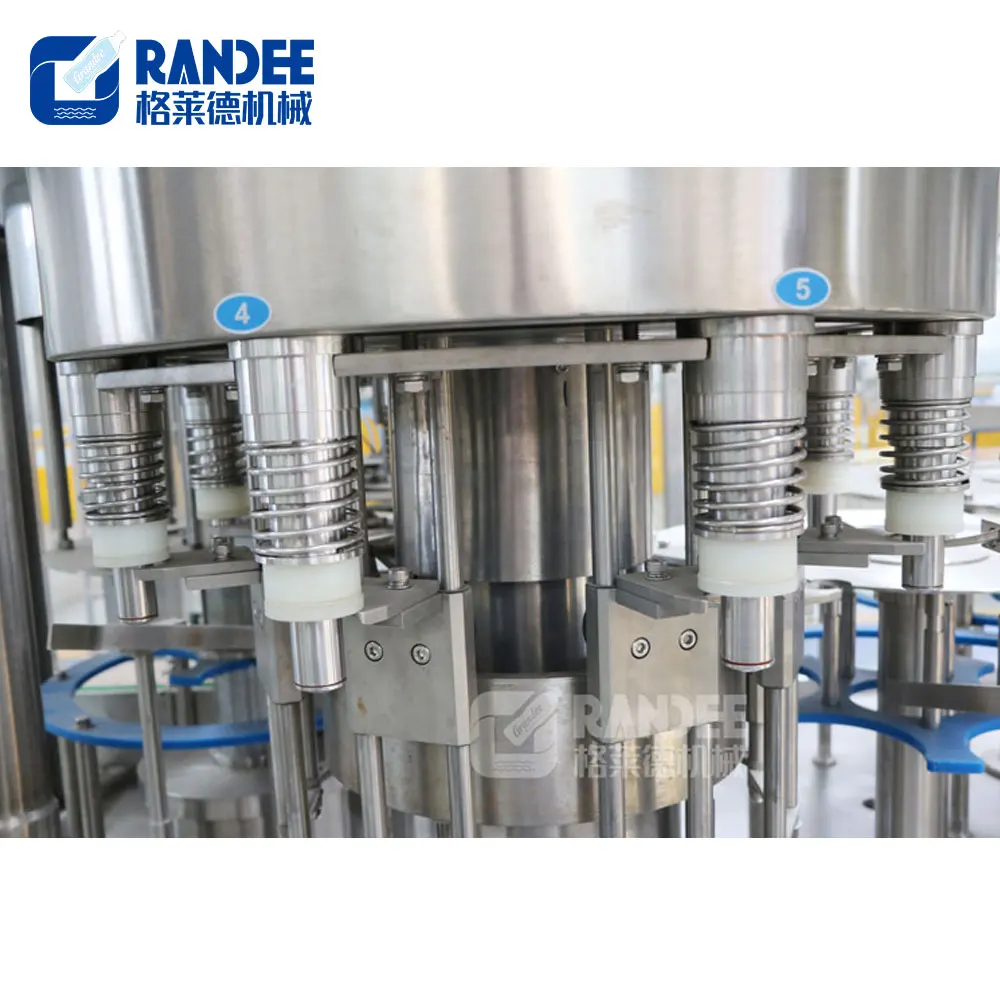

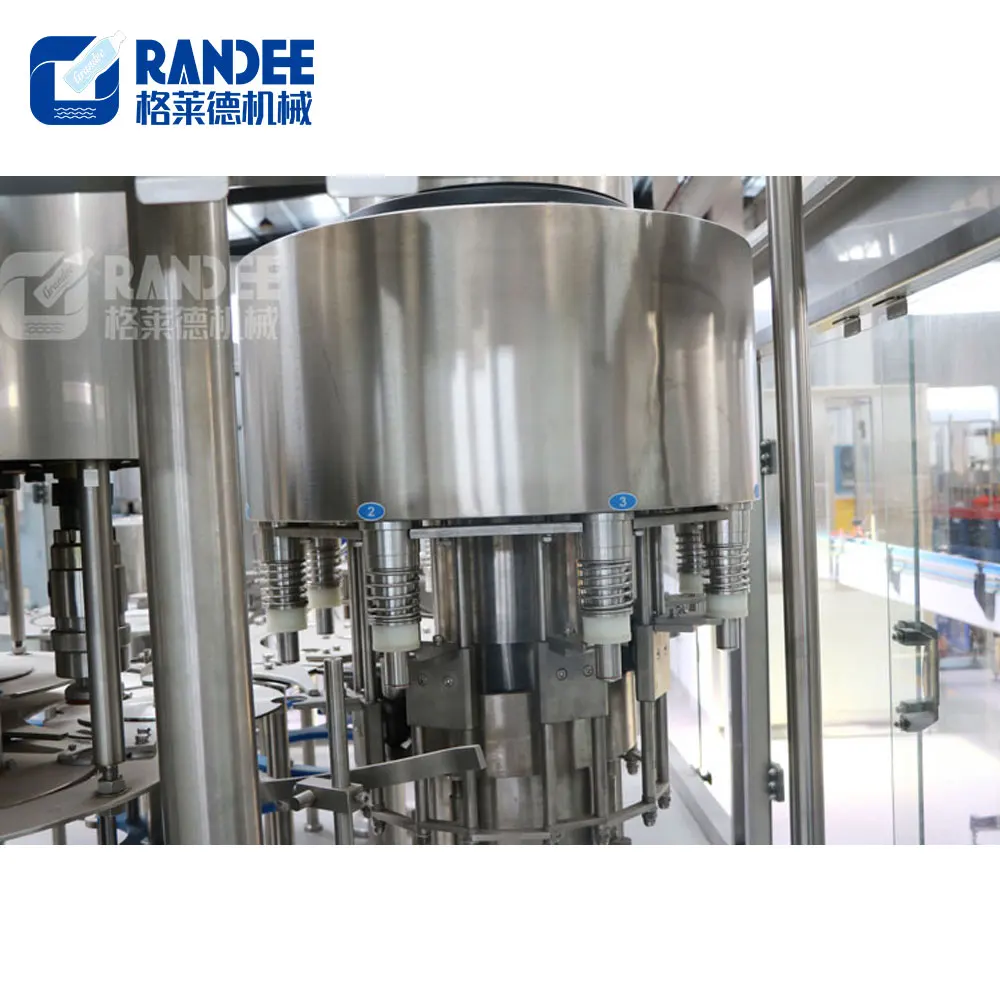

Filling part
Long tube filling type with 2 times filling process to make sure perfect filling level
Liquid tank, filling valves, controlling rings, upgrading cylinder.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made
of excellent stainless steel or food grade engineering plastic.
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-5
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-6

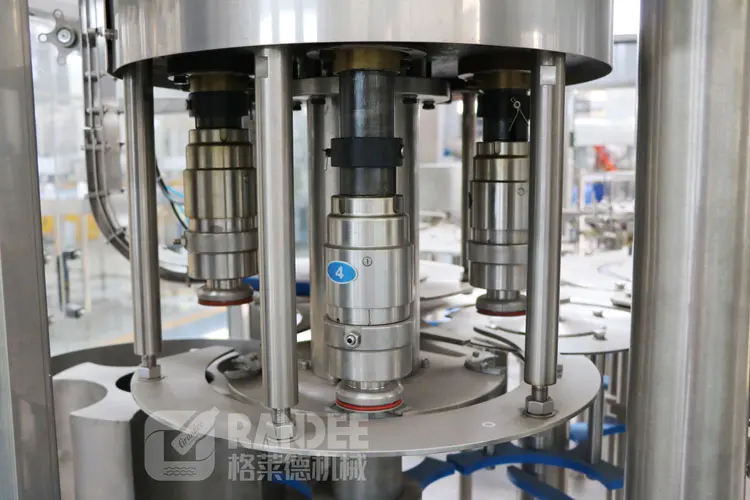

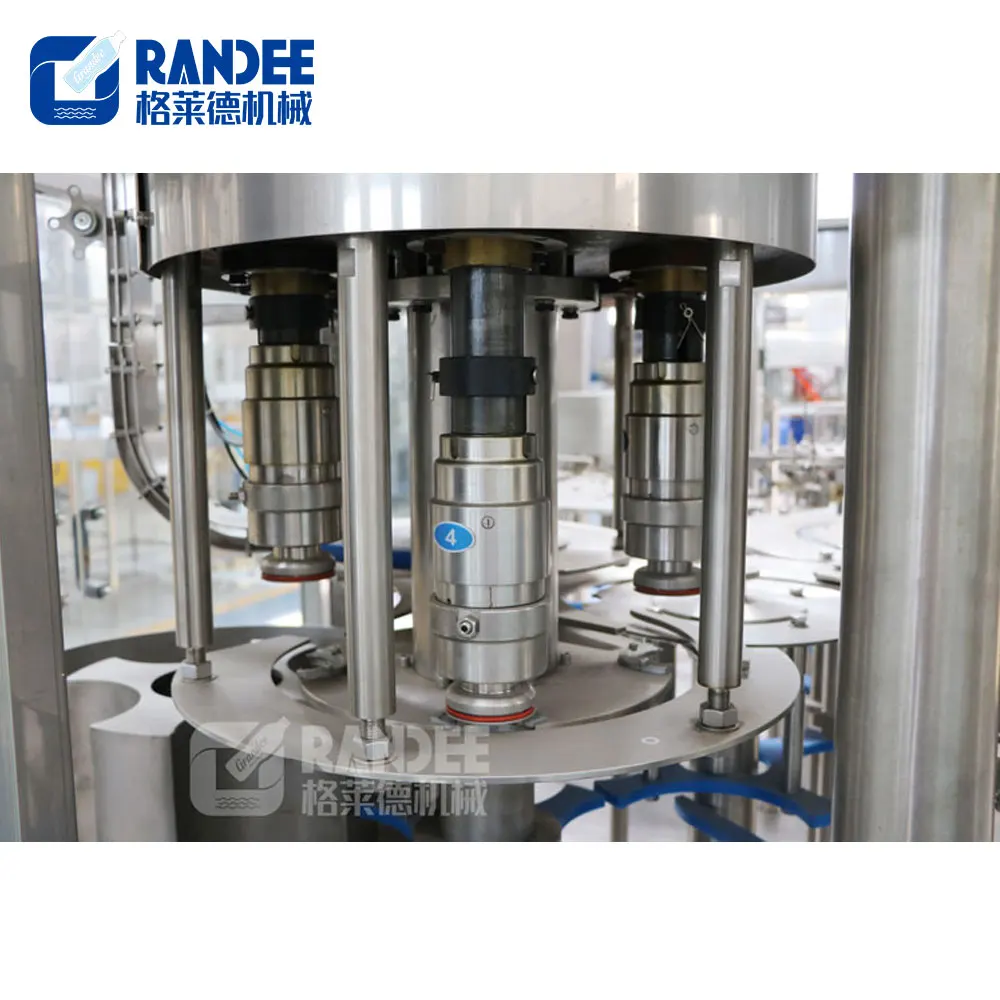

Capping part
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Main technical parameter
Model
XGF
8-8-3
XGF
14-12-5
XGF
16-16-6
XGF
18-18-6
XGF
24-24-8
XGF
32-32-10
XGF
40-40-12
Capacity(500ml/BPH)
2000
3000
4000
8000
12000
14000
16000
Suitable bottle shape and size
Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm
Compressed air pressure
0.3-0.7MPa
Bottle washing medium
Sterile water
Washing pressure
0.25MPa
Main motor
1.5
2.2
2.2
2.2
4.5
5.5
7.5
Dimension(mm)
2000*1600*2300
2200*1800*2300
2400*1900*2300
2500*2000*2300
2700*2100*2300
2970*2260*2700
3780*2800*2700
Weight(KG)
2000
2500
3000
3500
4500
6500
8500
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-7
NAME
BRAND
AREA
PLC
Siemens
Germany
INVERTER
Siemens
Germany
CONTACTOR
Siemens
Germany
TOUCH SCREEN
Siemens
Germany
INVERTER
Siemens
Germany
MOTOR
ABB
SWISS
PNEUMATIC PARTS
FESTO
GERMANY
ELECTRICAL PARTS
SCHNEIDER
FRANCE
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-8
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-9
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-10
2.Automatic blow molding machine for PET bottle:
Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-11
3. Automatic OPP hot glue labeling machine:
Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
product automatic 5l 6l 10l big bottle mineral water washing filling and capping machine price-12
4. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
