Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine

Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine

Parameter
Related products

Parameter

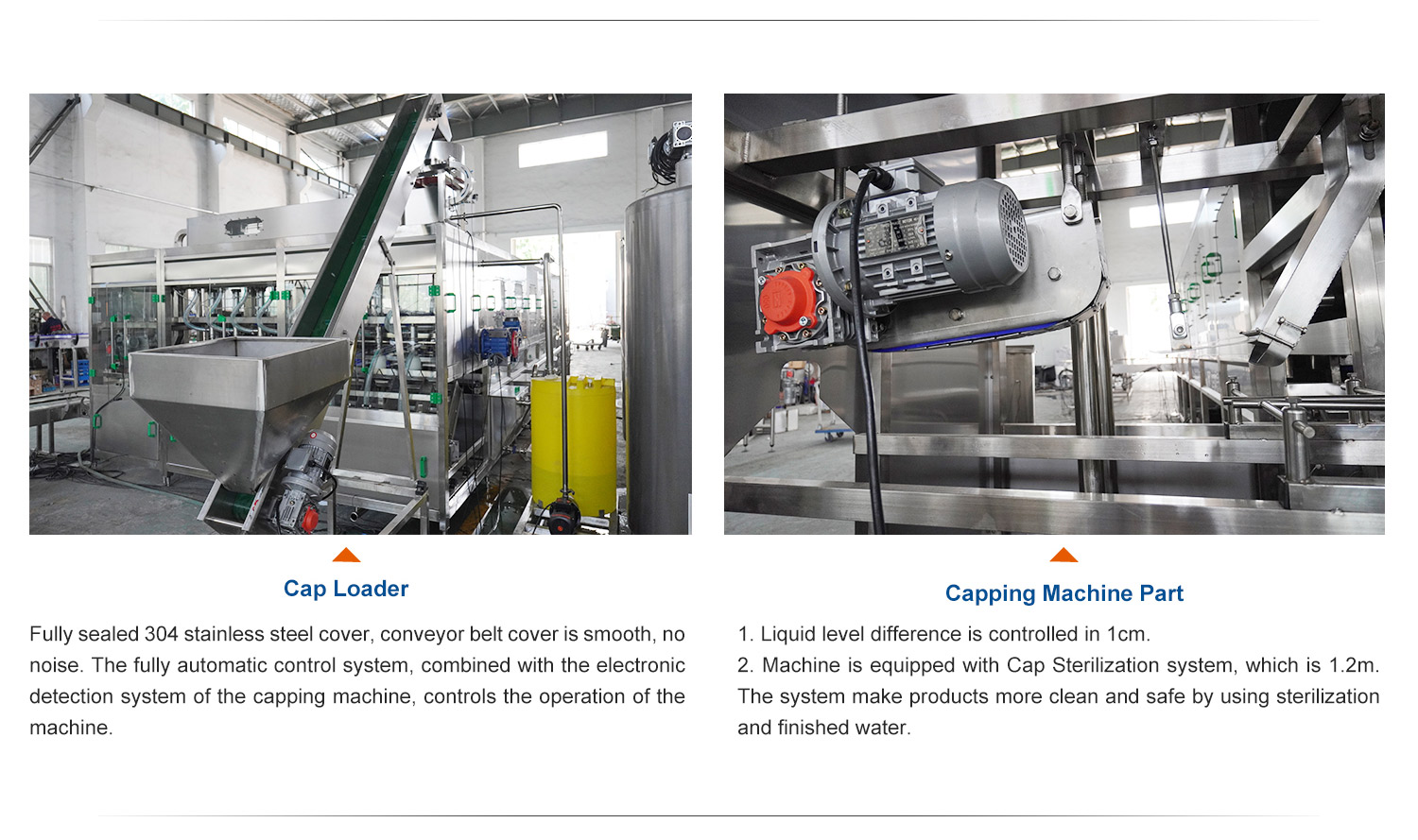

Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine factory

Products Description

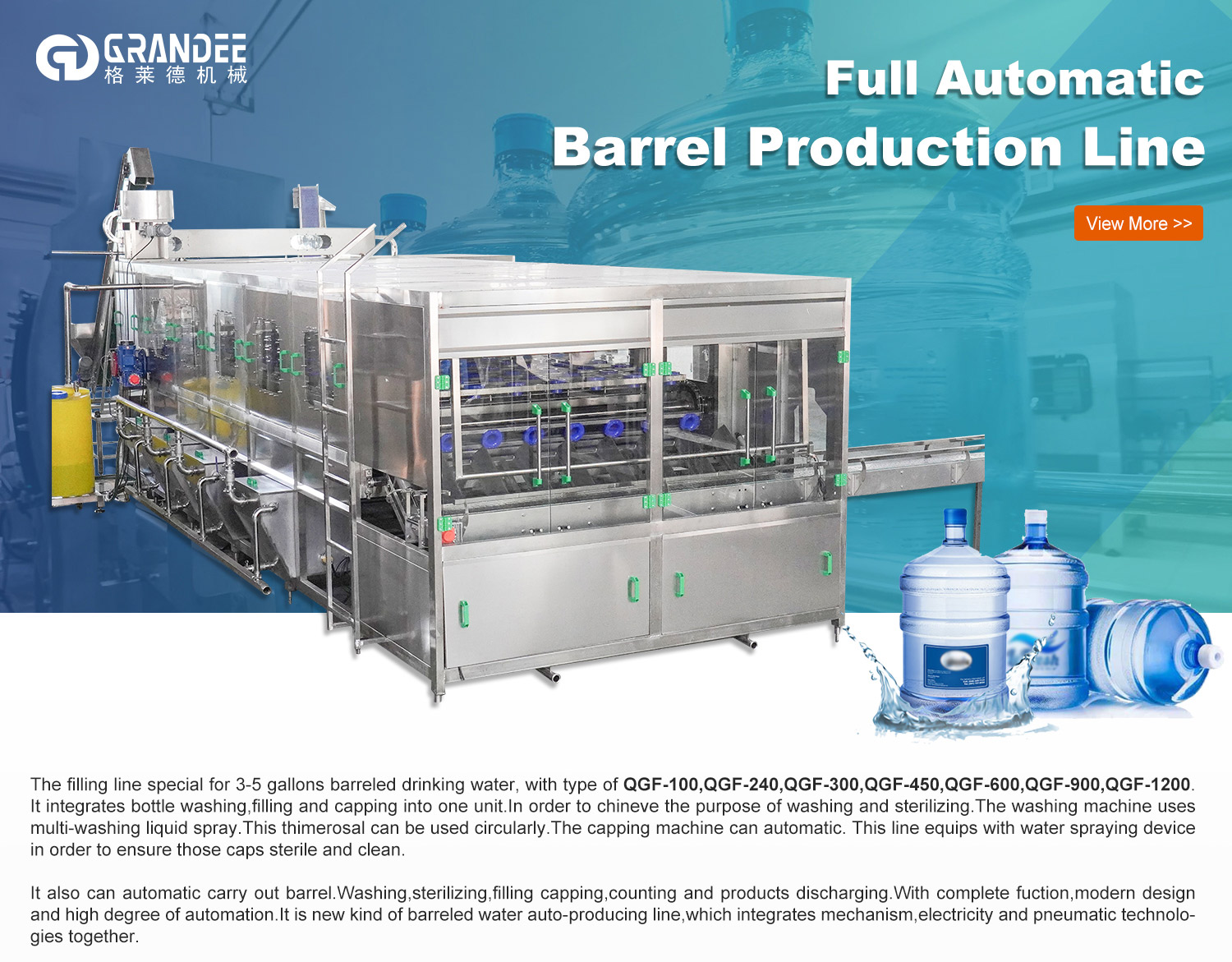

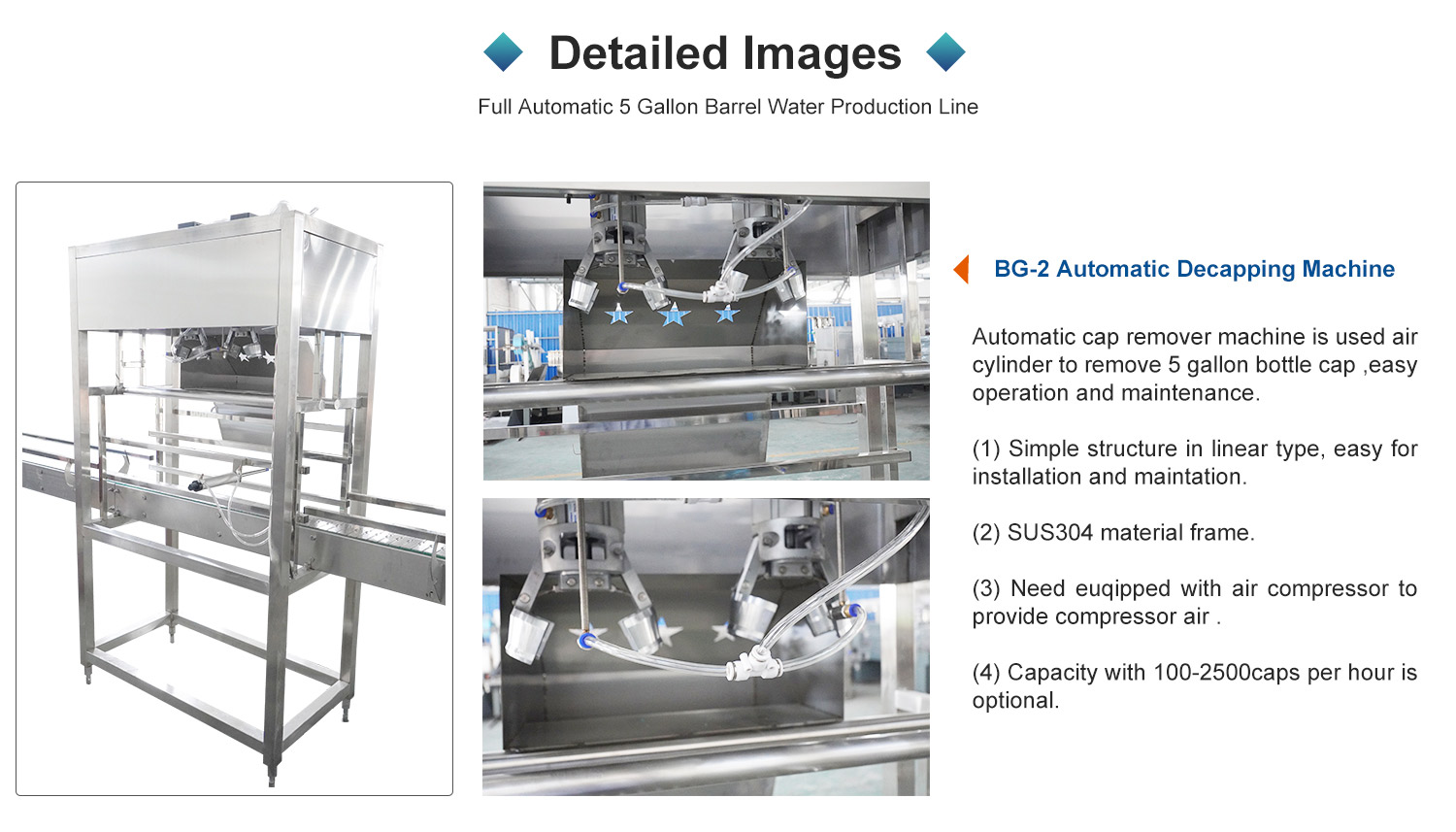

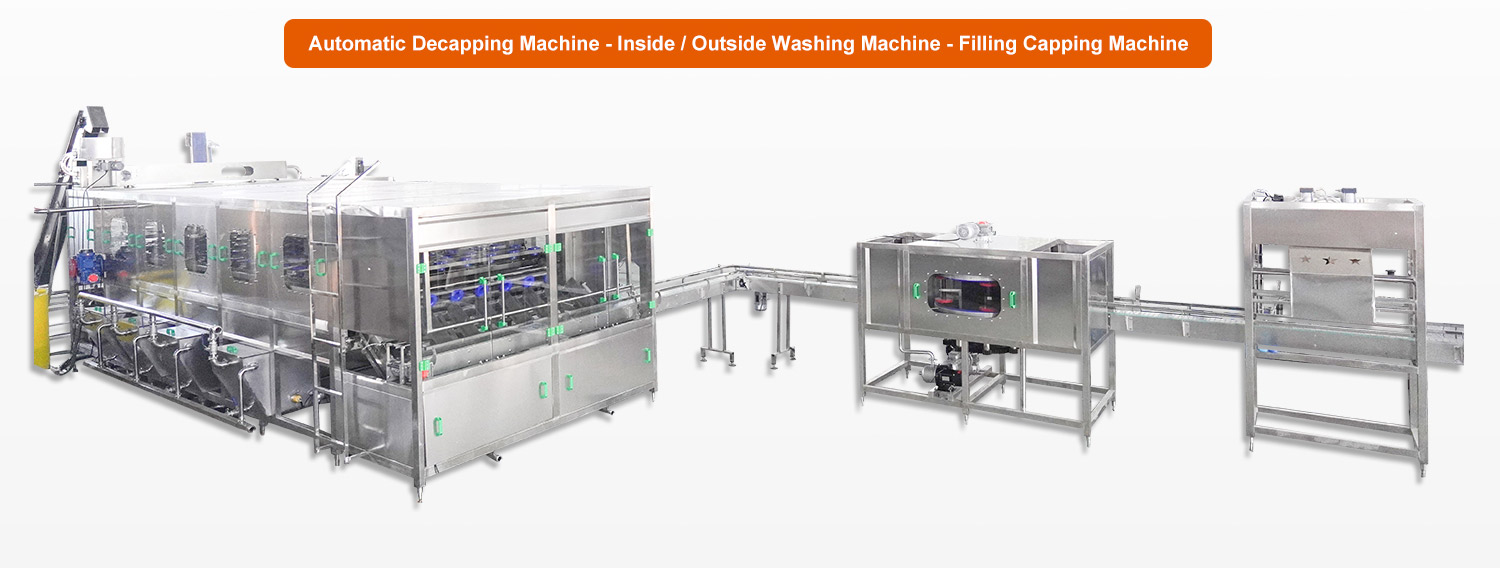

Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine manufacture

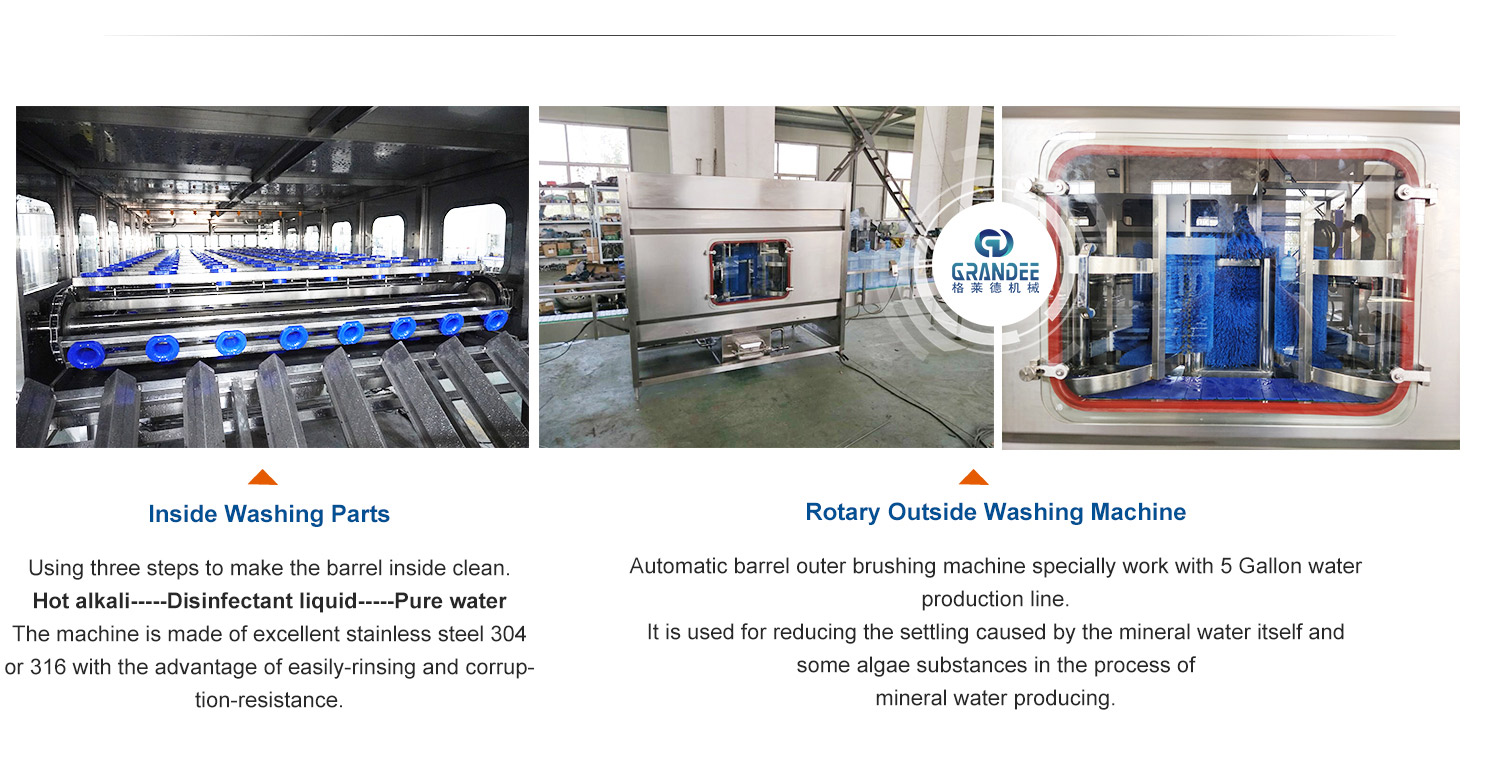

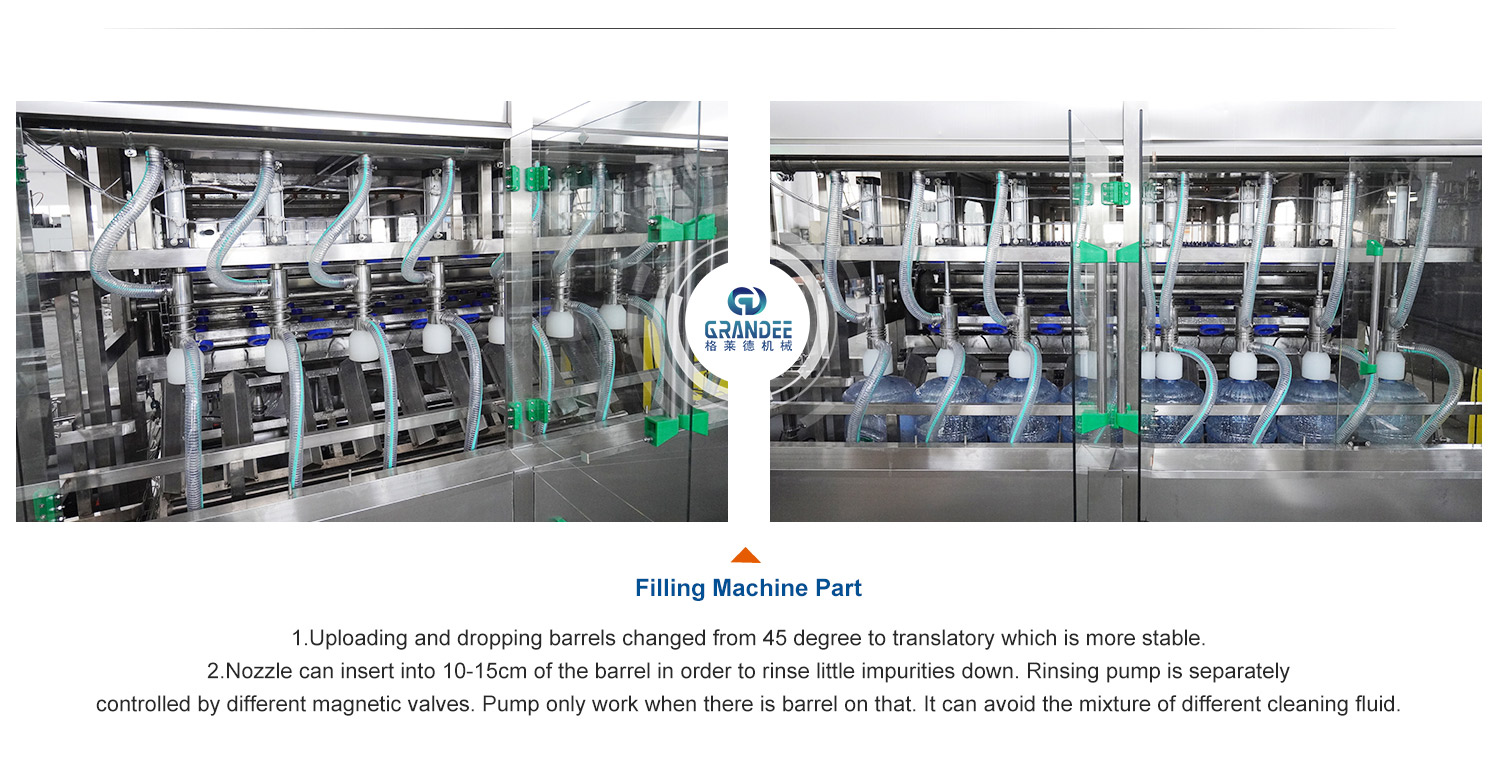

Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine details

Model	QGF-100	QGF-240	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filing heads	1	2	2	3	4	6	12
Volume Gallon	3&5	3&5	3&5	3&5	3&5	3&5	3&5
Barrel size mm	Φ270*490	Φ270*490	Φ270*490	Φ270*490	Φ270*490	Φ270*490	Φ270*490
Capacity b/h	100	240	300	450	600	900	1200
Gas pressure Mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consumption m³/min	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power kw	1.38	1.75	3.8	3.8	7.5	9.8	13.5
Weight kg	680	800	1500	2100	3000	3500	4500

Turnkey Solution


Automatic 5 gallon mineral water filling line 19l 20l 5 gallon water barrel washing capping machine supplier

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

Automatic OPP BOPP hot melt Glue labeling machine

Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere

Automatic PVC PE Sleeve Shrink Labeling Machine

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc

Operating Principle Of Packaging Machine

The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping

Company Profile

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions
We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line, can filling and sealing line, complete blowing labeling and packaging system

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."

The GRANDEE MACHINE’s Automatic 5 gallon mineral water filling line is a top-of-the-line product designed to provide convenience and efficiency for anybody in the water bottle industry. The machine has been engineered to wash, fill, and cap 19 and 20 liter water and 5-gallon with ease, making production faster and much more efficient.

It is perfect for people who are searching to streamline their production procedure without having to sacrifice quality. It can remove dust, dust as well as other contaminants through the bottles. It is safe and clean for usage. The filling process is easy and fast, making use of the filling machine and calculating each container to the perfect quantity. The capping is also effortless, utilising the sealing machine, so each bottle has a limit to avoid any leaks or spills.

It is ideal for both large and small scale. It can very quickly handle high amount, without compromising on quality. It was designed to operate with just minimal supervision, saving companies valuable time and power. It was made out of top-notch materials, making certain it is lasting and durable.

It is user-friendly design. The buttons and controls are clear to see, plus the machine can be arranged in mins. It only needs minimal maintenance, making it a perfect choice for organizations looking for a trusted option that will last for a long time.

This is wonderful if you are just starting a fresh bottled water manufacturing company or wanting to update your current system. This will surely deliver a dependable and efficient solution for all your production requires, featuring its advanced level technology, durable materials, and user-friendly design.

Order yours today and experience a new level this of efficiency and quality.
