High Quality Automatic Lid Compression Molding Machine Bottle Cap Making Machine

  • Parameter
  • Related products
Parameter
product high quality automatic lid compression molding machine bottle cap making machine-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product high quality automatic lid compression molding machine bottle cap making machine-3
product high quality automatic lid compression molding machine bottle cap making machine-4
product high quality automatic lid compression molding machine bottle cap making machine-5
product high quality automatic lid compression molding machine bottle cap making machine-6

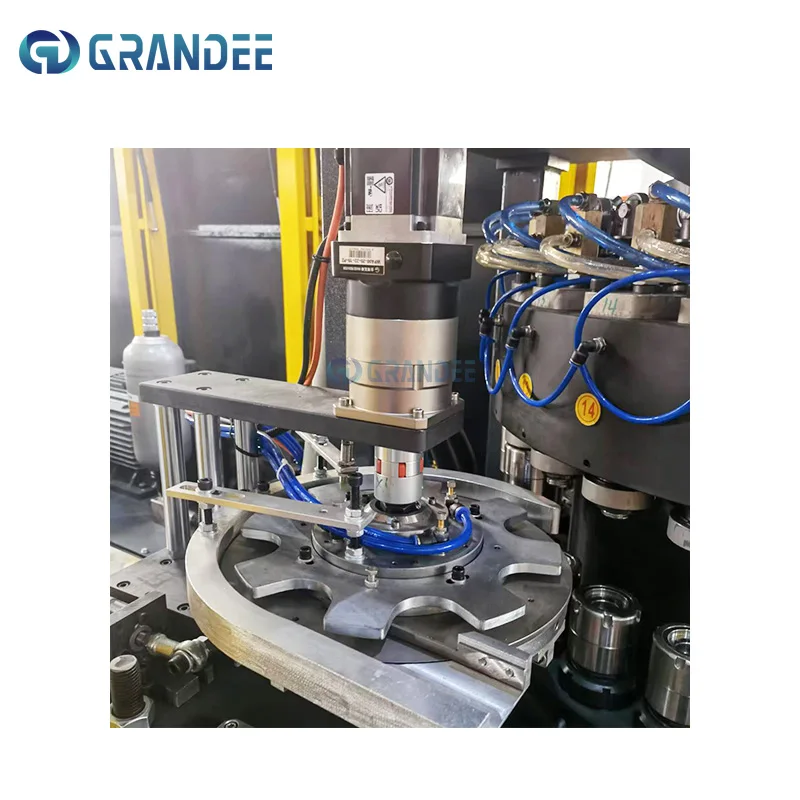

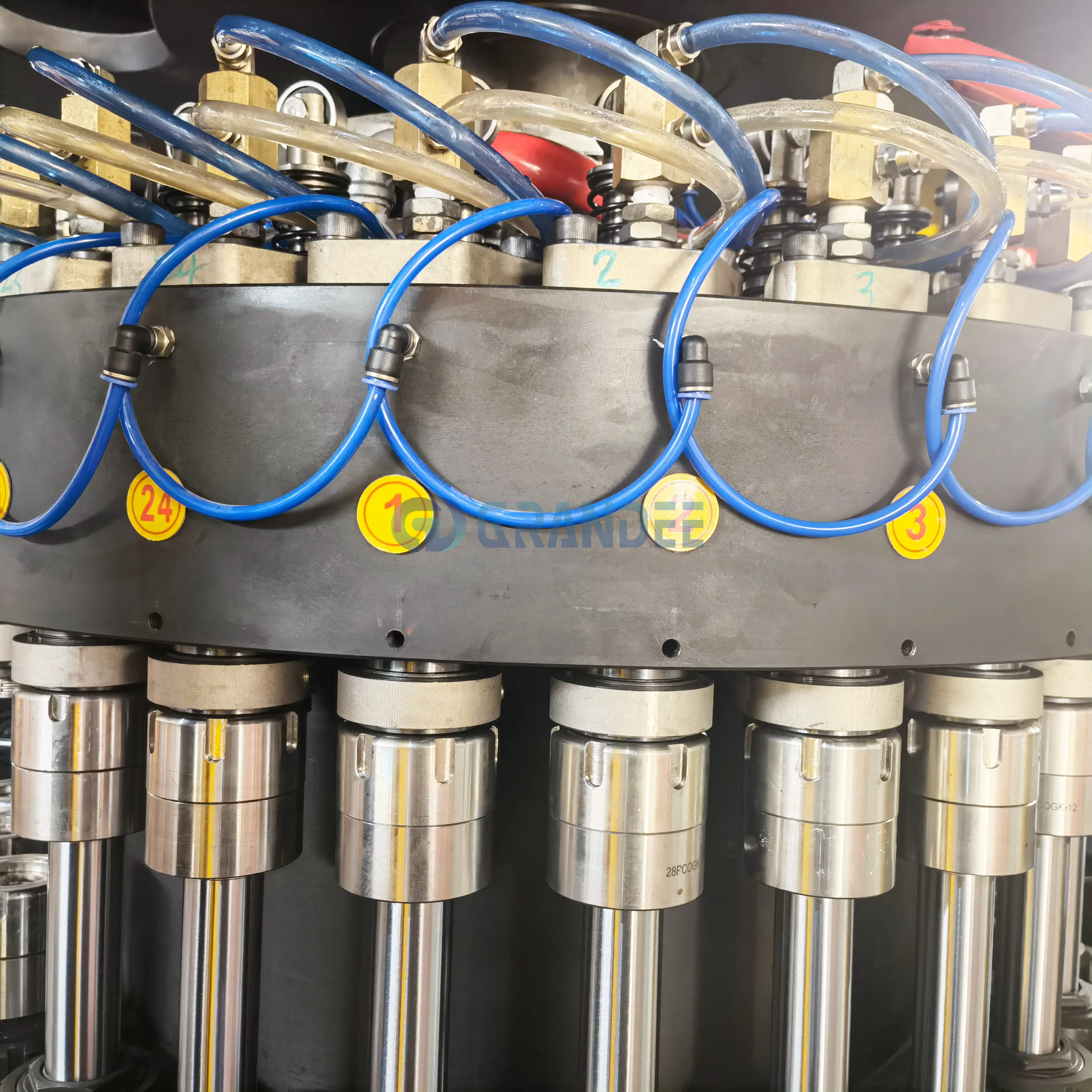

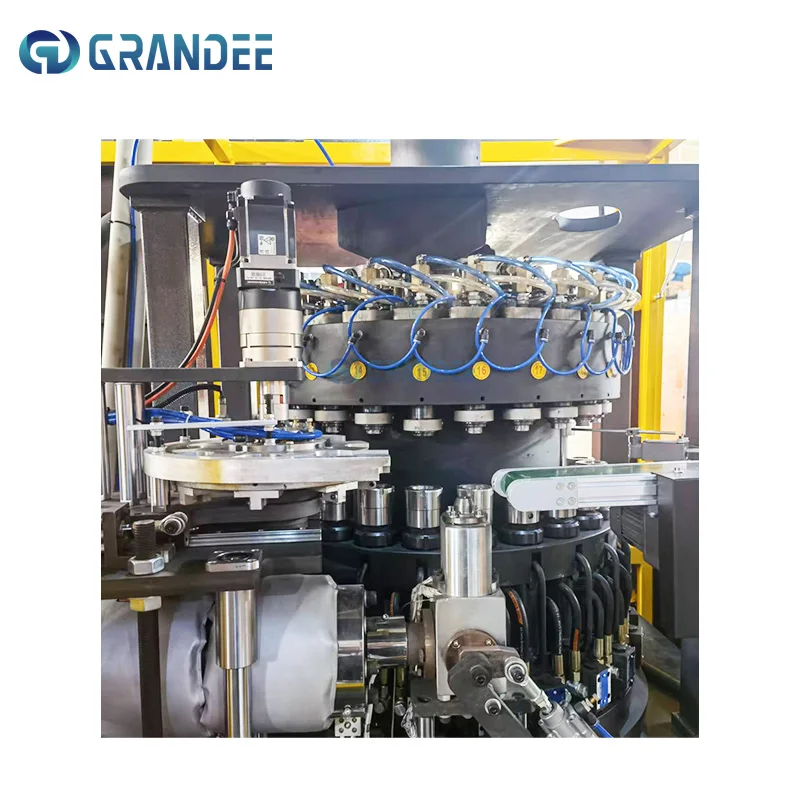

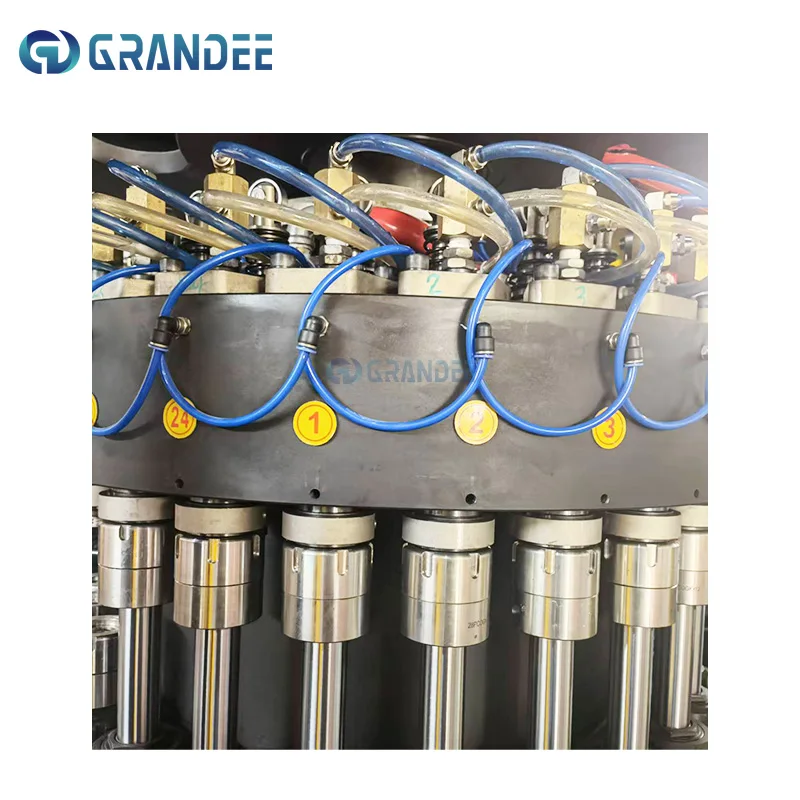

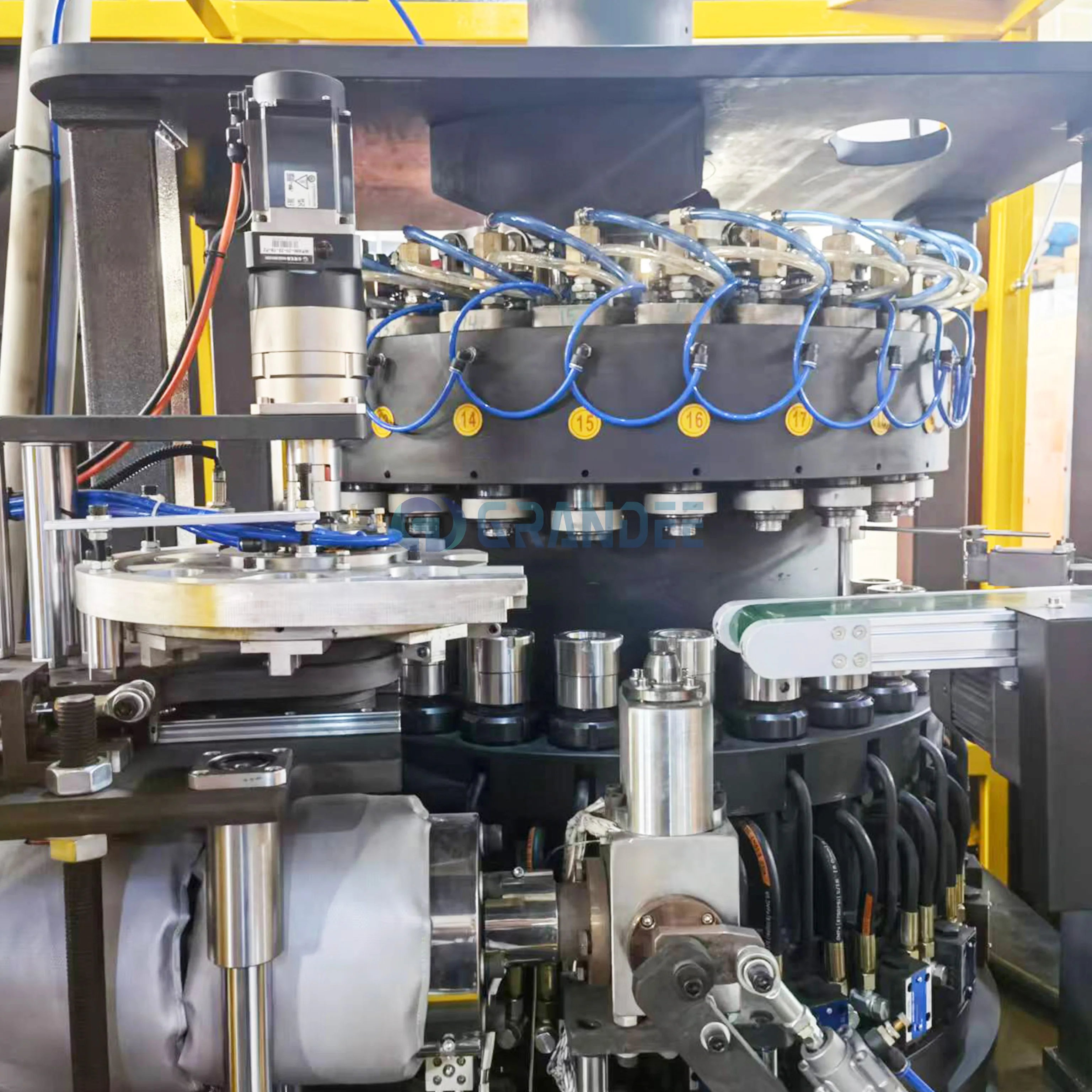

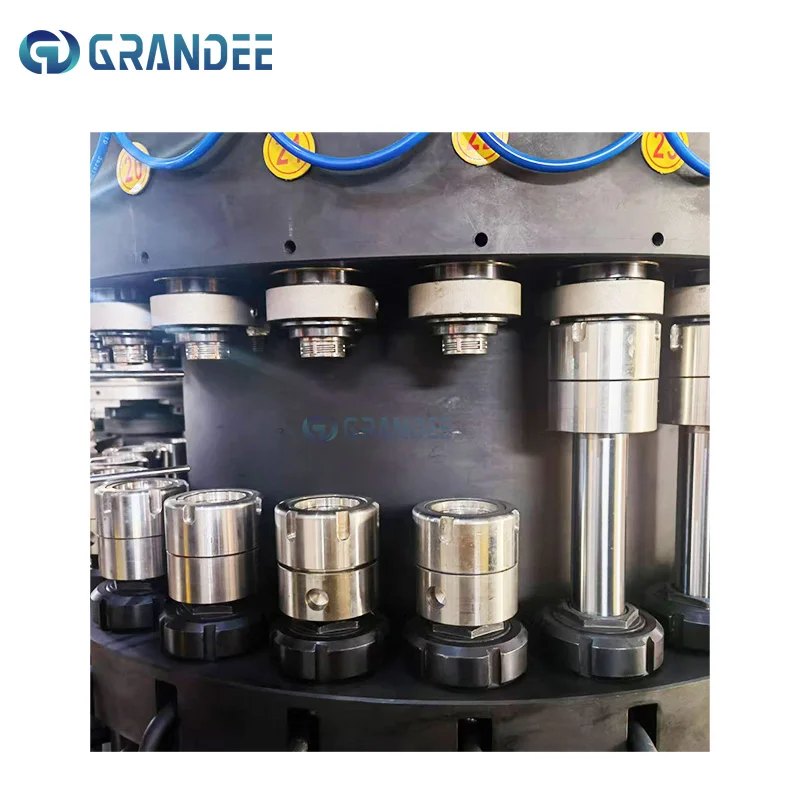

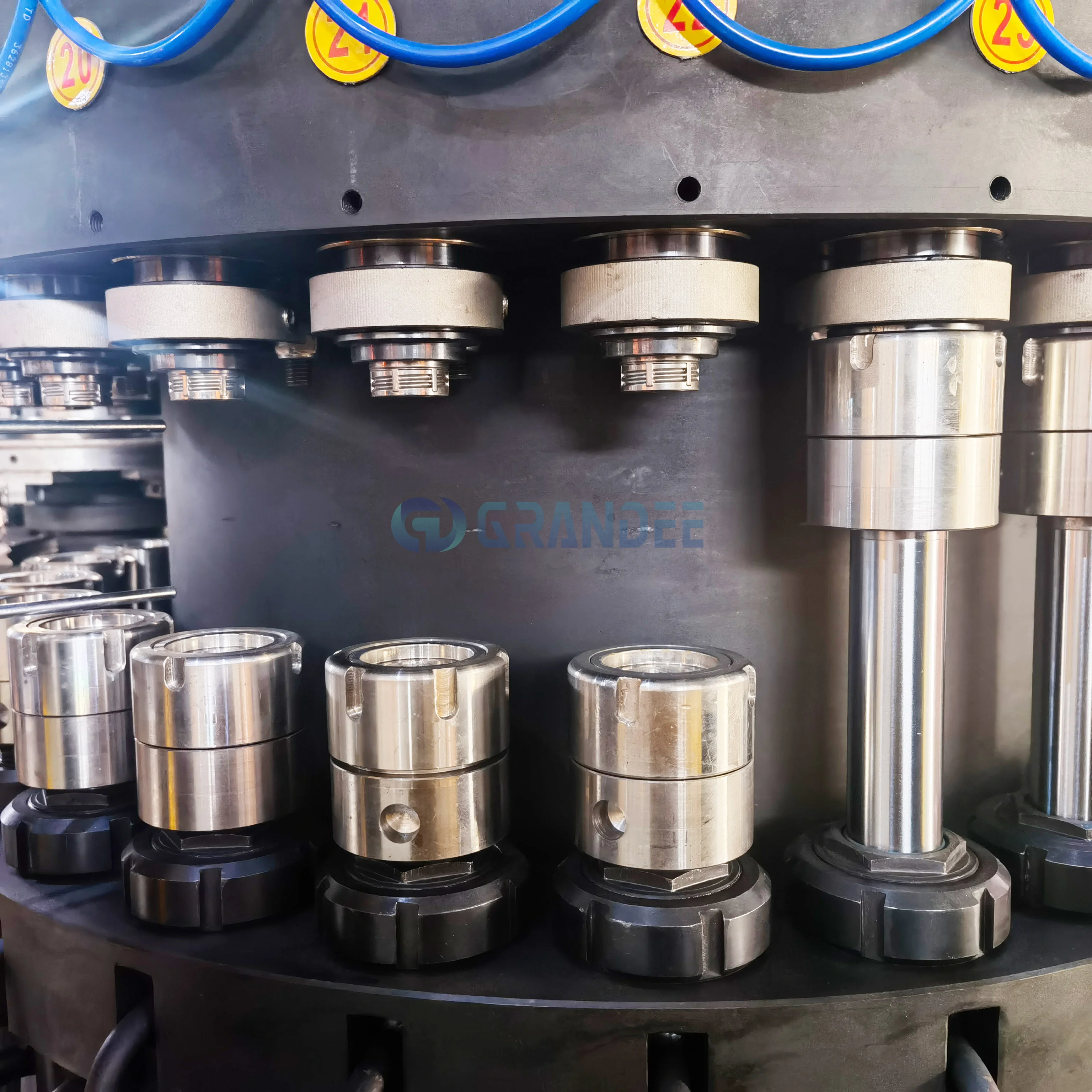

Cap Making Part

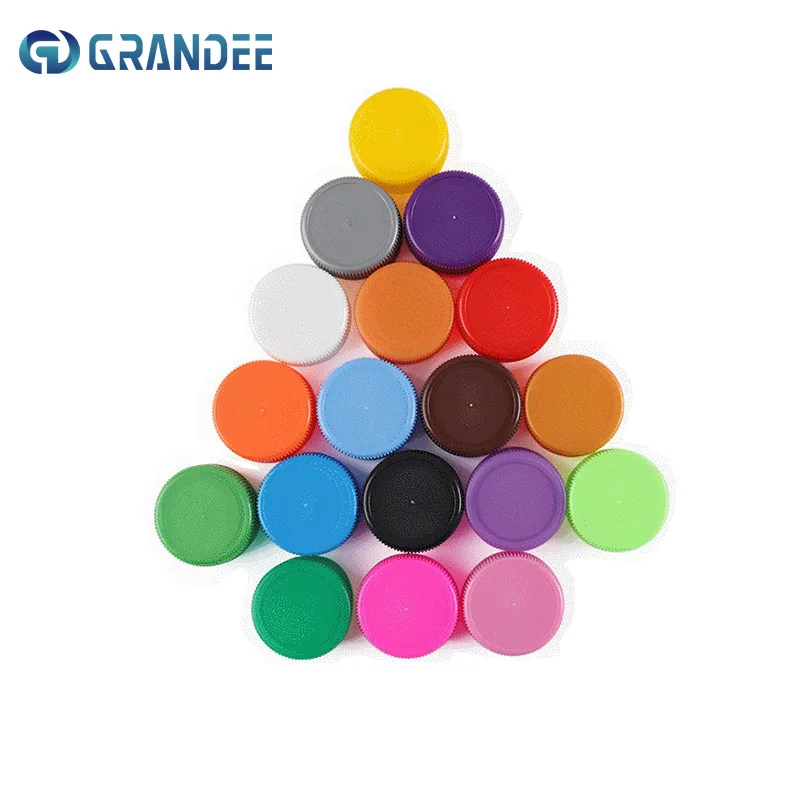

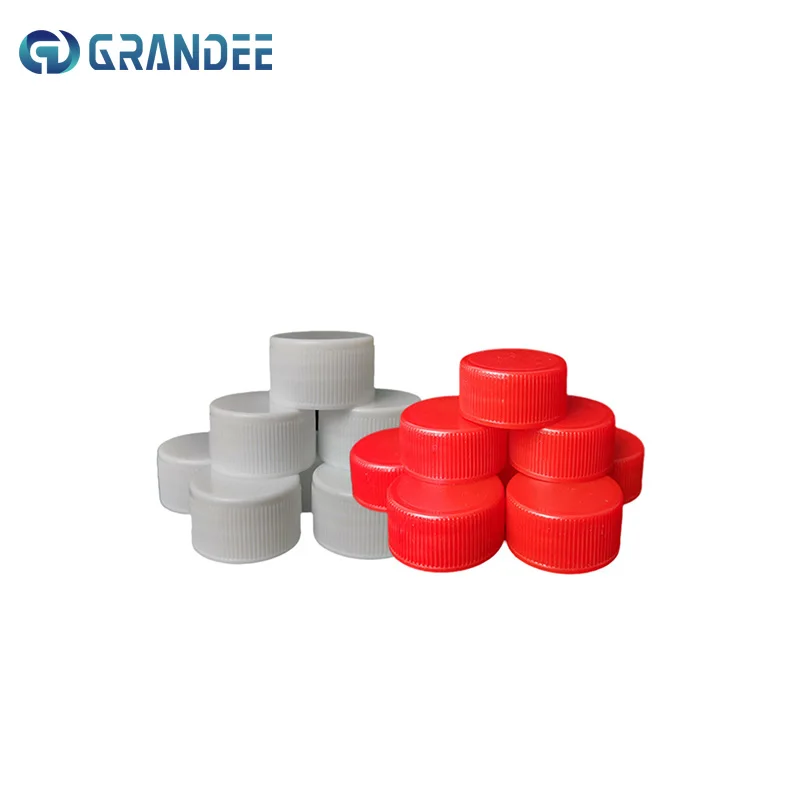

The machine makes sodas and mineral water bottle caps from granular plastic raw material which is fed via the hopper,
plasticized with high temperature, and then forms die block that is extruded from the discharge outlet of the extruder,
cut with the cutting tray, uniformly distributed into each mold cavity and finally mold pressed.
product high quality automatic lid compression molding machine bottle cap making machine-7
product high quality automatic lid compression molding machine bottle cap making machine-8

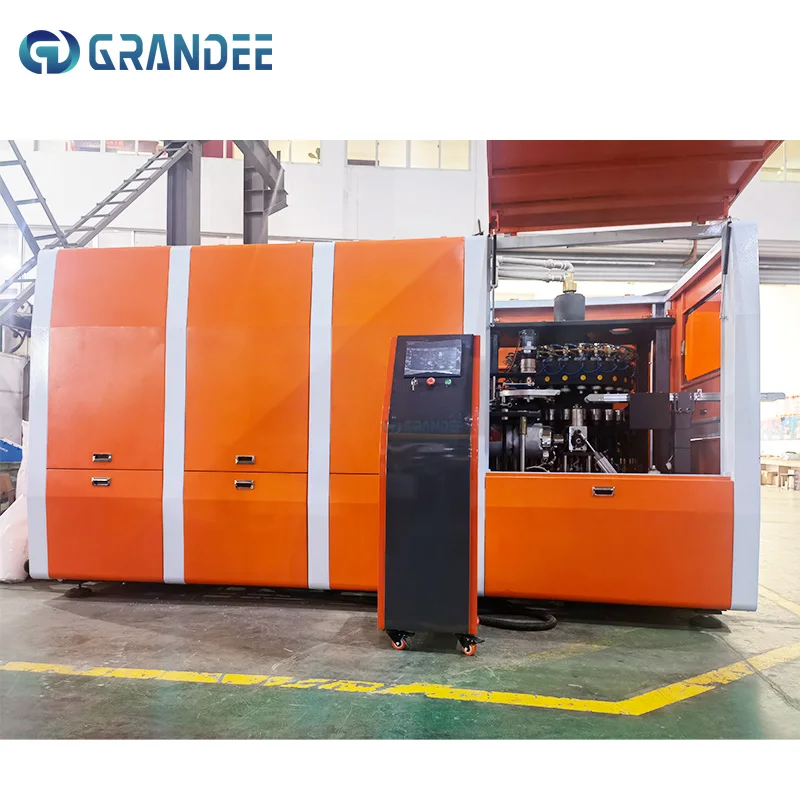

Plastic Cap Compression Machine
Model
GRD-ZG-0024
Production capacity
20000-24000 pcs/hour ( 29/25 cap )
18000-19000 pcs/hour ( 1810 28mm cap )
Cap diameter
18 - 45 mm
Cap height
10 - 30mm
Cap material
PP/PE
Mold cavity No
24 pcs
Machine Volatge
380 V / 50HZ / 3P , or by order
Machine electric power
50kw
Air consumption
0.4M3 / H , 1.0Mpa
Machine dimension
3880 * 1550 *2100mm
Machine weight
About 5000kg
product high quality automatic lid compression molding machine bottle cap making machine-9
NAME
BRAND
AREA
PLC
Siemens
Germany
INVERTER
Siemens
Germany
CONTACTOR
Siemens
Germany
TOUCH SCREEN
Siemens
Germany
INVERTER
Siemens
Germany
MOTOR
ABB
SWISS
PNEUMATIC PARTS
FESTO
GERMANY
ELECTRICAL PARTS
SCHNEIDER
FRANCE
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product high quality automatic lid compression molding machine bottle cap making machine-10
product high quality automatic lid compression molding machine bottle cap making machine-11
product high quality automatic lid compression molding machine bottle cap making machine-18
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product high quality automatic lid compression molding machine bottle cap making machine-19
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.
product high quality automatic lid compression molding machine bottle cap making machine-20
Automatic PVC PE Sleeve Shrink Labeling Machine
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
product high quality automatic lid compression molding machine bottle cap making machine-21
product high quality automatic lid compression molding machine bottle cap making machine-22
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
