Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application
Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application

Energy Save 8 M³ Screw Booster Integrated Machine Screw Air Compressor for PET Bottle Blow Application

Get a Quote
  • Parameter
  • Related products
Parameter
Products Description
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-2
GRANDEE MACHINEis located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-3
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-4
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-5
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-6

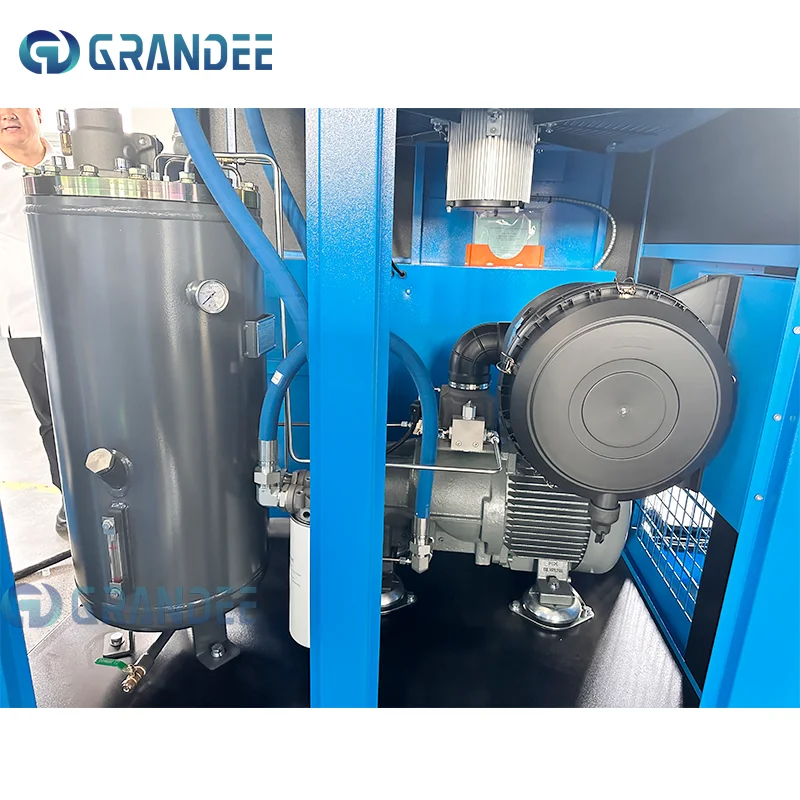

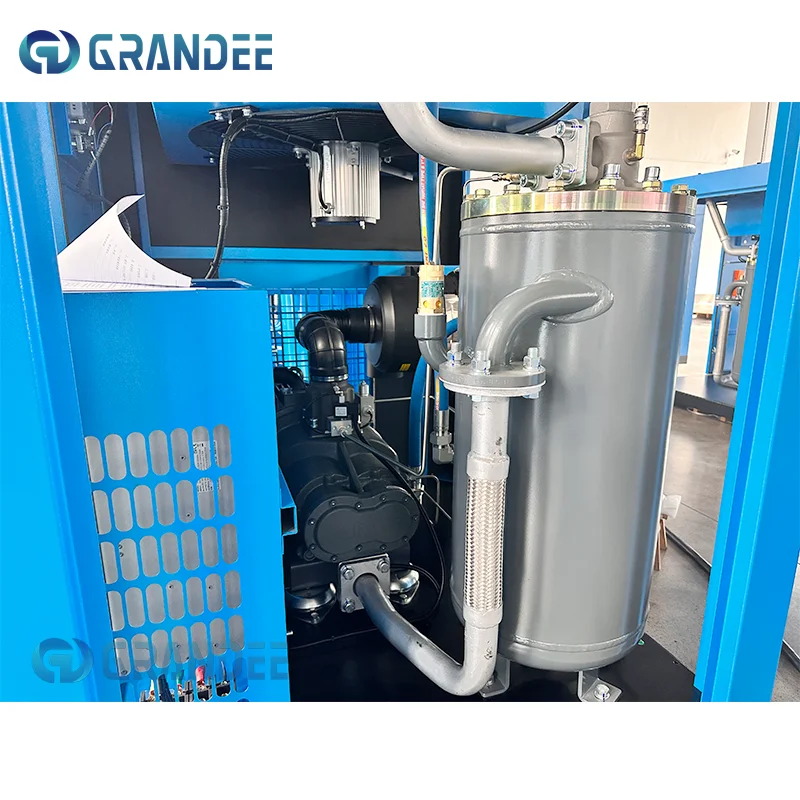

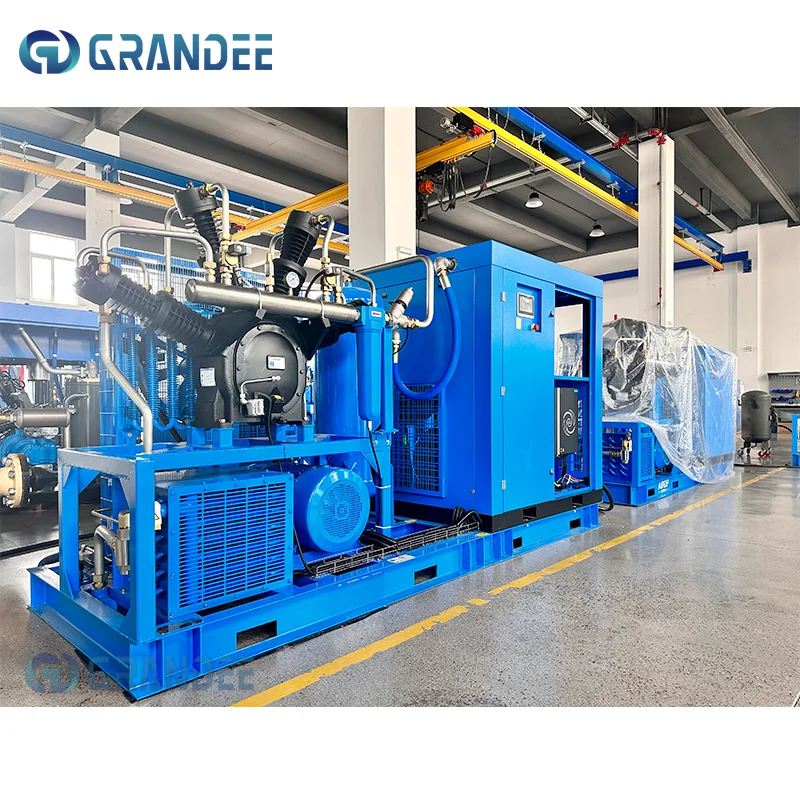

8 m³Screw Booster Integrated Machine

The 8.5m ³/4.0Mpa medium pressure gas supply system consists of a combination of one (8.5m ³/min flow rate) permanent magnet variable frequency screw booster, with an installed power of 85KW and a maximum full load output power of 72KW. The actual output power can be continuously and timely adjusted from 0 to 72KW (depending on the production gas consumption).
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-7
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-8
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-9
Medium pressure gas storage tank C-1.0/40
Store, buffer, accumulate energy, and cool down compressed air. It also serves as a "thermal buffer" for the compressed air.
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-10
Refrigerated dryer 10/40 andPre/ Mid mounted /Post installed ultra precision filter 10/40 A
High temperature model with inlet air up to 85℃ featuring deep dehumidification to-15℃ dew point.Total capacity 10 cubic meters per minute at 4MPa working pressure with pressurized removal of fine oil particles.
precision filter: Class C (Pre): ≤3μm | ≤1ppm oil
Class T (Fine): ≤0.3μm | ≤0.1ppm oil
Class A (Ultra): ≤0.01μm | ≤0.01ppm oil
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-11

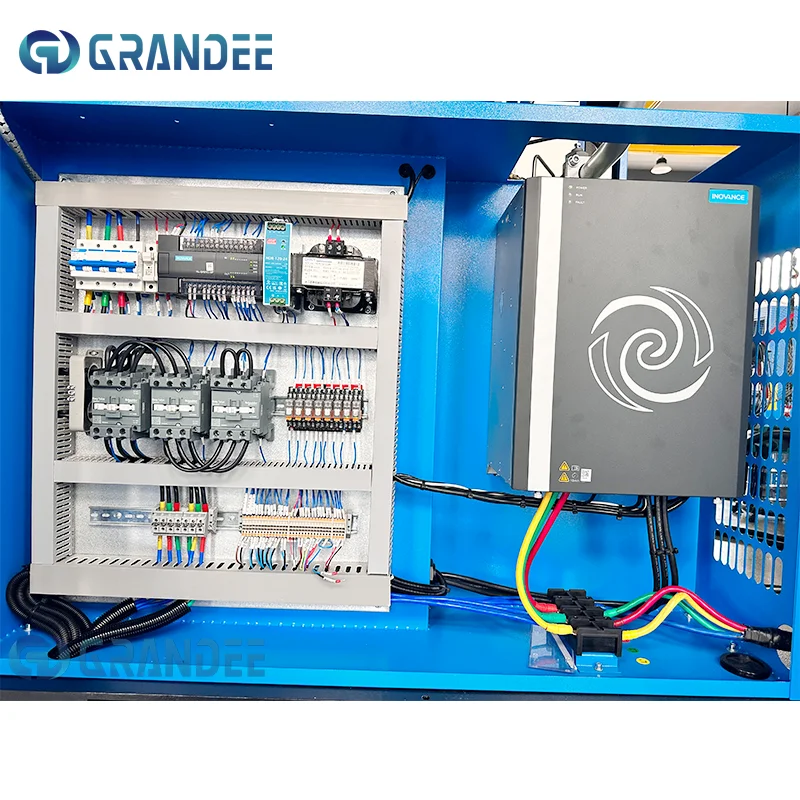

EPC Intelligent Control System
EPC intelligent control optimizes compressed air supply through real-time blow molding signal monitoring, variable-frequency constant-pressure operation, and dynamic demand-based compressor control for peak energy efficiency.
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-12
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-13
Model
Power
(kw)
Capacity
(m³/min)
Working pressure
(Mpa)
Size
(mm)
DFH-6.0/9-40
37+22
6.0
4.0
3200x1100x1800
DFH-8.5/10-40
30+55
8.5
4.0
3500x1250x1880
DFH-10.0/9-40
75+30
 10.0
4.0
3500x1250x1880
DFH-12.0/9-40
75+45
 12.0
4.0
3700x1250x1880

For more information andPicture please feel free to contact us tosend an inquiry!

Turnkey Solution
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-14
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-15
Small bottle Blow Molding Machine


product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-16
5L Bottle Blow Molding Machine
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-17
Blow Molding Machine
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-18
Juice filling machine
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-19
Carbonated drink filling machine
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-20
Small bottle water filling machine
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-21
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-22
Automatic Water Filling machine for 5-20L PET/Plastic Bottle
Advanced 5-20L PET bottle water filling system delivers exceptional performance for beverage producers. Features food-grade 304 stainless steel and PLC touchscreen controls for hygienic, low-maintenance operation. CE-certified solution perfect for water/beverage producers. Contact us for a custom quote!
Exhibition
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-23
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-24
Customer Acceptance Report
product energy save 8 m screw booster integrated machine screw air compressor for pet bottle blow application-25
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

For more information, please feel free to contact us tosend inquiries!
