Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine
Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine

Complete Combiblock Mineral Water Production Line PET Bottle Blowing Filling Capping Machine

Get a Quote
  • Parameter
  • Related products
Parameter
product complete combiblock mineral water production line pet bottle blowing filling capping machine-2
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
product complete combiblock mineral water production line pet bottle blowing filling capping machine-3
Bottle Blower Filler Capper Machine Combiblock
1.Advanced control system
The CGX high-speed rotary fully automatic bottle blowing machine produced by our company uses a control system composed of SIMATIC HMI (human-machine interface), Siemens S7 series industrial control system (PLC system) and related control detection and actuator mechanisms. The entire system is stable reliable and responsive.
NO.
Model
Capacity
Bottle size
1
6-24-8
12000BPH
500ml
2
8-32-8
16000BPH
500ml
3
10-36-10
20000BPH
500ml
4
12-40-15
24000BPH
500ml
5
14-50-18
30000BPH
500ml
6
16-60-20
36000BPH
500ml
product complete combiblock mineral water production line pet bottle blowing filling capping machine-4
product complete combiblock mineral water production line pet bottle blowing filling capping machine-5
Main Technical Parameter
Heads
Filling machine: 40, capping:15
Capacity
24000BPH（500ml pure water bottle）
Applicable bottle type
PET bottle

Applicable bottle type
Bottle diameter range
D=50～97mm
Bottle height range
H=150～310mm
Compressed air consumption
0.8m3/min（0.7MPa/h）
Cooling water consumption
3000L/h
Cooling water temperature
1-5℃
Working voltage
380V，50HZ
Control voltage（DC）
24V
Cap torque
0.6～2.8Nm（Adjustable）
Power
60KW
Dimension(L*W*H)
2800X3600X3100mm
(Subject to the final drawing)
Weight
About 16,400KG
product complete combiblock mineral water production line pet bottle blowing filling capping machine-6
1. Preform feed-in and unscrambler
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
product complete combiblock mineral water production line pet bottle blowing filling capping machine-7
2. Bottle Preform Heater
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.
product complete combiblock mineral water production line pet bottle blowing filling capping machine-8

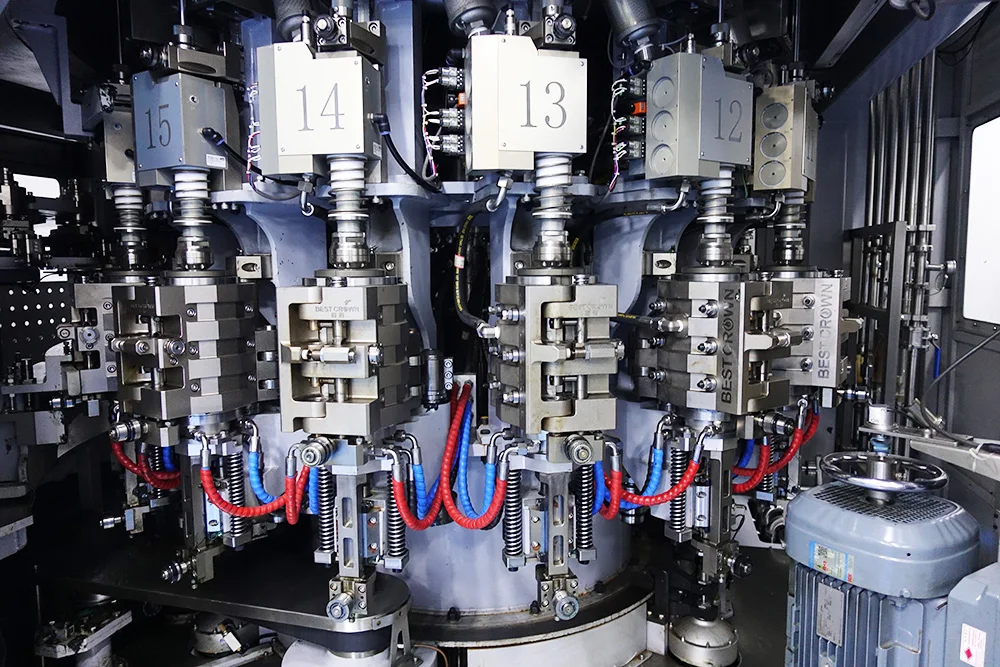

Introduction to the blowing machine
Introduction to the blowing machine The core parts, such as the sealing cylinder of the bottle blowing valve island, are all imported and customized by SEITZ. Blow bottle high pressure gas recovery is applied to low pressure gas needs.The inverted heating furnace structure saves energy by 15%.Bottle blowing has pressure detection and bad bottle rejection functions.The system running status can be monitored remotely. Using forged high-strength mold frames, the equipment operates efficiently and stably. The equipment's running track cam is patented, with low vibration, low noise, and stable and reliable operation!
product complete combiblock mineral water production line pet bottle blowing filling capping machine-9
product complete combiblock mineral water production line pet bottle blowing filling capping machine-10

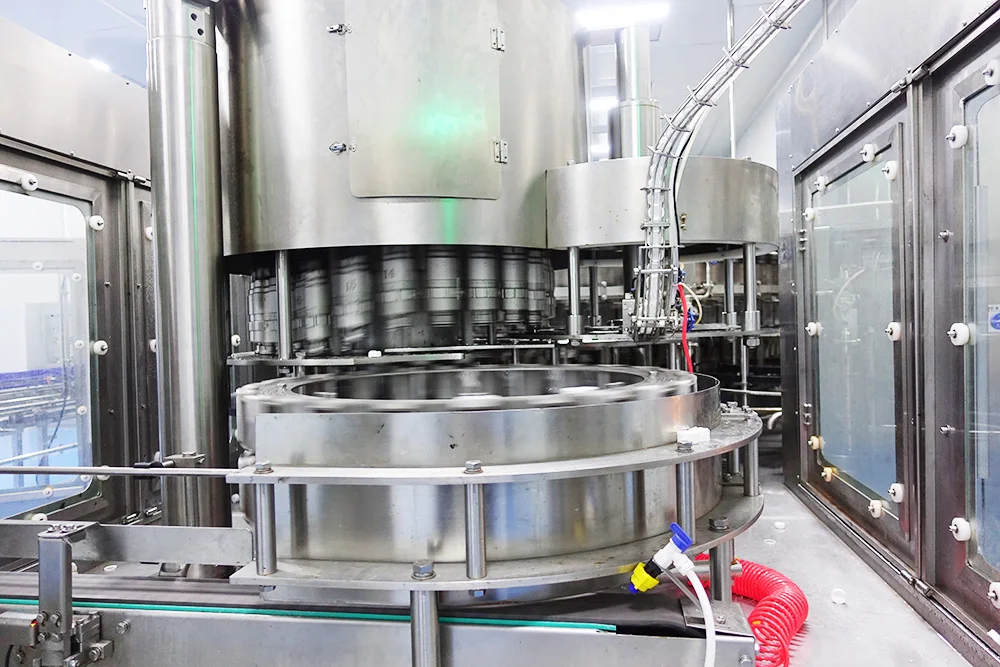

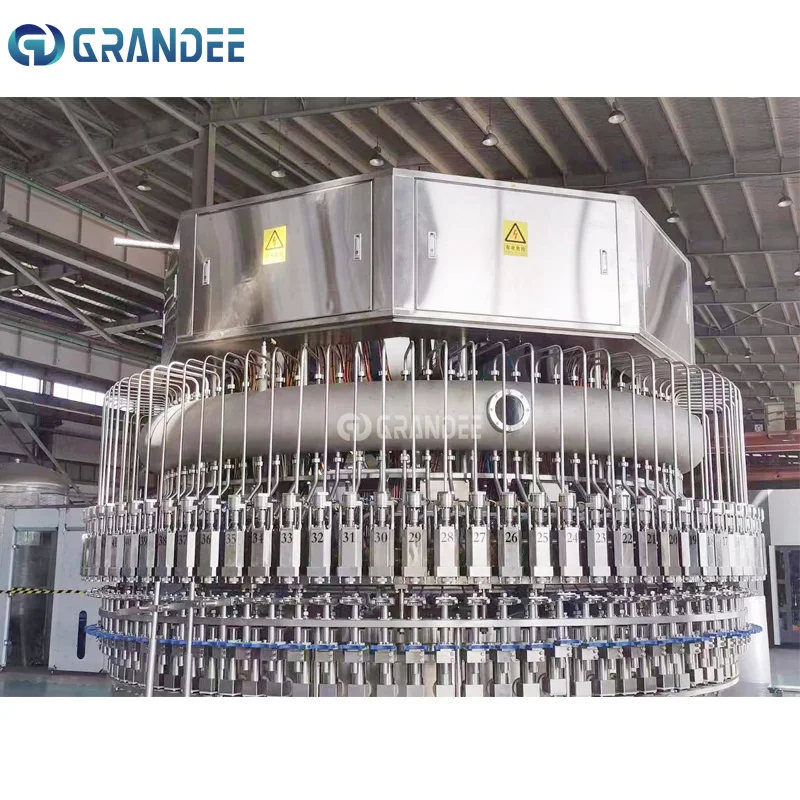

Advantages of Filling and Capping Machine

1)The rotating disk is made of stainless steel ANSI304. 2)Large plane bearing, smooth and reliable operation.
3)Filling adopts gravity filling method. The special design of the filling valve port can effectively avoid dripping. At the same time, the special flow channel design of the filling valve can keep the filling liquid column small and stable.
4)Ring type liquid cylinder is adopted, and the liquid level is controlled by continuous sensor and flow regulating
valve.
Turnkey Solution
product complete combiblock mineral water production line pet bottle blowing filling capping machine-11
product complete combiblock mineral water production line pet bottle blowing filling capping machine-12
product complete combiblock mineral water production line pet bottle blowing filling capping machine-13
Juice filling machine
product complete combiblock mineral water production line pet bottle blowing filling capping machine-14
Carbonated drink filling machine
product complete combiblock mineral water production line pet bottle blowing filling capping machine-15
Small bottle water filling machine
product complete combiblock mineral water production line pet bottle blowing filling capping machine-16
Fruit juice filling machine


product complete combiblock mineral water production line pet bottle blowing filling capping machine-17
Mineral water filling machine
product complete combiblock mineral water production line pet bottle blowing filling capping machine-18
Bottle filling packaging machine
product complete combiblock mineral water production line pet bottle blowing filling capping machine-19
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product complete combiblock mineral water production line pet bottle blowing filling capping machine-20
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.

product complete combiblock mineral water production line pet bottle blowing filling capping machine-21
Robot Palletizer
Which contribute to the robotization of the palletizing system has a compact body and a high throughput. It is suitable for packing bottled drinking water, juice, carbonated soft drinks etc. with production capacity up to 520layer/h. Suitable robot models can be selected according to the work pieces. Payload 110kg,140kg, 185kg,315kg, 500kg, 700kg.
