Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control
Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control

Automatic Strapping and Pallet Stretch Film Wrapping Machine Wapper Intelligent Remote Control

Spu:
1601926654172
Get a Quote
  • Parameter
  • Related products
Parameter
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -3

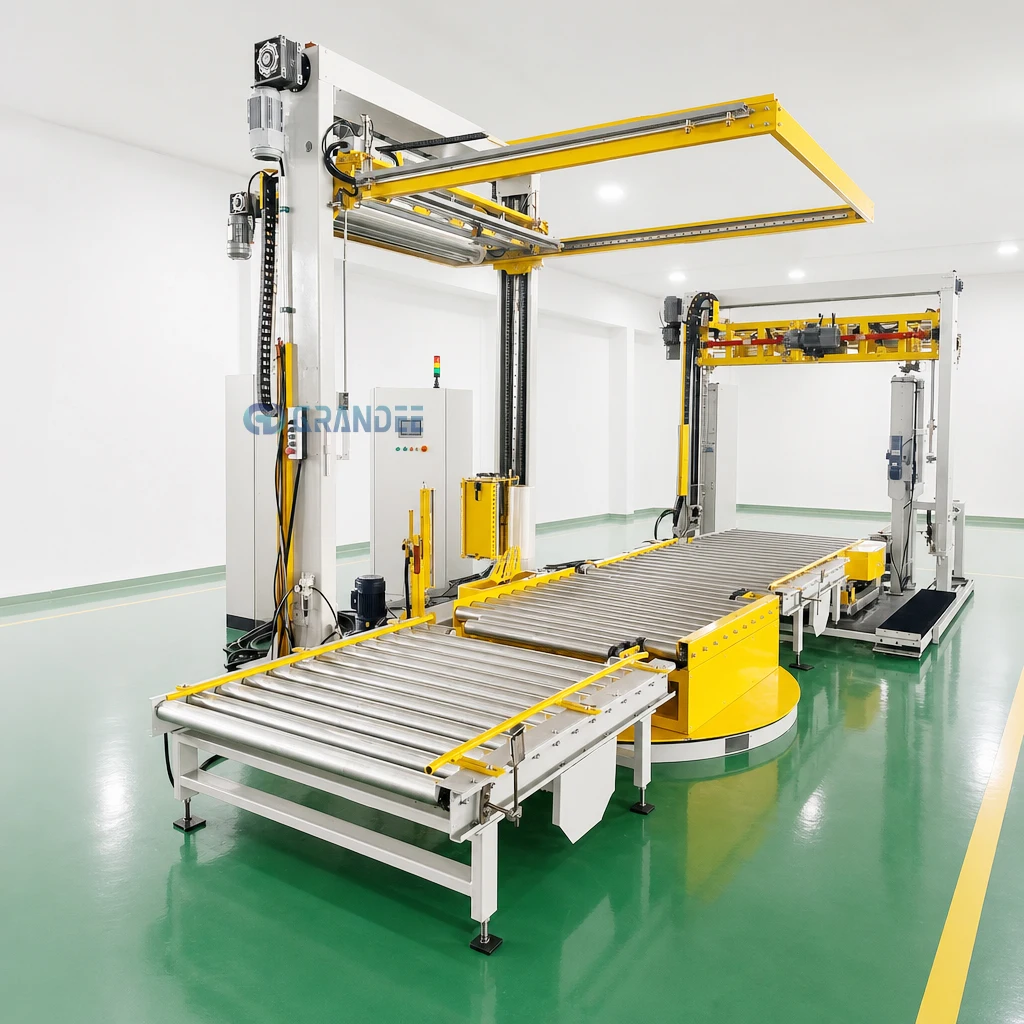

Automatic Strapping and Wrapping Machine
Adds secure horizontal strapping to your palletizing line, easily paired with the stretch wrapping machine for a complete
packaging solution.
* Straps through pallet openings — horizontal compression keeps loads stable during transport
* Auto height sensing — detects load height, adjusts strapping position automatically
* Auto cycle — strap feed → tension → friction weld → cut, all hands-free
* Jam auto-pause — clears and resumes without re-threading the strap
* Siemens PLC + touchscreen — built-in diagnostics, fast troubleshooting
* Adjustable tension & position — adapts to different loads and strapping patterns

Can be integrated with our stretch wrapping machine as a strapping-wrapping combo station.
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -4
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -5
Model
GD-03DMC-CR
Strapping Speed
4+Wrapping/about 280s
Strapping Method
 perpendicular to the ground
Strapping tape material
PET/PP
Turntable Speed
0-15rpm 3/N PE
Voltage
AC380V
Power
5kw
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -6
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -7

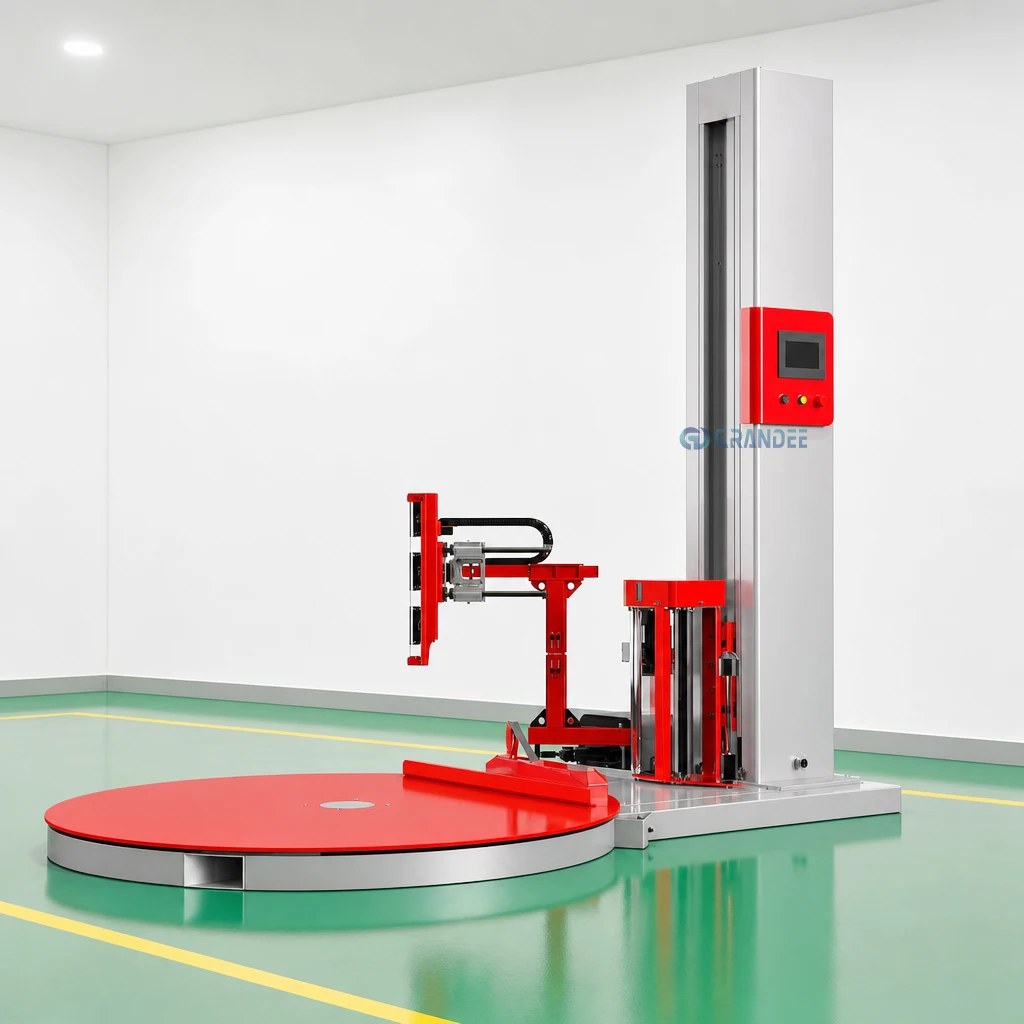

Intelligent Remote Control Wrapping Machine

* Pre-Stretch Film Carriage— mechanical resistance + pre-stretch mechanism maintains constant film tension while saving more stretch film per pallet
* Photoelectric Sensing— automatically detects the wrapped area of the load, no wasted film, no manual positioning
* New Control Panel — mechanical button design, simple program setup, operator-friendly
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -8
Pre Stretch Film Carriage and Control Panel
Mechanical brake fits all roll sizes with automatic film threading for even payout and tight wrapping. Control panel stores 3 presets with independent speed adjustments for lift, film feed and turntable, plus top/bottom wrap, counter and keypad lock.
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -9

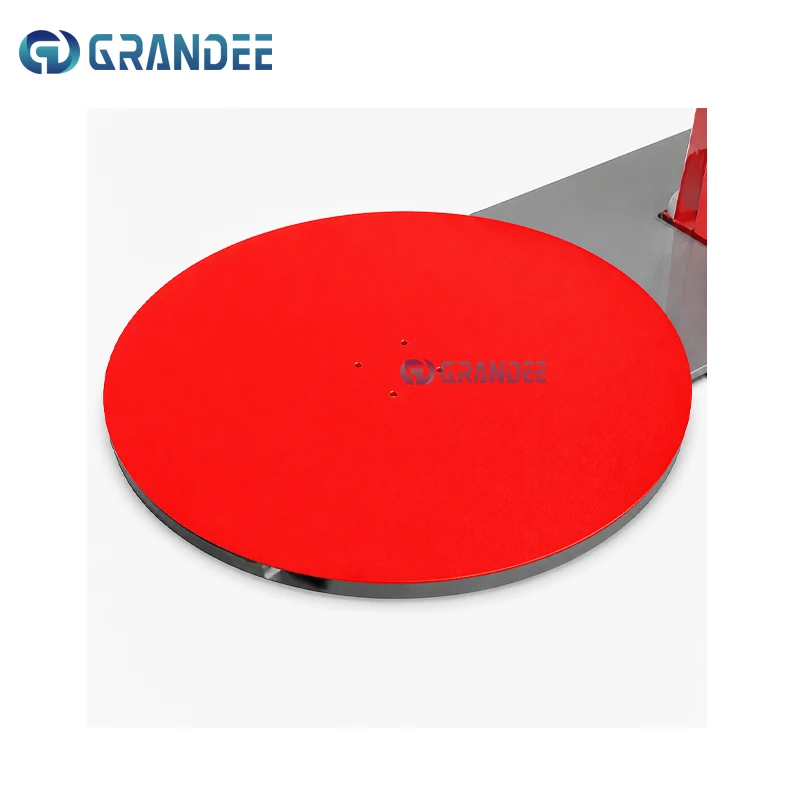

Anti Slip Turntable for Forklift operated Wrappers and High strength Wear resistant Low noise Rollers
German laser-cut anti-slip turntable 1800mm for standard pallets with 16 aviation-grade rollers for quiet stable support. With reinforced steel column and adjustable height for various packaging needs.
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -10

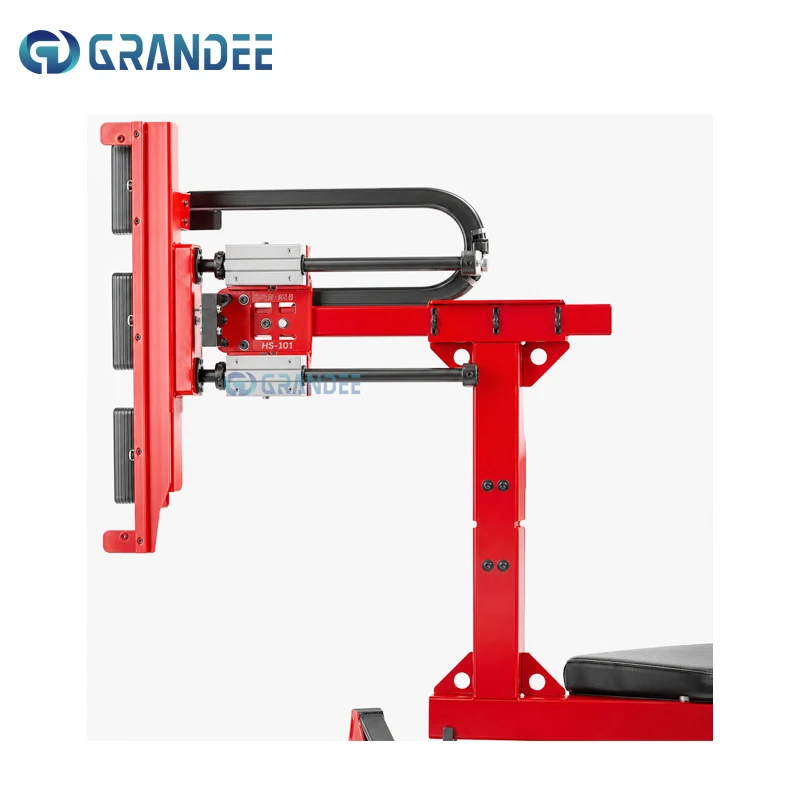

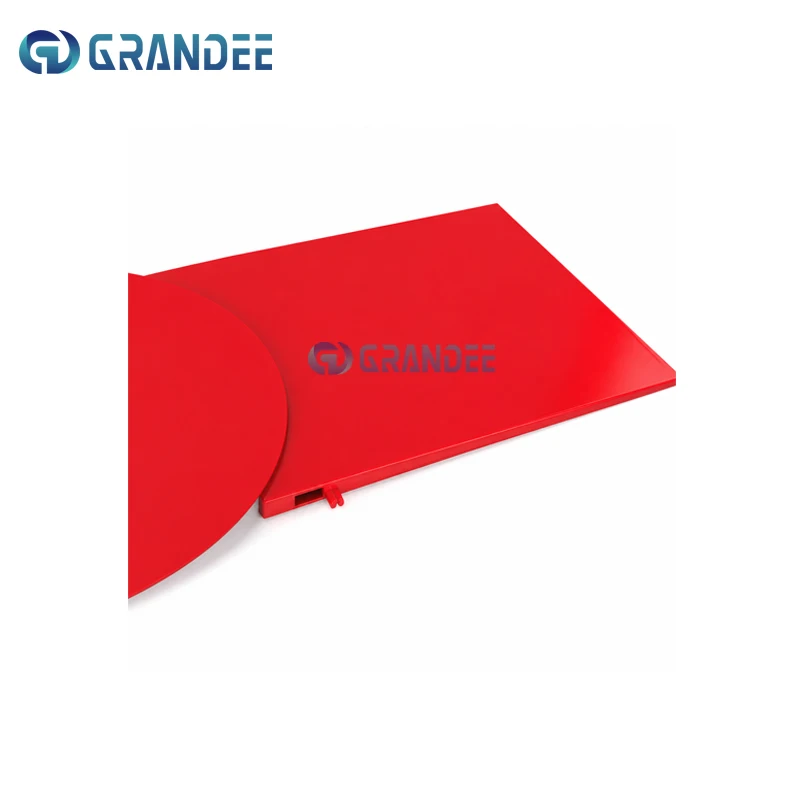

Automatic Film Unit, Remote Control & Optional Ramp
Pneumatic gripper for precise film cutting. Handheld remote saves labor with 25% higher efficiency. Optional ramp enables manual loading without forklift or pit.
After-Sales Promise
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -11
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -12
Model
GD1650FZ
Material
PET/PP
Width (mm)
16±0.5mm
Thickness (mm)
0.8±0.5mm
Tensile Strength (N)
≥4400N (PET)
Elongation (%)
12-16%
Sickleshaped Bow
≤120mm/2m
Roll Weight (kg)
20kg
Surface Type
Embossed
Inner Roll Diameter (mm)
406mm
Outer Roll Diameter (mm)
760mm
Roll Width (mm)
160-190mm
Quality Requirement
Complies with GB/T22344-2018 Polyester Strapping Band for Packaging
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -13
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -14
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -15
Juice filling machine
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -16
Carbonated drink filling machine
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -17
Automatic soft drink production line
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -18
Mixed fruit juice mixing system
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -19
Mineral water filling machine
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -20
Bottle filling packaging machine
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -21
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -22
Automatic Double Sides Self Adhesive Labeling Machine
Vertical Self-Adhesive Labeling Machine is mostly applicable for the automatic labeling of column package containers for medicine, commodity, foodstuff, cultural supplies, electronics etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chromatapes. The touch screen is easy and visual to operate. In addition, it has rich help functions and failure display functions.
automatic strapping and pallet stretch film wrapping machine wapper intelligent remote control -23
Carton Box Packing Machine
This equipment features imported motor drives with chain-sprocket transmission, ensuring intelligent operation and precise adjustment. Constructed with stainless steel and aluminum, it integrates premium components like Yade cylinders, Schneider servos, Autonics sensors, and RE contactors for high reliability. Ideal for secondary packaging in beverage, food, pharmaceutical, and chemical industries, it supports seamless integration with automated filling lines.
