GRANDEE MACHINEis located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

pe cap compression molding machine for making water bottle caps-3

pe cap compression molding machine for making water bottle caps-4

Automatic 24 cavity Compression Molding Machine for Plastic Caps

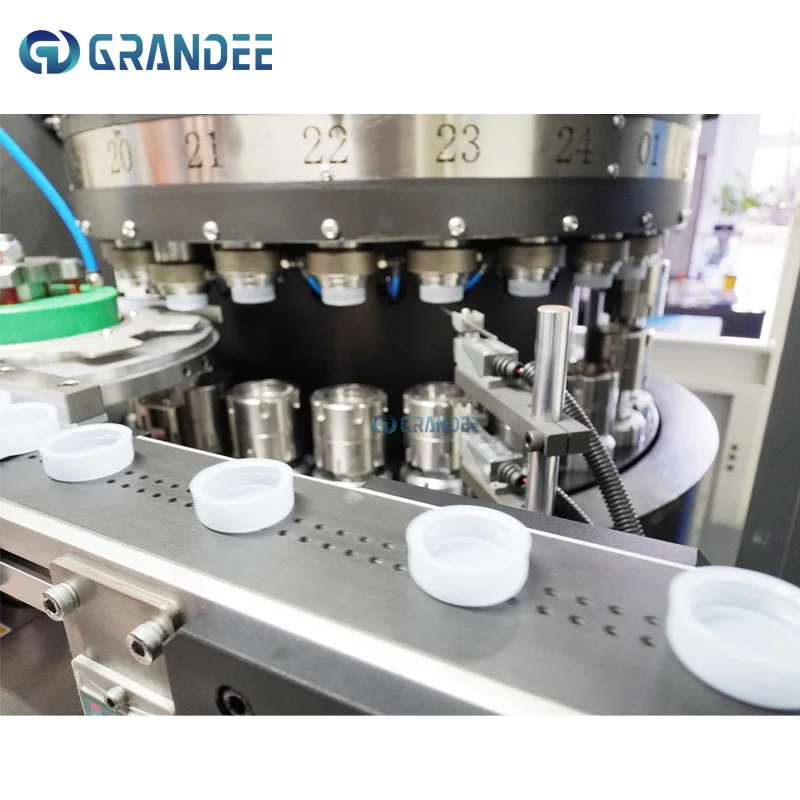

This advanced machine produces soda and mineral water bottle caps from granular plastic. Raw material is automatically fed, plasticized at high temperature, then extruded and cut into precise portions. These portions are distributed into mold cavities and formed under high pressure, ensuring consistent shape, strength, and sealing performance.

Why This Matters to Beverage Industry Clients:
✅ High Precision – Ensures every cap meets strict quality standards for leak-proof sealing.
✅ Fully Automated – Reduces labor costs and increases production efficiency.
✅ Customizable Mold – Adaptable to various cap sizes and styles for different beverage applications.
✅ Energy-Efficient & Stable Operation – Designed for continuous, reliable production in high-demand environments.

Ideal for mineral water, soda, juice, and other beverage bottle cap production lines. Contact us today to learn how our machine can optimize your capping process!

pe cap compression molding machine for making water bottle caps-5

pe cap compression molding machine for making water bottle caps-6

pe cap compression molding machine for making water bottle caps-7

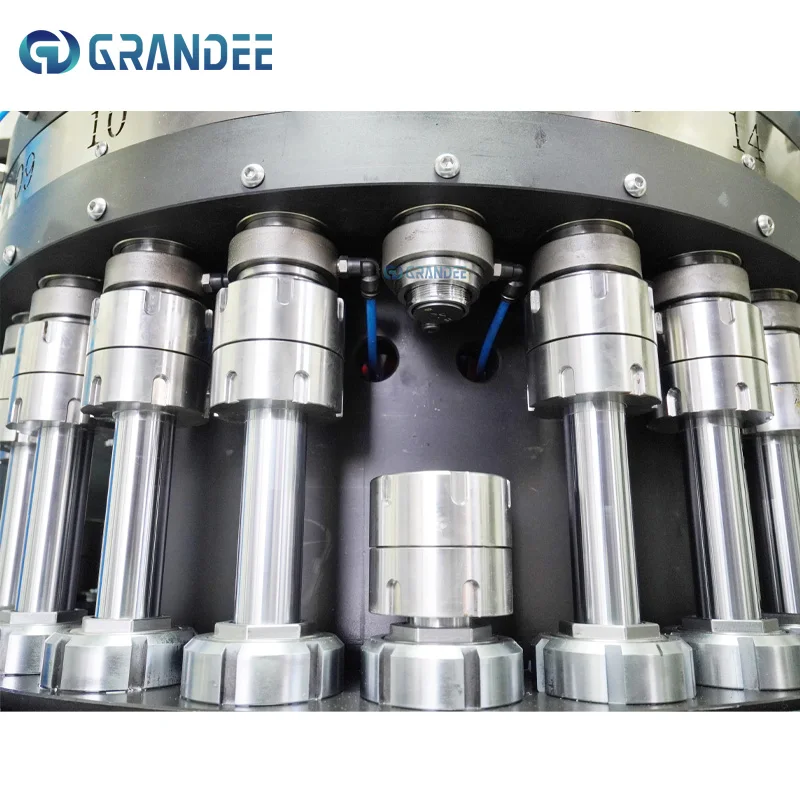

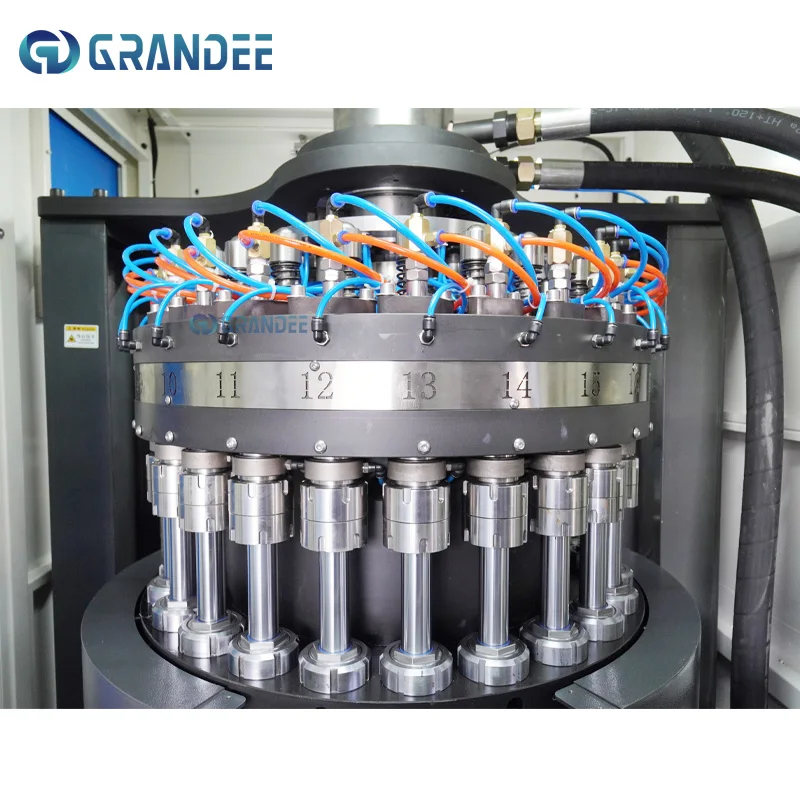

Mold Cavity & Core Assembly

This is the core molding section of a rotary compression cap molding machine, specifically the upper core (male mold) and lower cavity (female mold) assembly for plastic bottle caps.

pe cap compression molding machine for making water bottle caps-8

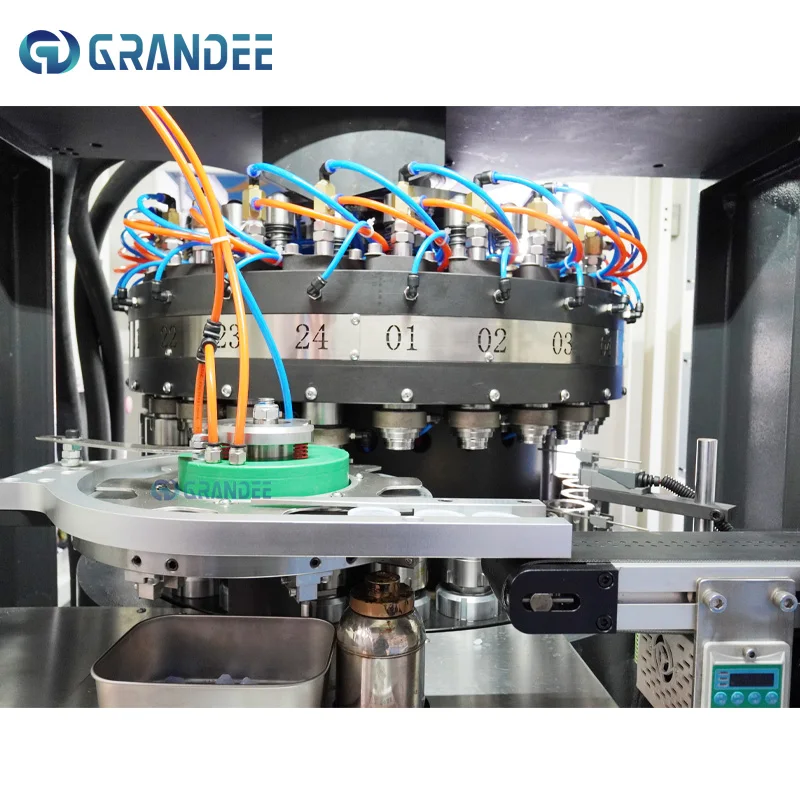

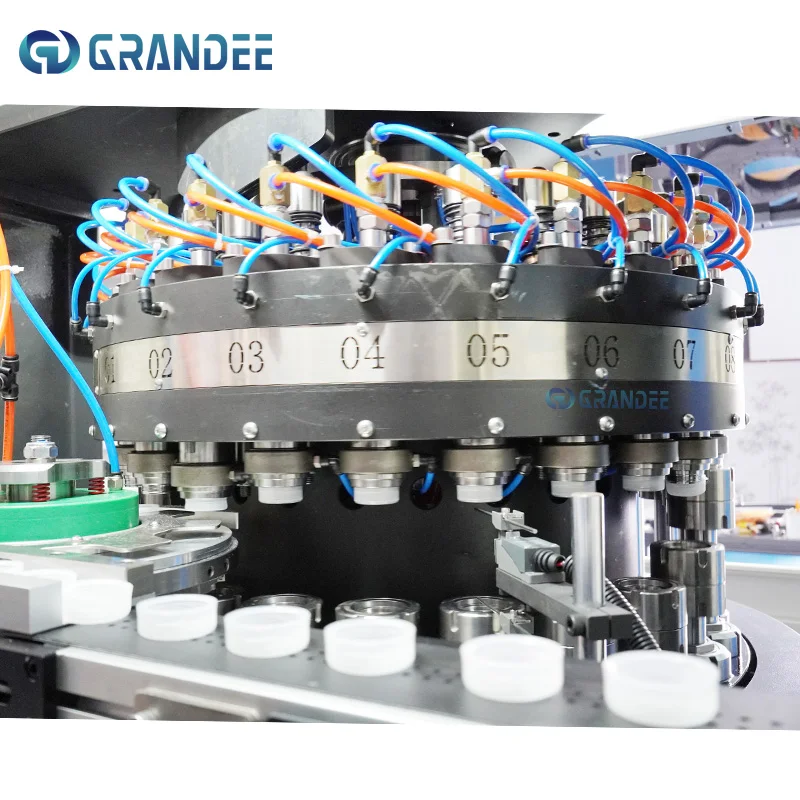

Rotary Pneumatic Demolding & Clamping Unit

Each connected to blue/orange pneumatic hoses.The pneumatic system controls mold opening/clamping and ejects finished caps via air pressure after forming and cooling.This design enables high-speed, continuous production of plastic bottle caps.

pe cap compression molding machine for making water bottle caps-9

pe cap compression molding machine for making water bottle caps-10

Hopper Dryer and Hydraulic Power

1. Hopper Dryer – For high-speed cap molding machines, ensuring continuous, dry material feeding.

2. Hydraulic Power – The pressure gauges monitor system pressure in real time, while the electrical enclosure houses safety controls. Together, they deliver the reliable power needed for high-volume cap manufacturing

pe cap compression molding machine for making water bottle caps-11

Servo Control System

High performance servo system ensures precise, synchronized control for all processes. Smart diagnostics adapt to different materials, boosting efficiency and yield..

pe cap compression molding machine for making water bottle caps-12

Electrical Control Cabinet

This cabinet enables precise, reliable control of the entire production process, supporting high-speed, continuous operation while ensuring safety and ease of maintenance.

pe cap compression molding machine for making water bottle caps-13

Automatic Cap Slitting and Cutting Machine

It automatically feeds, positions, and trims the excess material or tamper-evident ring of the cap at high speed, ensuring a smooth, uniform edge and precise sealing lip structure.

pe cap compression molding machine for making water bottle caps-14

It trims and folds the cap’s tamper-evident ring and sealing lip, ensuring smooth edges and reliable sealing performance.

pe cap compression molding machine for making water bottle caps-15

pe cap compression molding machine for making water bottle caps-16

Machine model	GRD-ZG-0024
Capacity	20000-24000PCS/H
Cap Diameter	15-60m
Cap Height	10-35m
Cap material	PP/PE
Extruder Heater Ring Power	20KW
Extruder Motor Power	15KW
Mold Cavity	24 cavities
Molding Machine Installed Motor Power	3KW
Hydraulic Power Unit	24kw
Chiller Power	7.5kw
Air Consumption	1.5m³/h 0.8Mpa
Power	380V，50Hz or customized
Machine size	370015002200mm
Machine weight	5500kg

For more information, please feel free to contact us to send an inquiry!
