Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine
Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine

Automatic Filling Machine Glass Bottle Juice Soda Beer Water Carbonated Beverage Glass Filling Machine

Spu:
1601829632927
Get a Quote
  • Parameter
  • Related products
Parameter
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-3

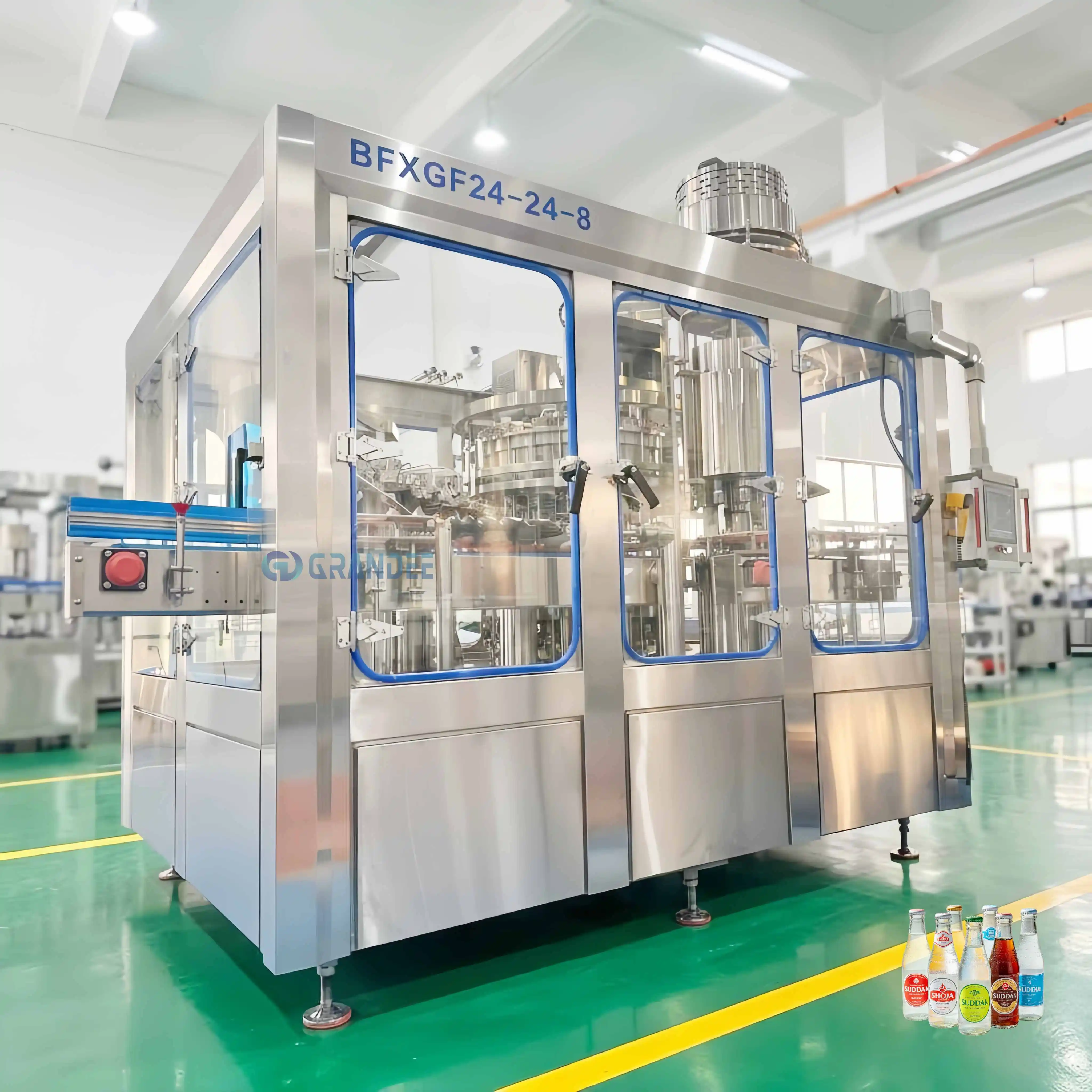

Automatic DXGF24-24-8 natural sparkling water filling machine
This carbonated glass bottle filling machine combines compact design with fully automated operation. The user-friendly HMI touchscreen makes control simple.
Equipped with 24 filling heads, it delivers 5000–6000BPH for 500ml bottles. High-speed, precision filling valves ensure stable liquid level and consistent quality.Built-in features: automatic lubrication, cap sorting, missing cap detection, overload protection, and an efficient bottle washing system.
Send inquiry for best price & technical support
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-4
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-5
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-6

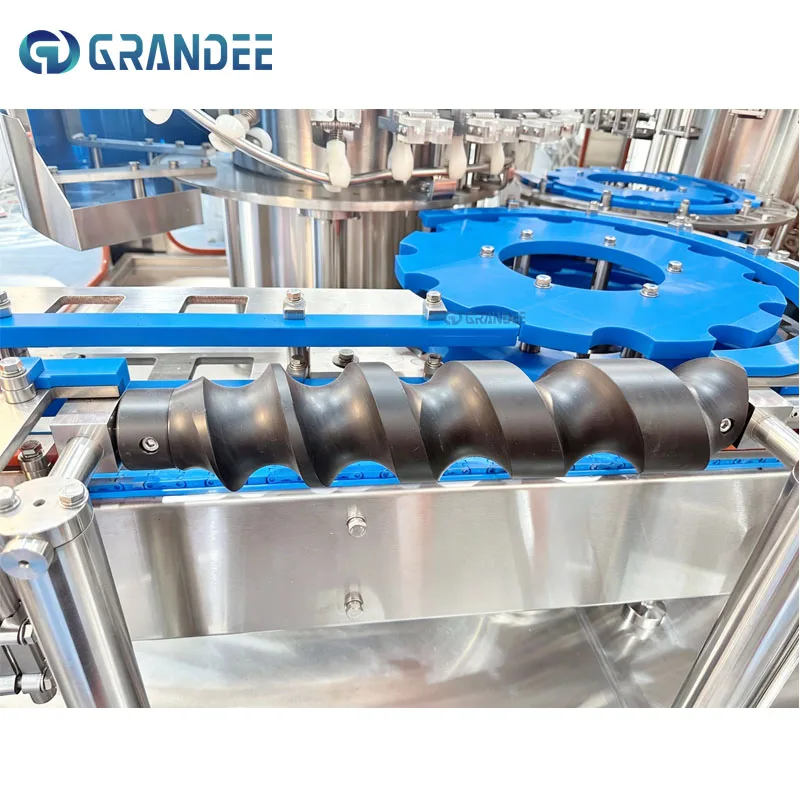

Washing Part and Bottle Feeding Screw
Core parts of monoblock carbonated glass bottle filler, automatic bottle sorting and high-efficiency bottle rinsing to support continuous filling & capping production.
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-7

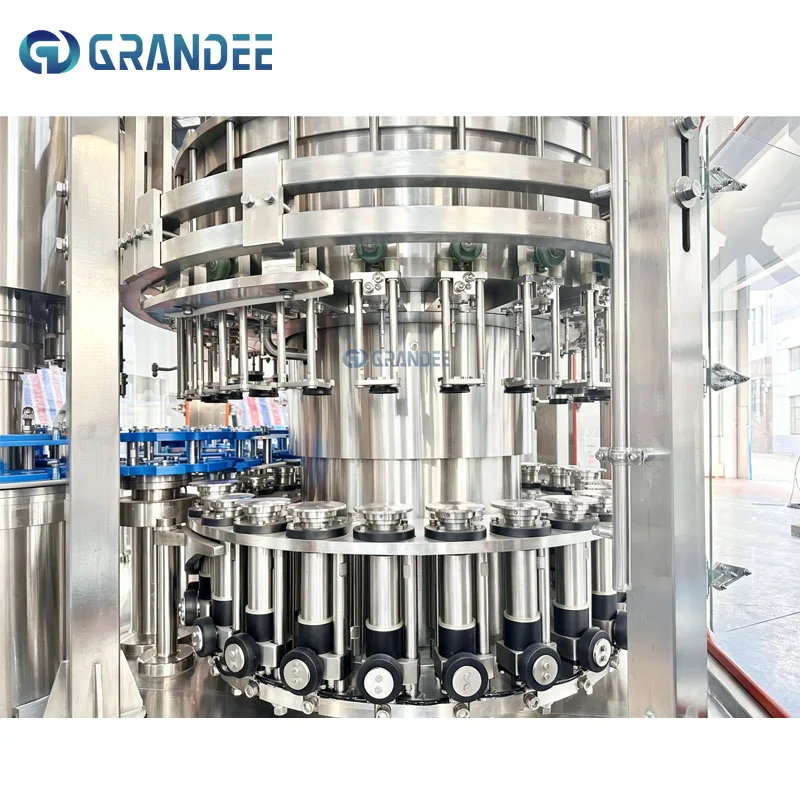

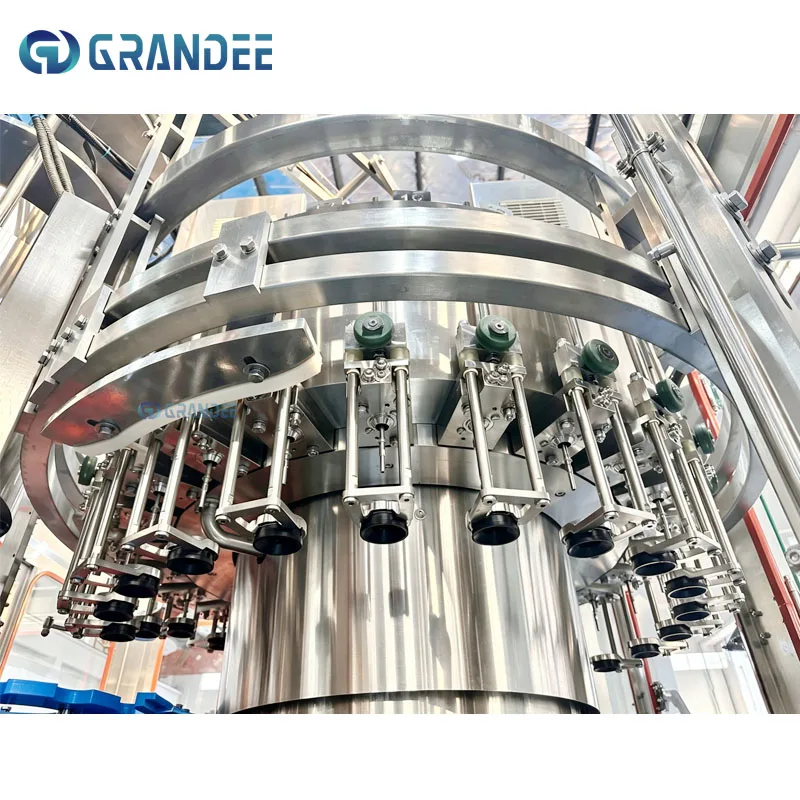

Filling part
Isobaric rotary filling unit with anti-foam & gas-locking design, ensures precise dosing for carbonated glass bottle filling.
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-8
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-9

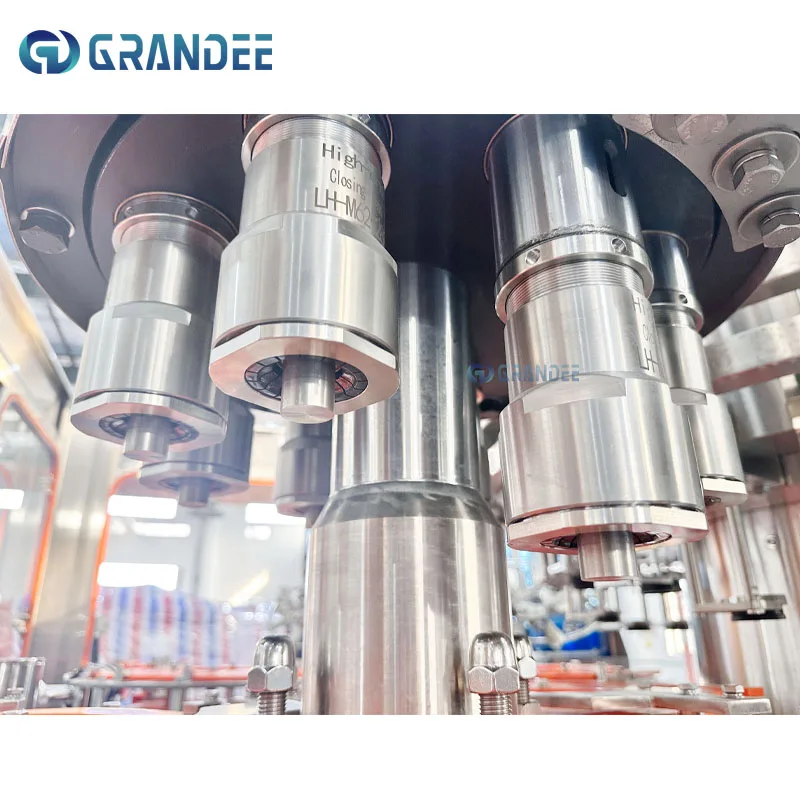

Capping part
Special rotary capping unit for ring-pull crown cap, reliable crimp sealing & anti-gas-leak for carbonated glass bottles.
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-10
Integrated Pressure Stabilizing Feeding System
This skid-mounted system is designed to supply carbonated liquid to the glass bottle filler. It includes:
* Sealed pressure tank – stabilizes pipeline pressure, retains CO₂, prevents foaming and overflow during filling.
* Sanitary bag filter – removes impurities, protects filling valves, ensures beverage cleanliness.
* Variable-frequency sanitary pump – gentle delivery with low shearing, reduces CO₂ loss, synchronizes speed with filler.
* Pressure regulators & flow meters – automatically stabilize feed flow for consistent filling volume.
* SUS304 sanitary piping with clamp connections – easy disassembly, cleaning, and on-site installation.
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-11
Model
DXGF
12-12-5
DXGF
18-18-6
DXGF
24-24-8
DXGF
32-32-10
DXGF
40-40-10
DXGF
50-50-12
DXGF
60-60-15
DXGF
72-72-18
Production Capacity(500ml b/h)
2000
3000-4000
5000-6000
7000-8000
9000-10000
11000-12000
20000
25000
Filling Material
All kinds of carbonated drinks like beer,carbonated soda etc. contained in glass  bottle
Filling Precision
≤ ±1mm(Liquid Level)
Suitable Bottle Standard
Bottle Diameter: Φ50-100mm
Bottle Height: 150-320mm
 Suitable CapStandard
 Aluminum cap, Crown cap etc.
Compressed
AirPressure
0.3-0.7Mpa
Washing water pressure
0.25Mpa
Motor Power
4.5kw
5.5kw
5.5kw
7.5kw
9kw
9kw
11kw
13kw
Dimension (mm)
1700*1700*2200
2000*1900*2200
2200*2100*2200
2500*2300*2400
3000*2800*2400
3600*2800*2400
5500*3000*2400
6000*4500*2400
Weight (kg)
1,000
1,600
2,300
3,000
5,000
8,500
9,500
12,000
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-12
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-13
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-14
Juice filling machine
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-15
Carbonated drink filling machine
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-16
Automatic soft drink production line
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-17
Mixed fruit juice mixing system
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-18
Mineral water filling machine
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-19
Bottle filling packaging machine
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-20
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-21
Automatic OPP BOPP hot melt Glue labeling machine
This automatic BOPP labeling machine offers exceptional versatility for various container and label materials. Its modular design ensures quick changeovers, while the PLC-controlled system guarantees efficient, high-volume production at a low per-label cost.
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-22
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
Exhibition
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-23
Customer Acceptance Report
product automatic filling machine glass bottle juice soda beer water carbonated beverage glass filling machine-24
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements.
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years. We just not only sell drinking water machines and other related equipment, Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
For more information, please feel free to contact us tosend an inquiry!
