Automatic 1L 5L Liquid Detergent Filler Anti Corrosion Toilet Cleaner Deodorant Strong Acid Filling Capping Machine

Automatic 1L 5L Liquid Detergent Filler Anti Corrosion Toilet Cleaner Deodorant Strong Acid Filling Capping Machine

Parameter
Related products

Parameter

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development,engineering design, consulting, technical services and other integrated EPC solutions.

Products Description

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-3

Anticorrosive liquid filling machine for toilet cleaning solution, disinfectant, bleach

The machine is made of PP anti-corrosion material, and the surface of the machine is coated with anti-corrosion coating, which is suitable for various disinfectants, cleaning solutions, and other corrosive liquids. Specially suitable for packaging of strong acids and bases liquid.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-4

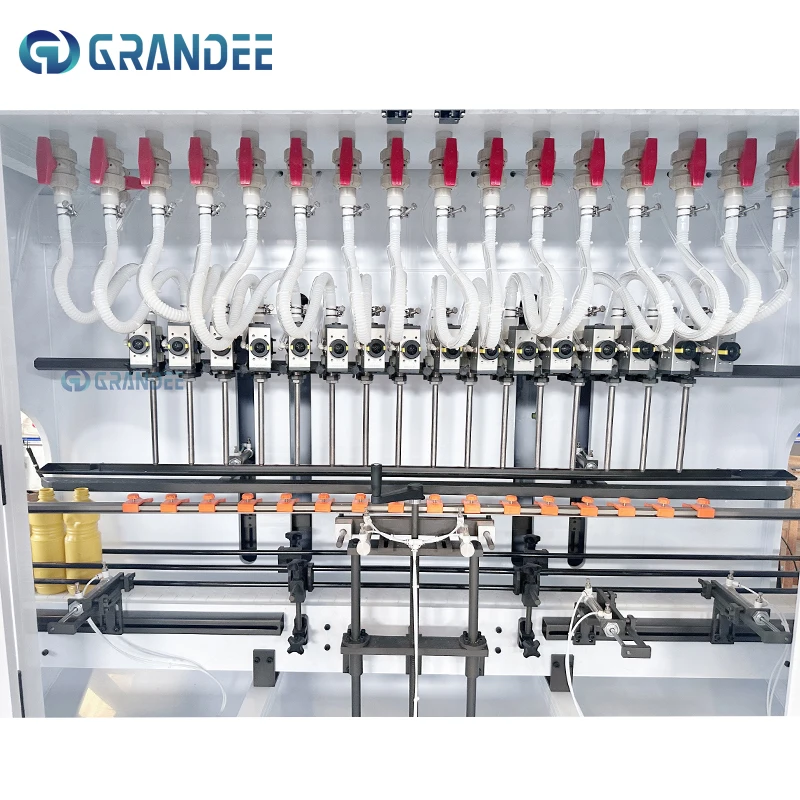

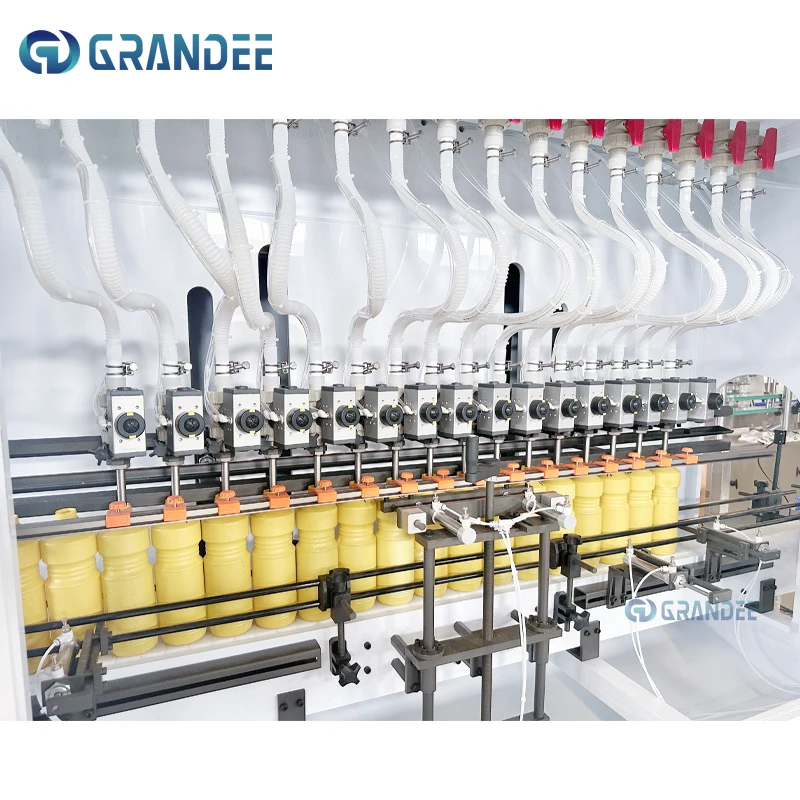

Gravity filling machine

The filling valve is made of titanium alloy material to prevent liquid corrosion, and the guardrail filling host is made of PP material

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-5

Accurately calculate the filling error through feedback from the electronic scale PLC.One click adjustment of filling error, high filling accuracy.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-6

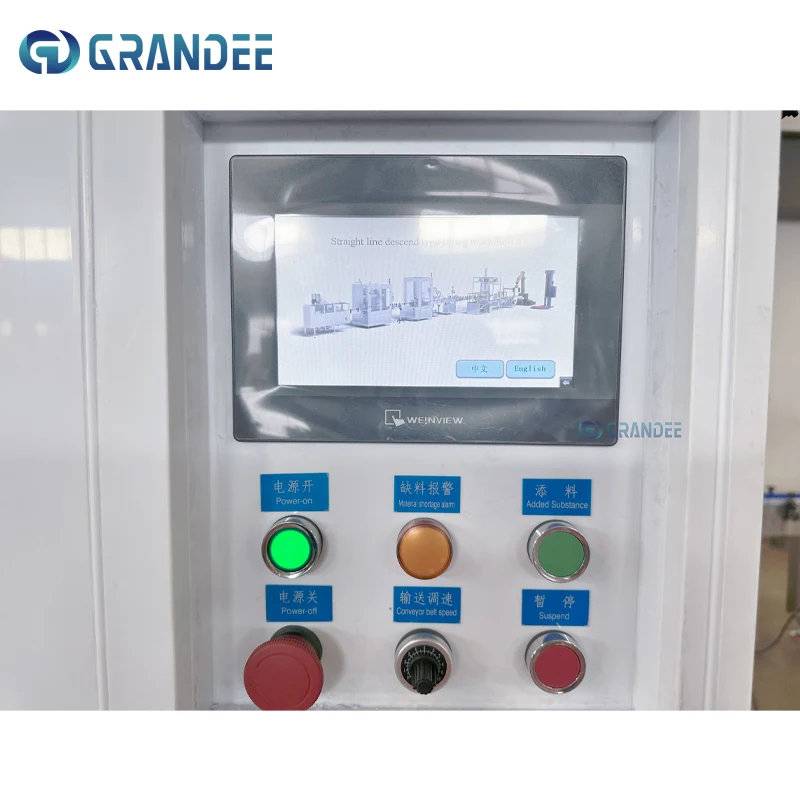

PLC control function compact, long service life of components, safe and reliable, low noise, simple operation easy to adjust.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-7

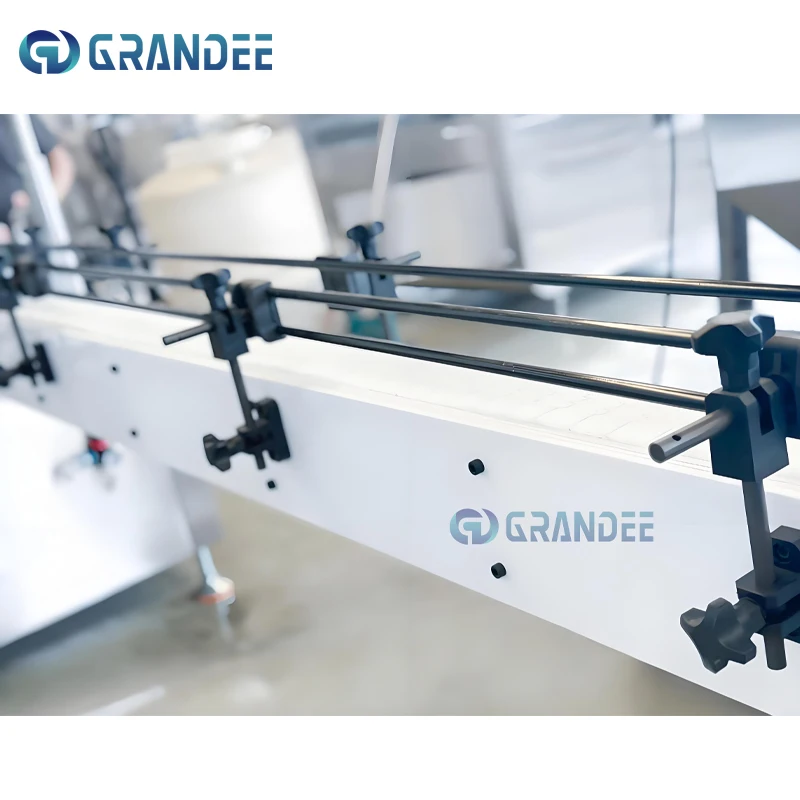

Anti corrosion PP guide rail plastic chain conveyor belt

It's made of corrosion-resistant materials.Features high strength, anti-aging, and leak-proof properties, ensuring safe and efficient delivery.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-8

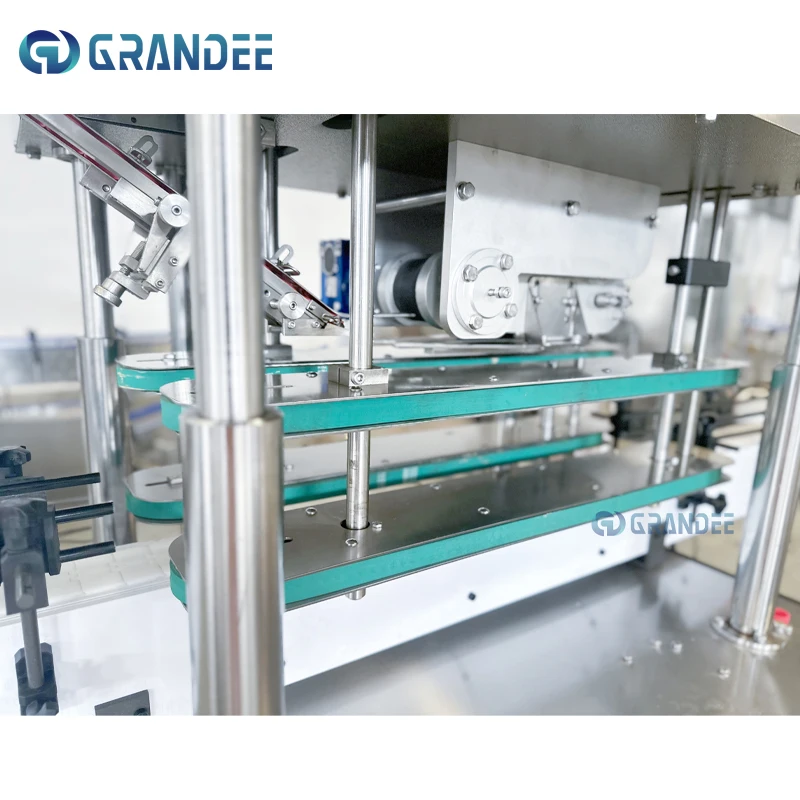

Automatic Crawler type capping machine

Suitable for containers of various materials and shapes.No parts need replacement when changing bottle shapes—only positional adjustments are required.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-9

Crawler type capping system

With different type of this machine,we can change the screw type into pressure capping type machine.So that it can fix for pressure capping.Suitable for containers of various materials and shapes.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-10

Model	GD-6S	GD-8S	GD-12S	GD-16S	GD-20S
Filling Heads	6	8	12	16	20
Speed (500ml/BPH)	1000BPH	1500BPH	2800BPH	3500BPH	4500BPH
Power (kw)	1	1	1	1.5	1.5
Machine size (mm)	160011002200	180011002200	200011002200	200011002200	240011002200
Suitable bottles	Diameter:040-0100mm Height:80-280mm					Cans, Bottles, Barrel(Customized)
Filling accuracy	500-1000ml:±1ml ≤100ml:≤1ml
Filling range	50-5000ml
Power Supply	AC 220/380V 50/ 60HZ( Customized)
Air pressure	0.6Mpa

Turnkey Solution

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-11

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-12

One stage or Second stage R.O. Water treatment system

Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-13

Automatic Double Sides Self Adhesive Labeling Machine

Vertical Self-Adhesive Labeling Machine is mostly applicable for the automatic labeling of column package containers for medicine,commodity, foodstuff, cultural supplies, electronics etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chroma-tapes. The touch screen is easy and visual to operate.

Company Profile

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-14

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical,computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-15

Exhibition

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-16

product automatic 1l 5l liquid detergent filler anti corrosion toilet cleaner deodorant strong acid filling capping machine-17

FAQ

1	What liquids can your filling machines handle?	Our filling machines handle water, carbonated drinks, juice, milk, dairy, plant-based drinks, oil, wine, spirits
2	Can one filling machine handle multiple bottle sizes?	Yes, like 1. Star-wheels 2. Guiding rails 3. Filling nozzles 4. Capping heads etc.
3	What is the filling speed (BPH) range you offer?	2000BPH~48000BPH (depending on model and bottle size)
4	What is the price range for a filling machine?	Price depends on the capacity and automation level. We offer various models from entry-level to high-endsystems. Do you have a specific production target (bottles per hour) in mind? This will help me give you a more precise quote.
5	What is the lead time from order to delivery?	The delivery time is within 40 to 45 days upon receipt of the 40% deposit.
6	Do you offer customized filling machines for special bottle shapes?	Yes, we do. We have extensive experience in designing filling lines for non-standard bottle shapes. We can tailor the machine’s mechanical structure and changeover parts (change parts) specifically for your project. To give you a precise proposal, we would need to see the bottle dimensions or ideally have samples sent to our factory for testing.
7	What is the difference between a monoblock filler and a standalone filler?	A monoblock filler integrates rinsing, filling, and capping into one compact machine, saving space and reducing bottle handling, while a standalone filler is a single unit that requires separate rinsers and cappers connected by conveyors.
8	Are your filling machines suitable for both PET and glass bottles?	While we manufacture machines for both types, we generally recommend dedicated lines for PET and glass bottles to ensure optimal performance. Glass bottles typically require bottle-bottom conveying and specialized rinsing/capping systems to prevent breakage, whereas PET bottles often use neck-clamping systems. If your production volume is high, dedicated machines will be more efficient and stable."
