Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line
Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line

Automatic 1500BPH 5 Gallon Barrel Rotary Vertical Column Palletizer for 5 Gallon Production Line

Spu:
1601902796926
Get a Quote
  • Parameter
  • Related products
Parameter
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-2

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

Products Description
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-3

5 Gallon Column Palletizer

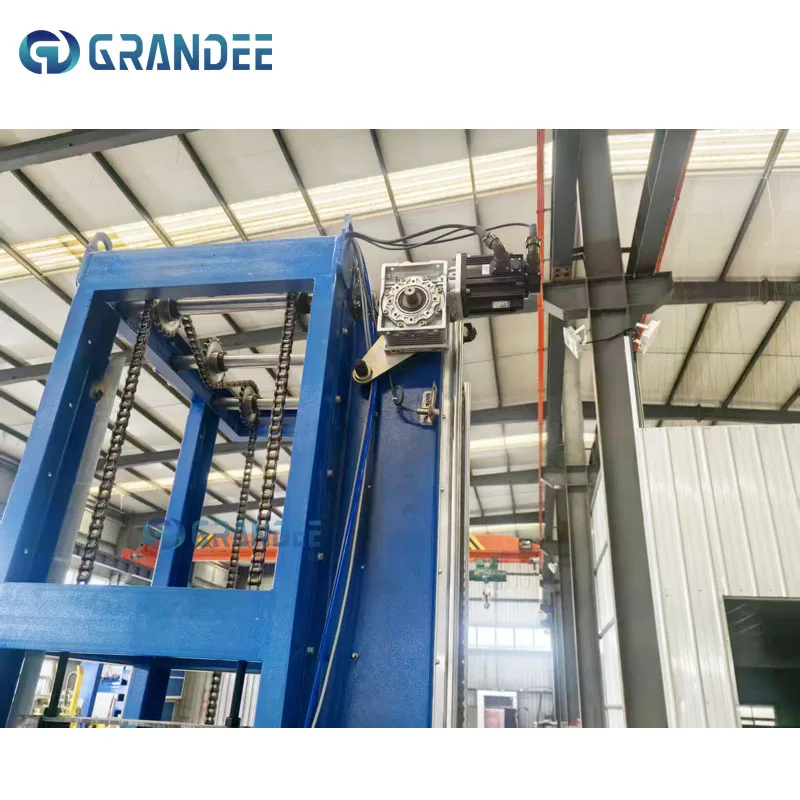

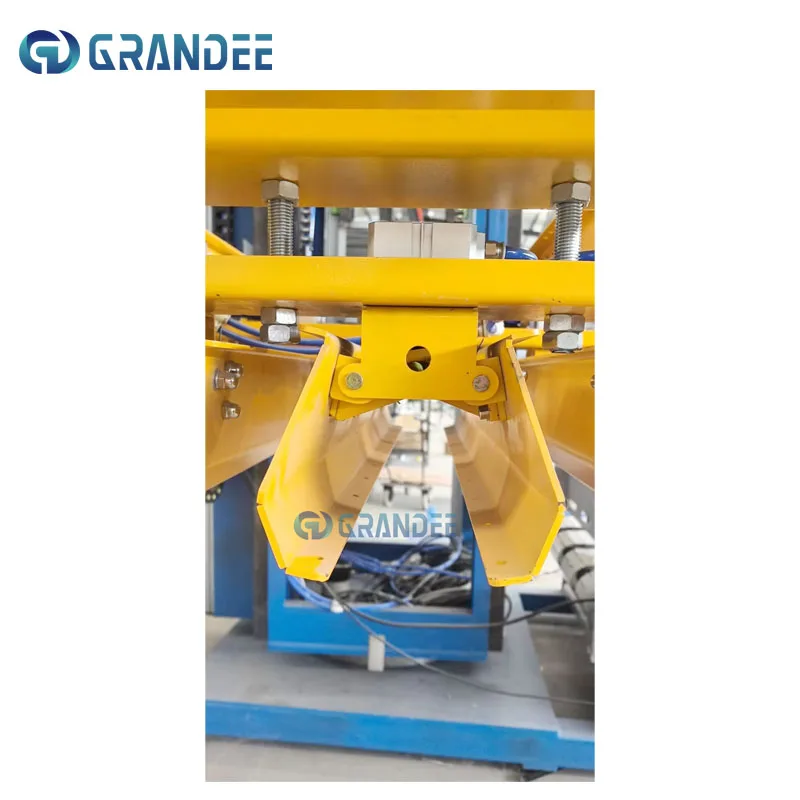

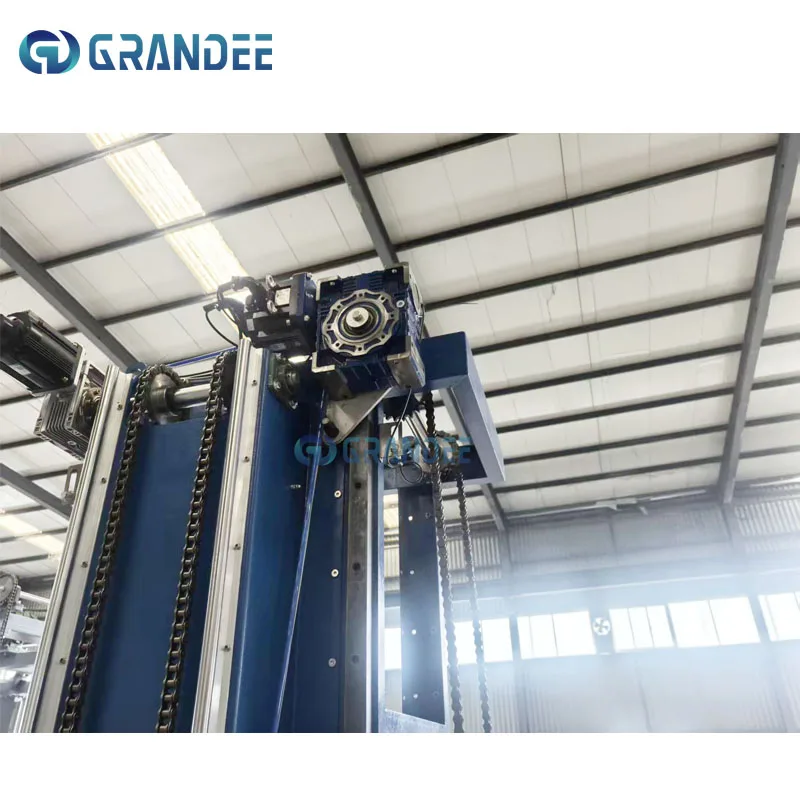

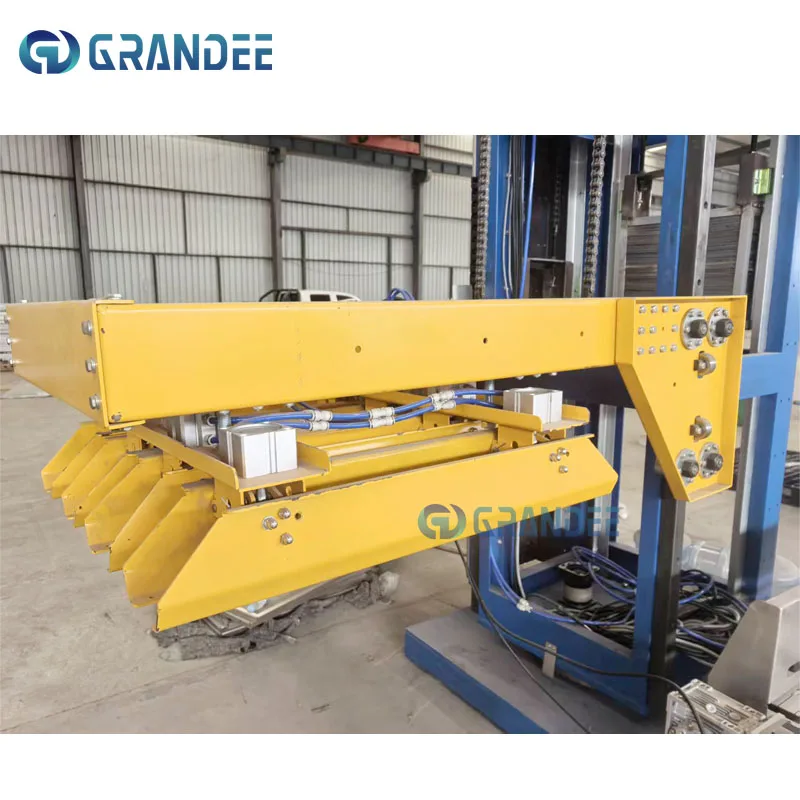

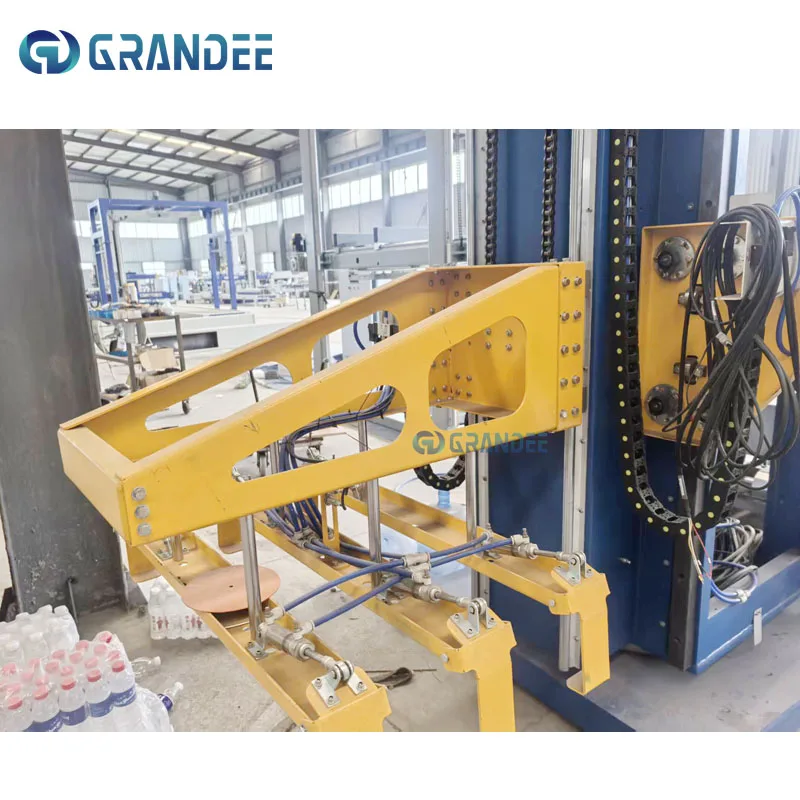

This vertical column palletizer is specially designed for automatic palletizing of 5-gallon plastic water barrels at the end of purified water and mineral water production lines. The machine adopts a stable vertical frame structure, featuring compact layout and small floor space. Equipped with special grippers for 5-gallon water jugs, it neatly handles packed barrels and automatically places separating sheets layer by layer to finish pallet stacking. It supports multiple sizes of plastic pallets. Controlled via HMI touch screen, it allows free switching of various palletizing patterns. The machine features stable driving and heavy load capacity: max load 320kg per layer, maximum 1300kg per pallet, and the maximum stacking height reaches 2000mm. It is widely used in automatic 5-gallon water filling lines to replace manual stacking, reduce labor cost and improve overall automation efficiency of water plants..

Supporting production line
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-4
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-5
Main technical parameter
Capacity
1500BPH for 5 gallon barrel
Operation Mode
HMI operation, palletizing mode can be switched freely
Maximum Load Capacity Per Layer
320 KG
Maximum Load Capacity Per Pallet
1300 KG
Maximum Stacking Height
2000mm (excluding pallet height)
Maximum Applicable Pallet Sizes
1300x1100mm;1200x1100mm; 1100x1000mm; 1200x1000mmm
(Custom sizes available upon request)
Motor Power Supply/Power
3-phase 5-wire, AC 380V/50HZ, 10KW
Control Voltage
DC 24V
Air Consumption
500NL/MIN
Air Pipe Connection Size
Φ16
Working Air Pressure
6-8KG/CM²
Machine Overall Dimension
(L)4000mm × (W)4000mm × (H)4000mm
Machine Weight
4500KG
For more information, please feel free to contact us to send an inquiry!

Turnkey Solution
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-6
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-7
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-8
Juice filling machine
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-9
Carbonated drink filling machine
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-10
Automatic soft drink production line
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-11
Mixed fruit juice mixing system
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-12
Mineral water filling machine
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-13
Bottle filling packaging machine
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-14
One stage or Second stage R.O. Water treatment system
Raw Water Tank→ Raw Water Pump→ Quartz Sand Filter→Activated Carbon Filter→ 5 Micron Filter→ 1 Micron Filter→High Pressure Pump→Primary Reverse Osmosis Device→Intermediate Water Tank→ Booster Pump→ (Secondary High Pressure Pump→Secondary Reverse Osmosis Device) → Ozone Mixer→Pure Water Pump→ Pure Water Tank→ External Supply Pump→ Titanium Tube Filter→ External Supply→ To Filling Machine
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-15
Automatic OPP BOPP hot melt Glue labeling machine
Automatic BOPP labeling machine is widely suitable for different material of containers and labels. The cost of each label is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is one of the most economical models to make mass production and integrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, like changing the label is only needed to change the PLC program, the products concept that the equipment is used for users and considered for users is embodied in everywhere.
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-16
Automatic PVC PE Sleeve Shrink Labeling Machine.
This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-17
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-18
Operating Principle Of Packaging Machine
The one-piece film wrapping machine is based on the heat shrinkage characteristics of the packaging film. It uses photoelectric switch sensors to detect online. The collected signals are controlled and processed by PLC (programmable controller) programs. The conveyor belt is used for continuous bottle feeding, bottle separation, and pressure The whole process is completed by mechanisms such as bottle, putting bottle, continuous pushing rod and bottle, single film wrapping, film picking and forming, heating channel shrinking and cooling and shaping.
Company Profile
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-19
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.

We are a technology-leading company, have a superior technology and talent team in liquid packaging machinery, electrical, computer engineering, etc. Our main products are blowing filling capping Combiblock, Aseptic cold filling machine, water treatment equipment, drinking water filling machine, juice and carbonated drink production line , can filling and sealing line, complete blowing labeling and packaging system.
We have laser cutting, CNC machining centers, and other various processing equipment to provide customers with precise and reliable products. The ERP system provides an important resource integration path for production management and ensures production and delivery cycles.
product automatic 1500bph 5 gallon barrel rotary vertical column palletizer for 5 gallon production line-20
